User Manual for Bigblue AL250NM and AL1200WP Combo Pack Click to enlarge the picture
Contents of the user manual for the Bigblue AL250NM and AL1200WP Combo Pack
- Product category: Dive Lights Bigblue
- Brand: Bigblue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bigblue Dive Lights
 |
User manual for the Bigblue AL250NM and AL1200WP Combo Pack contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bigblue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bigblue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bigblue product will considerably shorten its lifespan!
|

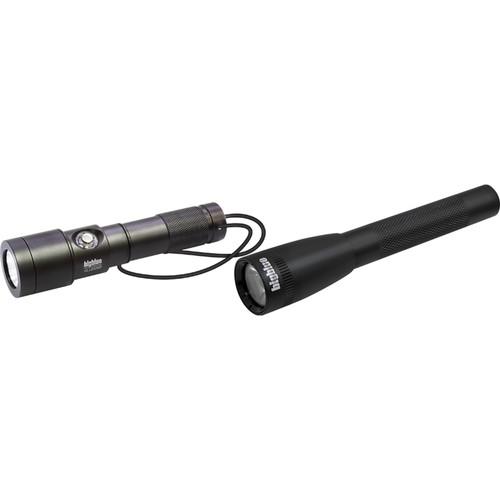

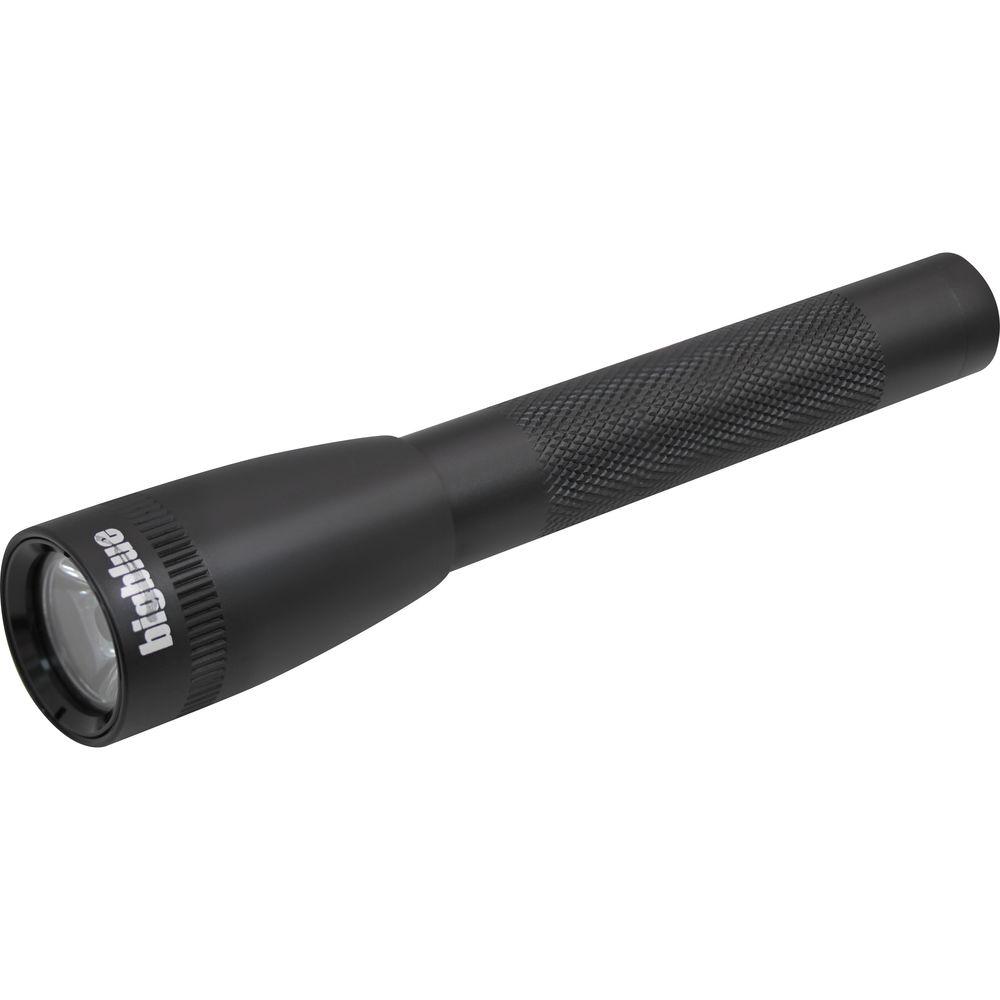

Product description Whether you are a newly certified or experienced diver, the black AL250NM and AL1200NP Combo Pack from Bigblue can provide your narrow and wide beam LED lighting requirements on land and underwater. The pack includes AL250, Al1200WP LED Dive Lights with a 328' depth rating, 6500K color temperature, and 8° & 85° beam angles. The lights are constructed from strong, durable anodized aluminum alloy, and run the included rechargeable li-ion battery (for AL1200WP), or user-supplied AA batteries (for AL250). Many divers use these lights as their primary or back-up kit. A lanyard for each light is included. - Bigblue AL250 Multi-Function LED Light
- Light Performance
- 250-lumens
- XPG LED emitter
- Color Temperature: 6500K
- Beam Angle: 8°
Switching- Type: Twist
- Location: Head
- Twist the head to turn on, twist it back to turn off
Construction Details- Depth rated to 328'
- Aluminum alloy housing
- Buoyancy: Positive (-3.0 oz with batteries)
- Corrosion-resistant black anodized finish
- Tempered glass emitter window
- Use on land and water
- Double O-ring sealed

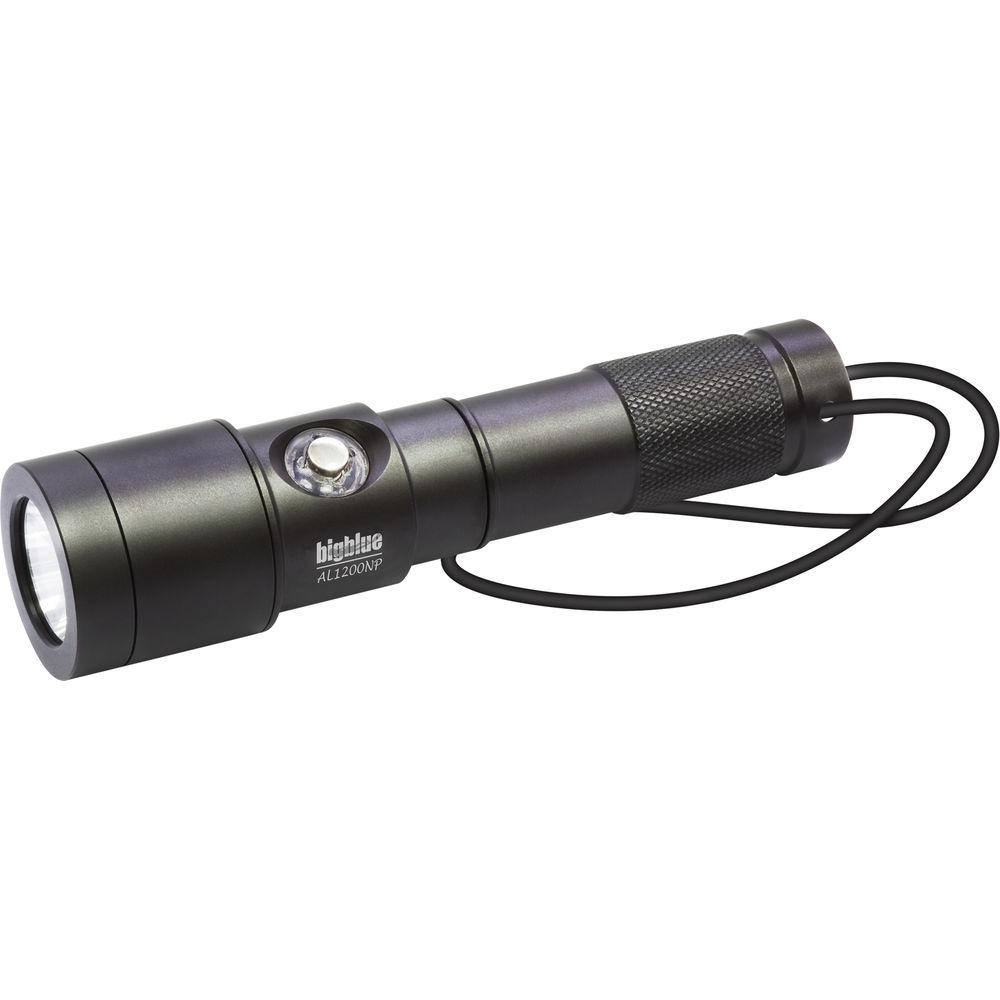

Bigblue AL1200WP Wide-Beam LED Dive Light - Light Performance
- Light Source: 1 XML LED
- Outputs: 120, 300, 600, and 1200 lumens
- Run Time: 20 h at 120 lumens, 8-10 h at 300 lumens, 4-5 h at 600 lumens, and 2 h at 1200 lumens with supplied, rechargeable 18650 lithium-ion battery
- Features wide 85° beam for use as a primary, all-around dive light
- Daylight-balanced 6500K color temperature helps restore hues that get absorbed by water, so you can bring color accuracy and richness back to your images
- Includes removable red and yellow filters that lower color temperature, creating a warming effect that's great for observing and recording sea creatures without scaring them off
Switching System- Push-button switch to power on/off and cycle through output levels
- Battery indicator on switch shows remaining power level
Construction Details- Depth rating: 328'
- Double O-ring seal
- Housing constructed from durable, anodized aluminum alloy for resistance to corrosion
- Emitter window made of tempered optical glass
In the Box Bigblue AL250NM and AL1200WP Combo Pack (Black) 2 x Lanyard Rechargeable 18650 Lithium-Ion Battery Red and Yellow Filter for AL1200WP Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bigblue AL250NM and AL1200WP Combo Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBigblue CP-AL250-BK/AL1200NP Specs | Light Intensity | AL250
250 Lumens
Al1200wP
Level I: 120 Lumens
Level II: 300 Lumens
Level III: 600 Lumens
Level IV: 1200 Lumens | | Run Time | AL250:
2 h, maximum
AL1200WP: Level I: 20 h
Level II: 8-10 h
Level III: 4-5 h
Level IV: 2 h | | Depth Rating | 328' / 100 m | | Batteries | AL250: 2 x AA batteries, Alkaline or Ni-MH
AL1200WP: Rechargeable 18650 lithium-ion battery (included) | | Dimensions | AL250: 1.1 x 5.8" / 2.8 x 12.8 cm
AL1200WP: 1.5 x 5.3" / 3.9 x 13.4 cm | | Weight | AL250: 4.8 oz / 135 g including batteries
Underwater: -3.0 oz / -85 g including battery
AL1200WP: 6.4 oz / 182 g including battery
Underwater: -3.25 oz / -92 g including battery |
