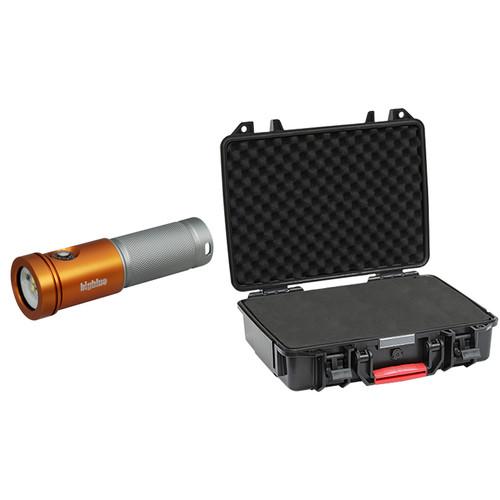

Product description Illuminate the underwater world at depths as great as 328' with Bigblue's orange and silver AL2600XWP Molly 3 Photo/Video LED Dive Light, which includes a protective hard case. Its four XML white LEDs output 260-2600 lumens in four levels, while two XPE red LEDs produce a warming effect for observing and recording sea creatures without scaring them off. This light is powered by a rechargeable lithium-ion battery that provides a run time of 2-20 hours, depending on the brightness level.
The AL2600XWP offers a very wide 120° flood beam for illuminating large subjects and areas with ease. A daylight-balanced, 6500K color temperature helps restore hues that get absorbed by water, allowing you to capture images in rich, vibrant, accurate colors. Additionally, the AL2600XWP includes a removable yellow warming filter, which lowers the color temperature and provides an alternative to the red LEDs.
Built to be durable, the light features an anodized aluminum body and a tempered optical glass emitter window. The push-button power switch on the light body doubles as the output selector, making it easy to cycle through the available levels and modes. - Light Performance
-
- Light source: 4 XML white LEDs and 2 XPE red LEDs
- Outputs: 260, 650, 1300, and 2600 lumens of white light
- Run time: 20 h at 260 lumens, 8.0 h at 650 lumens, 4.0 h at 1300 lumens, and 2.0 h at 2600 lumens with the supplied, rechargeable lithium-ion battery pack
- Broad 120° flood beam illuminates large subjects and areas with ease, giving you the coverage you need when photographing or recording humpback whales, coral reefs, and shipwrecks with wide-angle lenses
- Daylight-balanced, 6500K color temperature helps restore hues that get absorbed by water, ensuring that your captured images are full of rich, vibrant, accurate color
- Red LEDs lower this temperature, producing a warming effect for observing and recording sea creatures without scaring them off
- The red light can also help you see better when diving at night
- Included, removable yellow warming filter also lowers the color temperature and provides an alternative to the red LEDs
- Switching System
-
- Push-button switch on the body for turning the power on or off and cycling through outputs
- Battery indicator shows you the remaining power level
- Construction Details
-
- Depth Rating: 328'
- Double O-ring seal
- Body is made from a durable aluminum alloy that has been anodized for excellent resistance to corrosion
- Emitter window is crafted from tempered optical glass, which features excellent strength and clarity
- Supplied Accessories
-
- Included 1" ball joint allows you to mount the AL2600XWP onto a lighting arm on your camera or housing system
- Wrist lanyard keeps the light from getting away from you if it slips out of your hand
- Protective hard case with a handle and latches enables convenient storage and transportation
In the Box Bigblue AL2600XWP Molly 3 Photo/Video LED Dive Light with Protective Case (Orange and Silver) Protective Hard Case Lithium-Ion Battery Cell 26650 for AL1800XWP Dive Light (3.7V, 4000mAh) zqyearrceafdzv Yellow Warming Filter 1" Ball Mount for Camera / Housing System Lanyard Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bigblue AL2600XWP Molly 3 Photo Video LED Dive Light with Protective Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBigblue PC-AL2600XWP-OR Specs | Depth Rating | 328' / 100 m | | Light Source | 4x XML white LEDs
2x XPE red LEDs | | Light Intensity | Level I: 260 lumens
Level II: 650 lumens
Level III: 1300 lumens
Level IV: 2600 lumens | | Beam Angle | 120° | | Color Temperature | 6500K
Lower/warmer with red LEDs or yellow filter | | Run Time | Level I: 20 h
Level II: 8.0 h
Level III: 4.0 h
Level IV: 2.0 h | | Switching System | Push-button switch with battery indicator | | Material of Construction | Housing: Anodized aluminum alloy
Emitter Window: Tempered optical glass | | Power | Rechargeable lithium-ion battery pack | | Dimensions | Diameter x Length: 1.5 x 5.0" / 3.9 x 12.75 cm | | Weight | Out of Water: 7.9 oz / 223 g including battery
Underwater: -4.0 oz / -112 g including battery |
