Product description

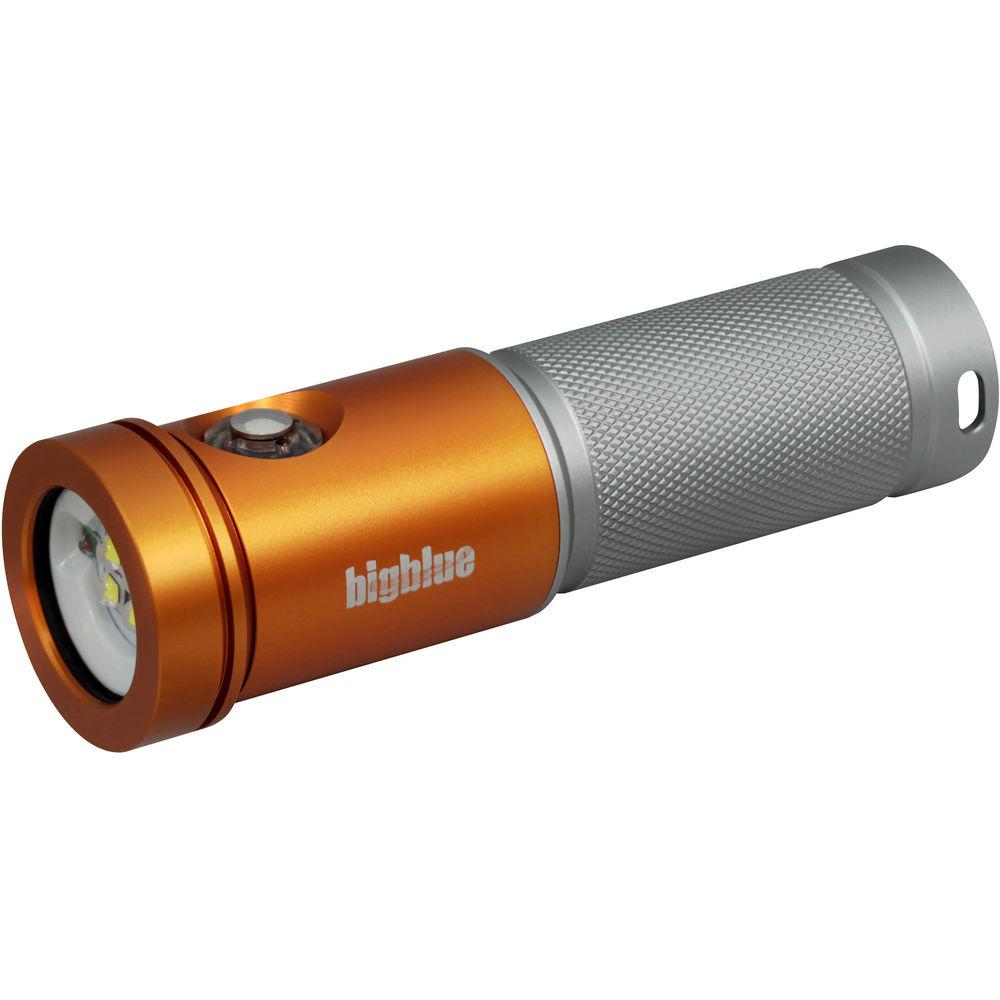

• AL2600XWP Molly 3 Photo/Video LED Dive Light with Protective Case (Orange and Silver) Illuminate the underwater world at depths as great as 328' with Bigblue's orange and silver AL2600XWP Molly 3 Photo/Video LED Dive Light, which includes a protective hard case. Its four XML white LEDs output 260-2600 lumens in four levels, while two XPE red LEDs produce a warming effect for observing and recording sea creatures without scaring them off. This light is powered by a rechargeable lithium-ion battery that provides a run time of 2-20 hours, depending on the brightness level.

  The AL2600XWP offers a very wide 120° flood beam for illuminating large subjects and areas with ease. A daylight-balanced, 6500K color temperature helps restore hues that get absorbed by water, allowing you to capture images in rich, vibrant, accurate colors. Additionally, the AL2600XWP includes a removable yellow warming filter, which lowers the color temperature and provides an alternative to the red LEDs.

  Built to be durable, the light features an anodized aluminum body and a tempered optical glass emitter window. The push-button power switch on the light body doubles as the output selector, making it easy to cycle through the available levels and modes.
  Light Performance
  • • Light source: 4 XML white LEDs and 2 XPE red LEDs
    • Outputs: 260, 650, 1300, and 2600 lumens of white light
    • Run time: 20 h at 260 lumens, 8.0 h at 650 lumens, 4.0 h at 1300 lumens, and 2.0 h at 2600 lumens with the supplied, rechargeable lithium-ion battery pack
    • Broad 120° flood beam illuminates large subjects and areas with ease, giving you the coverage you need when photographing or recording humpback whales, coral reefs, and shipwrecks with wide-angle lenses
    • Daylight-balanced, 6500K color temperature helps restore hues that get absorbed by water, ensuring that your captured images are full of rich, vibrant, accurate color
    • Red LEDs lower this temperature, producing a warming effect for observing and recording sea creatures without scaring them off
    • The red light can also help you see better when diving at night
    • Included, removable yellow warming filter also lowers the color temperature and provides an alternative to the red LEDs
  Switching System
  • • Push-button switch on the body for turning the power on or off and cycling through outputs
    • Battery indicator shows you the remaining power level
  Construction Details
  • • Depth Rating: 328'
    • Double O-ring seal
    • Body is made from a durable aluminum alloy that has been anodized for excellent resistance to corrosion
    • Emitter window is crafted from tempered optical glass, which features excellent strength and clarity
  Supplied Accessories
  • • Included 1" ball joint allows you to mount the AL2600XWP onto a lighting arm on your camera or housing system
    • Wrist lanyard keeps the light from getting away from you if it slips out of your hand

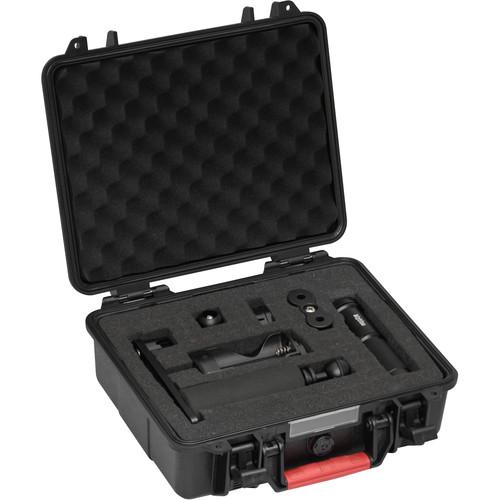

    • Protective hard case with a handle and latches enables convenient storage and transportation

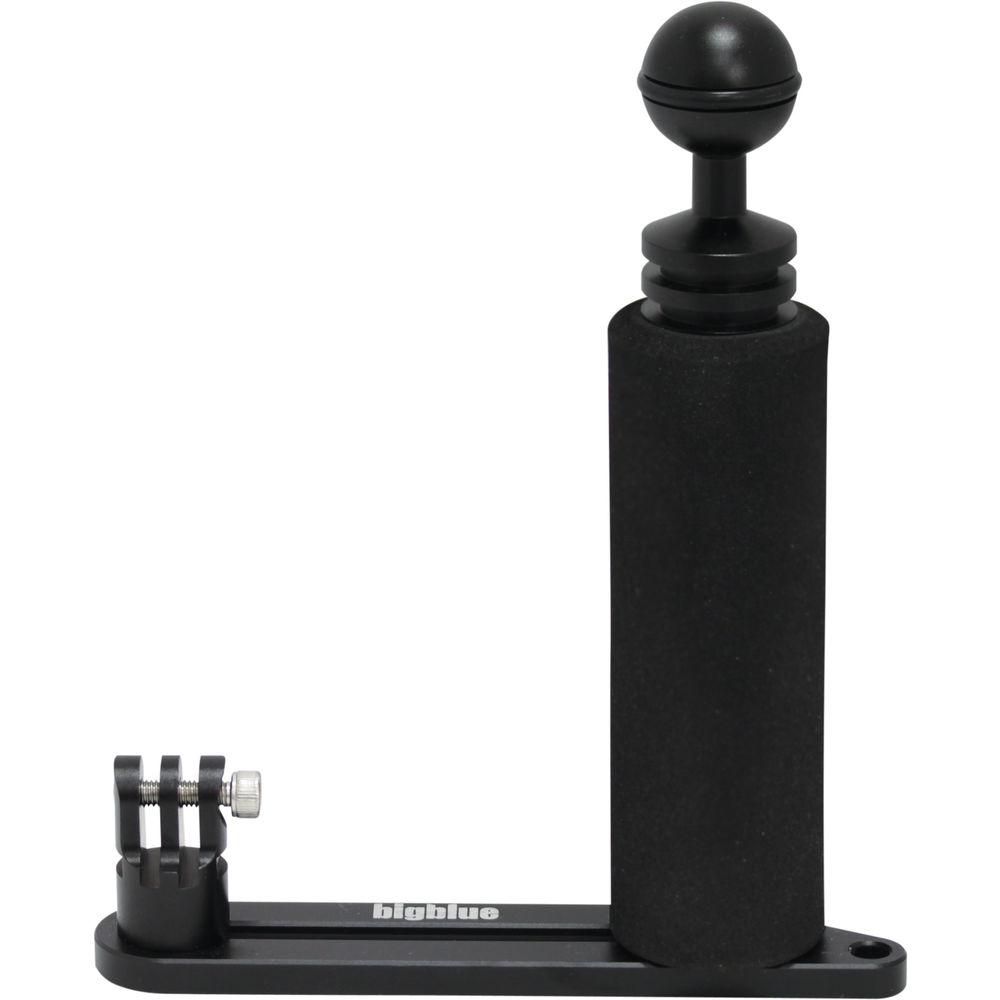

• Single-Arm Mounting Tray for GoPro Cameras Provided by third party: A compact mounting tray - the handle has a 1" ball at the top of the arm. The tray features an anodized aluminum adapter.


• Protective Hard Case

• Lithium-Ion Battery Cell 26650 for AL1800XWP Dive Light (3.7V, 4000mAh)

• Yellow Warming Filter

• 1" Ball Mount for Camera / Housing System

• Lanyard

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• AL2600XWP Molly 3 Photo/Video LED Dive Light with Protective Case (Orange and Silver)

  Depth Rating	328' / 100 m
  Light Source	4x XML white LEDs 2x XPE red LEDs
  Light Intensity	Level I: 260 lumens Level II: 650 lumens Level III: 1300 lumens Level IV: 2600 lumens
  Beam Angle	120°
  Color Temperature	6500K Lower/warmer with red LEDs or yellow filter
  Run Time	Level I: 20 h Level II: 8.0 h Level III: 4.0 h Level IV: 2.0 h
  Switching System	Push-button switch with battery indicator
  Material of Construction	Housing: Anodized aluminum alloy Emitter Window: Tempered optical glass
  Power	Rechargeable lithium-ion battery pack
  Dimensions	Diameter x Length: 1.5 x 5.0" / 3.9 x 12.75 cm
  Weight	Out of Water: 7.9 oz / 223 g including battery Underwater: -4.0 oz / -112 g including battery

• Single-Arm Mounting Tray for GoPro Cameras

  Accessory Type	Mounting tray

  Intended For	Action camera

  Kit Content	(1) x mounting tray (1) x mounting adapter Screw (1) x wrench

  Box Dimensions (LxWxH)	6.6 x 6.3 x 1.8"
