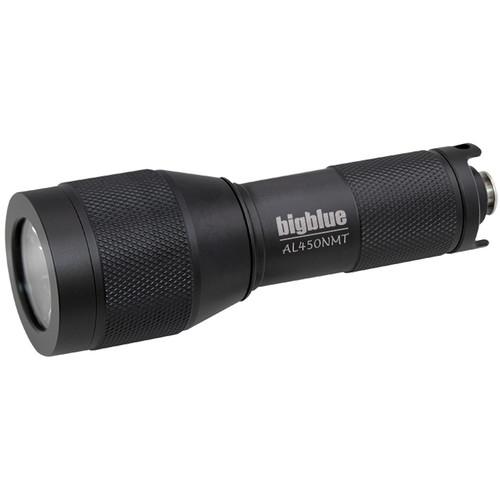

Product description Whether you are a newly certified or experienced diver, the black AL450NM and AL1200NP Combo Pack from bigblue can provide your narrow and wide beam LED lighting requirements on land and underwater. The pack includes AL450, Al1200WP LED Dive Lights with a 328' depth rating, 6500K color temperature, and 8° & 85° beam angles. The lights are constructed from strong, durable anodized aluminum alloy, and run the included rechargeable li-ion battery (for AL1200WP), or user-supplied AAA batteries (for AL450). Many divers use these lights as their primary or back-up kit. A lanyard for each light is included. - Bigblue AL450 Multi-Function LED Light
- Light Performance
- 450-lumens
- XPG LED emitter
- Color temperature: 6500K
- Beam Angle: 8°

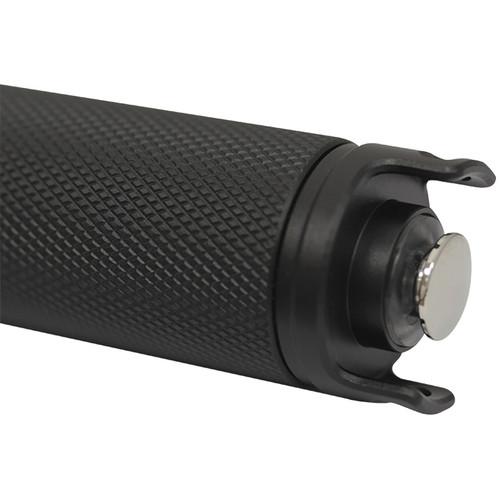

Switching- Type: On-off tail switch
- Location: Tail
Construction Details- Depth rated to 328'
- Aluminum alloy housing
- Buoyancy: Positive (-2.7 oz with batteries)
- Corrosion-resistant black anodized finish
- Tempered glass emitter window
- Use on land and water
- Double O-ring sealed

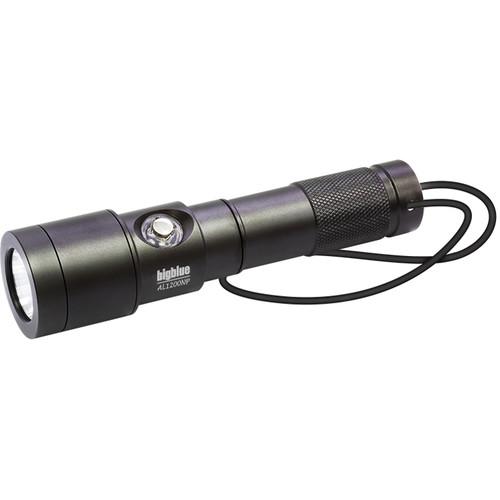

- Bigblue AL1200WP Wide-Beam LED Dive Light
- Light Performance
- Light Source: 1 XML LED
- Outputs: 120, 300, 600, and 1200 lumens
- Run Time: 20 h at 120 lumens, 8-10 h at 300 lumens, 4-5 h at 600 lumens, and 2 h at 1200 lumens with supplied, rechargeable 18650 lithium-ion battery
- Features wide 85° beam for use as a primary, all-around dive light
- Daylight-balanced 6500K color temperature helps restore hues that get absorbed by water, so you can bring color accuracy and richness back to your images
- Includes removable red and yellow filters that lower color temperature, creating a warming effect that's great for observing and recording sea creatures without scaring them off
Switching System- Push-button switch to power on/off and cycle through output levels
- Battery indicator on switch shows remaining power level
Construction Details- Depth Rating: 328'
- Double O-ring seal
- Housing constructed from durable, anodized aluminum alloy for resistance to corrosion
- Emitter window made of tempered optical glass
In the Box Bigblue AL450NM and AL1200WP Combo Pack (Black) 2 x Lanyards Rechargeable 18650 Lithium-Ion Battery Red and Yellow Filters for AL1200WP Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bigblue AL450NM and AL1200WP Combo Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBigblue CP-AL450NMT-BK/AL1200NP Specs | Light Intensity | AL450
450 Lumens
Al1200wP:
Level I: 120 Lumens
Level II: 300 Lumens
Level III: 600 Lumens
Level IV: 1200 Lumens | | Burn Time | AL450: 4 h, maximum
AL1200WP: Level I: 20 h
Level II: 8-10 h
Level III: 4-5 h

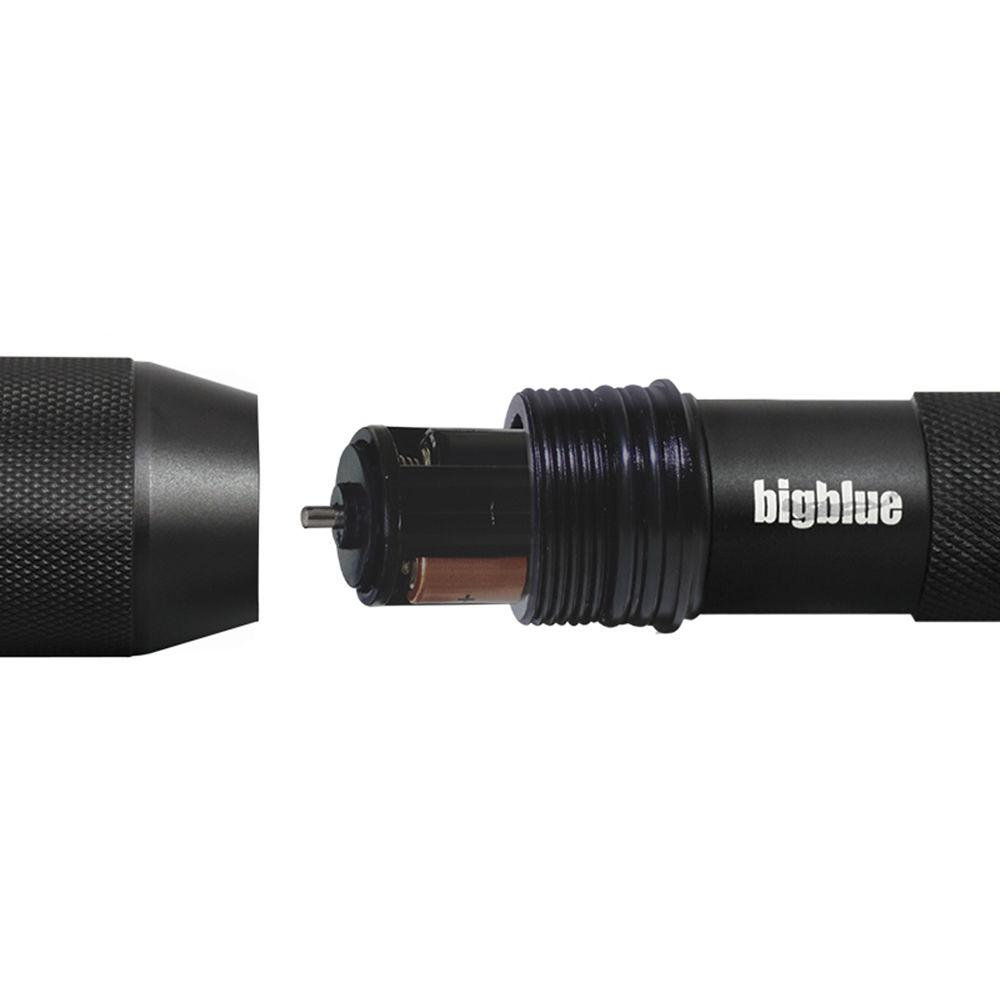

Level IV: 2 h | | Depth Rating | 328' / 100 m | | Batteries | AL450: 3 x AAA batteries, Alkaline or Ni-MH
AL1200WP: Rechargeable 18650 lithium-ion battery (included) | | Dimensions | AL450: 1.7 x 4.9" / 4.2 x 12.54 cm
AL1200WP: 1.5 x 5.3" / 3.9 x 13.4 cm | | Weight | AL450: 6.5 oz / 185 g including batteries
Underwater: -2.8 oz / -79 g including battery
AL1200WP: Out of Water: 6.4 oz / 182 g including battery
Underwater: -3.25 oz / -92 g including battery | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 7.0 x 7.0 x 2.5" |
