User Manual for Bigblue AL450WMT Wide and AL1200NP Narrow LED Dive Light Combo Pack Click to enlarge the picture
Contents of the user manual for the Bigblue AL450WMT Wide and AL1200NP Narrow
- Product category: Dive Lights Bigblue
- Brand: Bigblue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bigblue Dive Lights
 |
User manual for the Bigblue AL450WMT Wide and AL1200NP Narrow contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bigblue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bigblue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bigblue product will considerably shorten its lifespan!
|

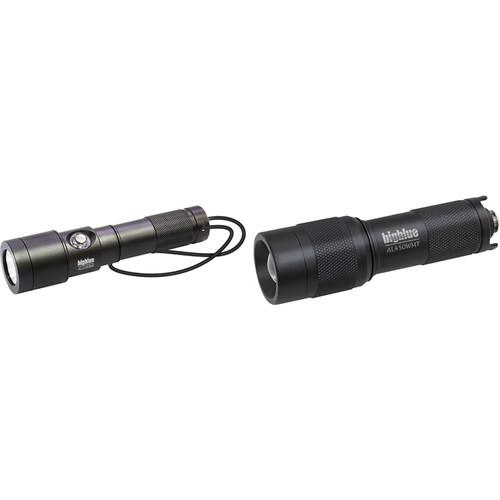

Product description Benefit from both flood and spot coverage when illuminating the underwater world with the Bigblue AL450WMT Wide and AL1200NP Narrow LED Dive Light Combo Pack. The AL450WMT features a fairly wide 40° beam that's great for general diving, while the AL1200NP offers a concentrated 10° beam that works well when focusing, exploring tight spaces, and examining sea life up close. Both models have depth ratings of 328'.

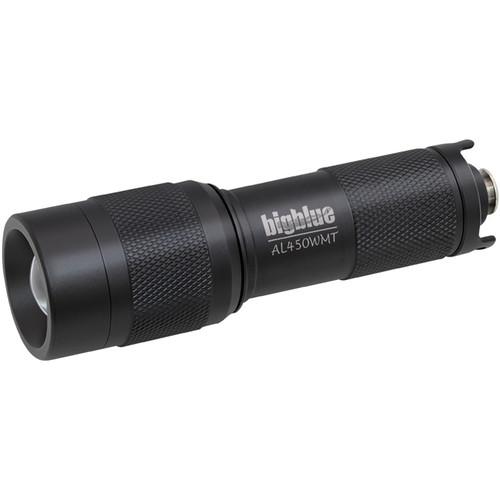

Bigblue's AL450WMT and AL1200NP lights are equipped with white LEDs that produce daylight-balanced beams at a color temperature of 6500K. The former outputs 450 lumens, and the latter emits 120-1200 lumens in four selectable levels. Whereas the AL450 takes three AAAs that will last for 4 hours, the AL1200 is powered by a rechargeable lithium-ion battery that runs for 2-20 h, depending on the brightness level. - AL450WMT Mini LED Dive Light with Wide Beam (Black) Illuminate the underwater world at depths as great as 328' with the black AL450WMT Mini LED Dive Light from Bigblue. Its single white CREE LED outputs 450 lumens. Power is provided by three supplied AAA batteries, which give the AL450WMT a run time of up to four hours. The light features a fairly wide 40° flood beam, making it a great tool for general diving. Additionally, its color temperature is daylight-balanced at 6500K, allowing it to restore hues that are absorbed by the water.
Built for extreme durability as well as high performance, the AL450WMT's head and body are made from an aluminum alloy that has been anodized to resist corrosion. Its emitter window is crafted from tempered optical glass with notable strength and clarity. The supplied lanyard enables you to attach the light to your wrist or equipment, greatly reducing the chances of losing it. - Light Performance
-
- Light Source: One white CREE LED
- Output: 450 lumens

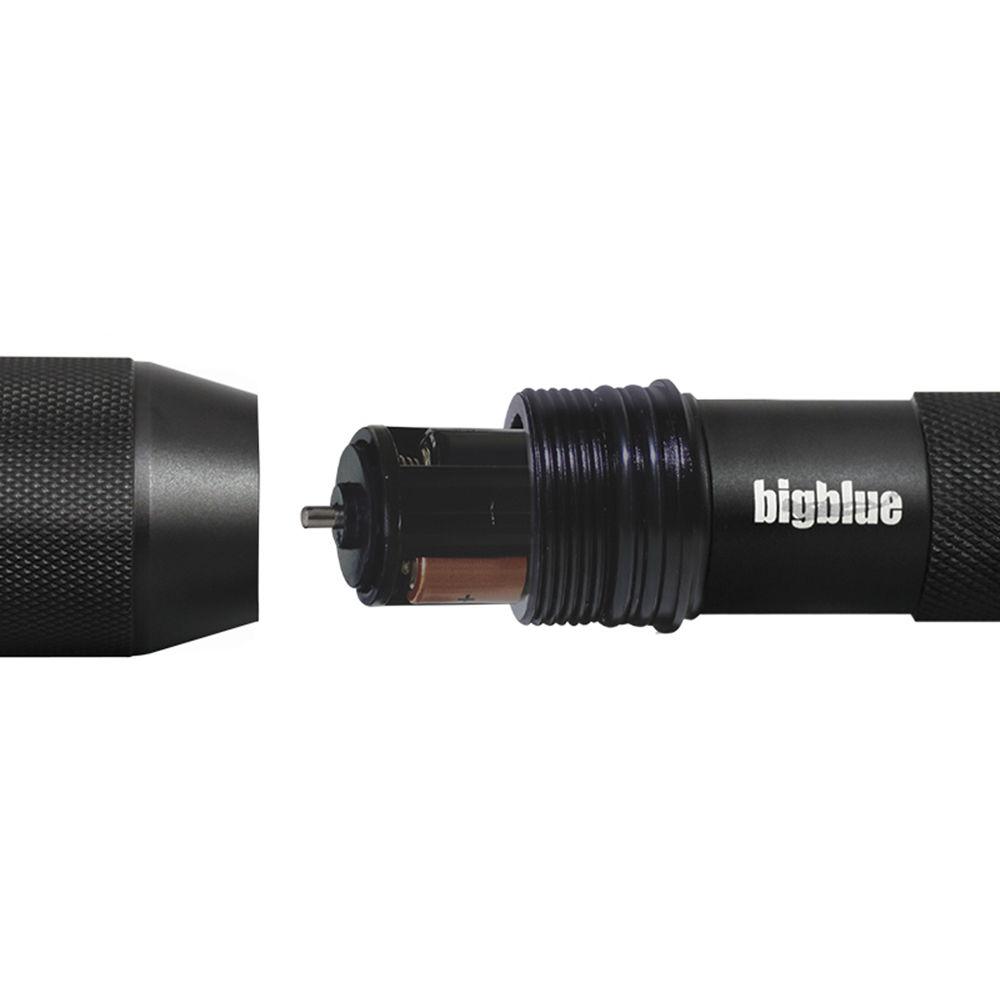

- Run Time: 4 h with the 3 supplied AAA batteries
- Fairly wide 40° flood beam makes the AL450WMT a great light for general diving
- With a daylight-balanced color temperature of 6500K, the light restores hues that are absorbed beneath the surface to ensure that you can see everything in rich, accurate colors
- Switching System
-
- Push-button switch on the tail cap allows you to turn the power on and off
- Construction Details
-
- Depth Rating: 328'
- Double O-ring seal
- Housing is made from a durable aluminum alloy, which has been anodized for excellent resistance to corrosion
- Emitter window is crafted from tempered optical glass, which has notable strength and clarity

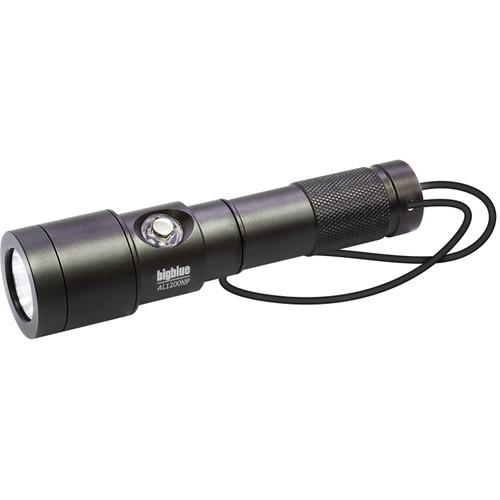

- AL1200NP Narrow Beam LED Dive Light Illuminate the underwater world at depths as great as 328' with Bigblue's AL1200NP Narrow-Beam LED Dive Light. Its XML white LED outputs 120-1200 lumens in four selectable levels. Power is provided by a rechargeable lithium-ion battery pack, which gives the light a run time of 2.0-20 hours depending on the brightness level. The AL1200NP's narrow 10° beam is great for focusing, exploring tight spaces, and examining sea life up close.
A daylight-balanced 6500K color temperature helps restore hues that get absorbed by water, so you can bring color accuracy and richness back to your images. Built for durability, especially resistance to corrosion, the light has a housing constructed from anodized aluminum and an emitter window made of tempered optical glass. A push-button body switch enables you to power the light on or off and cycle through output levels, while a battery indicator shows the remaining power level. - Light Performance
-
- Light source: 1 XML LED
- Outputs: 120, 300, 600, and 1200 lumens

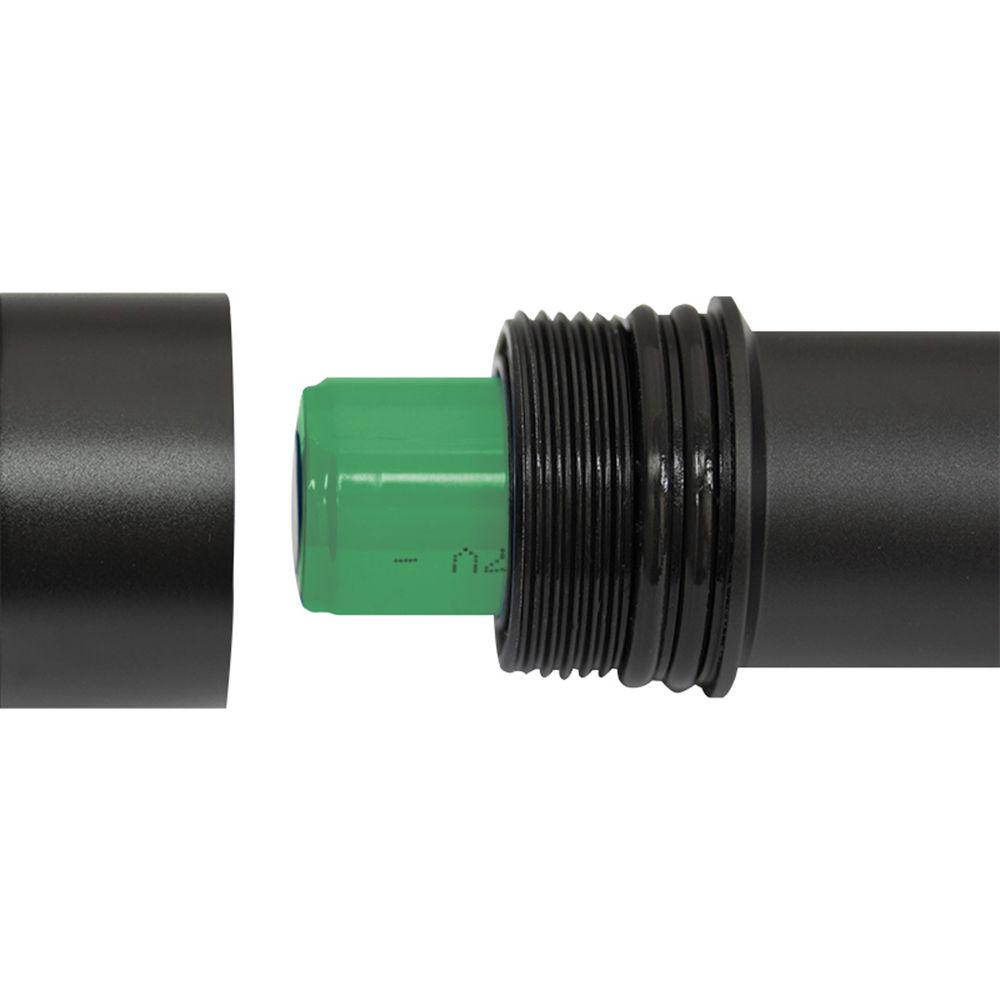

- Run time: 20 h at 120 lumens, 8.0-10 h at 300 lumens, 4.0-5.0 h at 600 lumens, and 2.0 h at 1200 lumens with supplied, rechargeable 18650 lithium-ion battery
- Features narrow 10° beam for focusing, exploring tight spaces, and examining sea life up close
- Daylight-balanced 6500K color temperature helps restore hues that get absorbed by water, so you can bring color accuracy and richness back to your images
- Switching System
-
- Push-button body switch to power on/off and cycle through output levels
- Battery indicator on switch shows remaining power level
- Construction Details
-
- Depth rating: 328'
- Double O-ring seal
- Housing constructed from durable, anodized aluminum alloy for resistance to corrosion
- Emitter window made of tempered optical glass
In the Box Bundle Items AL450WMT Mini LED Dive Light with Wide Beam (Black) ffetcvdbwdttcyaxrsbsr AL1200NP Narrow Beam LED Dive Light - Rechargeable 18650 Li-Ion Battery
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bigblue AL450WMT Wide and AL1200NP Narrow LED Dive Light Combo Pack in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - AL450WMT Mini LED Dive Light with Wide Beam (Black)
| Depth Rating | 328' / 100 m | | Light Source | 1x White CREE LED | | Light Intensity | 450 lumens | | Beam Angle | 40° | | Color Temperature | 6500K | | Run Time | 4 h | | Switching System | Push-button on tail cap for power | | Material of Construction | Housing: Anodized aluminum alloy
Emitter Window: Tempered optical glass | | Power | 3x AAA batteries (included)
Accepts alkaline or NiMH cells | | Operating Temperature | Not specified by manufacturer | | Dimensions | Diameter x Length: 1.4 x 4.3" / 3.6 x 10.9 cm | | Weight | 5.4 oz / 152 g with batteries
Underwater: -2.5 oz / -72 g with batteries | - AL1200NP Narrow Beam LED Dive Light
| Depth Rating | 328' / 100 m | | Light Source | 1x XML LED | | Light Intensity Output | Level I: 120 Lumens
Level II: 300 Lumens
Level III: 600 Lumens
Level IV: 1200 Lumens | | Beam Angle | 10° | | Color Temperature | 6500K | | Run Time | Level I: 20 h
Level II: 8.0-10 h
Level III: 4.0-5.0 h
Level IV: 2.0 h | | Switching System | Push-button with battery indicator | | Material of Construction | Housing: Anodized aluminum alloy
Emitter Window: Tempered optical glass | | Power | Rechargeable 18650 lithium-ion battery (included) | | Dimensions | Diameter x Length: 1.4 x 5.7" / 3.5 x 14.5 cm | | Weight | Out of Water: 6.3 oz / 178 g including battery
Underwater: -2.7 oz / -79 g including battery | | | | Box Dimensions (LxWxH) | 7.4 x 5.9 x 2.6" |
