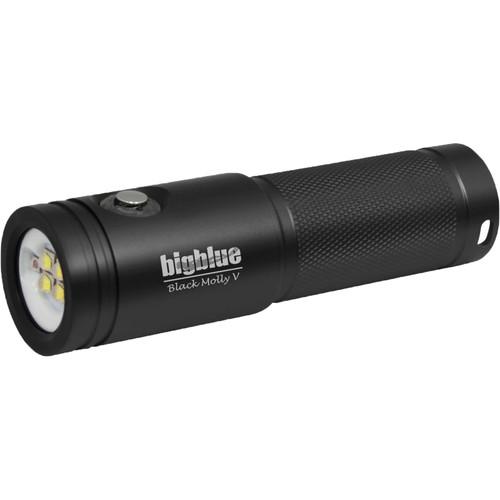

User Manual for Bigblue Black Molly 5 Dive Light Click to enlarge the picture
Contents of the user manual for the Bigblue Black Molly 5 Dive Light
- Product category: Continuous Lights Bigblue
- Brand: Bigblue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bigblue Continuous Lights
|
User manual for the Bigblue Black Molly 5 Dive Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bigblue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bigblue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bigblue product will considerably shorten its lifespan!
|
Product description Rated to work at depths to 328', the Black Molly 5 Dive Light from Bigblue is a useful accessory for image makers who work underwater. The light, offered here in black, features four brightness levels with a peak output of 2600 lumens, a beam angle of 120°, and a 150-lumen red light setting for focusing and night video work. A single illuminated push-button switch turns the light on/off and serves as a battery level indicator. Runtime with the 26650 battery freshly charged ranges from 2 to 20 hours, depending on output level. Made of anodized aluminum alloy with a tempered optical glass lens, the Black Molly 5 can be easily mounted onto a video rig with the included 1" ball or used hand-held. - Light Performance
-
- 2600 lumens high, 1300 lumens medium, 650 lumens low, 260 lumens minimum
- Red light: 150 lumens
- 6500K color temperature with removable yellow filter for warmer tone
- 120° beam
- Runtime: 2 hours high, 4 hours medium, 8 hours low, 20 hours minimum
- Switching
-
- Single illuminated push button
- Battery power indicator
- Construction Details
-
- Depth rated for 328'
- Anodized aluminum alloy housing with tempered optical glass lens
- 26650 rechargeable Li-ion battery with charger
- Measures 5 x 1.4", weighs 7.7 ounces, buoyancy -3.7 ounces
- Runs on one 26650 rechargeable battery
In the Box Bigblue Black Molly 5 Dive Light (Black) 26650 Li-Ion Battery Charger Removable Yellow Filter Dry Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bigblue Black Molly 5 Dive Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBigblue Black Molly 5 Specs | Light Source | 4 x XML LED
2 x XPE Red LED | | Light Output | Level IV: 2600 Lumens
Level III: 1300 Lumens
Level II: 650 Lumens
Level I: 260 Lumens
Red: 150 Lumens | | Runtime | Level IV: 2 Hours
Level III: 4 Hours
Level II: 8 Hours
Level I: 20 Hours | | Switching System | Push Button with Battery Indicator | | Beam Angle | 120° | | Color Temperature | Cool White: 6500K | | Maximum Depth | 328' / 100 m Tested | | Buoyancy | -3.7 oz / -105 g Including Battery | | Casing Material | Anodized Aluminum Alloy | | Power Source | 26650 Rechargeable Battery | | Dimensions | 5 x 1.4" / 12.7 x 3.6 cm | | Weight | 7.7 oz / 218 g with Battery |
