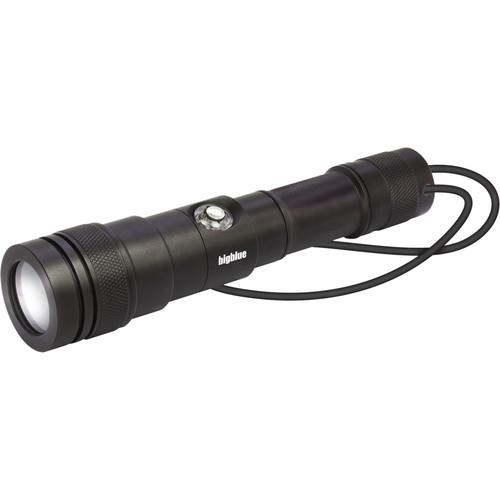

User Manual for Bigblue CF1200P LED Dive Light with Adjustable Beam Click to enlarge the picture
Contents of the user manual for the Bigblue CF1200P LED Dive Light with
- Product category: Dive Lights Bigblue
- Brand: Bigblue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bigblue Dive Lights
|
User manual for the Bigblue CF1200P LED Dive Light with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bigblue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bigblue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bigblue product will considerably shorten its lifespan!
|
Product description Illuminate the wonders of the underwater world at depths as great as 328' with Bigblue's CF1200P LED Dive Light. Its single XML LED outputs 110 - 1100 lumens in four selectable levels. The supplied, rechargeable lithium-ion battery provides a run time of 2 - 20 hours depending on brightness. An adjustable coverage angle makes the CF1200P a versatile light, as the tight 7° setting is great for focusing, exploring small spaces, and examining sea life up close, and the wider 37° setting produces an effective primary photo/video or general dive beam. A daylight-balanced 6500K color temperature helps restore hues that get absorbed by water--so you can bring color accuracy and richness back to your images.
Built for durability, especially resistance to corrosion, the light has a housing constructed from anodized aluminum and an emitter window made of tempered optical glass. A push-button switch enables you to power the light on or off and cycle through output levels, while a battery indicator shows the remaining power level. Additionally, a charger for the li-ion battery is supplied, as is a wrist lanyard to keep the CF1200P from getting away if it slips out of your hand. - Light Performance
-
- Light source: 1 XML LED
- Four outputs: 110, 275, 550, and 1100 lumens
- Run time: 2 hours at 1100 lumens (level IV), 5 hours at 550 lumens (III), 8 hours at 275 lumens (II), and 20 hours at 110 lumens (level I)
- Supplied, rechargeable lithium-ion battery
- Adjustable beam angle: 7-37°, allowing you to use light to focus, see into tight spaces, examine sea life up close, illuminate photos and videos, or explore as you dive
- Daylight-balanced 6500K color temperature helps restore hues that get absorbed by water--so you can bring color accuracy and richness back to your images
- Switching System
-
- Push-button switch for activating power on/off functions and cycling through output modes
- Battery indicator lets you keep an eye on power level
- Construction Details
-
- Depth rating: 328'
- Anodized aluminum housing for resistance to corrosion
- Tempered optical glass emitter window
- Double O-ring seal
In the Box Bigblue CF1200P LED Dive Light with Adjustable Beam Li-Ion Rechargeable Battery Pack Charger Lanyard Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bigblue CF1200P LED Dive Light with Adjustable Beam in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBigblue CF1200P Specs | Light Source | 1x XML LED | | Depth Rating | 328' / 100 m | | Light Intensity | Level I: 110 Lumens
Level II: 275 Lumens
Level III: 550 Lumens
Level IV: 1100 Lumens | | Beam Angle | 7-37° | | Color Temperature | 6500K | | Run Time | Level I: 20 hours
Level II: 8 hours
Level III: 5 hours
Level IV: 2 hours | | Switching System | Push-button with battery indicator | | Material of Construction | Housing: Anodized aluminum
Emitter Window: Tempered optical glass | | Power | Rechargeable 18650 lithium-ion battery and charger (included) | | Dimensions | Diameter x Length: 1.6 x 6.8" / 4.0 x 17.2 cm | | Weight | Underwater: -4.1 oz / -117 g including battery
Out of Water: 8.8 oz / 250 g including battery | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 8.3 x 5.9 x 2.5" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 29 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Bigblue CF1200P LED Dive Light with Adjustable Beam
| Subject: manual forbiub | | Date: 27.08.2022 17:46:01 | Name: David Semones | | i think the bulb or switch is bad. how do change the bulb | | Post reply |
