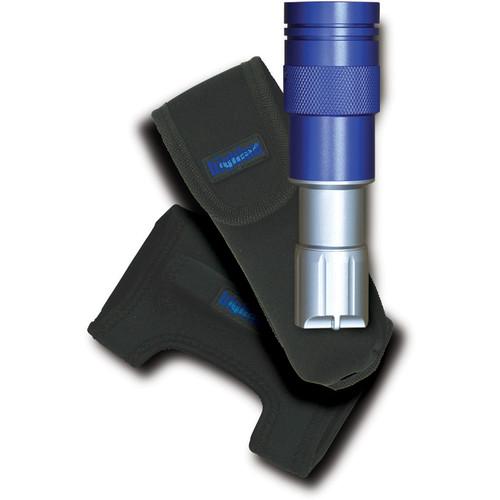

User Manual for Bigblue CF450 LED Dive Light with Goodman Glove and Pouch Click to enlarge the picture
Contents of the user manual for the Bigblue CF450 LED Dive Light with
- Product category: Dive Lights Bigblue
- Brand: Bigblue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bigblue Dive Lights
 |
User manual for the Bigblue CF450 LED Dive Light with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bigblue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bigblue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bigblue product will considerably shorten its lifespan!
|

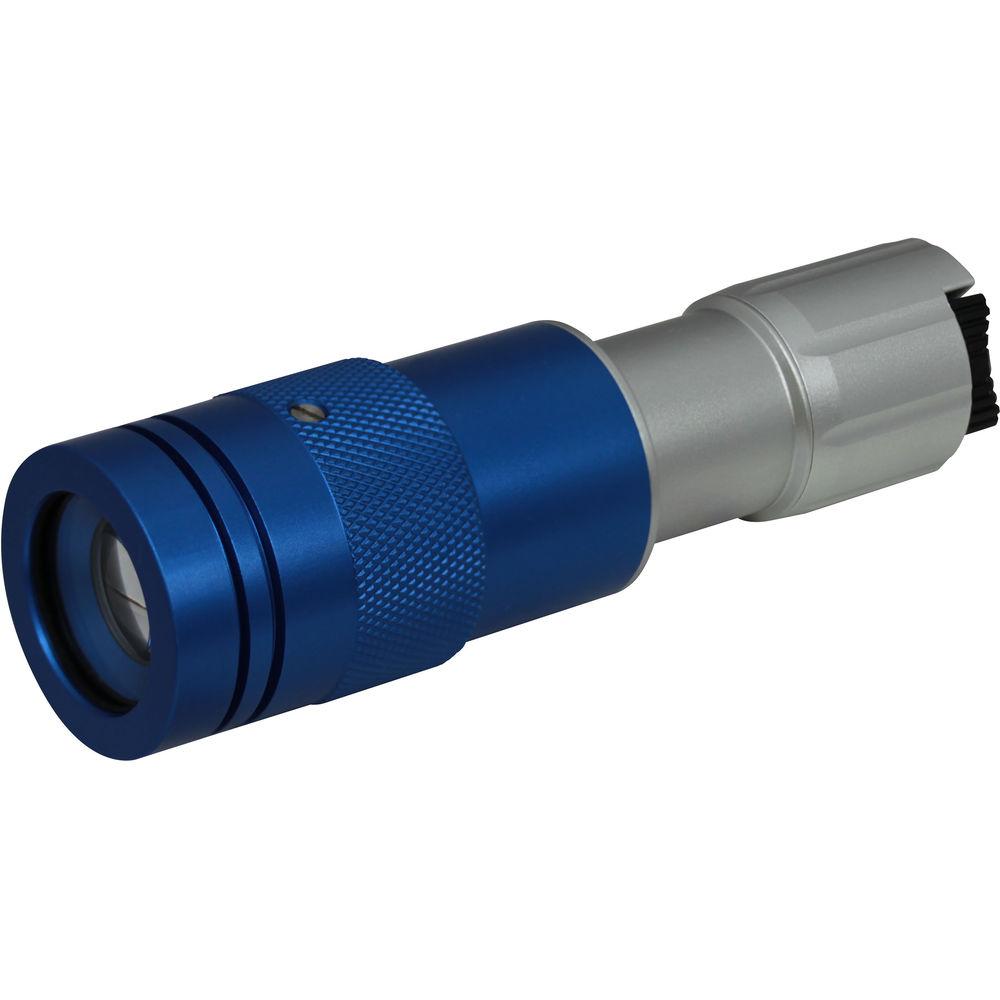

Product description Illuminate the underwater world at depths as great as 328' with the blue CF450 LED Dive Light from Bigblue. Its single CREE LED outputs 450 lumens. Power is provided by three supplied AAA batteries, which give the CF450 a run time of up to four hours. The beam features an adjustable angle of coverage ranging from 6° to 31°, making the light a great tool for focusing, exploring tight spaces, and examining sea life up close. Additionally, its color temperature is daylight-balanced at 6500K, allowing it to restore hues that are absorbed by the water.
Built for extreme durability as well as high performance, the CF450's head and body are made from an aluminum alloy that has been anodized to resist corrosion. Its emitter window is crafted from tempered optical glass with notable strength and clarity. The supplied, adjustable lanyard enables you to attach the light to your wrist or equipment, greatly reducing the chances of losing it. A Goodman-style glove is also supplied, allowing you to mount the light onto the back of your hand. Rounding out the included accessories is a convenient storage pouch with a retractable cord. - Light Performance
-
- Light Source: One white CREE LED
- Output: 450 lumens
- Run Time: up to 4 h with three AAA alkaline or NiMH batteries
- Light is adjustable from an extremely narrow, concentrated 6° spot to a fairly tight 31° beam, making the CF450 a versatile tool for focusing, exploring tight spaces, and examining sea life up close
- With a daylight-balanced color temperature of 6500K, the light restores hues that are absorbed beneath the surface to ensure that you can see and record everything in rich, accurate colors
- Switching System
-
- Magnetic, swiveling switch mechanism allows you to turn the power on and off easily
- Twisting front bezel enables you to change the beam angle
- Construction Details
-
- Depth rating: 328'
- Double O-ring seal
- Safety valve
- Housing is made from a durable aluminum alloy, which has been anodized for excellent resistance to corrosion
- Emitter window is crafted from tempered optical glass, which has notable strength and clarity
- Included Accessories
-
- Adjustable lanyard enables you to attach the light to your wrist or equipment, greatly minimizing the chances of losing it
- Goodman-style glove allows you to mount the light onto the back of your hand, freeing up your palm and fingers for swimming or operating a camera

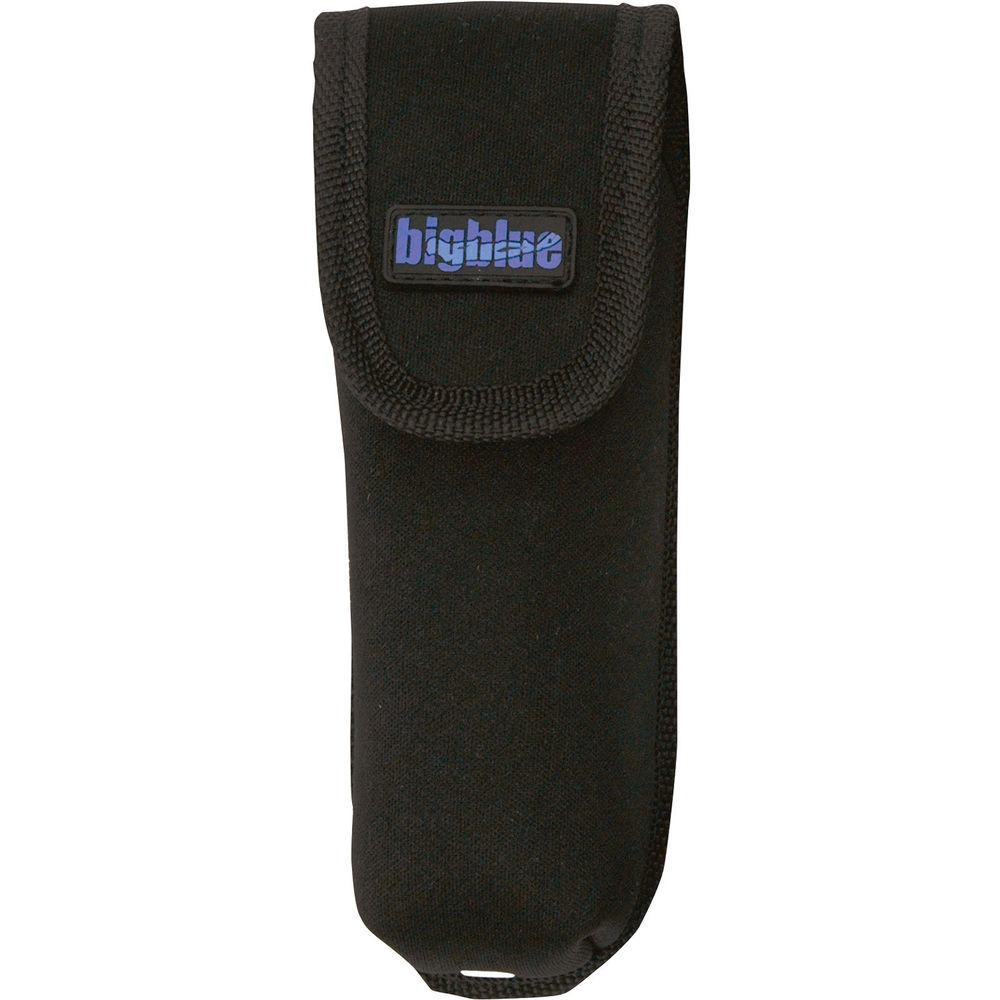

- Compact pouch with a retractable cord makes it easy to store and protect the light when you're not using it
In the Box Bigblue CF450 LED Dive Light with Goodman Glove and Pouch (Blue) 3 x AAA Batteries Lanyard Neoprene Goodman-Style Glove for Select Technical and Recreational Lights zaucqdzayr Pouch with Retractable Cord Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bigblue CF450 LED Dive Light with Goodman Glove and Pouch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBigblue CF450GP-BL-BATT Specs | Depth Rating | 328' / 100 m | | Light Source | 1x White CREE LED | | Light Intensity | 450 lumens | | Beam Angle | 6-31° | | Color Temperature | 6500K | | Run Time | Maximum: 4 h | | Switching System | Magnetic, swiveling power switch
Twisting front bezel for beam angle adjustment | | Material of Construction | Housing: Anodized aluminum alloy
Emitter Window: Tempered optical glass | | Power | 3x AAA batteries (included)
Runs on alkaline or NiMH cells | | Operating Temperature | Not specified by manufacturer | | Dimensions | Diameter x Length: 1.6 x 4.7" / 4 x 12 cm | | Weight | Out of Water: 8.3 oz / 235 g with batteries
In Seawater: -4 oz / -113 g with batteries |
