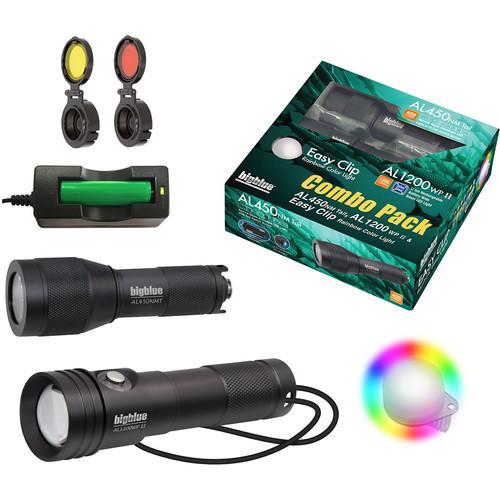

User Manual for Bigblue Combo Pack: AL450 Narrow & AL1200WP-II Dive Lights with Rainbow Clip

• Product category: Dive Lights Bigblue
• Brand: Bigblue
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Bigblue Dive Lights

Product description

• AL450NMT Mini LED Dive Light with Narrow Beam (Black) Illuminate the underwater world at depths as great as 328' with the black AL450NMT Mini LED Dive Light from Bigblue. Its single white CREE LED outputs 450 lumens. Power is provided by three supplied AAA alkaline batteries, which give the AL450NMT a run time of up to four hours. The light features a narrow, concentrated 8° spot beam, making it a great tool for focusing, exploring tight spaces, and examining sea life up close. Additionally, its color temperature is daylight-balanced at 6500K, allowing it to restore hues that are absorbed by the water.

  Built for extreme durability as well as high performance, the AL450NMT's head and body are made from an aluminum alloy that has been anodized to resist corrosion. Its emitter window is crafted from tempered optical glass with notable strength and clarity. The supplied, adjustable lanyard enables you to attach the light to your wrist or equipment, greatly reducing the chances of losing it.
  Light Performance
  • • Light Source: One white CREE LED
    • Output: 450 lumens
    • Run Time: 4 h with the 3 supplied AAA alkaline batteries
    • Extremely narrow, concentrated 8° spot beam makes the AL450NMT a great light for focusing, exploring tight spaces, and examining sea life up close
    • With a daylight-balanced color temperature of 6500K, the light restores hues that are absorbed beneath the surface to ensure that you can see everything in rich, accurate colors
  Switching System
  • • Push-button switch on the tail cap allows you to turn the power on and off
  Construction Details
  • • Depth Rating: 328'
    • Double O-ring seal
    • Housing is made from a durable aluminum alloy, which has been anodized for excellent resistance to corrosion
    • Emitter window is crafted from tempered optical glass, which has notable strength and clarity
• AL1200WP-II Wide Beam LED Dive Light with Side Switch Illuminate the underwater world at depths as great as 328' with Bigblue's AL1200WP Wide-Beam LED Dive Light. Its XML white LED outputs 120-1200 lumens in four selectable levels. Power is provided by a rechargeable 18650 lithium-ion battery, which gives the light a runtime of 2-20 hours, depending on the brightness level. The AL1200WP's wide 85° beam is great for use as a primary, all-around dive light.

  A daylight-balanced 6500K color temperature helps restore hues that get absorbed by water, so you can bring color accuracy and richness back to your images. Built for durability, especially resistance to corrosion, the housing is made of anodized aluminum. The light is controlled by a side-mounted push-button switch.
  Light Performance
  • • Light source: One XML white LED
    • Outputs: 110, 275, 550, and 1200 lumens
    • Runtime: 2-10 hours
    • Features wide 85° beam for use as a primary, all-around dive light
    • 6500K color temperature
  Switching
  • • Side-mounted push-button switch
  Construction Details
  • • Depth rating: 328'
    • Durable aluminum alloy housing
• Easy Clip Multi-Color Rainbow Marker Light Identify and keep track of your diving partners at depths as great as 328' with the Bigblue Easy Clip Multi-Color Rainbow Marker Light. This beacon features virtually all the colors of the visible spectrum: red, green, blue, purple, orange, and yellow. Additionally, it provides both constant and flash modes for all these colors. The light output is bright enough to be seen by other divers, yet low enough that it won't be distracting. Running on the two supplied CR2032 coin batteries, the marker light has an operating time of 12-24 h. It clips easily onto masks, belts, straps, and other accessories, and includes an adjustable lanyard that will attach to tank valves and buoyancy compensation devices.

• 3 x AAA Alkaline Battery

• Lanyard

• Limited 1-Year Warranty

• Rechargeable 18650 Li-Ion Battery

• Charger

• Mounting Clip

• Lanyard

• Dry Bag

• Limited 1-Year Warranty

• Lanyard

• 2 x CR2032 Coin Batteries

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• AL450NMT Mini LED Dive Light with Narrow Beam (Black)

  Depth Rating	328' / 100 m
  Light Source	1x White CREE LED
  Light Intensity	450 lumens
  Beam Angle	8°
  Color Temperature	6500K
  Run Time	4 h
  Switching System	Push-button
  Material of Construction	Housing: Anodized aluminum alloy Emitter Window: Tempered optical glass
  Power	3x AAA alkaline batteries
  Operating Temperature	Not specified by manufacturer
  Dimensions	Diameter x Length: 1.7 x 4.9" / 4.2 x 12.5 cm
  Weight	6.5 oz / 185 g with batteries Underwater: -2.8 oz / -79 g with batteries

  Box Dimensions (LxWxH)	6.4 x 2.8 x 2.2"

• AL1200WP-II Wide Beam LED Dive Light with Side Switch

  Depth Rating	328' / 100 m
  Light Source	1 XML White LED
  Light Intensity	I: 110 Lumens II: 275 Lumens III: 550 Lumens IV: 1200 Lumens
  Runtime	I: 20 h II: 8 h III: 4 h IV: 2 h
  Beam Angle	85°
  Color Temperature	6500K
  Material of Construction	Housing: Anodized Aluminum Alloy
  Power	18650 Rechargeable Lithium-Ion Battery (Included)
  Dimensions	5.3 x 1.5" / 13.4 x 3.9 cm
  Weight	5.7 oz / 162 g, Including Battery

• Easy Clip Multi-Color Rainbow Marker Light

  Depth Rating	328' / 100 m
  Run Time	12-24 h
  Power	2x CR2032 coin batteries (included)
  Dimensions	Diameter x Length: 1.25 x 1.5" / 3.2 x 3.8 cm
  Weight	Out of Water: 0.8 oz / 23 g including batteries Underwater: -0.1 oz / -3.0 g including batteries

  Box Dimensions (LxWxH)	2.4 x 2.1 x 0.6"
