User manual
Bigblue Combo Pack: Blue AL250 &

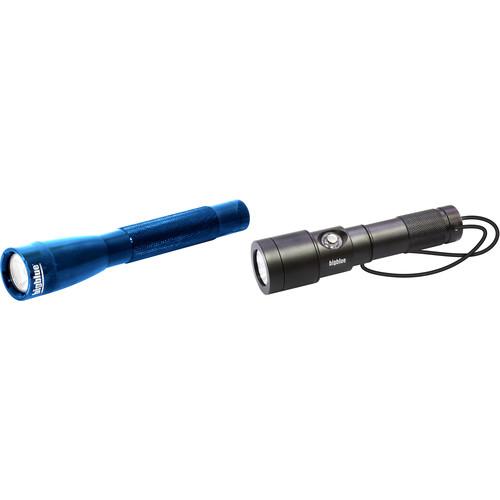

User Manual for Bigblue Combo Pack: Blue AL250 & AL1200NP Dive Lights

• Product category: Dive Lights Bigblue
• Brand: Bigblue
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Bigblue Dive Lights

Product description

• AL250 Multi Function LED Light (Blue) Light up your path on land or underwater with the blue AL250 Multi Function LED Light from Bigblue Dive Lights. Featuring a 6500K XPG LED light source with an 8° beam angle, this compact 250-lumen illuminator is powerful enough for use as a primary light when diving or doing other outdoor activities such as camping, hiking, running, or fishing. Its aluminum alloy housing features a corrosion-resistant blue anodized finish, while double o-ring seals provide a 328' depth rating. This versatile light supports both alkaline and rechargeable Ni-MH battery chemistries and has a two-hour maximum burn time.
  Light Performance
  • • 250-lumens
    • XPG LED emitter
    • Color temperature: 6500K
    • Beam Angle: 8°
    Switching
    • • Type: Twist
      • Location: Head
      • Twist the head to turn on, twist it back to turn off
      Construction Details
      • • Depth rated to 328'
        • Aluminum alloy housing
        • Buoyancy: Positive (-3.0 oz with batteries)
        • Corrosion-resistant blue anodized finish
        • Compatible with alkaline and rechargeable Ni-MH battery chemistries
        • Tempered glass emitter window
        • Use on land and water
        • Double o-ring sealed
    • AL1200NP Narrow Beam LED Dive Light Illuminate the underwater world at depths as great as 328' with Bigblue's AL1200NP Narrow-Beam LED Dive Light. Its XML white LED outputs 120-1200 lumens in four selectable levels. Power is provided by a rechargeable lithium-ion battery pack, which gives the light a run time of 2.0-20 hours depending on the brightness level. The AL1200NP's narrow 10° beam is great for focusing, exploring tight spaces, and examining sea life up close.

      A daylight-balanced 6500K color temperature helps restore hues that get absorbed by water, so you can bring color accuracy and richness back to your images. Built for durability, especially resistance to corrosion, the light has a housing constructed from anodized aluminum and an emitter window made of tempered optical glass. A push-button body switch enables you to power the light on or off and cycle through output levels, while a battery indicator shows the remaining power level.
      Light Performance
      • • Light source: 1 XML LED
        • Outputs: 120, 300, 600, and 1200 lumens
        • Run time: 20 h at 120 lumens, 8.0-10 h at 300 lumens, 4.0-5.0 h at 600 lumens, and 2.0 h at 1200 lumens with supplied, rechargeable 18650 lithium-ion battery
        • Features narrow 10° beam for focusing, exploring tight spaces, and examining sea life up close
        • Daylight-balanced 6500K color temperature helps restore hues that get absorbed by water, so you can bring color accuracy and richness back to your images
      Switching System
      • • Push-button body switch to power on/off and cycle through output levels
        • Battery indicator on switch shows remaining power level
      Construction Details
      • • Depth rating: 328'
        • Double O-ring seal
        • Housing constructed from durable, anodized aluminum alloy for resistance to corrosion
        • Emitter window made of tempered optical glass
    In the Box Bundle Items AL250 Multi Function LED Light (Blue) ffetcvdbwdttcyaxrsbsr
    • Lanyard
    • Limited 1-Year Warranty
    AL1200NP Narrow Beam LED Dive Light
    • Rechargeable 18650 Li-Ion Battery
    • Lanyard
    • Limited 1-Year Warranty
  Table of Contents

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• AL250 Multi Function LED Light (Blue)

  Illumination Source	White XPG LED
  Light Intensity	250 lumens
  Front Glass	Tempered optical glass
  Burn Time	2 hr, maximum
  Depth Rating	328' / 100 m
  Buoyancy	-3.0 oz / -85 g including batteries (positively buoyant)
  Batteries	2 x AA batteries, Alkaline or Ni-MH
  Dimensions	5.8 x 1.1" / 14.8 x 2.8 cm
  Weight	4.7 oz / 135 g (including batteries)

  Box Dimensions (LxWxH)	6.7 x 1.7 x 1.6"

• AL1200NP Narrow Beam LED Dive Light

  Depth Rating	328' / 100 m
  Light Source	1x XML LED
  Light Intensity Output	Level I: 120 Lumens Level II: 300 Lumens Level III: 600 Lumens Level IV: 1200 Lumens
  Beam Angle	10°
  Color Temperature	6500K
  Run Time	Level I: 20 h Level II: 8.0-10 h Level III: 4.0-5.0 h Level IV: 2.0 h
  Switching System	Push-button with battery indicator
  Material of Construction	Housing: Anodized aluminum alloy Emitter Window: Tempered optical glass
  Power	Rechargeable 18650 lithium-ion battery (included)
  Dimensions	Diameter x Length: 1.4 x 5.7" / 3.5 x 14.5 cm
  Weight	Out of Water: 6.3 oz / 178 g including battery Underwater: -2.7 oz / -79 g including battery

  Box Dimensions (LxWxH)	7.4 x 5.9 x 2.6"
