User Manual for Bigblue Combo Pack: Red AL250 & AL1200NP Dive Lights Click to enlarge the picture
Contents of the user manual for the Bigblue Combo Pack: Red AL250 &
- Product category: Dive Lights Bigblue
- Brand: Bigblue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bigblue Dive Lights
|
User manual for the Bigblue Combo Pack: Red AL250 & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bigblue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bigblue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bigblue product will considerably shorten its lifespan!
|

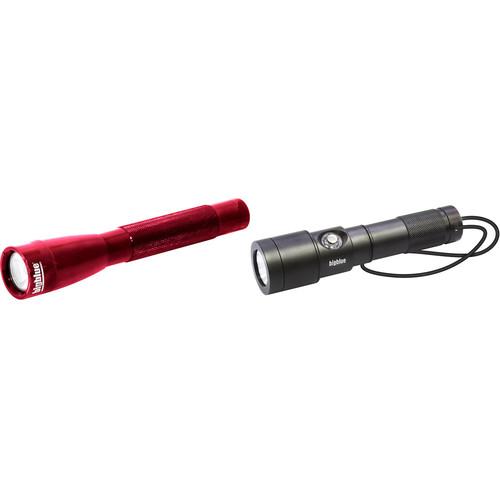

Product description It's always good to have a back-up light, and the Combo Pack: AL250 & AL1200NP offers the versatility to select the right light for the situation. The Combo Pack includes a red AL250, a compact, 250-lumen LED light that runs on two AA batteries, turns on and off with a head-twist switch and shines a tightly focused 8° beam for close-up detail work. The other half of the set is the rechargeable AL1200NP LED light, which delivers a narrow 10° beam with four output levels from 120-1200 lumens. Both lights have anti-corrosion anodized aluminum housings, and both are suitable for use as dry-land flashlights. - AL250 Multi Function LED Light (Red) Light up your path on land or underwater with the red AL250 Multi Function LED Light from Bigblue Dive Lights. Featuring a 6500K XPG LED light source with an 8° beam angle, this compact 250-lumen illuminator is powerful enough for use as a primary light when diving or doing other outdoor activities such as camping, hiking, running, or fishing. Its aluminum alloy housing features a corrosion-resistant red anodized finish, while double o-ring seals provide a 328' depth rating. This versatile light supports both alkaline and rechargeable Ni-MH battery chemistries and has a two-hour maximum burn time.
- Light Performance
-
- 250-lumens
- XPG LED emitter
- Color temperature: 6500K
- Beam Angle: 8°
- Switching
-
- Type: Twist
- Location: Head
- Twist the head to turn on, twist it back to turn off
- Construction Details
-
- Depth rated to 328'
- Aluminum alloy housing
- Buoyancy: Positive (-3.0 oz with batteries)
- Corrosion-resistant red anodized finish
- Compatible with alkaline and rechargeable Ni-MH battery chemistries
- Tempered glass emitter window
- Use on land and water
- Double o-ring sealed
- AL1200NP Narrow Beam LED Dive Light Illuminate the underwater world at depths as great as 328' with Bigblue's AL1200NP Narrow-Beam LED Dive Light. Its XML white LED outputs 120-1200 lumens in four selectable levels. Power is provided by a rechargeable lithium-ion battery pack, which gives the light a run time of 2.0-20 hours depending on the brightness level. The AL1200NP's narrow 10° beam is great for focusing, exploring tight spaces, and examining sea life up close.
A daylight-balanced 6500K color temperature helps restore hues that get absorbed by water, so you can bring color accuracy and richness back to your images. Built for durability, especially resistance to corrosion, the light has a housing constructed from anodized aluminum and an emitter window made of tempered optical glass. A push-button body switch enables you to power the light on or off and cycle through output levels, while a battery indicator shows the remaining power level. - Light Performance
-
- Light source: 1 XML LED
- Outputs: 120, 300, 600, and 1200 lumens
- Run time: 20 h at 120 lumens, 8.0-10 h at 300 lumens, 4.0-5.0 h at 600 lumens, and 2.0 h at 1200 lumens with supplied, rechargeable 18650 lithium-ion battery
- Features narrow 10° beam for focusing, exploring tight spaces, and examining sea life up close
- Daylight-balanced 6500K color temperature helps restore hues that get absorbed by water, so you can bring color accuracy and richness back to your images
- Switching System
-
- Push-button body switch to power on/off and cycle through output levels
- Battery indicator on switch shows remaining power level
- Construction Details
-
- Depth rating: 328'
- Double O-ring seal
- Housing constructed from durable, anodized aluminum alloy for resistance to corrosion
- Emitter window made of tempered optical glass
In the Box Bundle Items AL250 Multi Function LED Light (Red) fvzuevbrydfazxcbrsfzsxarzxxv AL1200NP Narrow Beam LED Dive Light - Rechargeable 18650 Li-Ion Battery
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bigblue Combo Pack: Red AL250 & AL1200NP Dive Lights in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - AL250 Multi Function LED Light (Red)
Illumination Source | White XPG LED | Light Intensity | 250 lumens | Front Glass | Tempered optical glass | Burn Time | 2 hr, maximum | Depth Rating | 328' / 100 m | Buoyancy | -3.0 oz / -85 g including batteries (positively buoyant) | Batteries | 2 x AA batteries, Alkaline or Ni-MH | Dimensions | 5.8 x 1.1" / 14.8 x 2.8 cm | Weight | 4.7 oz / 135 g (including batteries) | | Box Dimensions (LxWxH) | 6.5 x 1.7 x 1.6" | - AL1200NP Narrow Beam LED Dive Light
Depth Rating | 328' / 100 m | Light Source | 1x XML LED | Light Intensity Output | Level I: 120 Lumens Level II: 300 Lumens Level III: 600 Lumens Level IV: 1200 Lumens | Beam Angle | 10° | Color Temperature | 6500K | Run Time | Level I: 20 h Level II: 8.0-10 h Level III: 4.0-5.0 h Level IV: 2.0 h | Switching System | Push-button with battery indicator | Material of Construction | Housing: Anodized aluminum alloy Emitter Window: Tempered optical glass | Power | Rechargeable 18650 lithium-ion battery (included) | Dimensions | Diameter x Length: 1.4 x 5.7" / 3.5 x 14.5 cm | Weight | Out of Water: 6.3 oz / 178 g including battery Underwater: -2.7 oz / -79 g including battery | | Box Dimensions (LxWxH) | 7.4 x 5.9 x 2.6" |
