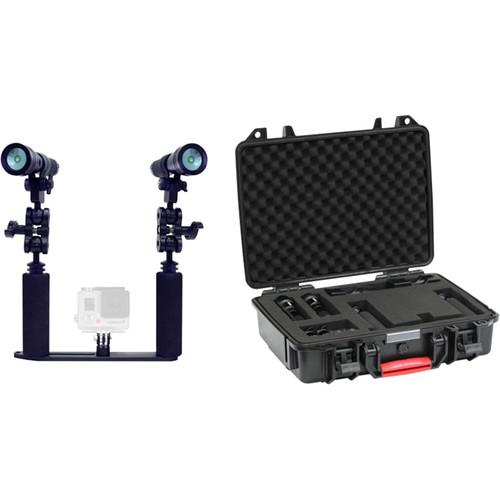

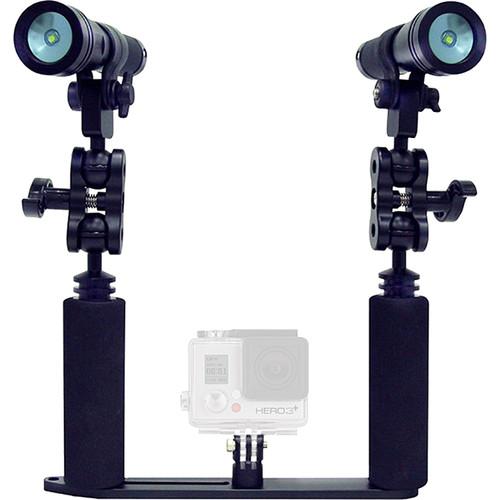

Product description The GoPro Tray Kit Set from Bigblue includes the AL1200WP Wide Beam Light, AL1200XWP Extra Wide Beam Light, and GP1200 GoPro Mounting Tray Kit. - GP1200 GoPro Mounting Tray Kit The GP1200 Kit from Bigblue includes a Camera Mounting Tray for GoPro Camera, two CLP-02 Double Clips, and two Sea & Sea Standard Arm Adapters. This setup accommodates your GoPro and two AL1200WP or AL1200XWP dive lights (available separately).
- AL1200WP Wide Beam LED Dive Light Illuminate the underwater world at depths as great as 328' with Bigblue's AL1200WP Wide-Beam LED Dive Light. Its XML white LED outputs 120-1200 lumens in four selectable levels. Power is provided by a rechargeable lithium-ion battery pack, which gives the light a run time of 2.0-20 hours depending on the brightness level. The AL1200WP's wide 85° beam is great for use as a primary, all-around dive light.
A daylight-balanced 6500K color temperature helps restore hues that get absorbed by water, so you can bring color accuracy and richness back to your images. Additionally, the AL1200WP includes removable red and yellow filters that lower the color temperature, creating a warming effect that's great for observing and recording sea creatures without scaring them off.
Built for durability, especially resistance to corrosion, the light has a housing constructed from anodized aluminum and an emitter window made of tempered optical glass. A push-button body switch enables you to power the light on or off and cycle through output levels, while a battery indicator shows the remaining power level. - Light Performance
-
- Light source: 1 XML LED
- Outputs: 120, 300, 600, and 1200 lumens
- Run time: 20 h at 120 lumens, 8.0-10 h at 300 lumens, 4.0-5.0 h at 600 lumens, and 2.0 h at 1200 lumens with supplied, rechargeable 18650 lithium-ion battery
- Features wide 85° beam for use as a primary, all-around dive light
- Daylight-balanced 6500K color temperature helps restore hues that get absorbed by water, so you can bring color accuracy and richness back to your images
- Includes removable red and yellow filters that lower color temperature, creating a warming effect that's great for observing and recording sea creatures without scaring them off
- Switching System
-
- Push-button body switch to power on/off and cycle through output levels
- Battery indicator on switch shows remaining power level
- Construction Details
-
- Depth rating: 328'
- Double O-ring seal
- Housing constructed from durable, anodized aluminum alloy for resistance to corrosion
- Emitter window made of tempered optical glass
AL1200XWP Extra-Wide Beam LED Dive Light Illuminate the underwater world at depths as great as 328' with Bigblue's AL1200XWP Extra-Wide-Beam LED Dive Light. Its XML white LED outputs 120-1200 lumens in four selectable levels. Power is provided by a rechargeable lithium-ion battery pack, which gives the light a run time of 2.0-20 hours depending on the brightness level. The AL1200XWP's extra-wide 120° beam is great for illuminating large subjects like humpback whales, schools of fish, cave mouths, and shipwrecks.
A daylight-balanced 6500K color temperature helps restore hues that get absorbed by water, so you can bring color accuracy and richness back to your images. Additionally, the AL1200XWP includes removable red and yellow filters that lower the color temperature, creating a warming effect that's great for observing and recording sea creatures without scaring them off.
Built for durability, especially resistance to corrosion, the light has a housing constructed from anodized aluminum and an emitter window made of tempered optical glass. A push-button body switch enables you to power the light on or off and cycle through output levels, while a battery indicator shows the remaining power level. - Light Performance
-
- Light source: 1 XML LED
- Outputs: 120, 300, 600, and 1200 lumens
- Run time: 20 h at 120 lumens, 8.0-10 h at 300 lumens, 4.0-5.0 h at 600 lumens, and 2.0 h at 1200 lumens with supplied, rechargeable 18650 lithium-ion battery
- Features extra-wide 120° beam for illuminating large subjects like humpback whales, schools of fish, cave mouths, and shipwrecks
- Daylight-balanced 6500K color temperature helps restore hues that get absorbed by water, so you can bring color accuracy and richness back to your images
- Includes removable red and yellow filters that lower color temperature, creating a warming effect that's great for observing and recording sea creatures without scaring them off
- Switching System
-
- Push-button body switch to power on/off and cycle through output levels
- Battery indicator on switch shows remaining power level
- Construction Details
-
- Depth rating: 328'
- Double O-ring seal
- Housing constructed from durable, anodized aluminum alloy for resistance to corrosion
- Emitter window made of tempered optical glass
In the Box Bundle Items GP1200 GoPro Mounting Tray Kit zecrtcbxux - Standard GoPro Camera Tray with Dual Grips
2 x - Sea & Sea Standard Arm Adapter
AL1200WP Wide Beam LED Dive Light zecrtcbxux - Rechargeable 18650 Li-Ion Battery
- Set of Warming Filters: 1 Red, 1 Yellow
AL1200XWP Extra-Wide Beam LED Dive Light - Rechargeable 18650 Li-Ion Battery
- Set of Warming Filters: 1 Red, 1 Yellow
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bigblue GoPro Tray Kit Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - GP1200 GoPro Mounting Tray Kit
| | | Box Dimensions (LxWxH) | 9.75 x 7.5 x 1.5" | - AL1200WP Wide Beam LED Dive Light
| Depth Rating | 328' / 100 m | | Light Source | 1x XML LED | | Light Intensity Output | Level I: 120 Lumens
Level II: 300 Lumens
Level III: 600 Lumens
Level IV: 1200 Lumens | | Beam Angle | 85° | | Color Temperature | 6500K
Lower/warmer with included, removable red and yellow filters | | Run Time | Level I: 20 h
Level II: 8.0-10 h
Level III: 4.0-5.0 h
Level IV: 2.0 h | | Switching System | Push-button with battery indicator | | Material of Construction | Housing: Anodized aluminum alloy
Emitter Window: Tempered optical glass | | Power | Rechargeable 18650 lithium-ion battery (included) | | Dimensions | Diameter x Length: 1.5 x 5.3" / 3.9 x 13.4 cm | | Weight | Out of Water: 6.4 oz / 182 g including battery
Underwater: -3.25 oz / -92 g including battery | | | | Box Dimensions (LxWxH) | 7.4 x 5.9 x 2.6" | - AL1200XWP Extra-Wide Beam LED Dive Light
| Depth Rating | 328' / 100 m | | Light Source | 1x XML LED | | Light Intensity Output | Level I: 120 Lumens
Level II: 300 Lumens
Level III: 600 Lumens
Level IV: 1200 Lumens | | Beam Angle | 120° | | Color Temperature | 6500K
Lower/warmer with included, removable red and yellow filters | | Run Time | Level I: 20 h
Level II: 8.0-10 h
Level III: 4.0-5.0 h
Level IV: 2.0 h | | Switching System | Push-button with battery indicator | | Material of Construction | Housing: Anodized aluminum alloy
Emitter Window: Tempered optical glass | | Power | Rechargeable 18650 lithium-ion battery (included) | | Dimensions | Diameter x Length: 1.5 x 5.0" / 3.9 x 12.75 cm | | Weight | Out of Water: 6.0 oz / 170 g including battery
Underwater: -3.0 oz / -85 g including battery | | | | Box Dimensions (LxWxH) | 7.45 x 5.95 x 2.7" |
