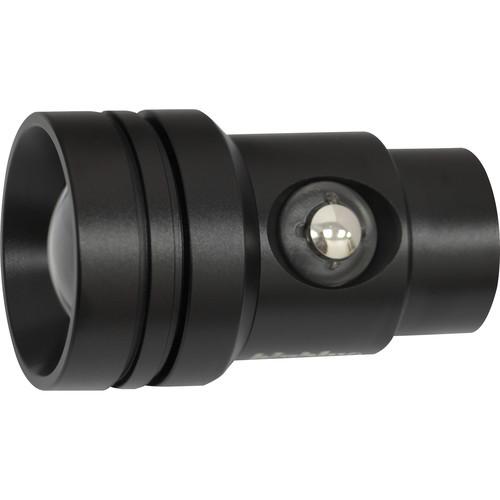

User Manual for Bigblue RGB-White LED Dive Light Head Click to enlarge the picture
Contents of the user manual for the Bigblue RGB-White LED Dive Light Head
- Product category: Lighting Accessories Bigblue
- Brand: Bigblue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bigblue Lighting Accessories
|
User manual for the Bigblue RGB-White LED Dive Light Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bigblue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bigblue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bigblue product will considerably shorten its lifespan!
|
Product description Illuminate the underwater world at depths as great as 328' with Bigblue's versatile RGB-White LED Dive Light Head, which features a single four-color XML LED that produces red, green, blue, and white beams. The light outputs 30-250 lumens, depending on which color is selected. When the light's required body and rechargeable lithium-ion battery are added, the RGB-White head will run for four hours. As Bigblue light heads are interchangeable, this one can be replaced by any AL1100 or AL1200-series model.
The beam's wide 85° angle of coverage makes it a good choice for video recording or general diving. Additionally, the white light's color temperature is approximately daylight-balanced, allowing it to restore hues that are absorbed by the water. With the red beam, the temperature is lowered in order to create a warming effect, which greatly reduces the likelihood that sea life will flee in fear. Using the blue and green colors will raise the temperature, creating a cooling effect.
Built for extreme durability as well as high performance, the light head's housing is made from an aluminum alloy that has been anodized to resist corrosion. Its emitter window is crafted from tempered optical glass with notable strength and clarity. - Light Performance
-
- Light source: 1 XML red, green, blue, and white LED
- Outputs: 250, 170, 30, and 200 lumens on the white, red, blue, and green settings, respectively
- Run time: 4 h with the required, rechargeable li-ion battery
- Wide 85° beam angle makes the RGB-White a good light for video recording or general diving
- White beam's daylight-balanced color temperature of 5500-6500K allows it to restore hues that are absorbed by the water, thus ensuring that captured images are full of rich, vibrant color
- Red beam lowers the color temperature, producing a warming effect for observing and recording sea creatures without scaring them off
- A second benefit of the red light is that it helps you see better when diving at night
- Blue and green light raise the color temperature, creating a cooling effect
- Switching System
-
- Push-button switch for turning the power on/off and selecting output levels
- Battery level indicator shows remaining power
- Construction Details
-
- Light head only, without the required body and battery
- As Bigblue light heads are interchangeable, the RGB-White's can be replaced by any AL1100 or AL1200-series model
- Depth rating: 328'
- Double O-ring seal
- Housing is made from a durable aluminum alloy, which has been anodized for excellent resistance to corrosion
- Emitter window is crafted from tempered optical glass, which has notable strength and clarity
In the Box Bigblue RGB-White LED Dive Light Head Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bigblue RGB-White LED Dive Light Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBigblue LH-RGB-WHITE Specs | Depth Rating | 328' / 100 m | | Light Source | 1 XML red, green, blue, and white LED | | Light Intensity | White: 250 lumens
Red: 170 lumens
Blue: 30 lumens
Green: 200 lumens | | Beam Angle | 85° | | Color Temperature | White: 5500-6500K
Red: 1000-1400K
Blue and Green: Not specified by manufacturer | | Run Time | 4 h | | Switching System | Push-button with battery indicator | | Material of Construction | Housing: Anodized aluminum alloy
Emitter Window: Tempered optical glass | | Power | 18650 rechargeable lithium-ion battery (not included) | | Operating Temperature | Not specified by manufacturer | | Dimensions | Diameter: 1.5" / 3.9 cm | | Weight | Not specified by manufacturer |
