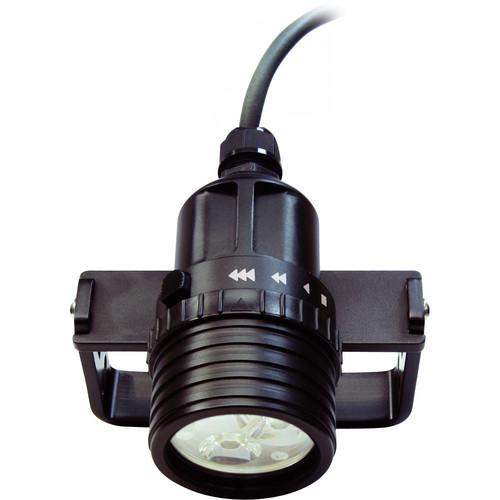

Product description The TL 3P LED Technical Dive Light Head from Bigblue has a depth rating of 328'. It features 3 CREE LEDs that output a maximum of 900 lumens at a beam angle of 44°. The light's color temperature of 6500K is approximately that of daylight. A magnetic switch on the light head allows for output adjustment, providing high (100%), medium (50%) and low (25%) power options.
This light head ships without a required battery. Burn time ranges from 2.8-13 hr, depending upon output level. The output of the optional rechargeable NiMH battery canister can also be adjusted between high (100%) and low (50%). The body of the light is constructed from durable aluminum, which has been anodized to safeguard against the corrosive effects of seawater, and the lens is made of tempered optical glass. The included soft neoprene Goodman glove enables you to mount the light to the top of your hand. The optional aluminum Goodman handle provides a mounting alternative. In the Box Bigblue TL 3P LED Technical Dive Light Head TLGGLOVE Neoprene Goodman Glove Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bigblue TL 3P LED Technical Dive Light Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBigblue TL-3P Specs | Depth Rating | 328' (100 m) | | Light Source | 3x CREE LEDs | | Light Output | High mode (100%): 900 lumens
Medium mode (50%): 450 lumens
Low mode (25%): 225 lumens | | Beam Angle | At beam edge: 44°
At beam center: 9° | | Color Temperature | 6500 K | | Burn Time | Using BAT13.2-2.2 battery (optional):
High mode: 2.8 hr
Medium mode: 7.5 hr
Low mode: 13 hr
Using BAT13.2-4.5 battery (optional):
High mode: 5.6 hr
Medium mode: 15 hr
Low mode: 26 hr | | Construction | Body: anodized aluminum
Lens: tempered optical glass | | Buoyancy in Seawater | Light head: -11 oz (-313 g)
BAT13.2-2.2 battery: -12.8 oz (-364 g) | | Power Source | Rechargeable NiMH battery canister BAT13.2-2.2 (optional) or BAT13.2-4.5 (optional)
BAT13.2-2.2: 13.2 V, 2.2 Ah
BAT13.2-4.5: 13.2 V, 4.5 Ah | | Switching System | Light head: magnetic rotary
Battery canister (optional): magnetic sliding | | Dimensions | 2.5 x 4.5" (6.3 x 11.4 cm) (Diam. x L) | | Weight | 1.3 lb (0.6 kg) | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 9.9 x 5.6 x 3.7" |
