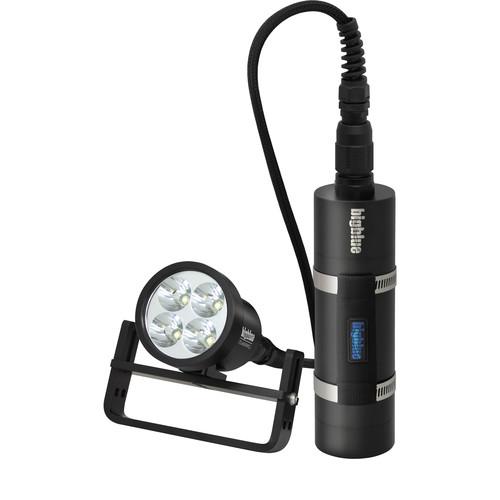

User Manual for Bigblue TL4800PC-SLIM Technical LED Dive Light Click to enlarge the picture
Contents of the user manual for the Bigblue TL4800PC-SLIM Technical LED Dive Light
- Product category: Dive Lights Bigblue
- Brand: Bigblue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bigblue Dive Lights
|
User manual for the Bigblue TL4800PC-SLIM Technical LED Dive Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bigblue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bigblue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bigblue product will considerably shorten its lifespan!
|
Product description Illuminate the underwater world at depths as great as 328' with the black TL4800PC-SLIM Technical LED Dive Light from Bigblue. A focused, 10° spot beam helps you explore tight spaces, such as cave and wreck interiors, and also allows you to examine objects and sea life closely, making this canister light ideal for various scientific and research applications. Four XML White LEDs output 480-4800 lumens in four selectable levels. The supplied, rechargeable li-ion battery gives the TL4800PC-SLIM a run time of 7-70 hours, depending on the output level. Additionally, a daylight-balanced color temperature enables the light to restore hues that are absorbed by water.
Built for extreme durability as well as high performance, the light's head and body are made from an aluminum alloy that has been anodized to resist corrosion. Its emitter window is crafted from tempered optical glass with notable strength and clarity. - Light Performance
-
- Light Source: Four XML white LEDs
- Outputs: 480, 1200, 2400, and 4800 lumens
- Run Time: 7 h at 4800 lumens, 14 h at 2400 lumens, 28 h at 1200 lumens, and 70 h at 480 lumens with the supplied, rechargeable li-ion battery
- Narrow, focused, 10° spot beam is useful for the exploration of tight spaces, such as cracks in cave walls, and the close-up examination of objects and small organisms
- With a daylight-balanced color temperature of 6500K, the light restores hues that are absorbed beneath the surface to ensure that you can see everything in rich, accurate color
- Switching System
-
- Push-button switch for turning the power on/off and selecting output levels
- Battery level indicator shows remaining power
- Construction Details
-
- Depth rating: 328'
- Double O-ring seal
- Head and body are made from a durable aluminum alloy, which has been anodized for excellent resistance to corrosion
- Emitter window is crafted from tempered optical glass, which has notable strength and clarity
- Included Accessories
-
- Slim-fit Goodman handle serves as a convenient mounting point, allowing you to connect the light head and point it up at an angle for hands-free use
- Lantern grip enables comfortable handheld use, especially when illuminating subjects below you
In the Box Bigblue TL4800PC-SLIM Technical LED Dive Light (Black) Slim-Fit Goodman Handle Lantern Grip 18650 Rechargeable Li-Ion Battery Pack Battery Charger Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bigblue TL4800PC-SLIM Technical LED Dive Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBigblue TL4800PC-SLIM Specs | Depth Rating | 328' / 100 m | | Light Source | 4 XML white LEDs | | Light Intensity | I: 480 lumens
II: 1200 lumens
III: 2400 lumens
IV: 4800 lumens | | Beam Angle | 10° | | Color Temperature | 6500K | | Run Time | I: 70 h
II: 28 h
III: 14 h
IV: 7 h | | Switching System | Push-button switch with battery indicator | | Material of Construction | Head and Body: Anodized aluminum alloy
Emitter Window: Tempered optical glass | | Power | Rechargeable lithium-ion battery pack made up of 8x 18650 cells (included)
Charger (included) | | Operating Temperature | Not specified by manufacturer | | Dimensions | Diameter x Length:
Head: 2.8 x 3.5" / 7.2 x 8.8 cm
Canister: 2.2 x 7.2" / 5.5 x 18.2 cm | | Weight | Head
Out of Water: 13.4 oz / 380 g with battery
Underwater: -4.7 oz / -134 g with battery
Canister
Out of Water: 1.5 lb / 0.7 kg with battery
Underwater: -9.4 oz / -267 g with battery |
