User Manual for Bigblue VL10000P Video Dive Light Click to enlarge the picture
Contents of the user manual for the Bigblue VL10000P Video Dive Light
- Product category: Continuous Lights Bigblue
- Brand: Bigblue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bigblue Continuous Lights
|
User manual for the Bigblue VL10000P Video Dive Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bigblue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bigblue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bigblue product will considerably shorten its lifespan!
|

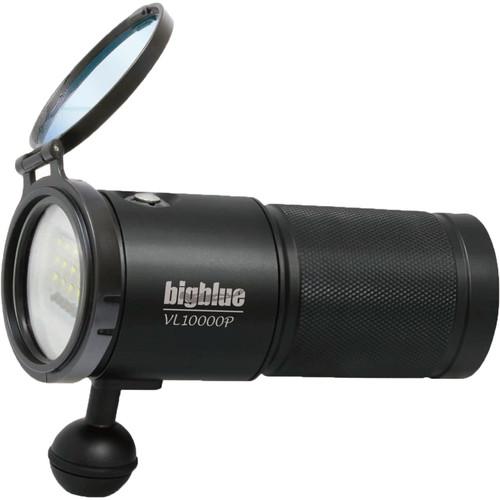

Product description With a rechargeable battery pack delivering 2.5 hours of 10000-lumen white light in a wide 120° beam, the VL10000P Video Dive Light from Bigblue is a powerhouse illuminator for underwater video work and general dive use. This anodized aluminum alloy dive light has a tempered optical glass window and is controlled by a single side-mounted push-button switch. Fifteen white XML LEDs deliver brightness levels of 1000, 2500, 5000, or 10000 lumens of white light, while six XPE LEDs produce 500 lumens of red light for staging photos and video or observing light-shy sea creatures. Should you get into trouble, there's also an SOS mode to signal for help. The power to run all those LEDs comes from a rechargeable 4 x 18650 Li-ion battery pack. The white light is a cool 6500K, but a removable yellow filter is included for a warmer hue. Also included: a dive glove for wrist mounting, a dry bag, and a charger for the battery pack. - Light Performance
-
- 10000 lumens (Level IV), 5000 lumens (Level III), 2500 lumens (level II), 1000 lumens (Level I)
- Red light: 500 lumens
- SOS signal mode
- Wide 120° beam
- Color temperature: 6500K
- Removable yellow filter for warmer light
- Switching
-
- Side-mounted push button
- Controls on/off, cycles through settings
- Construction Details
-
- Anti-corrosive anodized aluminum alloy housing
- Tempered optical glass window
- Diving glove for wrist-mounting
- Ball joint
- Rechargeable 4 x 18650 Li-ion battery pack and charger
- Bigblue dry bag
- Measures 5.1 x 2.2"
- Weighs 16.1 ounces, buoyancy -6.1 ounces
In the Box Bigblue VL10000P Video Dive Light Removable Yellow Filter Ball Joint Diving Glove for Wrist Mounting Lanyard Dry Bag Rechargeable 4 x 18650 Battery Pack Charger Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bigblue VL10000P Video Dive Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBigblue VL10000P Specs | Depth Rating | 328' / 100 m | | Output | Flood Beam:
10000 Lumens (Level IV)
5000 Lumens (Level III)
2500 Lumens (Level II)
1000 Lumens (Level I)
Red Light: 500 Lumens | | Light Source | White: 15 x XML LED
Red: 6 x XPE LED | | Beam Angle | 120° | | Battery | Rechargeable 4 x 18650 Li-Ion | | Runtime | 2.5 Hours (Level IV)
5 Hours (Level III)
10 Hours (Level II)
25 Hours (Level I) | | Color Temperature | 6500K | | Material of Construction | Anodized Aluminum Alloy
Tempered Opitcal Glass Window | | Dimensions | 5.1 x 2.2" / 13.1 x 5.5 cm | | Weight | 16.1 oz / 457 g | | Buoyancy | -6.1 oz / -173 g |
