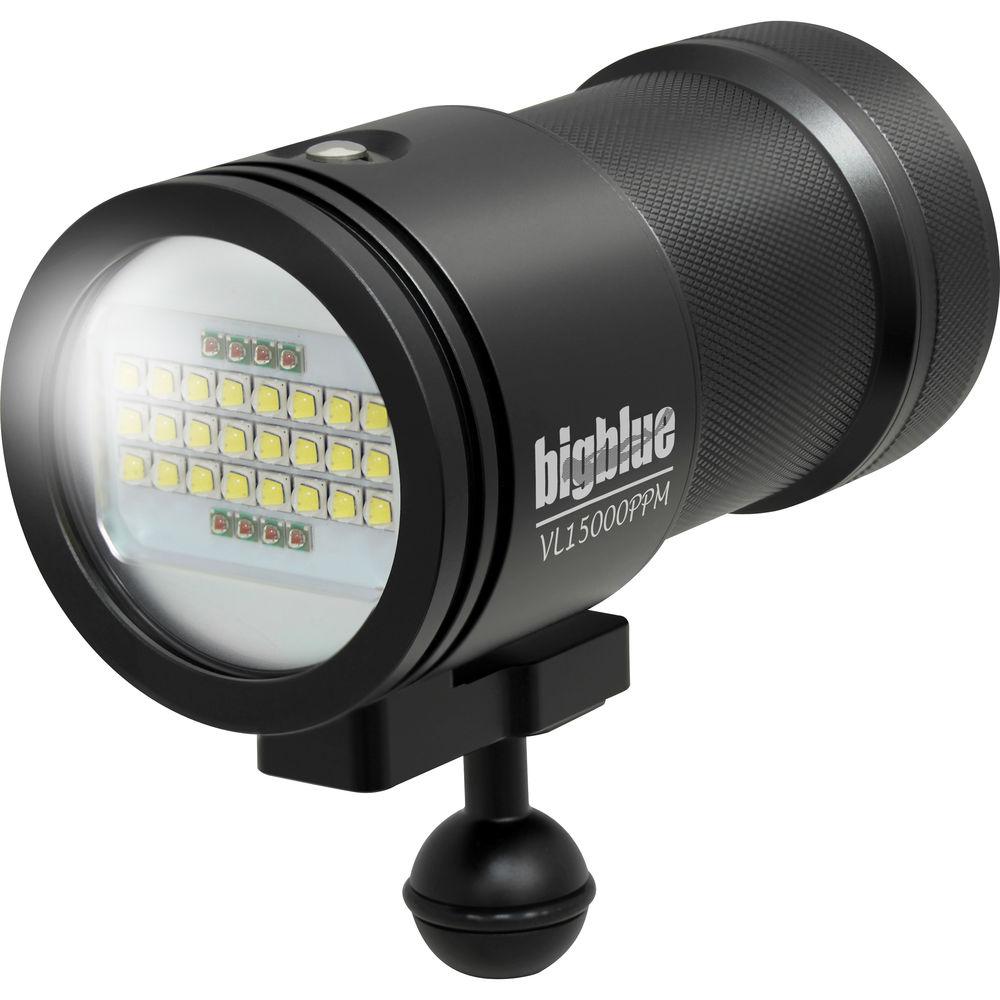

Product description Illuminate the underwater world at depths as great as 328' with Bigblue's black VL15000P-PRO MINI Video LED Dive Light, a.k.a. "Chubby Jr.", which comes with a protective hard case. It has a smaller diameter and shorter length than the original VL15000P-Pro, allowing for easier packing and transport. This light features 24 daylight-balanced, XML white LEDs, which output 1500-15,000 lumens in four levels. It also offers 8 XPE red LEDs that lower the standard color temperature, creating a warming effect that won't alarm sea life. Rounding out the modes on the light is an SOS function for signaling in emergency situations.
The VL15000P-PRO MINI's very wide 160° beam angle makes it an excellent light source to accompany wide-angle lenses in video recording, as well as an excellent light for general diving. The included, rechargeable lithium-ion battery pack provides a run time of 2.0-20 h, depending on the output level. Aiming for extreme durability in addition to high performance, Bigblue crafted the Chubby Jr. from an anodized aluminum alloy and tempered optical glass. - Light Performance
-

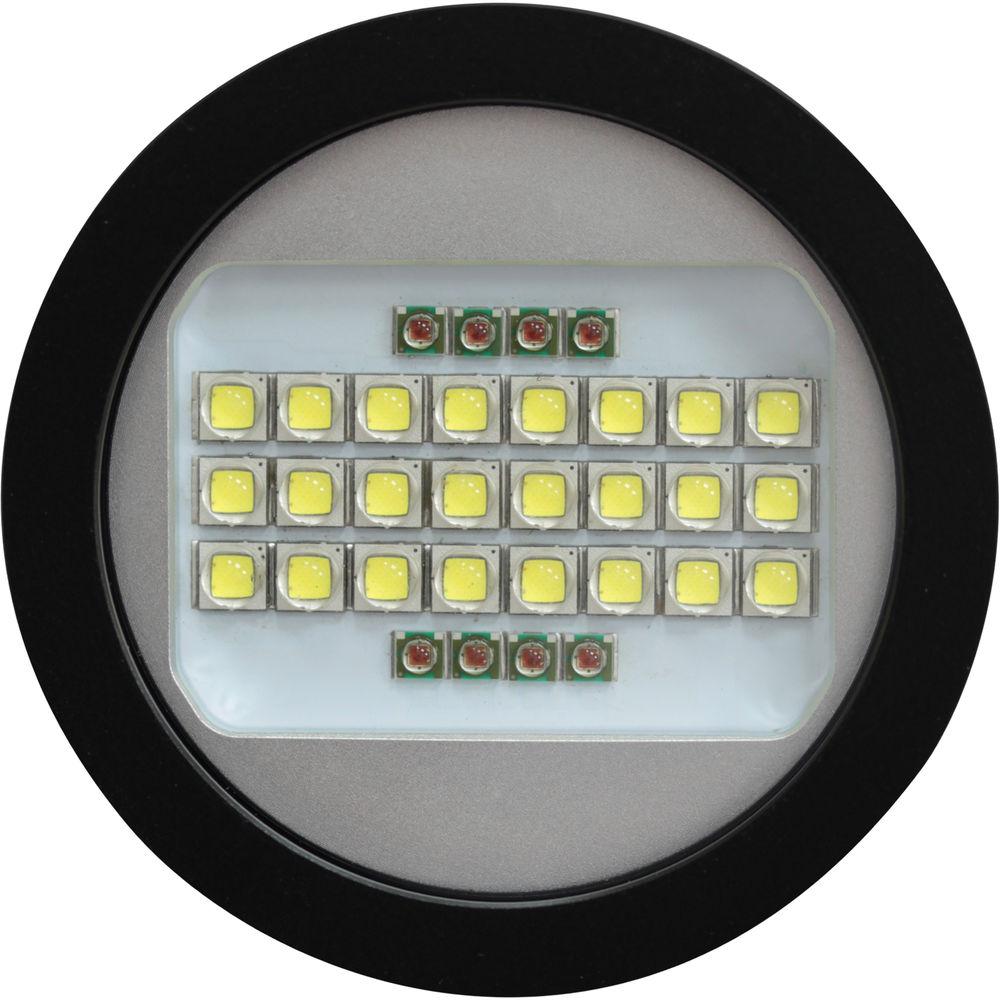

- Light source: 24 XML white LEDs and 8 XPE red LEDs
- Output: 1500-15,000 lumens in four levels
- Run time: Approximately 2 h at 15,000 lumens, 5 h at 7500 lumens, 8 h at 3750 lumens, and 20 h at 1500 lumens with the supplied, removable, and rechargeable li-ion battery pack
- Extremely wide beam with 160° coverage can illuminate humpback whales, huge schools of fish, shipwrecks, caves, and other large subjects
- Such broad coverage makes the light a great choice for wide-angle videos or general diving
- White light's daylight-balanced color temperature of 6500K allows it to restore hues that get absorbed by water, thus ensuring that your captured images are colorful and accurate
- Red LEDs lower the color temperature, producing a warming effect for observing and recording sea creatures without scaring them off
- The red light can also help you see better when diving at night
- Using the optional fluoro filter, you can excite coral, fish, and other aquatic organisms to make them emit a brilliant fluorescent glow
- Light also has an SOS function for emergency signaling
- Switching System
-
- Push-button switch for turning the power on/off and selecting output levels
- Battery level indicator shows remaining power
- Construction Details
-
- Depth rating: 328'
- Double O-ring seal
- Body and light head are made from a durable aluminum alloy, which has been anodized for excellent resistance to corrosion
- Emitter window is crafted from tempered optical glass, which has excellent strength and clarity
- Included Accessories
-
- Lantern grip allows for easy, comfortable handheld use

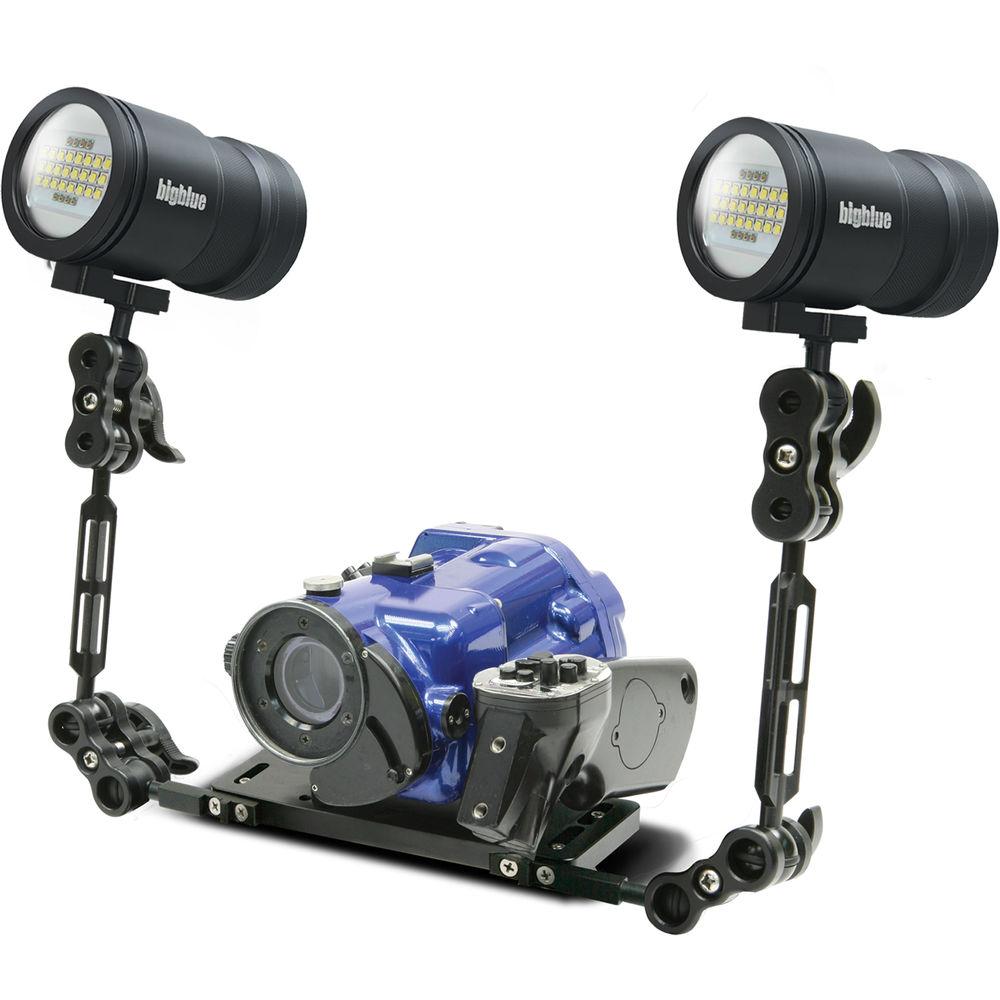

- Standard 1" ball joint enables convenient mounting onto optional lighting arms

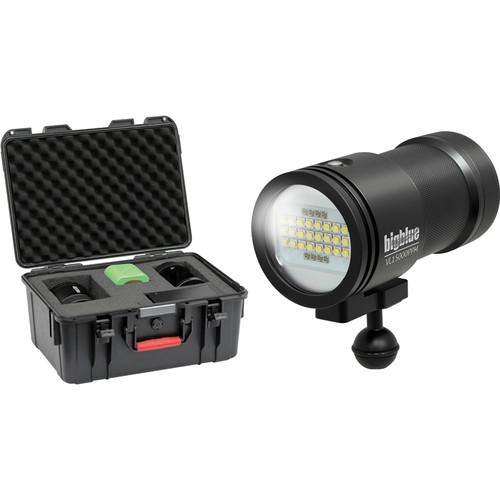

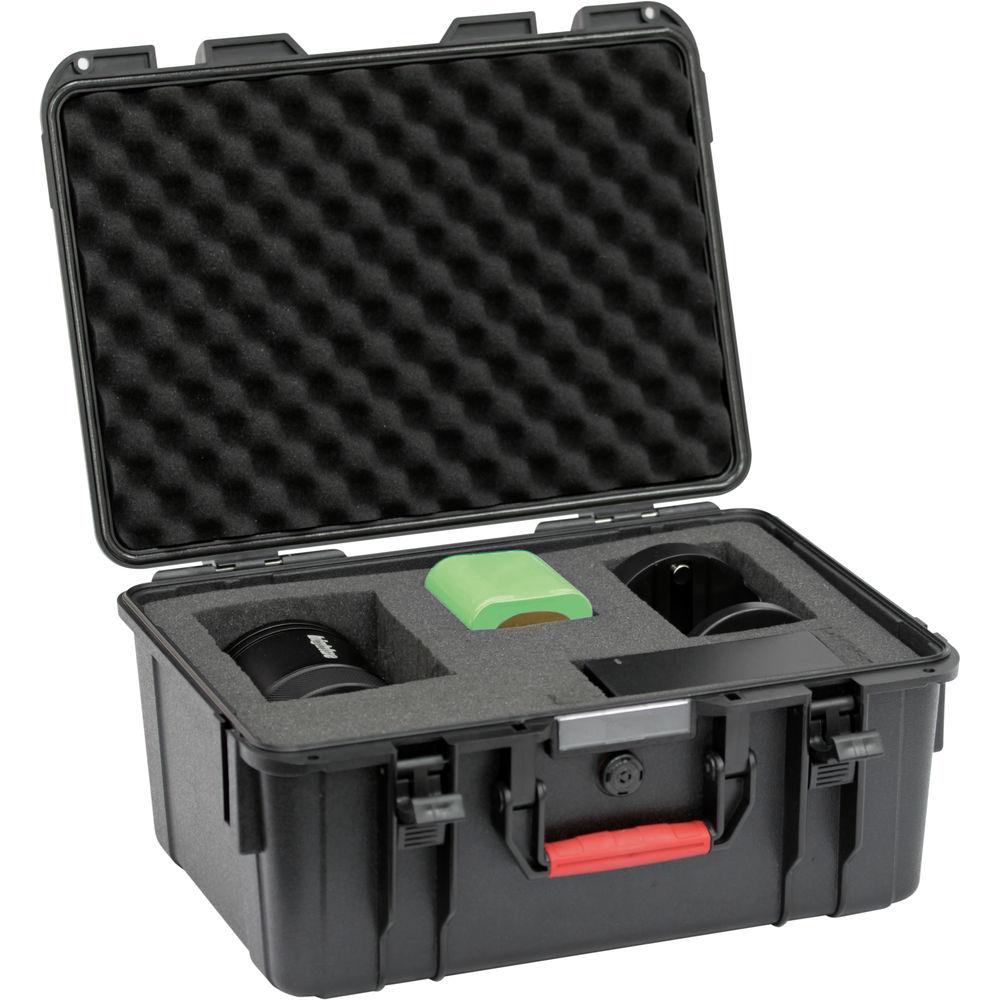

- Protective hard case for safe, easy storage and transport
In the Box Bigblue VL15000P-PRO MINI Video LED Dive Light with Protective Case (Black) Protective Hard Case Rechargeable Li-Ion Battery Pack 18650x7 Battery Charger Lanyard Lantern Grip Standard 1" Ball Joint Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bigblue VL15000P-PRO MINI Video LED Dive Light with Protective Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBigblue VL15000P-Pro Specs | Depth Rating | 328' / 100 m | | Light Source | 24 XML white LEDs
8 XPE red LEDs | | Light Intensity | White LEDs:
I: 1500 Lumens
II: 3750 Lumens
III: 7500 Lumens
IV: 15,000 Lumens | | Beam Angle | 160° | | Color Temperature | White LEDs: 6500K | | Run Time | I: 20 h
II: 8.0 h
III: 5.0 h
IV: 2.0 h | | Switching System | Push-button switch for power on/off and brightness selection
Battery level indicator | | Material of Construction | Light Body and Head: Anodized aluminum alloy
Emitter Window: Tempered optical glass | | Power | Rechargeable lithium-ion battery pack made of 7x 18650 cells | | Operating Temperature | Not specified by manufacturer | | Dimensions | Diameter x Length: 2.75 x 5.2" / 7.0 x 13.1 cm | | Weight | Out of Water: 1.75 lb / 0.8 kg
Underwater: -12 oz / -341 g |
