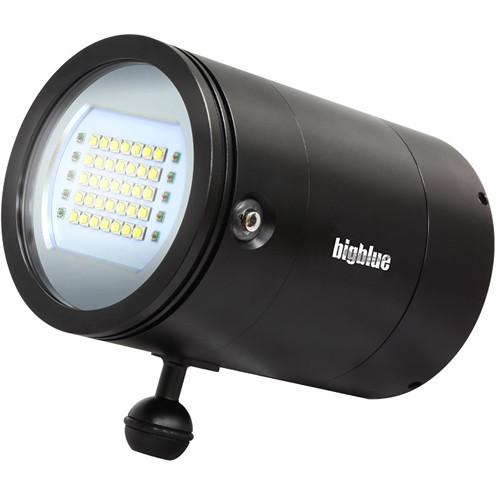

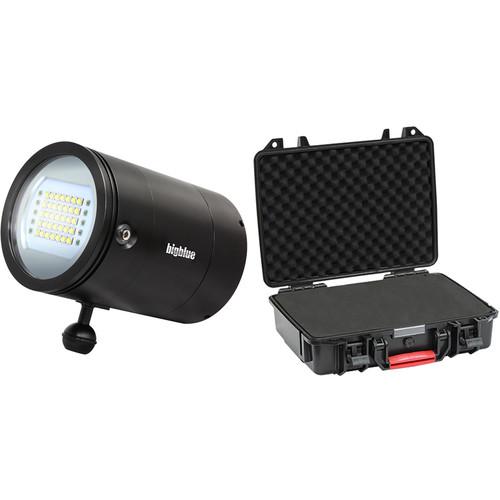

Product description Brighten up the aquatic world at depths as great as 328' with this black Bigblue VL33000P Mini Video LED Dive Light, which comes with a protective hard case. It's equipped with 45 XML white LEDs that output a remarkable maximum of 33,000 lumens, making it a great choice for underwater video projects--even in the darkest regions of the sea. This brightness can be cut in half to 16,500 lumens, or reduced even further to 8250 or 3300 lumens. Additionally, the VL33000P's angle of coverage is extremely expansive at 160°, enabling you to illuminate wide-angle shots easily.
The versatile light also features 10 XPE red LEDs that lower the standard, daylight-balanced color temperature of 6500K, creating a warming effect that will help ensure sea critters are not scared off. The run time with the included, rechargeable li-ion battery pack ranges from 2-20 h, depending on the output level.
Built for extreme durability as well as high performance, the light body and head are made from an aluminum alloy that has been anodized to resist corrosion. The emitter window is crafted from tempered optical glass with notable strength and clarity. - Light Performance
-
- Light source: 45 XML white LEDs and 10 XPE red LEDs
- White LED outputs: 3300, 8250, 16,500, and 33,000 lumens

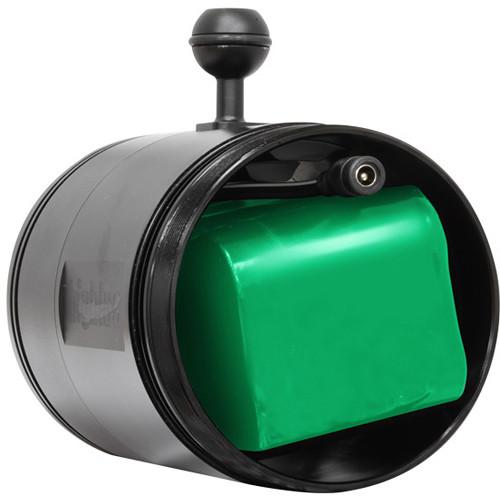

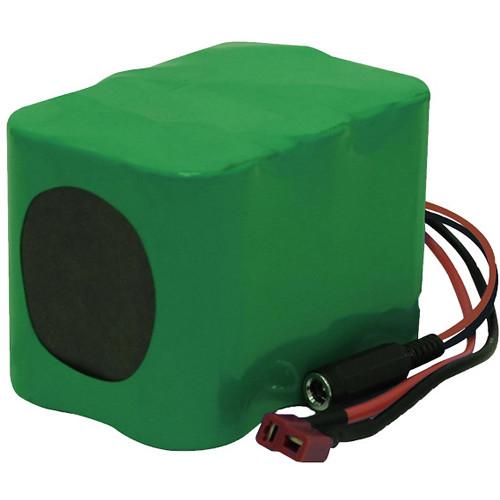

- Rechargeable lithium-ion battery pack consists of eight 26650 cells, which provide a run time of 2-20 h, depending on which output setting is selected
- Daylight-balanced color temperature of 6500K restores hues that are absorbed underwater, allowing you to capture movies with rich, vibrant, and accurate colors
- Red LEDs create a warming effect that will help ensure sea creatures are not scared off when you're trying to record videos of them
- A second benefit of the red light is its ability to improve your visibility on night dives
- Extremely broad 160° beam angle enables you to illuminate wide-angle shots of coral reefs, humpback whales, shipwrecks, and other large subjects with ease
- Switching System
-
- Push-button for turning the power on and off and cycling through output settings
- Battery indicator keeps you apprised of the li-ion pack's power level
- Construction Details
-
- Depth rating: 328'
- Double O-ring seal
- Body and head are made from an aluminum alloy that has been anodized to resist corrosion
- Emitter window is crafted from tempered optical glass with considerable strength and a high degree of clarity
- Included Accessories
-

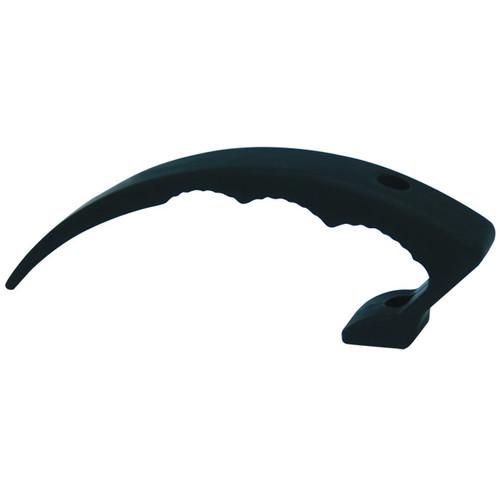

- Lantern grip enables a secure, comfortable hold, and is ideal when you're illuminating subjects at low levels in front of you or beneath you
- Standard 1" ball joint allows you to mount the light onto optional arms, which connect to grip handles on camera housing trays

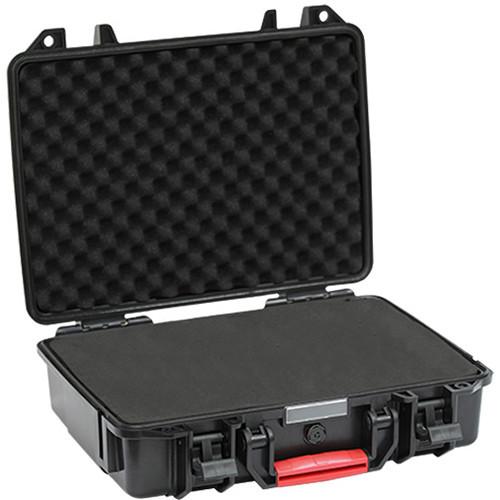

- Protective hard case provides a safe, hassle-free means of storage and transport

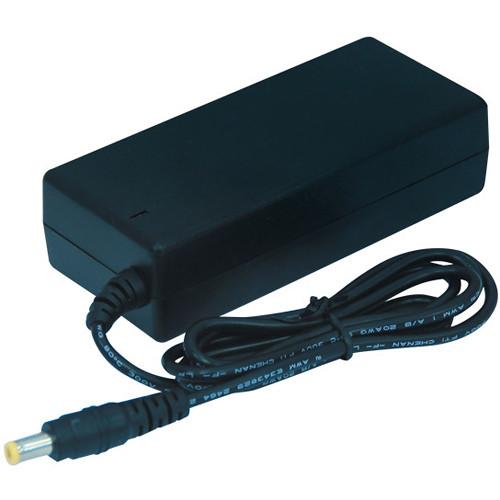

In the Box Bigblue VL33000P Mini Video LED Dive Light with Protective Case (Black) Lantern Grip Standard 1" Ball Joint Rechargeable Lithium-Ion Battery Pack (8x BATCELL26650) Charger PC-104 Protective Case for Select Large Dive Lights zvzeceefybsw Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bigblue VL33000P Mini Video LED Dive Light with Protective Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBigblue VL33000P Specs | Depth Rating | 328' / 100 m | | Light Source | 45 XML white LEDs
10 XPE red LEDs | | Light Intensity | I: 3300 Lumens
II: 8250 Lumens
III: 16,500 Lumens
IV: 33,000 Lumens | | Beam Angle | 160° | | Color Temperature | White LEDs: 6500K
Red LEDs: 1000-1400K | | Run Time | I: 20 h
II: 8 h
III: 4 h
IV: 2 h | | Switching System | Push-button with battery indicator | | Material of Construction | Body and Head: Anodized aluminum alloy
Emitter Window: Tempered optical glass | | Power | Rechargeable lithium-ion battery pack made up of 8x 26650 cells (included)
Charger (included) | | Dimensions | Diameter x Length: 3.9 x 5.4" / 10 x 13.75 cm | | Weight | 3.75 lb / 1.7 kg | | | | Package Weight | 8.75 lb | | Box Dimensions (LxWxH) | 13.0 x 9.0 x 9.0" |
