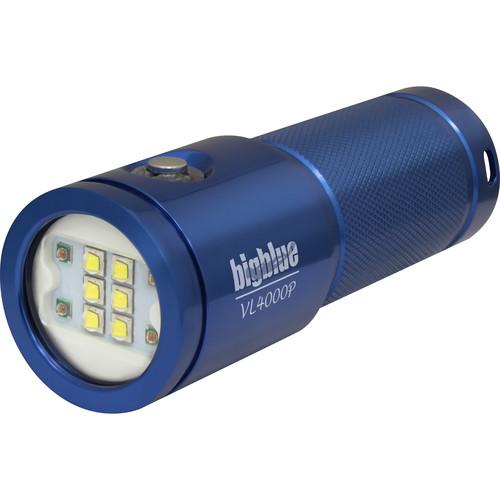

User Manual for Bigblue VL4000P Video LED Dive Light Click to enlarge the picture
Contents of the user manual for the Bigblue VL4000P Video LED Dive Light
- Product category: Continuous Lights Bigblue
- Brand: Bigblue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bigblue Continuous Lights
|
User manual for the Bigblue VL4000P Video LED Dive Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bigblue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bigblue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bigblue product will considerably shorten its lifespan!
|
Product description Illuminate the underwater world at depths as great as 328' with the glossy blue VL4000P Video LED Dive Light from Bigblue. Six XML white LEDs output 400-4000 lumens in four selectable levels. An expansive 120° beam makes the light a great choice when capturing wide-angle shots for your movies. The white beam has a daylight-balanced color temperature of 6500K, allowing it to restore hues that are absorbed by water. Additionally, the light offers four XPE red LEDs that lower the color temperature, creating a warming effect that will help ensure sea creatures aren't scared off. The VL4000P runs on an included, rechargeable lithium-ion battery, which provides an operating time of 1.5-15 hours, depending on the output level. Built for extreme durability as well as high performance, the light is made from an anodized aluminum alloy and tempered optical glass. - Light Performance
-
- Light source: 6 XML white LEDs and 4 XPE red LEDs
- White outputs: 400, 1000, 2000, and 4000 lumens
- Red output: 200 lumens
- Run time: 1.5 h at 4000 lumens, 3 h at 2000 lumens, 6 h at 1000 lumens, and 15 h at 400 lumens
- Expansive 120° beam can illuminate humpback whales, schools of fish, shipwrecks, caves, and other large subjects
- Such broad coverage makes the light a great tool for wide-angle video recording and general diving
- With a daylight-balanced color temperature of 6500K, the white light enhances your captured videos by restoring hues that are absorbed beneath the surface
- Red LEDs lower the color temperature, creating a warming effect for observing and recording sea creatures without scaring them away
- A second benefit of the red light is that it improves your visibility on night dives
- Yellow warming filter also reduces the color temperature, serving as an alternative to the red light
- Switching System
-
- Push-button switch for turning the power on/off and selecting output levels
- Battery level indicator shows remaining power
- Construction Details
-
- Depth rating: 328'
- Double O-ring seal
- Body and light head are made from a durable aluminum alloy, which has been anodized for excellent resistance to corrosion
- Emitter window is crafted from tempered optical glass, which has notable strength and clarity
- Included Accessories
-
- Standard 1" ball mount allows you to connect the VL4000P to optional lighting arms
- Lanyard prevents light loss by enabling attachment to your wrist or equipment
In the Box Bigblue VL4000P Video LED Dive Light (Glossy Blue) Rechargeable Li-Ion Battery Pack Battery Charger 1" Ball Mount Removable Yellow Warming Filter Lanyard Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bigblue VL4000P Video LED Dive Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBigblue VL4000P Specs Depth Rating | 328' / 100 m | Light Source | 6 XML white LEDs 4 XPE red LEDs | Light Intensity | White LEDs: I: 400 lumens II: 1000 lumens III: 2000 lumens IV: 4000 lumens
Red LEDs: 200 lumens | Beam Angle | 120° | Color Temperature | 6500 K | Run Time | I: 15 h II: 6 h III: 3 h IV: 1.5 h | Switching System | Push-button switch to turn power on/off and select brightness Battery level indicator | Material of Construction | Light Body and Head: Anodized aluminum alloy Emitter Window: Tempered optical glass | Power | 32650 rechargeable lithium-ion battery (included) Battery charger (included) | Operating Temperature | Not specified by manufacturer | Dimensions | Diameter x Length: 1.7 x 4.75" / 4.4 x 12.1 cm | Weight | Out of Water: 11.2 oz / 318 g with battery Underwater: -5.9 oz / -167 g with battery | | Package Weight | 2.0 lb | Box Dimensions (LxWxH) | 8.5 x 7.0 x 3.0" |
