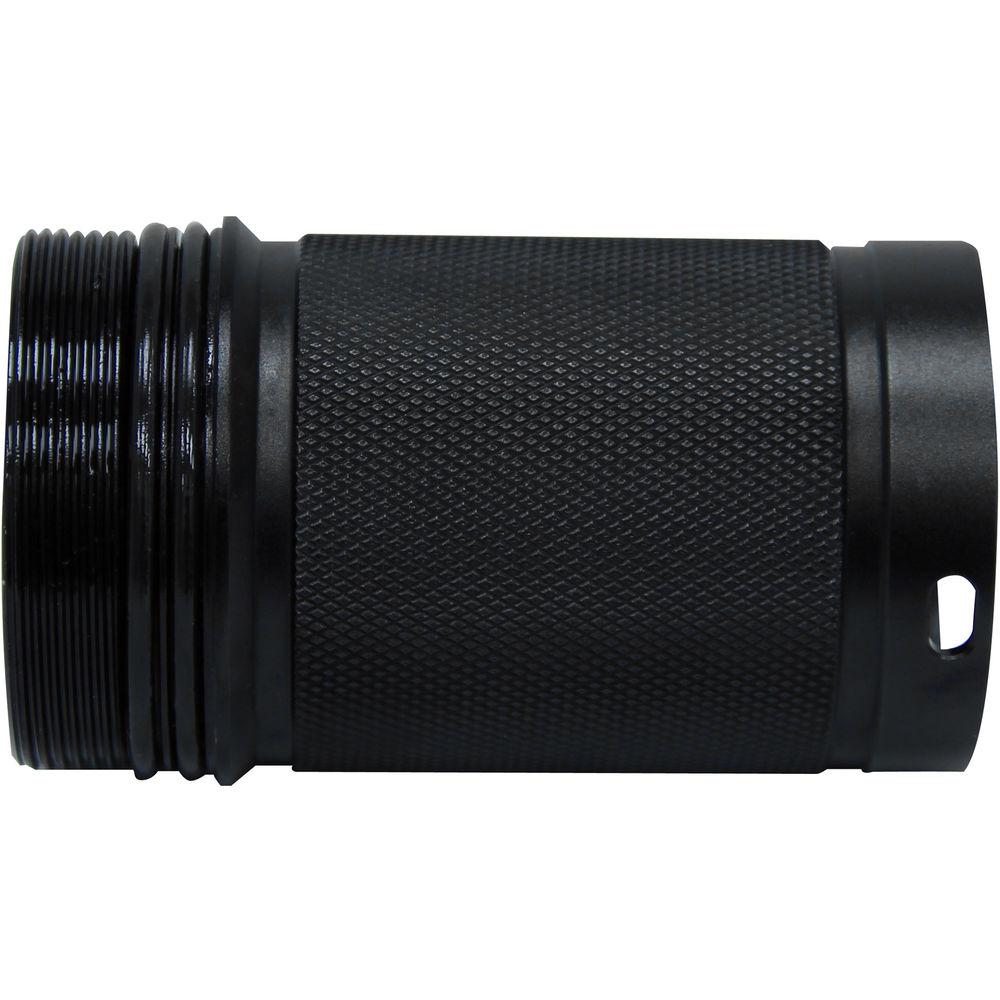

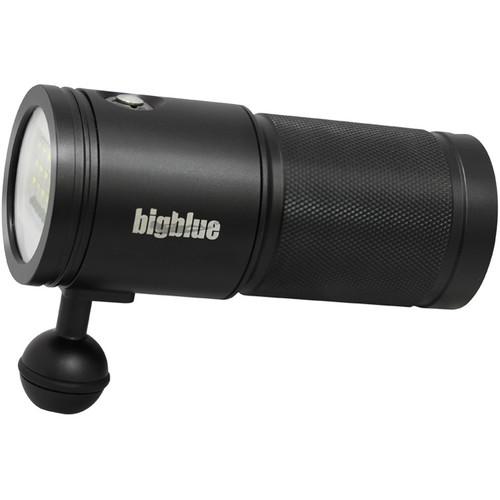

User Manual for Bigblue VL5800P Tri-Color Photo Video Light Click to enlarge the picture
Contents of the user manual for the Bigblue VL5800P Tri-Color Photo Video Light
- Product category: Continuous Lights Bigblue
- Brand: Bigblue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bigblue Continuous Lights
 |
User manual for the Bigblue VL5800P Tri-Color Photo Video Light contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bigblue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bigblue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bigblue product will considerably shorten its lifespan!
|
Product description With a maximum output of 5800 lumens of white light, a 500-lumen red light setting, a maximum runtime of 12 hours, and a rechargeable battery pack, the VL5800P Tri-Color Photo/Video Light from Bigblue is a versatile light for underwater shooting. Rated for use down to 328', the light casts a wide 120° beam and offers a choice of color temperatures: a 6500K cold white and a 5500K white warmed by an infusion of yellow. The compact 5.2 x 2.2" light housing is made of anti-corrosive anodized aluminum alloy, with a window of tempered glass.Power comes from a rechargeable pack of four 18650 lithium-ion batteries. Fifteen XML LEDs supply the white light, with six XPE emitters producing the red. A four-stage indicator keeps you apprised of remaining battery power. The light is fitted with a ball joint for connection to Bigblue grips or arms, and a dive light glove allows you to wear the light on the back of your hand so both hands are free for tasks. Light Performance - Light Source: 15 XML white LEDs and 6 XPE red LEDs
- 6500K lumen output: 1450 (Level I), 2900 (Level II), 5800 (Level III)
5500K lumen output: 725 (Level I), 1450 (Level II), 2900 (Level III) - 500-lumen red light and SOS mode
- Run time ranges from 3 to 12 hours
Switching System - Push-button switch for power on/off and selecting output level
Construction Details - 328' (100 m) depth rating
- Anti-corrosive, anodized aluminum alloy casing
- Emitter window made of tempered optical glass
- Dive light glove leaves both hands free for tasks
In the Box Bigblue VL5800P Tri-Color Photo/Video Light Dive Light Glove Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bigblue VL5800P Tri-Color Photo Video Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBigblue VL5800P Specs | Light Source | 15 x XML white LEDs and 6 x XPE red LEDs | | Light Output | 6500K: Level I 1450 lumens
Level II 2900 lumens
Level III 5800 lumens
5500K: Level I 725 lumens
Level II 1450 lumens
Level III 2900 lumens | | Color Temperature | 6500K, 5500K | | Beam Angle | 120° | | Run Time | Level I: 12 h
Level II: 6 h
Level III: 3 h | | Switching System | Push-button switch for power on/off, output selection, and SOS mode
Red LED setting
Battery level indicator | | Casing Material | Aluminum alloy, anti-corrosive anodized | | Front Glass | Tempered optical glass | | Power Source | 4 x 18650 rechargeable battery pack | | Depth Rating | 328' / 100 m | | Dimensions | 5.2 x 2.2" / 131 x 55 mm | | Buoyancy in Seawater | Light Head: -6.1 oz / -173 g | | Weight | 16.1 oz / 457 g | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 10.5 x 8.6 x 3.3" |
