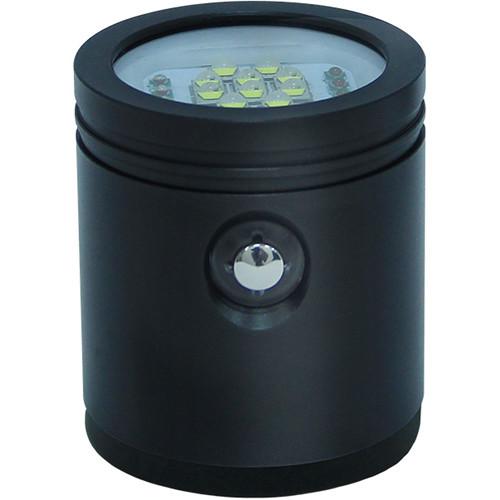

Product description Illuminate the underwater world at depths as great as 328' with the black VL7200P Tri-Color Video LED Dive Light Head from Bigblue. Fifteen XML white LEDs output 900-7200 lumens in four selectable levels. This is the light head only, without the required body and li-ion battery. When that power source is added, the VL7200P will run for 3.0-12 h, depending on the output level. As Bigblue dive light heads are interchangeable, this one can be used to replace the TL4000P, TL4500P, VTL5000P, VTL5500P, VTL6000P, and VL6500P-TC models.
The white beam has a daylight-balanced color temperature of 5500K in warm mode and 6500K in cool mode, allowing it to restore hues that are absorbed by water. This light also offers 6 XPE red LEDs that lower the color temperature, creating a warming effect that stops sea life from fleeing in fear. Additionally, an expansive 120° beam makes the VL7200P a great choice when capturing wide-angle shots for your movies.
Built for extreme durability as well as high performance, the light head is made from an aluminum alloy, which has been anodized to resist corrosion. Its emitter window is crafted from tempered optical glass with notable strength and clarity. - Light Performance
-
- Light source: 15 XML white LEDs and 6 XPE red LEDs
- Cool white outputs: 1800, 3600, and 7200 lumens
- Warm white outputs: 900, 1800, and 3600 lumens
- Red output: 500 lumens
Run time: 3 h at 7200 lumens, 6 h at 3600 lumens, and 12 h at 1800 lumens when powered by the required lithium-ion battery - Expansive 120° beam can illuminate humpback whales, schools of fish, shipwrecks, caves, and other large subjects
- Such broad coverage makes the light a great tool for wide-angle video recording and general diving
- With a daylight-balanced color temperature of 5500-6500K, the white light enhances your captured videos by restoring hues that are absorbed beneath the surface
- Red LEDs lower the color temperature, creating a warming effect for observing and recording sea creatures without scaring them away
- A second benefit of the red light is that it improves your visibility on night dives
- Switching System
-
Push-button switch for turning the power on/off and selecting output levels- Indicator shows the remaining power level of the required li-ion battery
- Construction Details
-
- Light head only, without the required body and battery
- As Bigblue's heads are interchangeable, the VL7200P can be used to replace the TL4000P, TL4500P, VTL5000P, VTL5500P, VTL6000P, and VL6500P-TC models
- Depth rating: 328'
- Double O-ring seal
- Housing is made from a durable aluminum alloy, which has been anodized for excellent resistance to corrosion
- Emitter window is crafted from tempered optical glass, which has notable strength and clarity
In the Box Bigblue VL7200P Tri-Color Video LED Dive Light Head (Black) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bigblue VL7200P Tri-Color Video LED Dive Light Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBigblue LH-VL7200P-TC Specs | Depth Rating | 328' / 100 m | | Light Source | 15 XML white LEDs
6 XPE red LEDs | | Light Intensity | Cool White:
I: 1800 lumens
II: 3600 lumens
III: 7200 lumens
Warm White:
I: 900 lumens
II: 1800 lumens
III: 3600 lumens
Red: 500 lumens | | Beam Angle | 120° | | Color Temperature | Cool White: 6500K
Warm White: 5500K
Red: Approx. 1000K | | Run Time | With Required Battery:
I (1800 Lumens): 12 h
II (3600 Lumens): 6 h
III (7200 Lumens): 3 h | | Switching System | Push-button switch to turn power on/off and select brightness
Battery level indicator | | Material of Construction | Housing: Anodized aluminum alloy
Emitter Window: Tempered optical glass | | Power | Rechargeable lithium-ion battery pack made up of 4x 18650 cells (not included) | | Operating Temperature | Not specified by manufacturer | | Dimensions | Diameter: 2.2" / 5.5 cm | | Weight | Not specified by manufacturer |
