User Manual for Bigblue VTL2800P Video and Technical LED Dive Light Click to enlarge the picture
Contents of the user manual for the Bigblue VTL2800P Video and Technical LED
- Product category: Continuous Lights Bigblue
- Brand: Bigblue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bigblue Continuous Lights
|
User manual for the Bigblue VTL2800P Video and Technical LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bigblue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bigblue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bigblue product will considerably shorten its lifespan!
|

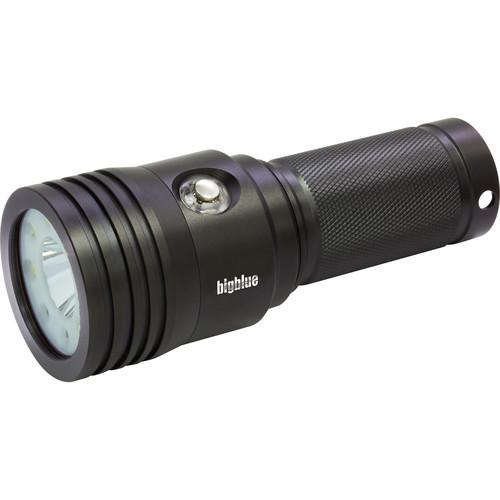

Product description Brighten up the underwater world with this black Bigblue VTL2800P Video and Technical LED Dive Light, which features a depth rating of 328'. It is equipped with 7 XML white LEDs that output 1000-2800 lumens in 4 selectable levels. There are also 2 XPE red LEDs and a removable yellow filter that lower the standard daylight-balanced color temperature of 6500K, in order to create a warming effect so as not to alarm sealife.
Run time with the included 32650 lithium-ion battery ranges from 1.5-15 hr, depending on the output level chosen. The versatile light beam offers both wide 120° flood and narrow 10° spot coverage, so you can switch between the two for different applications and situations.
Built for durability, the VTL2800P has a body and head made of anodized aluminum, as well as an emitter window constructed from tempered optical glass. Additionally, the dive light is configured with a push-button switch and a battery level indicator. The supplied Goodman-style glove lets you mount the light on the back of your hand, while the supplied standard 1" ball joint enables mounting onto optional lighting arms. - Light Performance
-
- Has 7 XML white LEDs that output 1000-2800 lumens in 4 selectable levels
- 2 XPE red LEDs and removable yellow filter provide 2 different ways to lower standard daylight-balanced color temperature of 6500K, in order to create a warming effect so as not to alarm sealife
- Run time with included 32650 lithium-ion battery ranges from 1.5-15 hr, depending on output level
- Versatile light beam offers both wide 120° flood and narrow 10° spot coverage, so you can switch between the two
-
- Switching System
-
- Push-button switch for power on/off and cycling through 4 output levels for wide beam, 1 for narrow beam, and 1 for red beam
- Built-in battery indicator
- Construction Details
-
- Depth rating: 328'
- Double o-ring sealed and equipped with safety valve
- Body and head made of aluminum, which has been anodized for resistance to corrosion
- Emitter window constructed from tempered optical glass
- Included Accessories
-
- Goodman-style glove lets you mount the light on the back of your hand, freeing up your fingers and palm to hold a camera or tools
- Standard 1" ball joint enables mounting onto optional lighting arms on video camera systems
- Battery charger also supplied
In the Box Bigblue VTL2800P Video and Technical LED Dive Light (Black) - Goodman-Style Glove
- Standard 1" Ball Joint
- Yellow Warming Filter
- 32650 Lithium-Ion Battery
- Battery Charger
- Limited 1-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Bigblue VTL2800P Video and Technical LED Dive Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBigblue VTL2800P Specs | Depth Rating | 328' / 100 m | | Light Source | 7 XML LEDs and 2 XPE red LEDs | | Light Intensity | 1000 - 2800 lumens | | Beam Angle | 120° flood
10° spot | | Color Temperature | 6500 K | | Run Time | I: 15 hr
II: 6.0 hr
III: 3.0 hr
IV: 1.5 hr | | Switching System | Push-button with built-in battery indicator | | Material of Construction | Body and Head: Anodized aluminum
Emitter Window: Tempered optical glass | | Buoyancy | Positive | | Power | 32650 lithium-ion battery (included) | | Operating Temperature | Not specified by manufacturer | | Dimensions | Diameter x Length: 2.2 x 5.7" / 56 x 144 mm | | Weight | Out of Water: 1.0 lb / 0.45 kg (including battery)
In Water: -8.2 oz / -233 g (including battery) | | | | Package Weight | 2.15 lb | | Box Dimensions (LxWxH) | 11.5 x 7.9 x 2.9" |
