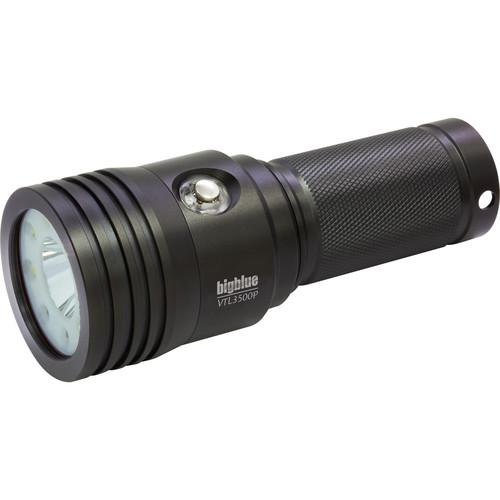

User Manual for Bigblue VTL3500P Video Technical LED Dive Light Click to enlarge the picture
Contents of the user manual for the Bigblue VTL3500P Video Technical LED Dive
- Product category: Continuous Lights Bigblue
- Brand: Bigblue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bigblue Continuous Lights
|
User manual for the Bigblue VTL3500P Video Technical LED Dive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bigblue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bigblue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bigblue product will considerably shorten its lifespan!
|
Product description Illuminate the underwater world at depths as great as 328' with the black VTL3500P Video/Technical LED Dive Light from Bigblue. Featuring 120° flood and 10° spot beam settings, this versatile light can be used effectively in movie recording and mechanical or scientific applications. Seven XML white LEDs output a total of 3500 lumens, which can be reduced to 1750, 875, or 350 lumens when the flood setting is selected. This white beam has a daylight-balanced color temperature of 6500K, which allows it to restore hues that are absorbed by water. Additionally, the light offers 2 XPE red LEDs that lower the color temperature, creating a warming effect that helps ensure sea life aren't scared off. A yellow warming filter is also supplied as an alternative to the red LEDs.
The VTL3500P runs on an included, rechargeable lithium-ion battery pack that provides an operating time of 1.5-15 h, depending on the output level. Aiming for extreme durability in addition to high performance, Bigblue crafted the light from an anodized aluminum alloy and tempered optical glass. - Light Performance
-
- Light source: 7 XML white LEDs and 2 XPE red LEDs
- White LED Output: 3500 lumens, which can be reduced to 1750, 875, or 350 lumens when the flood setting is selected
- Run time: 1.5 h at 3500 lumens, 3.0 h at 1750 lumens, 6.0 h at 875 lumens, and 15 h at 350 lumens
- Wide 120° flood beam can illuminate humpback whales, schools of fish, shipwrecks, caves, and other large subjects
- Such expansive coverage makes the light a great tool for wide-angle video recording and general diving
- Narrow 10° spot beam is ideal for the close-up examination of objects and the exploration of tight spaces, making the VTL3500P an effective technical light
- With a daylight-balanced color temperature of 6500K, the light enhances your captured videos by restoring hues that are absorbed beneath the surface
- Red LEDs lower the color temperature, creating a warming effect for observing and recording sea creatures without scaring them away
- A second benefit of the red light is that it improves your visibility on night dives
- Yellow warming filter, which also lowers color temperature, is supplied as an alternative to the red LEDs
- Switching System
-
- Push-button switch for turning the power on/off and selecting output levels
- Battery level indicator shows remaining power
- Construction Details
-
- Depth rating: 328'
- Double O-ring seal
- Body and light head are made from a durable aluminum alloy, which has been anodized for excellent resistance to corrosion
- Emitter window is crafted from tempered optical glass, which has notable strength and clarity
- Included Accessories
-
- Standard 1" ball mount enables convenient attachment to optional lighting arms
- Goodman-style glove allows you to mount the light onto the back of your hand, freeing up your palm and fingers for swimming or operating a camera
- Lanyard helps prevent light loss by enabling attachment to your wrist or equipment
In the Box Bigblue VTL3500P Video/Technical LED Dive Light (Black) 32650 Rechargeable Li-Ion Battery Pack Battery Charger 1" Ball Mount Goodman-Style Glove Removable Yellow Warming Filter Lanyard Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bigblue VTL3500P Video Technical LED Dive Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBigblue VTL3500P Specs | Depth Rating | 328' / 100 m | | Light Source | 7 XML white LEDs
2 XPE red LEDs | | Light Intensity | Flood Beam:
I: 350 lumens
II: 875 lumens
III: 1750 lumens
IV: 3500 lumens
Spot Beam: 3500 lumens | | Beam Angle | Flood: 120°
Spot: 10° | | Color Temperature | 6500K | | Run Time | Flood Beam:
I: 15 h
II: 6.0 h
III: 3.0 h
IV: 1.5 h
Spot Beam: 1.5 h | | Switching System | Push-button switch to turn power on/off and select brightness
Battery level indicator | | Material of Construction | Light Body and Head: Anodized aluminum alloy
Emitter Window: Tempered optical glass | | Power | 32650 rechargeable lithium-ion battery pack and charger (included) | | Operating Temperature | Not specified by manufacturer | | Dimensions | Diameter x Length: 2.2 x 5.6" / 5.5 x 14.1 cm | | Weight | Out of Water: 15.2 oz / 432 g including battery
Underwater: -7.2 oz / -205 g including battery | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 8.5 x 7.1 x 3.0" |
