User Manual for Bigblue VTL5000P Video and Technical LED Dive Light Click to enlarge the picture
Contents of the user manual for the Bigblue VTL5000P Video and Technical LED
- Product category: Continuous Lights Bigblue
- Brand: Bigblue
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Bigblue Continuous Lights
|
User manual for the Bigblue VTL5000P Video and Technical LED contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Bigblue product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Bigblue user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Bigblue product will considerably shorten its lifespan!
|

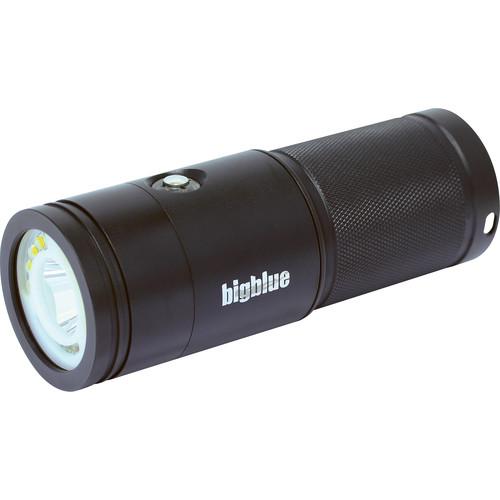

Product description Brighten up the underwater world with this black Bigblue VTL5000P Video and Technical LED Dive Light, which features a depth rating of 328'. It's equipped with 11 XML LEDs that output 500-5000 lumens. There are also 6 XPE red LEDs and a yellow filter that lower the standard daylight-balanced color temperature of 6500K, in order to create a warming effect so as not to alarm sealife. Run time with the included, rechargeable, 18650 li-ion battery pack is 3.0-30 hr. Additionally, this versatile light's beam angle is adjustable from 120° flood to 10° spot and vice-versa.
Built for durability, the VTL5000P has a body made of anodized aluminum to resist corrosion. The emitter window is constructed from tempered optical glass. Additionally, the dive light is configured with a push-button switch with a battery indicator. A Goodman-style glove enables you to attach the light to the top of your hand, while a standard 1" ball joint enables convenient mounting onto optional lighting arms. - Light Performance
-
- 11 XML LEDs that output 500, 1250, 2500, or 5000 lumens in flood mode and 1000 lumens in spot mode
- 6 XPE red LEDs output 500 lumens and lower standard daylight-balanced color temperature of 6500K, in order to create a warming effect so as not to alarm sealife
- Run time with included, rechargeable, 4-piece 18650 li-ion battery pack is 3.0-30 hr
- Beam angle is adjustable from 120° flood to 10° spot and vice-versa
- Switching System
-
- Push-button switch to power on/off and cycle through 4 levels of brightness for wide beam, 1 level for narrow beam, and 1 level for red beam
- Battery level indicator
- Construction Details
-
- Depth rating: 328'
- Body made of aluminum that has been anodized to resist corrosion
- Emitter window is constructed from tempered optical glass
- Included Accessories
-
- Removable yellow filter lowers color temperature to about 3500K, creating a warming effect different from that of the red LEDs
- Goodman-style glove enables you to attach the light to the top of your hand, freeing up your palm and fingers to hold a camera or tools
- Standard 1" ball joint enables convenient mounting onto optional lighting arms
- Battery charger also supplied
In the Box Bigblue VTL5000P Video and Technical LED Dive Light (Black) Rechargeable 4-Cell 18650 Li-Ion Battery Pack BATCHR18650x4 Battery Charger Yellow Warming Filter Goodman-Style Glove Standard 1" Ball Joint Lanyard Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Bigblue VTL5000P Video and Technical LED Dive Light in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBigblue VTL5000P Specs | Depth Rating | 328' / 100 m | | Light Source | 11 XML LEDs and 6 XPE red LEDs | | Light Intensity | Flood Beam Mode:
I: 500 lumens
II: 1250 lumens
III: 2500 lumens
IV: 5000 lumens
Spot Beam Mode:
1000 lumens
Red Color Mode : 500 lumens | | Beam Angle | Wide/Flood: 120°
Narrow/Spot: 10° | | Color Temperature | 6500 K | | Run Time | I: 30 hr
II: 12 hr
III: 6.0 hr
IV: 3.0 hr | | Switching System | Push-button with battery level indicator | | Material of Construction | Body: Anodized aluminum alloy
Emitter Window: Tempered optical glass | | Buoyancy | Positive | | Power | Rechargeable 4-cell 18650 lithium-ion battery pack and charger (included)
Charger's LED Indicator: Red when charging, green when fully charged | | Operating Temperature | Not specified by manufacturer | | Dimensions | Diameter x Length: 2.2 x 6.0" / 5.5 x 15.2 cm | | Weight | Out of Water: 1.1 lb / 0.5 kg including battery
In Water: -5.7 oz / -161 g including battery | | | | Package Weight | 3.15 lb | | Box Dimensions (LxWxH) | 10.4 x 8.6 x 3.3" |
