User Manual for BirdDog Studio SDI HDMI to Network Device Interface Converter Click to enlarge the picture
Contents of the user manual for the BirdDog Studio SDI HDMI to Network
- Product category: Signal Converters BirdDog
- Brand: BirdDog
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BirdDog Signal Converters
 |
User manual for the BirdDog Studio SDI HDMI to Network contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BirdDog product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BirdDog user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BirdDog product will considerably shorten its lifespan!
|

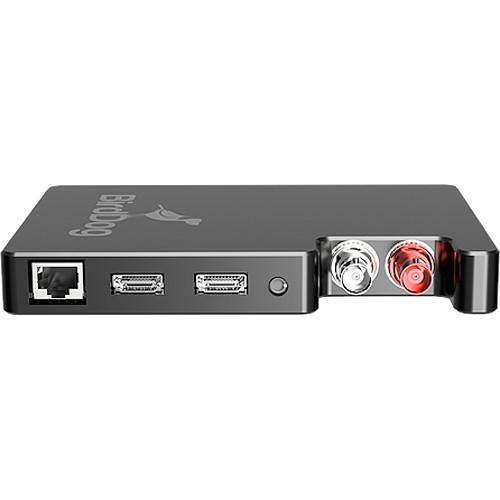

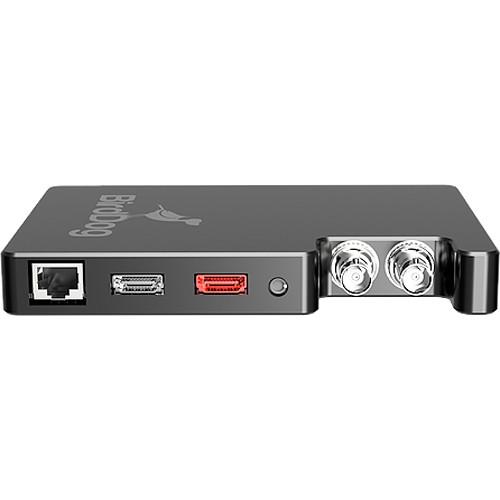

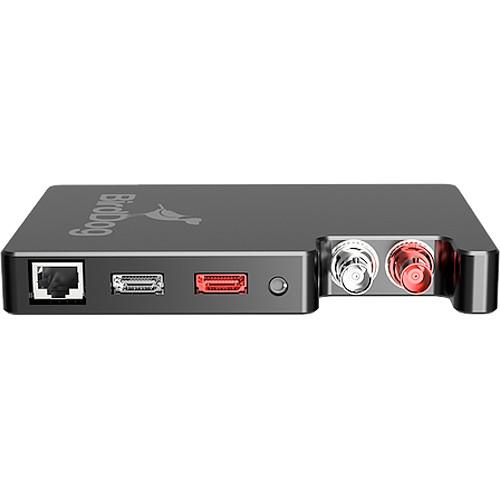

Product description The BirdDog Studio SDI/HDMI to Network Device Interface Converter (Standard) takes HDMI or HD-SDI signals and converts them live to NDI (Network Device Interface). It supports plug-and-play operation and can be powered via AC, DC, or Ethernet (PoE). The converter can be implemented on a device and external tally displays. Configuration and software updates are easily achieved via a web interface and software updates can be applied to all BirdDog devices simultaneously.The Studio NDI is universally compatible with any NDI compliant device including NewTek TriCaster and VMix live production systems. Remote cameras can easily be removed outside of the studio as the connection from BirdDog Studio NDI to your live show is via the standard Ethernet network. The Studio NDI can display tally onboard and externally via Tally out. Thanks to the improved NDI integration, it can provide both Program and Preview tally indicators. - SDI/HDMI to NDI (Network Device Interface) converter

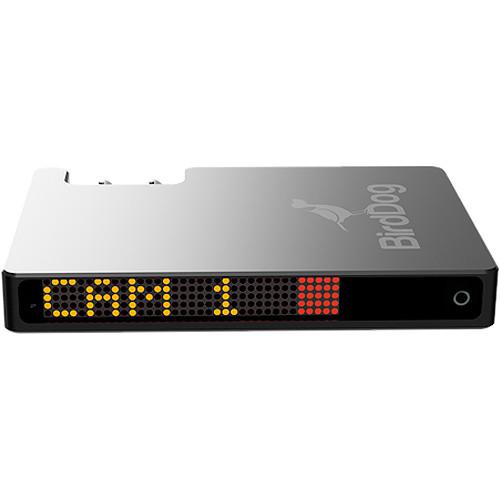

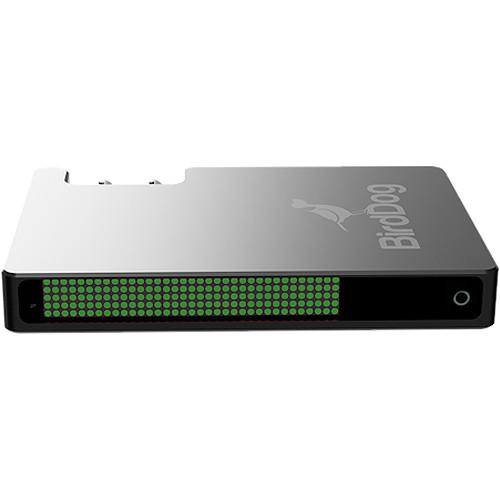

- Onboard full screen & external tally light interface
- 802.3af/802.3at PoE (Power over Ethernet) compliant
- SD, 720P, 1080i, and 1080p standards support
- Flexible power options including PoE (Power over Ethernet)
- Central management software interface (mobile and web)
- HDMI 1.4 and 3G-SDI inputs and outputs
- Simple plug-and-play operation
- Compatible with all NDI compliant equipment
- Access video resources such as cameras, PCs, consoles, and Blu-ray players from anywhere in the facility
- Easily integrate tally into productions, even outside the studio
- Simply set the display to be full screen tally or split screen to show both information and tally
- Control and configure multiple BirdDog Studio NDI devices through our admin panel which is accessible via a web browser on both mobile devices and desktops
- SDI and HDMI outputs are always live allowing you to convert from SDI to HDMI and vice versa
- Connect a monitor to BirdDog Studio or simply use to loop out
In the Box BirdDog Studio SDI/HDMI to Network Device Interface Converter (Standard) 12 VDC Power Adapter D-Tap to DC Adapter Fly Lead 10' Ethernet Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BirdDog Studio SDI HDMI to Network Device Interface Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBirdDog BDSTUM01 Specs | Video Inputs | HDMI 1.4
3G-SDI 1.4 | | Video Outputs | HDMI
3G-SDI | | Supported Resolutions | 1080p 29.97/25
1080i 59.94/50
720p 59.94/50
SD PAL/NTSC | | Protocol Support | NDI Realtime Encoding | | Audio | Embedded via SDI/HDMI
Analog 3.5 mm mic/headphone | | Network | 1000baseT | | Power | 802.3af/802.3at PoE (Power over Ethernet)
DC with 2-pin D-Tap 8 to 24 V via included adapter | | Tally | 3.5 mm GPIO 2 position (Program/Preview) | | Display | Bi-color LED
3 Selectable modes (Info, Tally, Multi-Tally) | | Configuration | Web based (mobile and desktop compatible) | | Dimensions (W × H × D) | 4.13 x 5.5 x 0.7" (105 x 142 x 19 mm) | | Weight | 12.5 oz (355 g) | | | | Package Weight | 2.35 lb | | Box Dimensions (LxWxH) | 9.7 x 7.9 x 2.4" |
