User Manual for BitFenix ENSO 5-Bay ATX Mid-Tower Chassis Click to enlarge the picture
Contents of the user manual for the BitFenix ENSO 5-Bay ATX Mid-Tower Chassis
- Product category: Desktop Computer Cases BitFenix
- Brand: BitFenix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BitFenix Desktop Computer Cases
 |
User manual for the BitFenix ENSO 5-Bay ATX Mid-Tower Chassis contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BitFenix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BitFenix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BitFenix product will considerably shorten its lifespan!
|

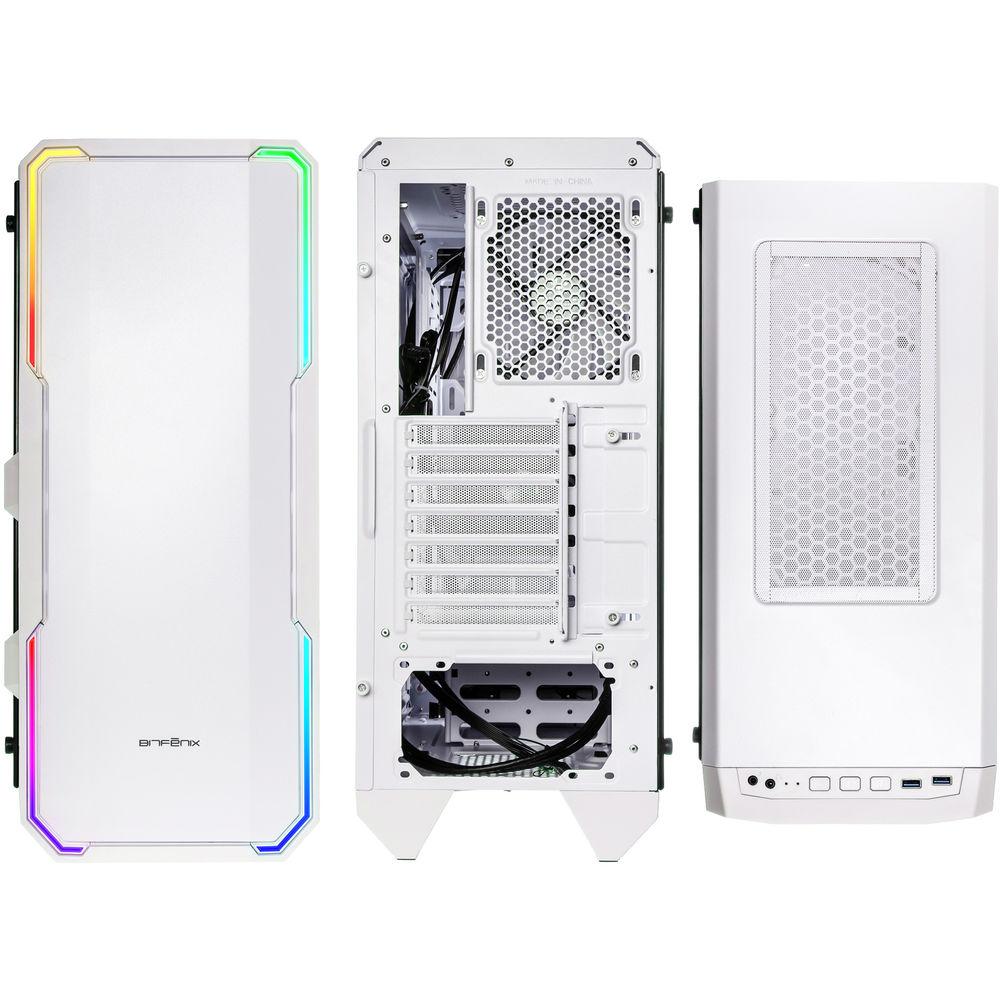

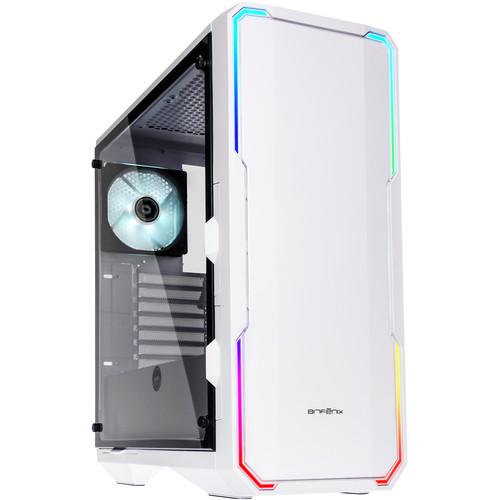

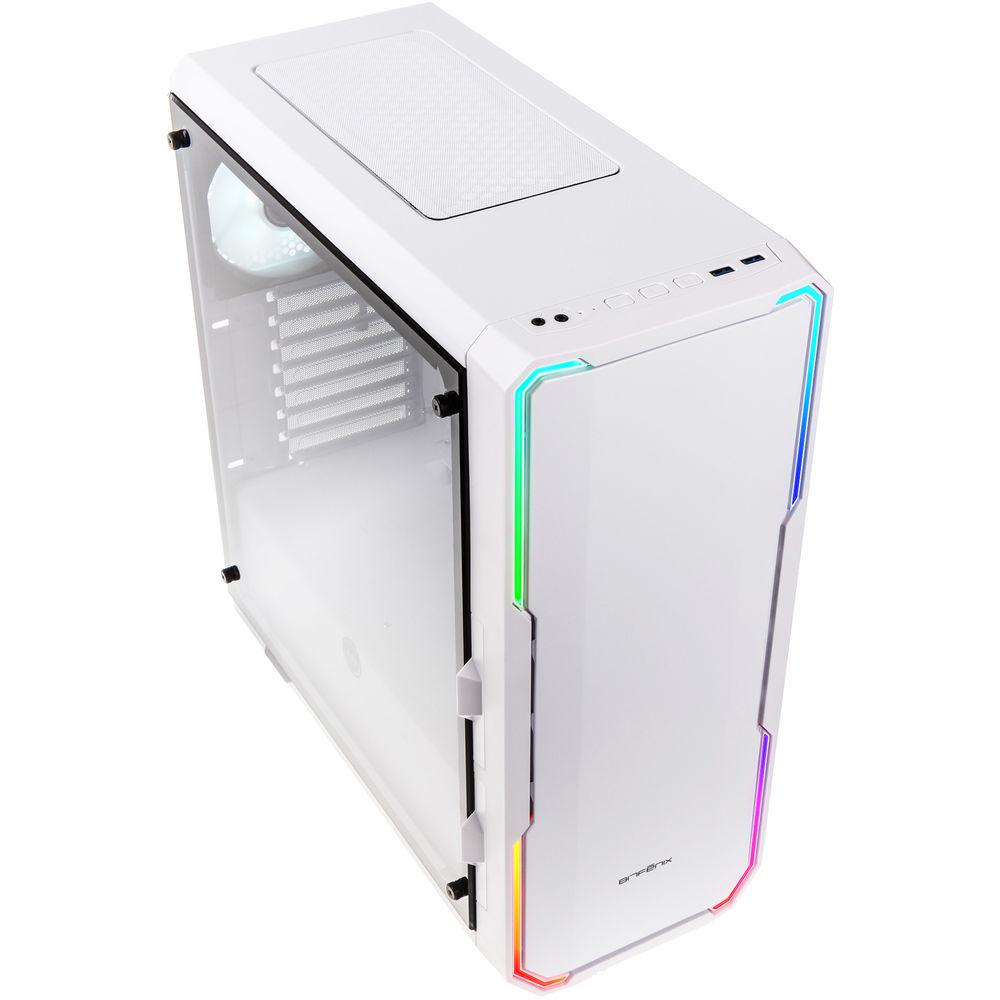

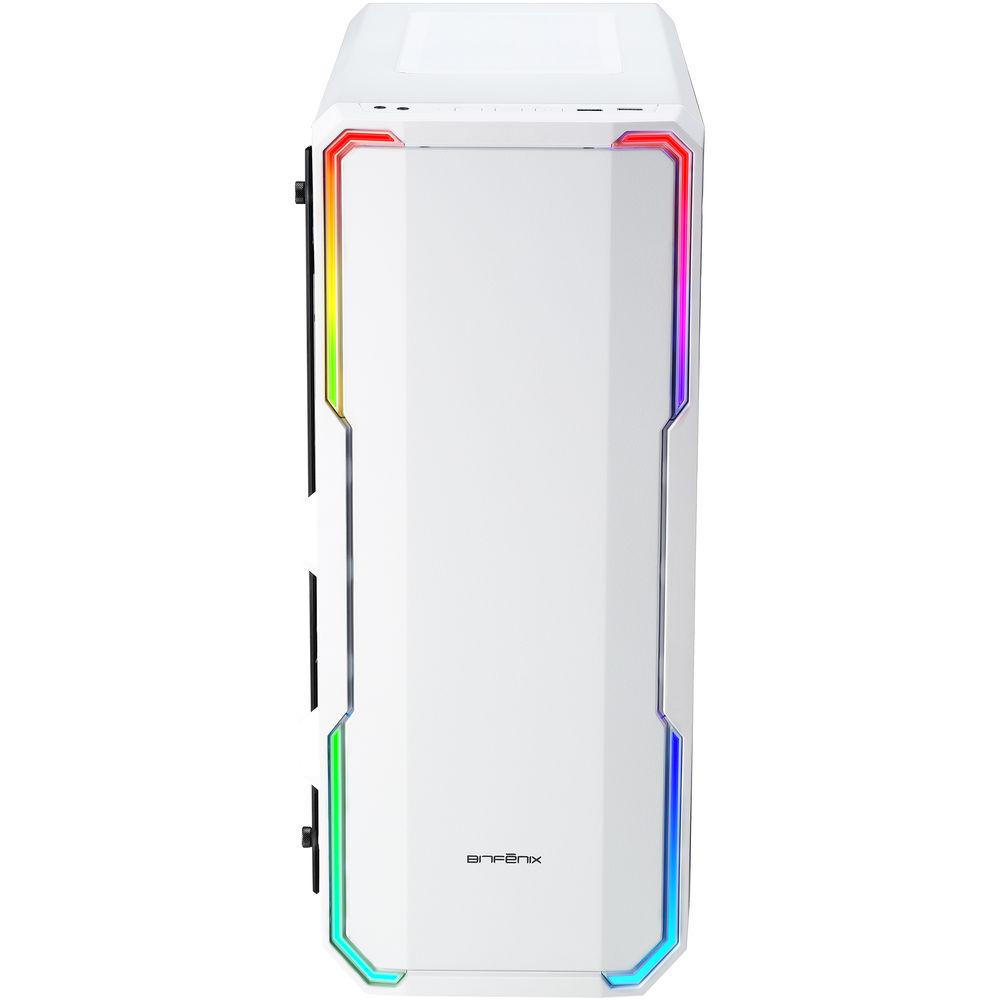

Product description The white ENSO 5-Bay Mid-Tower Chassis from BitFenix houses your internal computer components and lets you view them through a tempered glass side panel with AURA SYNC 3-pin addressable RGB LED technology. The RGB lighting is powered by a built-in controller, offering single colors to match different system builds and rainbow modes. The 4mm see-through-tinted glass panel allows a peak into the case showing off the RGB illuminated main components.

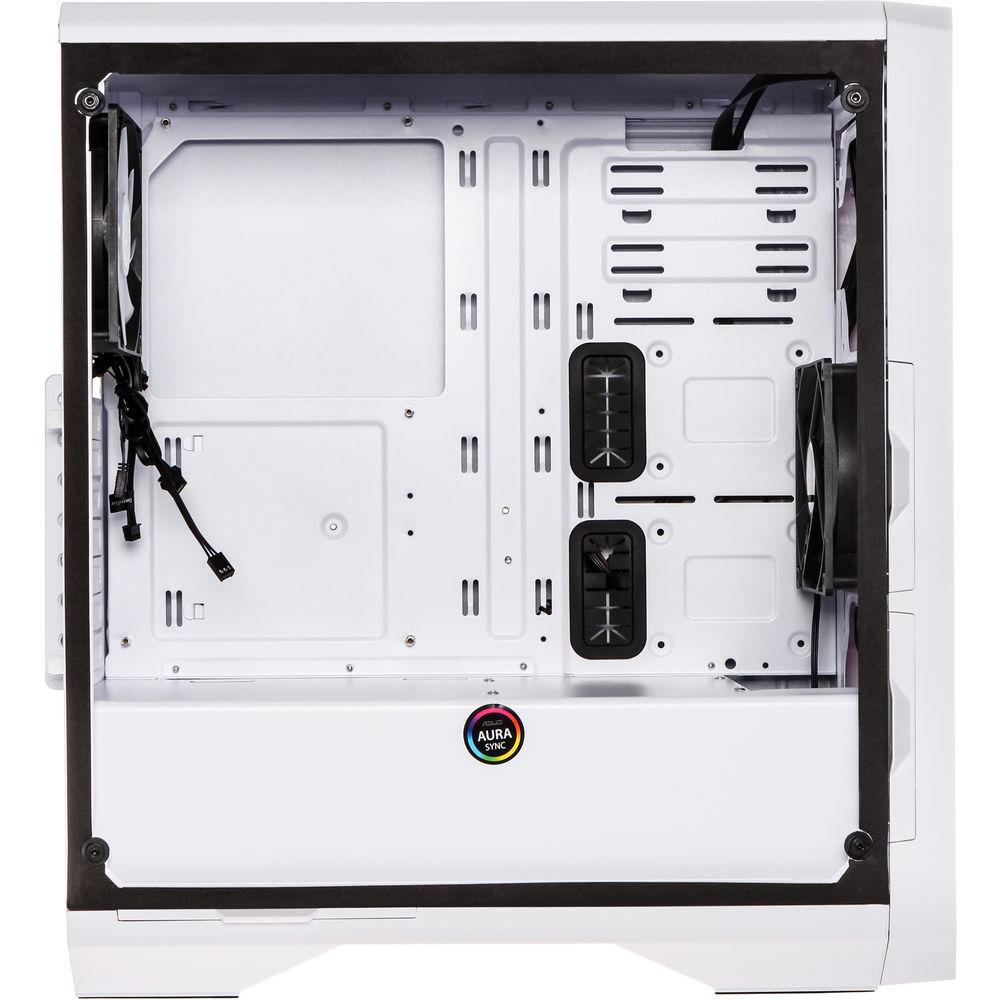

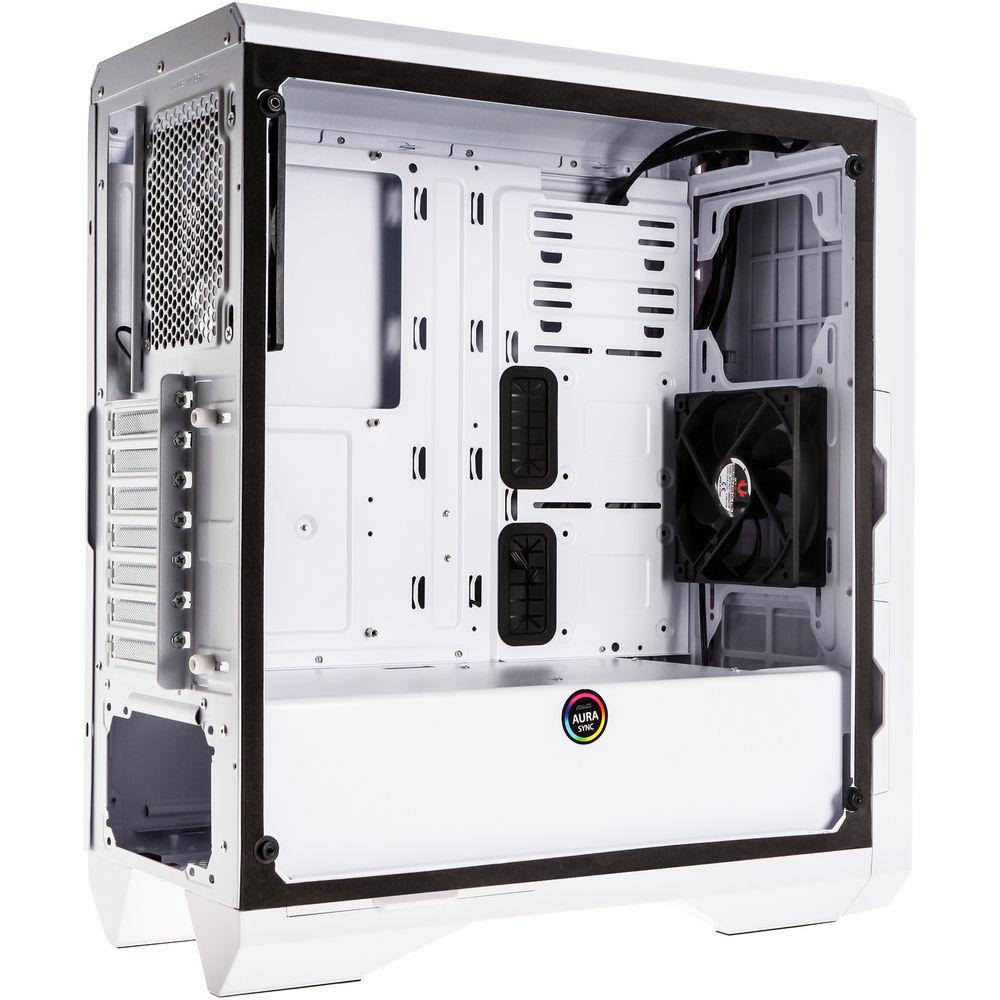

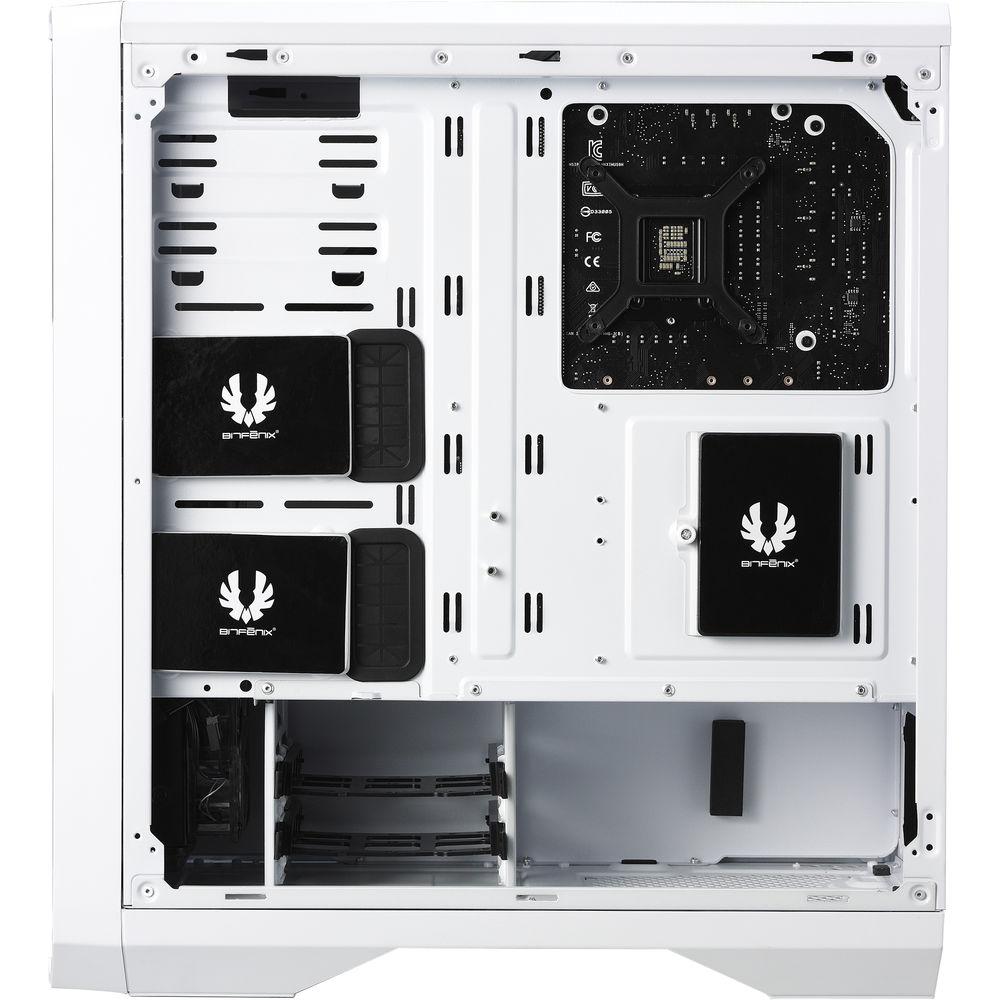

The ENSO comes with a PSU shroud hiding the PSU and up to two HDDs beneath it, while three SSDs can be attached to the back of the motherboard tray, showing only the motherboard, graphics cards, and the cooling solution through the tempered glass panel. The 23mm cable management space behind the motherboard tray makes it easy to manage the cables clean. With drive-trays out of the way, the ENSO provides space for graphics cards up to 13.4" long.
To cool down the components, hidden air-vents are placed around the metal cover on the front panel to enhance smooth intake. Apart from the built-in RGB 120mm rear fan and black 120mm front fan, the ENSO supports up to two 140mm fans or a 280mm radiator in the front, two 120mm fans in the top, and a 120mm rear radiator to optimize system ventilation. Furthermore, the ENSO also supports up to 160mm high CPU air cooler. - Clean interior cools down the GPU and reduces the noise level of the air flow
- Included mesh top for air flow or solid top for silence

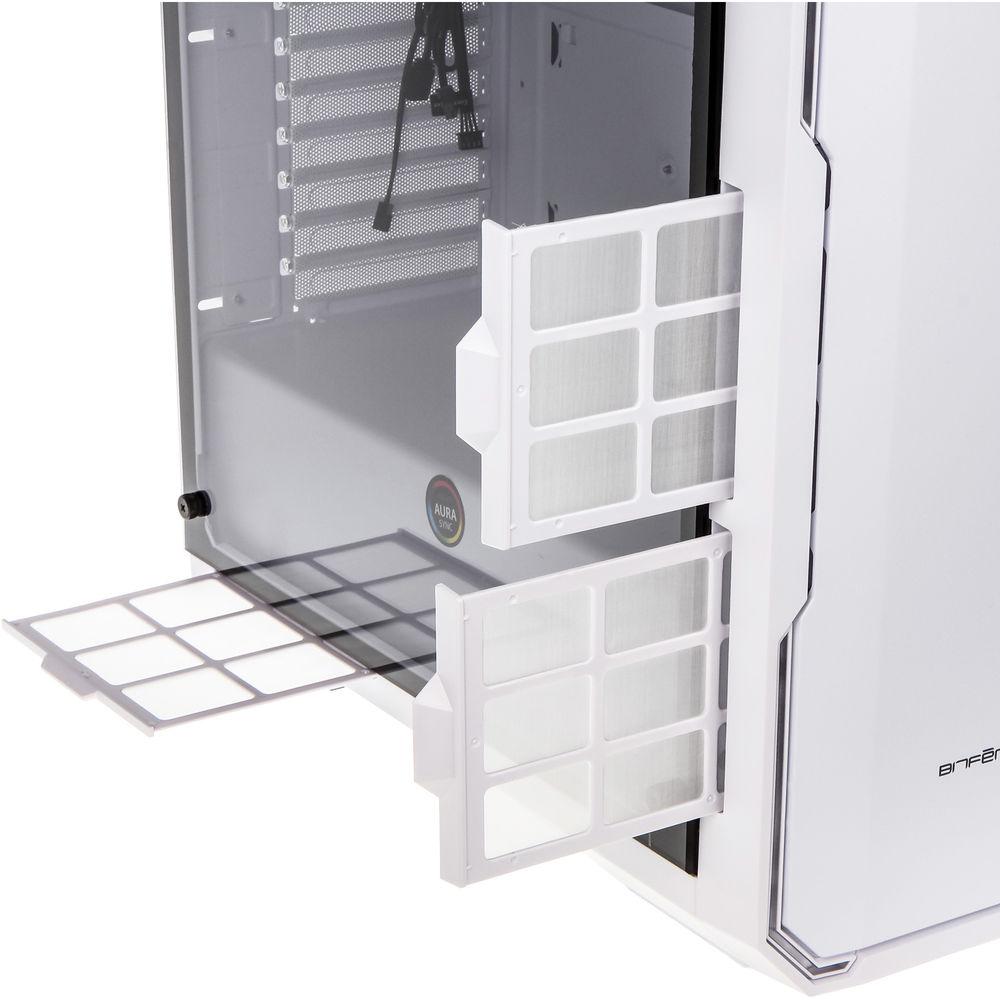

- Easy clean with removable dust filters
UPC: 886027015711 In the Box BitFenix ENSO 5-Bay ATX Mid-Tower Chassis (White) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BitFenix ENSO 5-Bay ATX Mid-Tower Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBitFenix ENSO Case Specs | | | Motherboard Support | ATX, E-ATX, Micro-ATX, Mini-ITX | | External Drive Bays | None | | Internal Drive Bays | 2 x 2.5/3.5"
3 x 2.5" | | Expansion Slots | 7 x Full Height | | Maximum GPU Length | 13.39" / 340 mm | | CPU Cooler Height | 6.30" / 160 mm | | Supported PSU Size | ATX | | Maximum PSU Length | 6.30" / 160 mm | | | | Fan Mounting (Front) | 2 x 140 mm
Or
2 x 120 mm
| | Fan Mounting (Rear) | 1 x 120 mm
| | Fan Mounting (Side) | None | | Fan Mounting (Top) | 2 x 120 mm

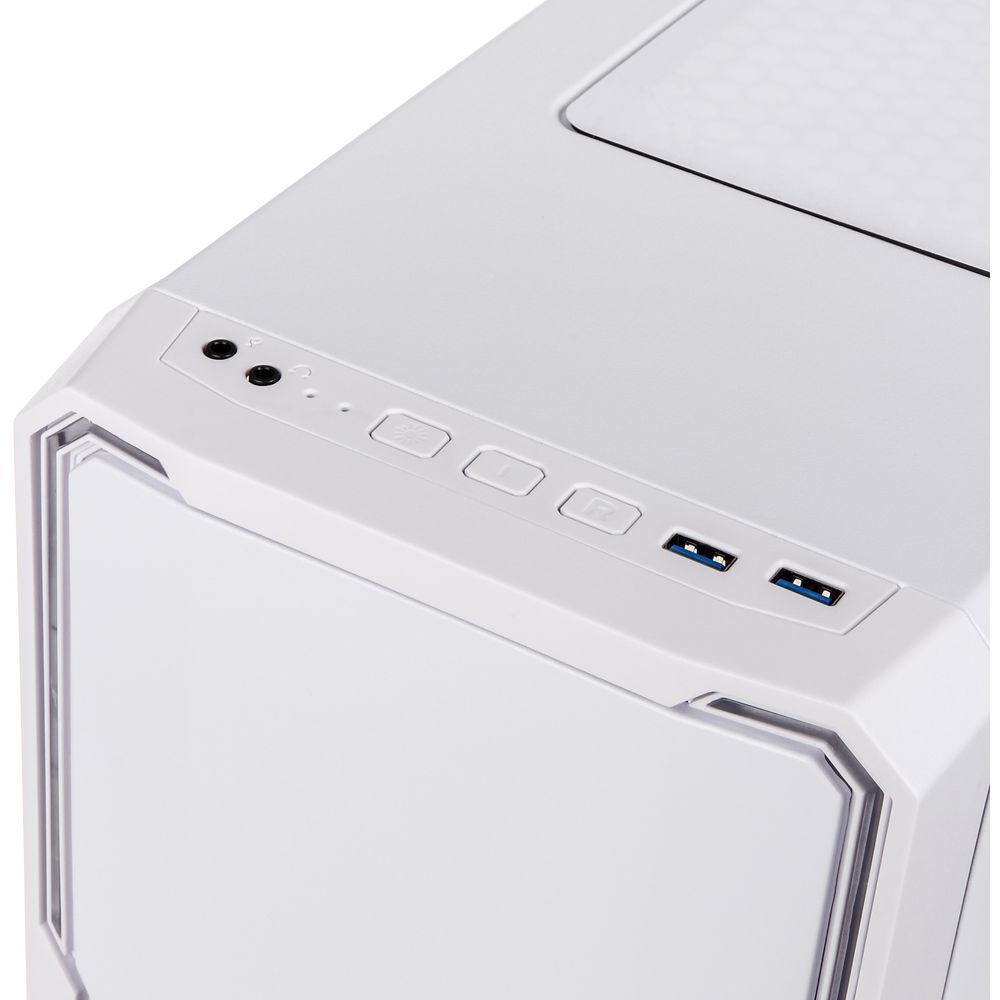

| | Fan Mounting (Bottom) | None | | Fans Included (Front) | 1 x 120 mm | | Fans Included (Rear) | 1 x 120 mm | | Maximum Radiator Size (Front) | 1 x 280 mm | | Maximum Radiator Size (Rear) | 1 x 120 mm | | Fan Mounting (Internal) | None | | Noise Level | 20 dBA | | Fan Controller Included | No | | Filter Locations | Bottom, Front, Top | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Tempered Glass, Steel, Plastic | | Built-In Lighting | Yes | | Cable Management Space | 0.91" / 23 mm | | Dimensions (W x H x D) | 8.3 x 19.3 x 17.9" / 21.0 x 48.9 x 45.4 cm | | Weight | 15.4 lb / 7.0 kg | | | | Package Weight | 18.0 lb | | Box Dimensions (LxWxH) | 22.0 x 21.1 x 11.6" |
