Product description

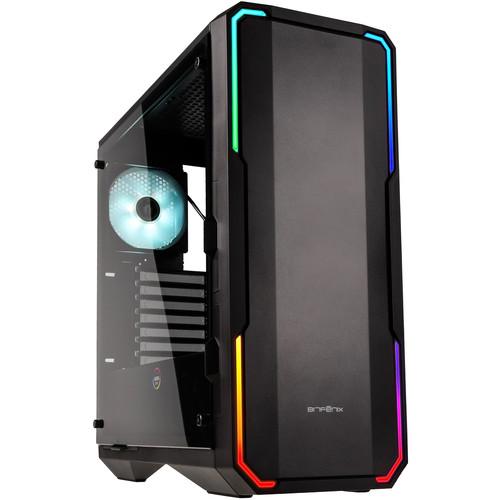

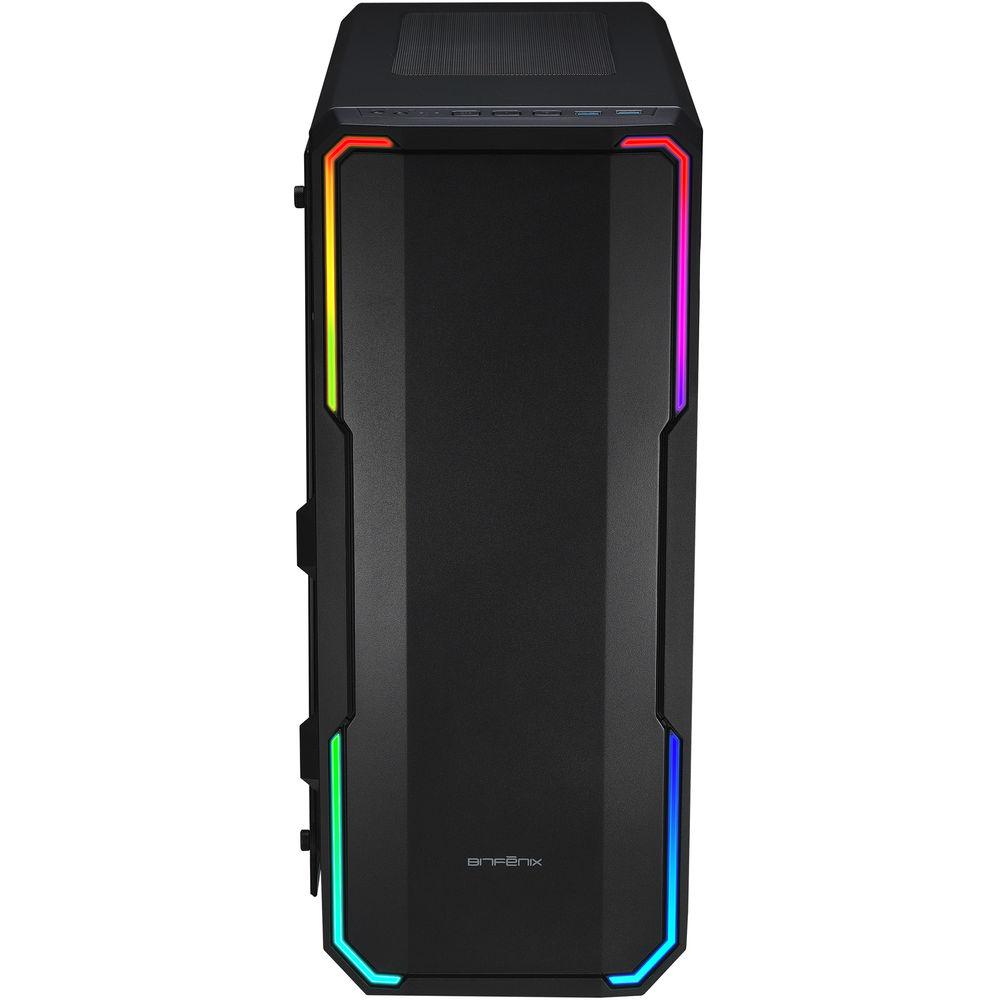

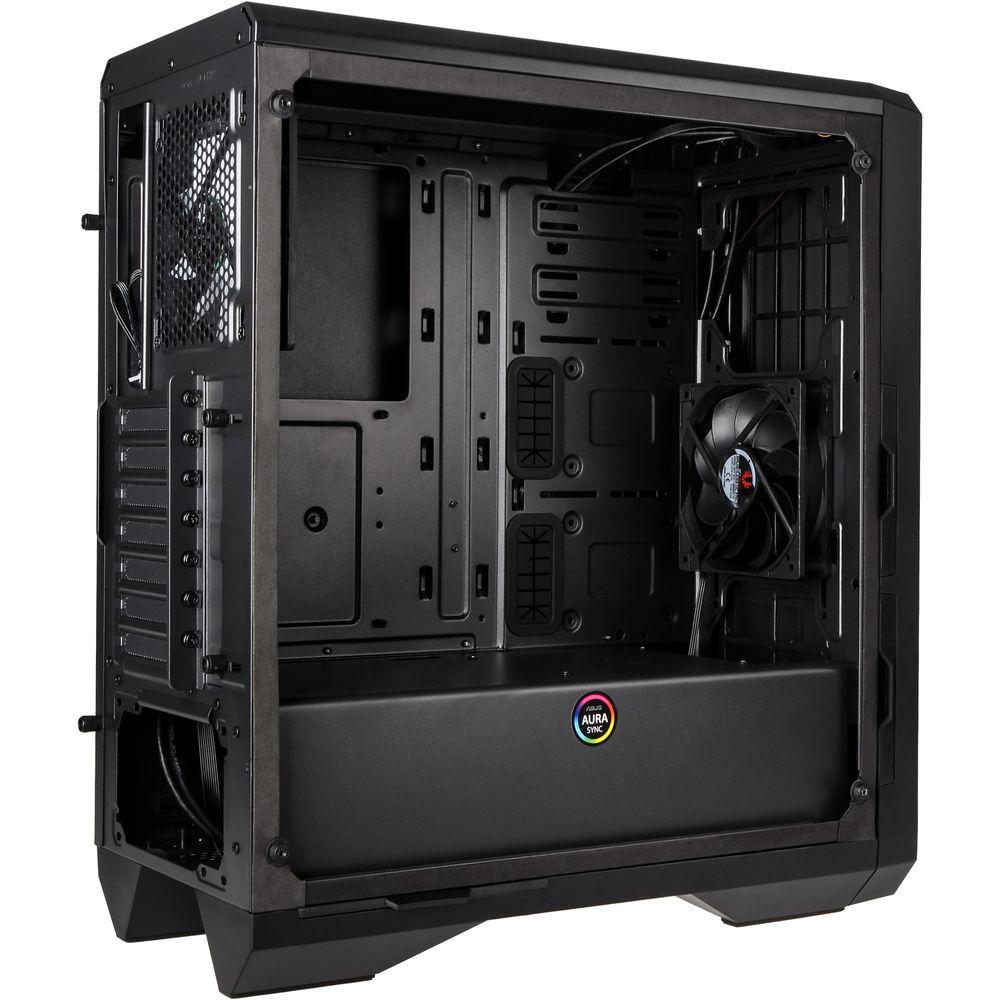

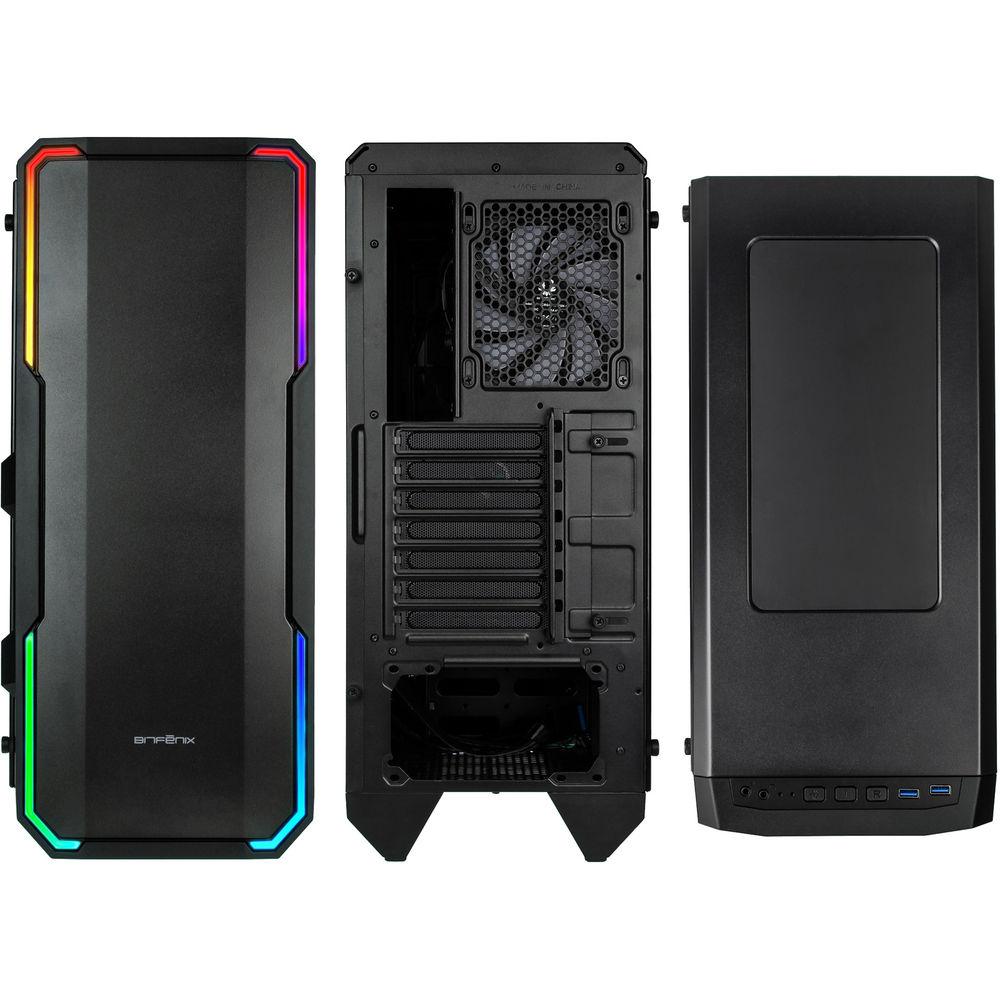

The black ENSO 5-Bay Mid-Tower Chassis from BitFenix houses your internal computer components and lets you view them through a tempered glass side panel with AURA SYNC 3-pin addressable RGB LED technology. The RGB lighting is powered by a built-in controller, offering single colors to match different system builds and rainbow modes. The 4mm see-through-tinted glass panel allows a peak into the case showing off the RGB illuminated main components.

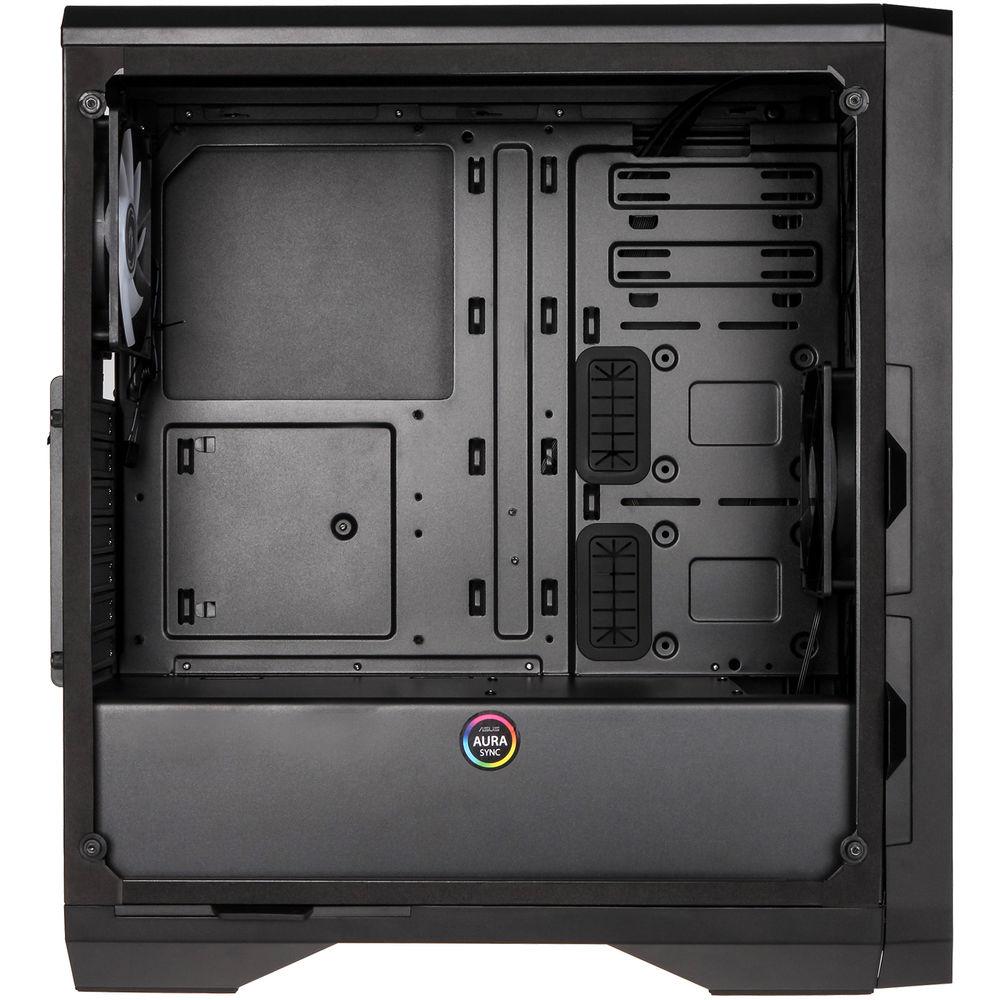

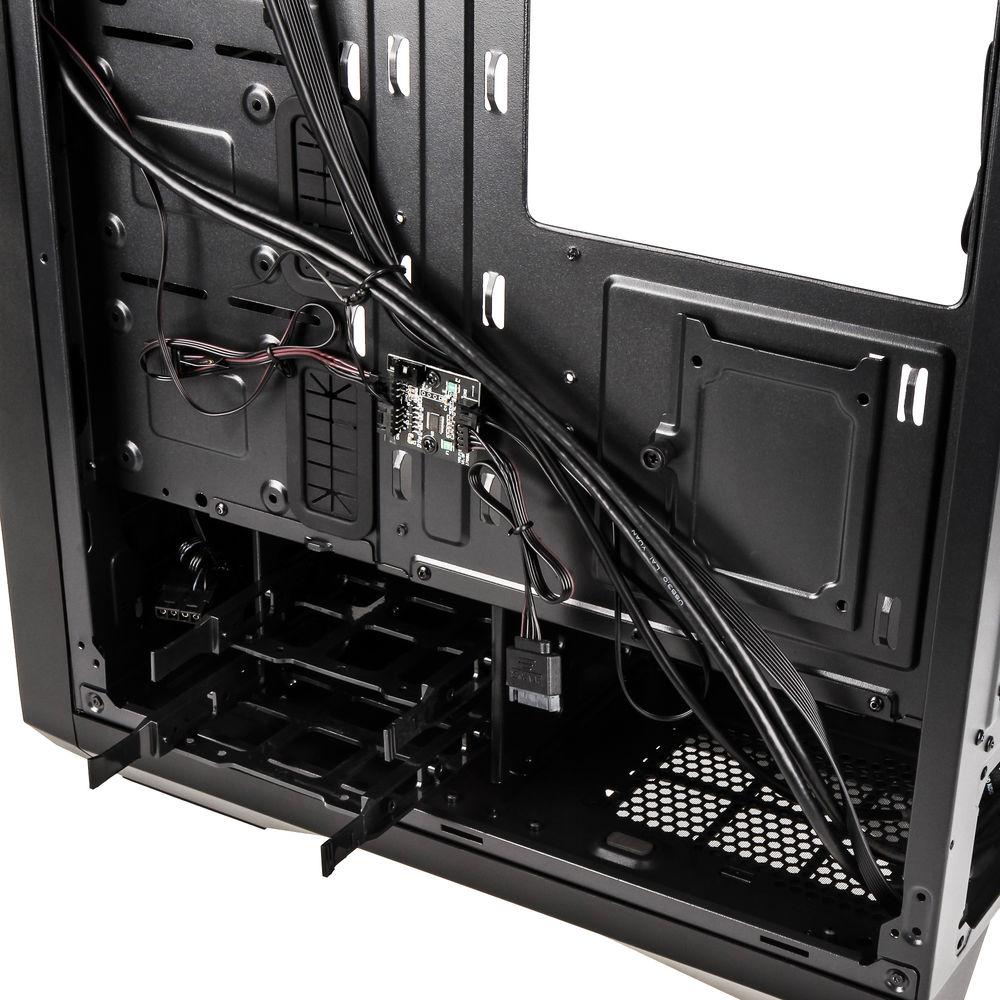

The ENSO comes with a PSU shroud hiding the PSU and up to two HDDs beneath it, while three SSDs can be attached to the back of the motherboard tray, showing only the motherboard, graphics cards, and the cooling solution through the tempered glass panel. The 23mm cable management space behind the motherboard tray makes it easy to manage the cables clean. With drive-trays out of the way, the ENSO provides space for graphics cards up to 13.4" long.

To cool down the components, hidden air-vents are placed around the metal cover on the front panel to enhance smooth intake. Apart from the built-in RGB 120mm rear fan and black 120mm front fan, the ENSO supports up to two 140mm fans or a 280mm radiator in the front, two 120mm fans in the top, and a 120mm rear radiator to optimize system ventilation. Furthermore, the ENSO also supports up to 160mm high CPU air cooler.
  • Clean interior cools down the GPU and reduces the noise level of the air flow

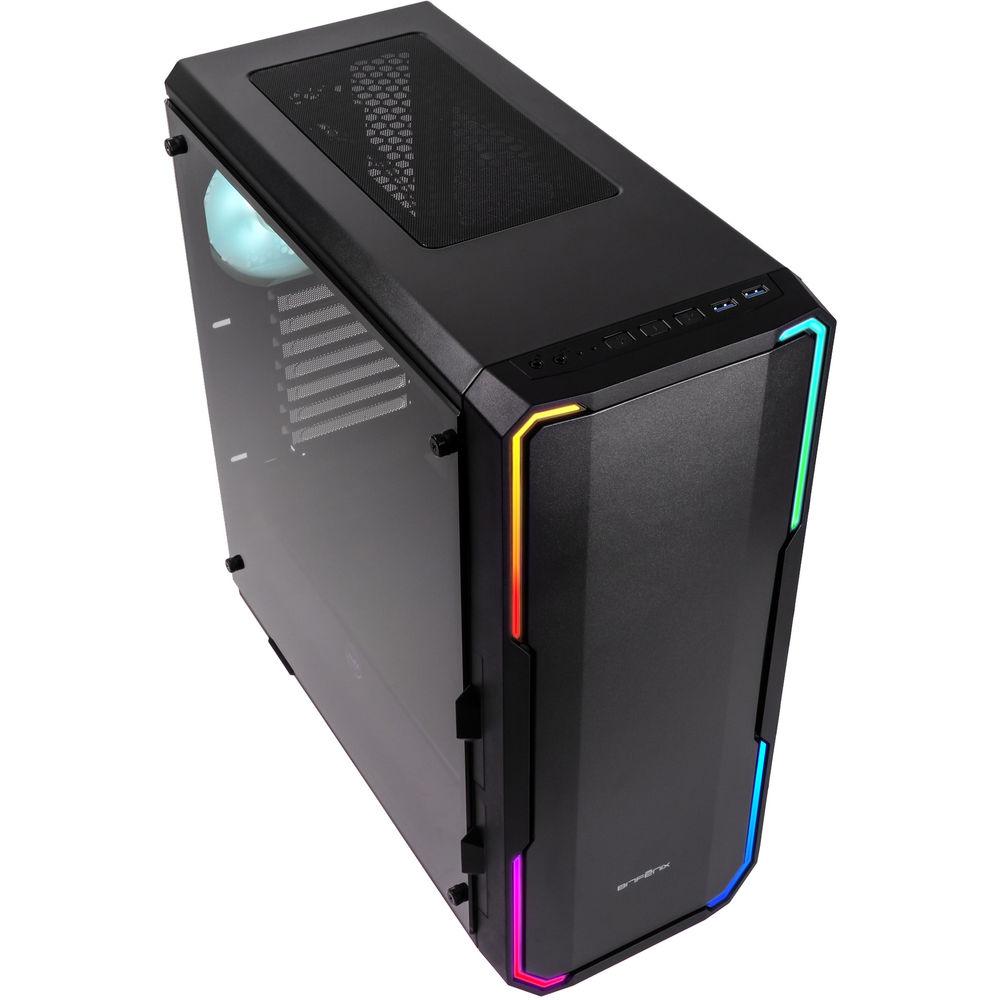

  • Included mesh top for air flow or solid top for silence

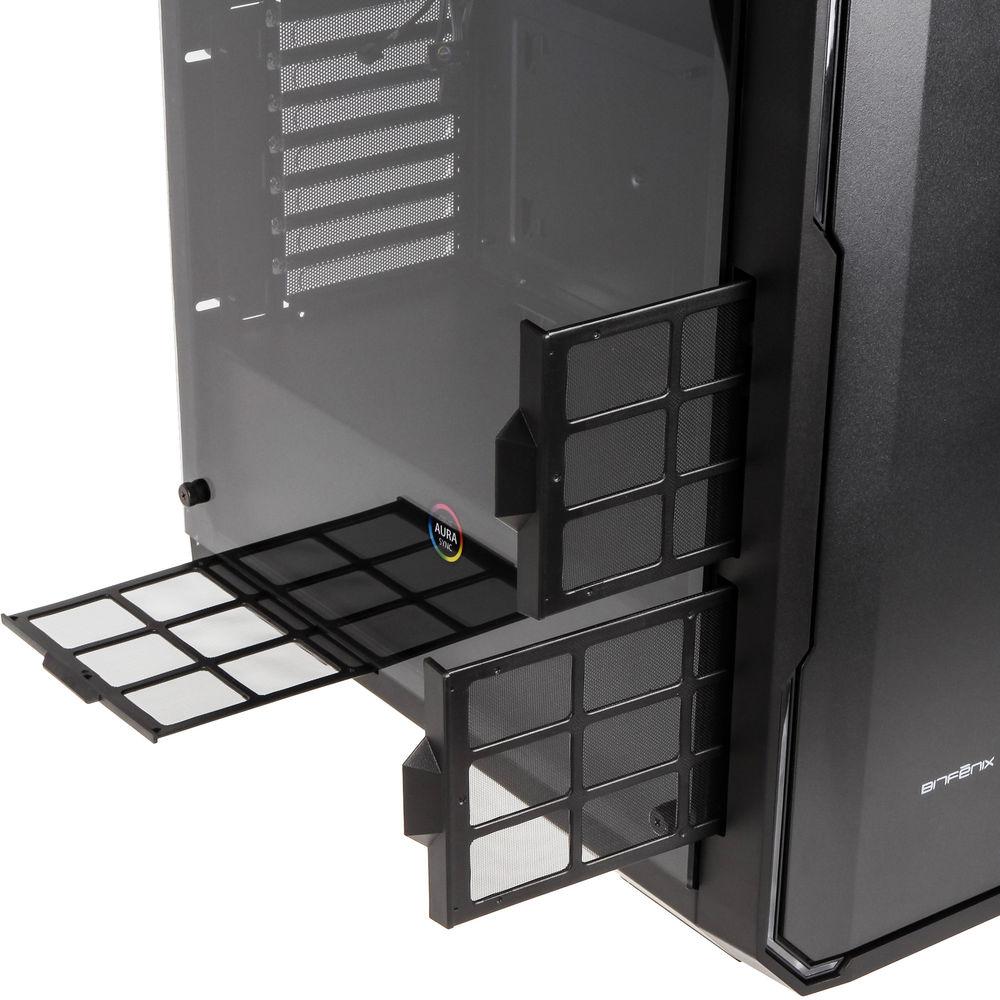

  • Easy clean with removable dust filters
UPC: 886027015704 In the Box BitFenix ENSO 5-Bay ATX Mid-Tower Chassis (Black)
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the BitFenix ENSO 5-Bay ATX Mid-Tower Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    BitFenix ENSO Case Specs

    Motherboard Support ATX, E-ATX, Micro-ATX, Mini-ITX
    External Drive Bays None
    Internal Drive Bays 2 x 2.5/3.5"
    3 x 2.5"
    Expansion Slots 7 x Full Height
    Maximum GPU Length 13.39" / 340 mm
    CPU Cooler Height 6.30" / 160 mm
    Supported PSU Size ATX
    Maximum PSU Length 6.30" / 160 mm
    Fan Mounting (Front) 2 x 140 mm
    Or
    2 x 120 mm
    Fan Mounting (Rear) 1 x 120 mm
    Fan Mounting (Side) None
    Fan Mounting (Top) 2 x 120 mm
    Fan Mounting (Bottom) None
    Fans Included (Front) 1 x 120 mm
    Fans Included (Rear) 1 x 120 mm
    Maximum Radiator Size (Front) 1 x 280 mm
    Maximum Radiator Size (Rear) 1 x 120 mm
    Fan Mounting (Internal) None
    Noise Level 20 dBA
    Fan Controller Included No
    Filter Locations Bottom, Front, Top

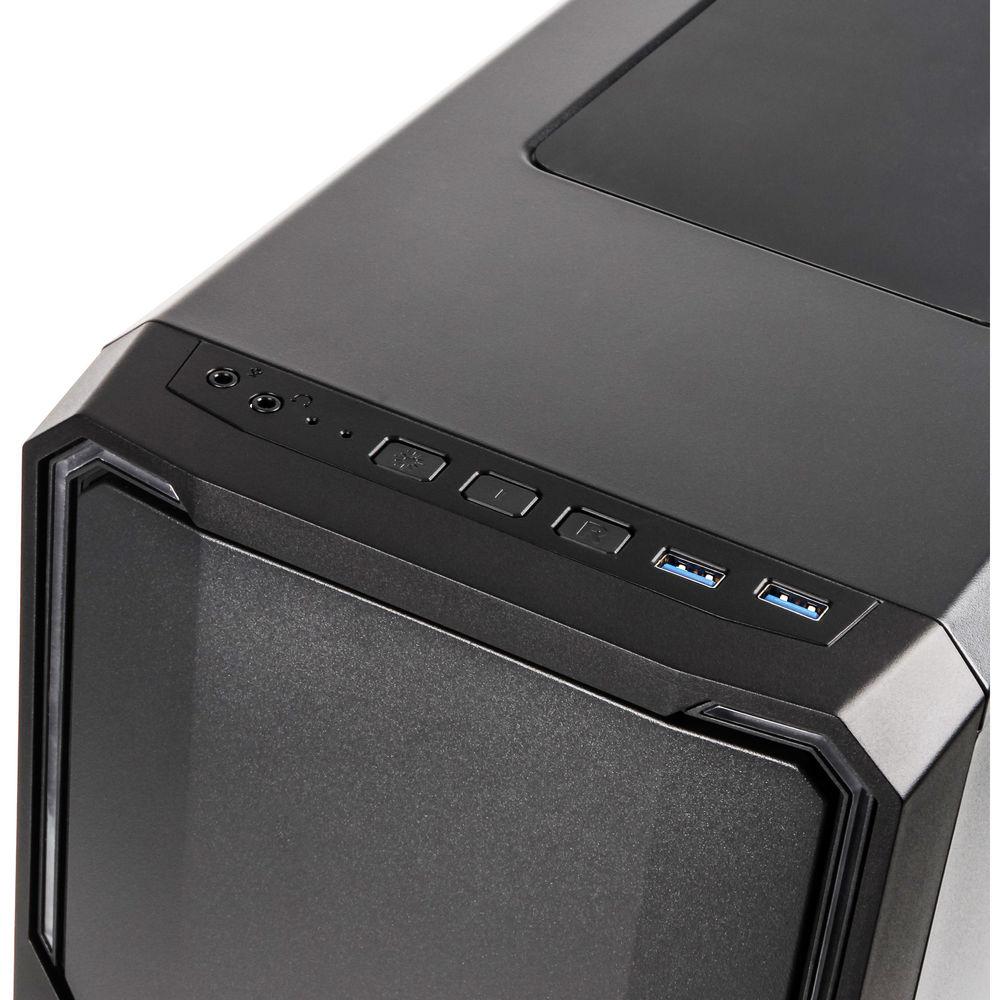

    Connections 2 x USB Type-A (USB 3.0)
    Audio Connections 1 x 3.5 mm Input
    Display Connections None
    Connectors None
    Windowed Panel Yes
    Material Tempered Glass, Steel, Plastic
    Built-In Lighting Yes
    Cable Management Space 0.91" / 23 mm
    Dimensions (W x H x D) 8.3 x 19.3 x 17.9" / 21.0 x 48.9 x 45.4 cm
    Weight 15.4 lb / 7.0 kg
    Package Weight 18.55 lb
    Box Dimensions (LxWxH) 22.0 x 22.0 x 12.0"
