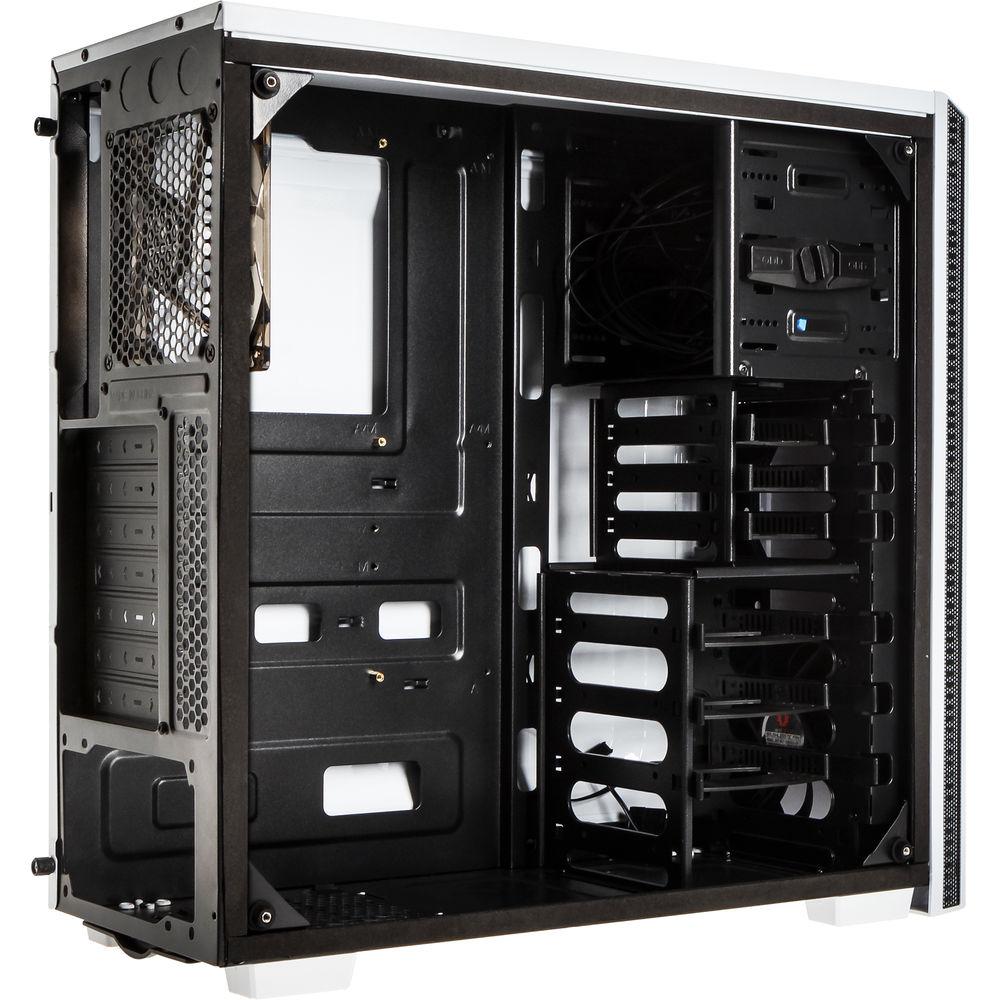

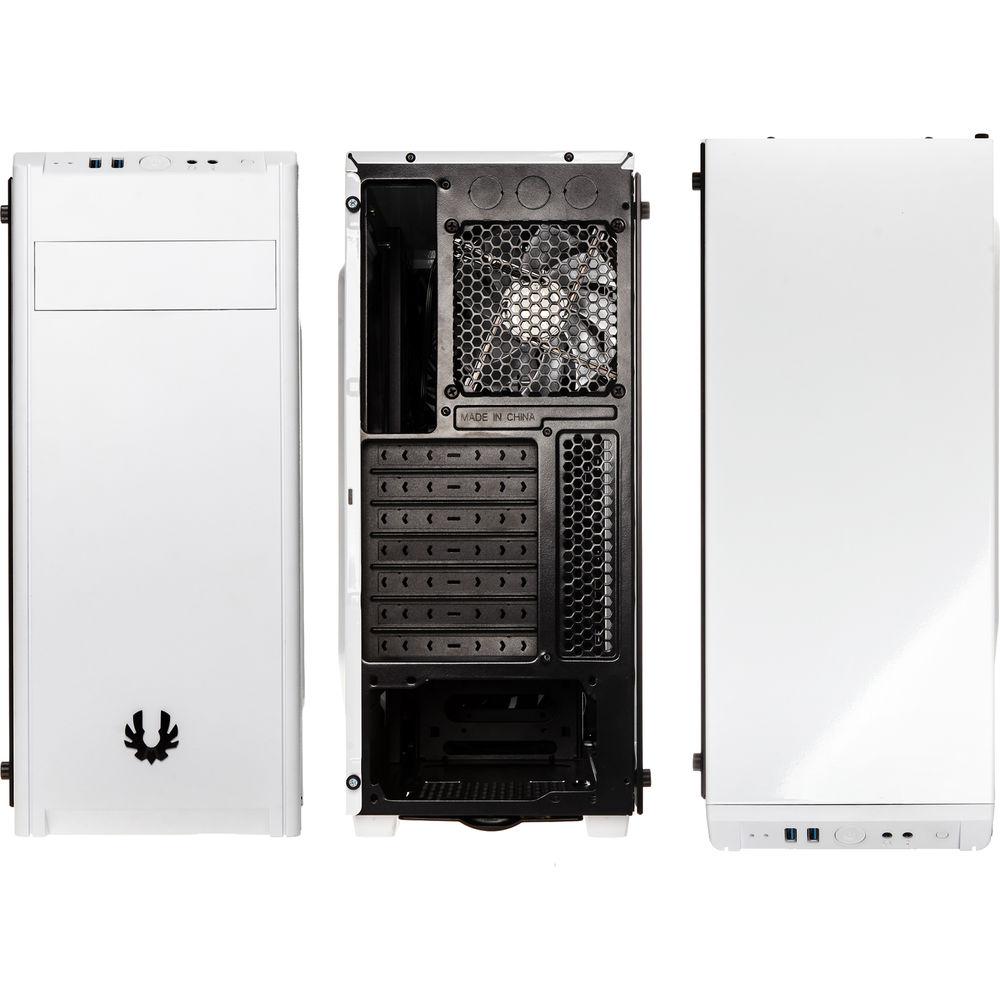

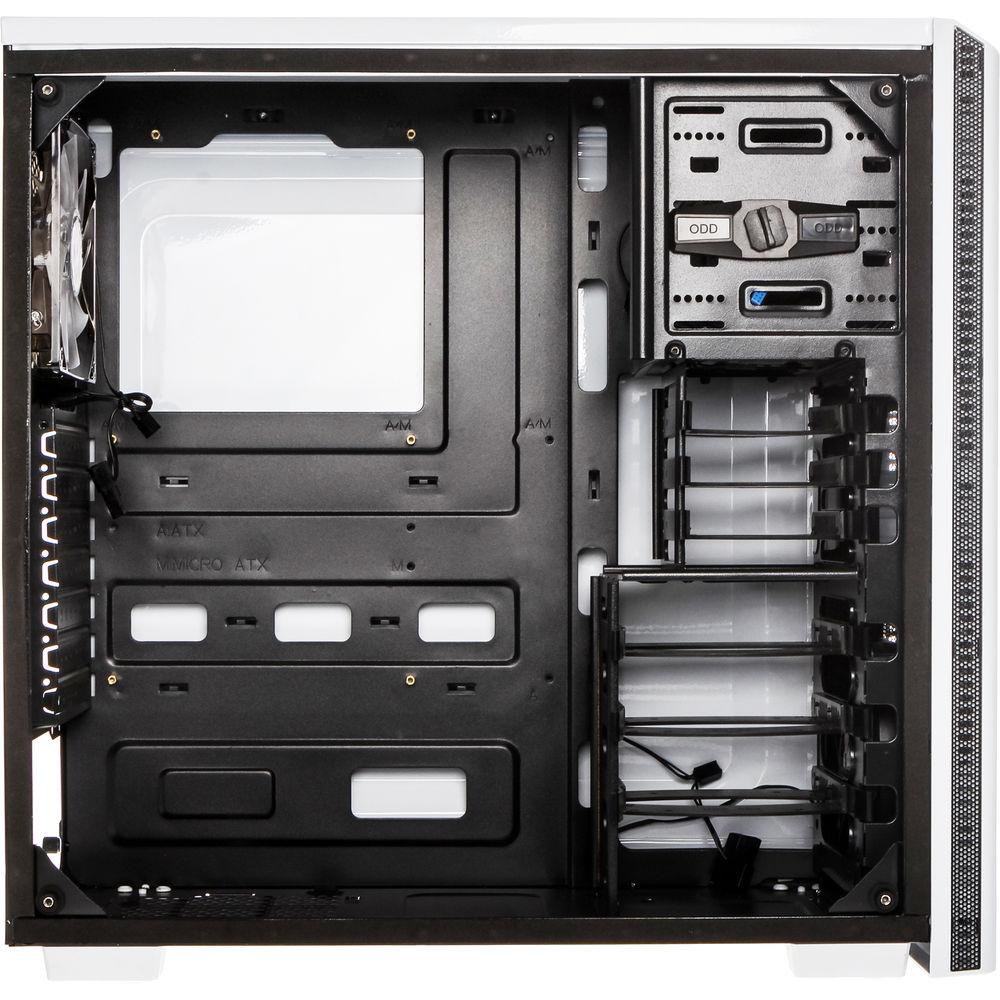

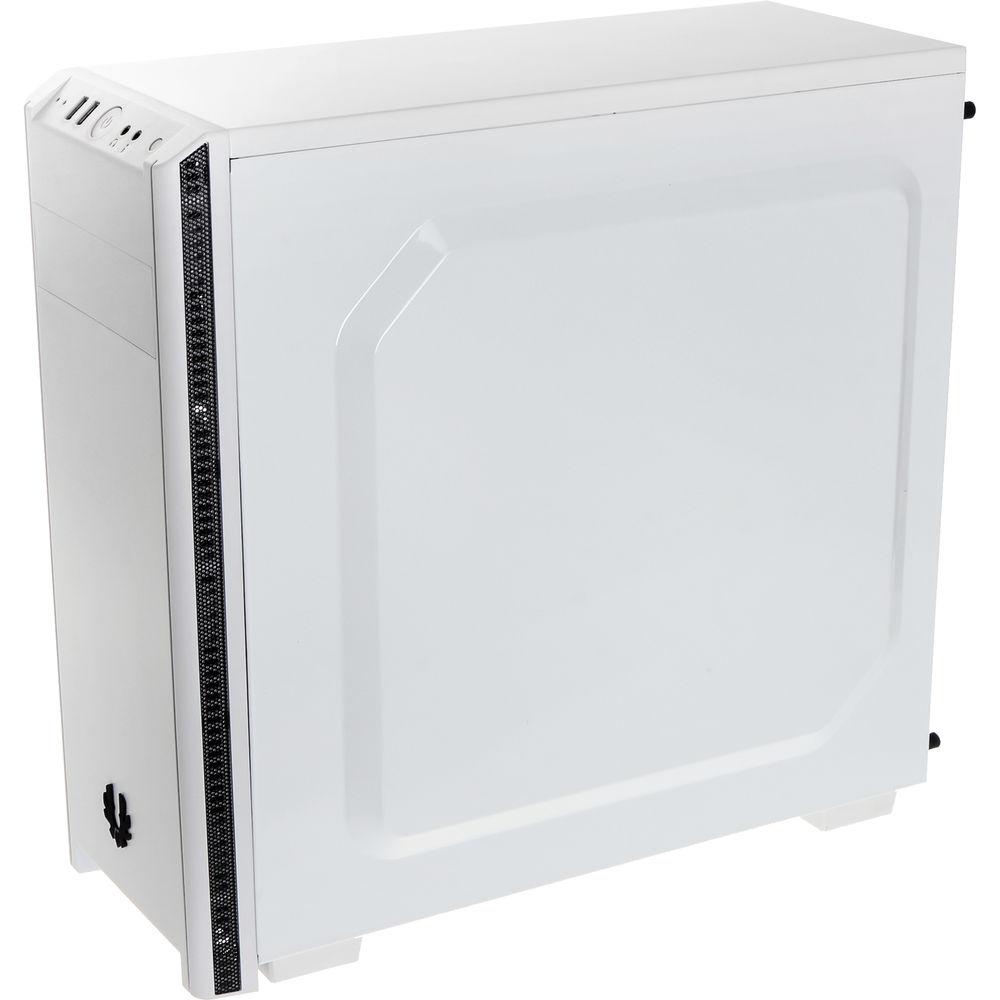

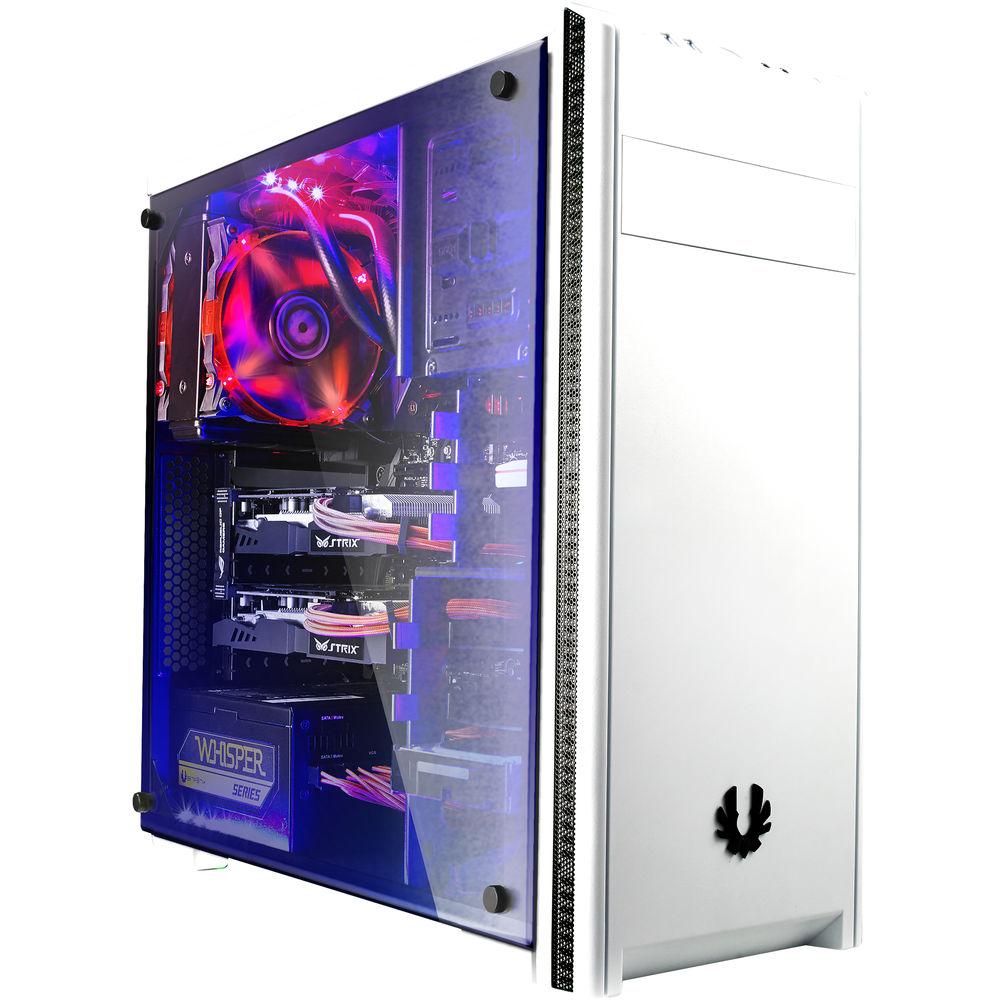

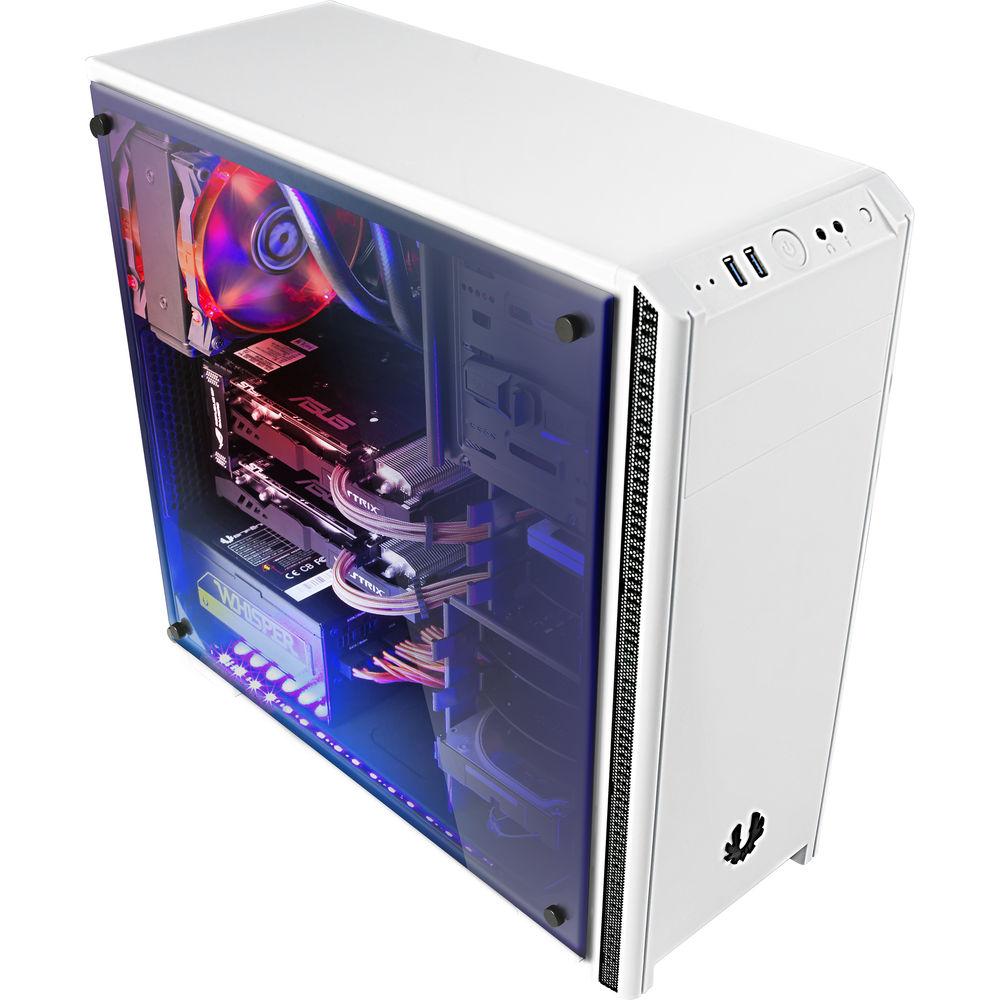

Product description The Nova TG Mid-Tower Case from BitFenix features a simple design with plenty of room for hardware. It fits up to an ATX motherboard and has enough space left over for one 5.25" drive, three 3.5" and 2.5" drives, and seven expansion cards. For cooling, it's equipped with a single 120 mm fan at the back. If needed, you can even install a AIO (All-In-One) liquid CPU cooler with a 120mm radiator at the rear fan slot. Lastly, it features a tempered glass side panel so you can show off your build. - Tempered Glass Side Panels

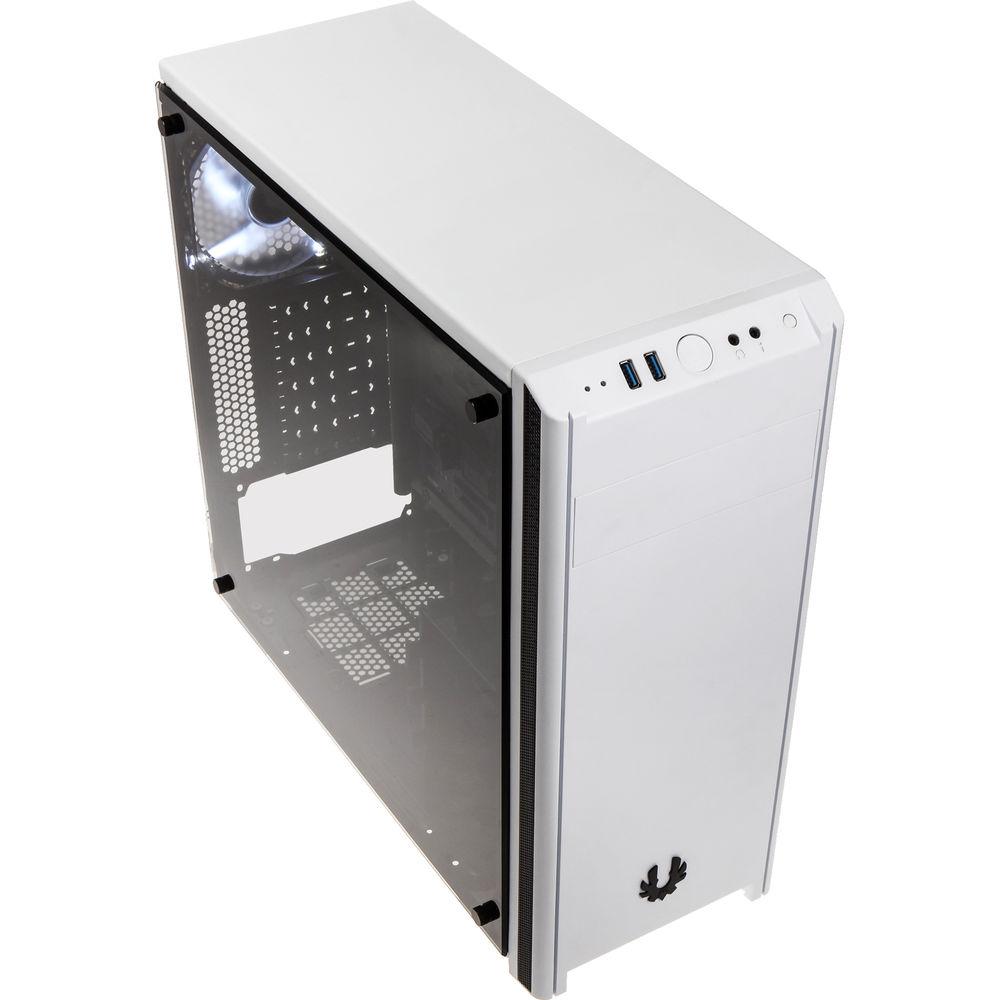

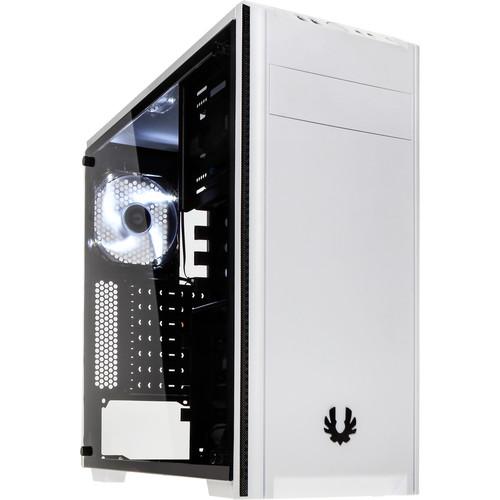

- Equipped with a tinted 4mm tempered glass side panel, the Nova TG lets you show off your build as well as quickly check on your components with just a quick glance.
- Cool Breeze

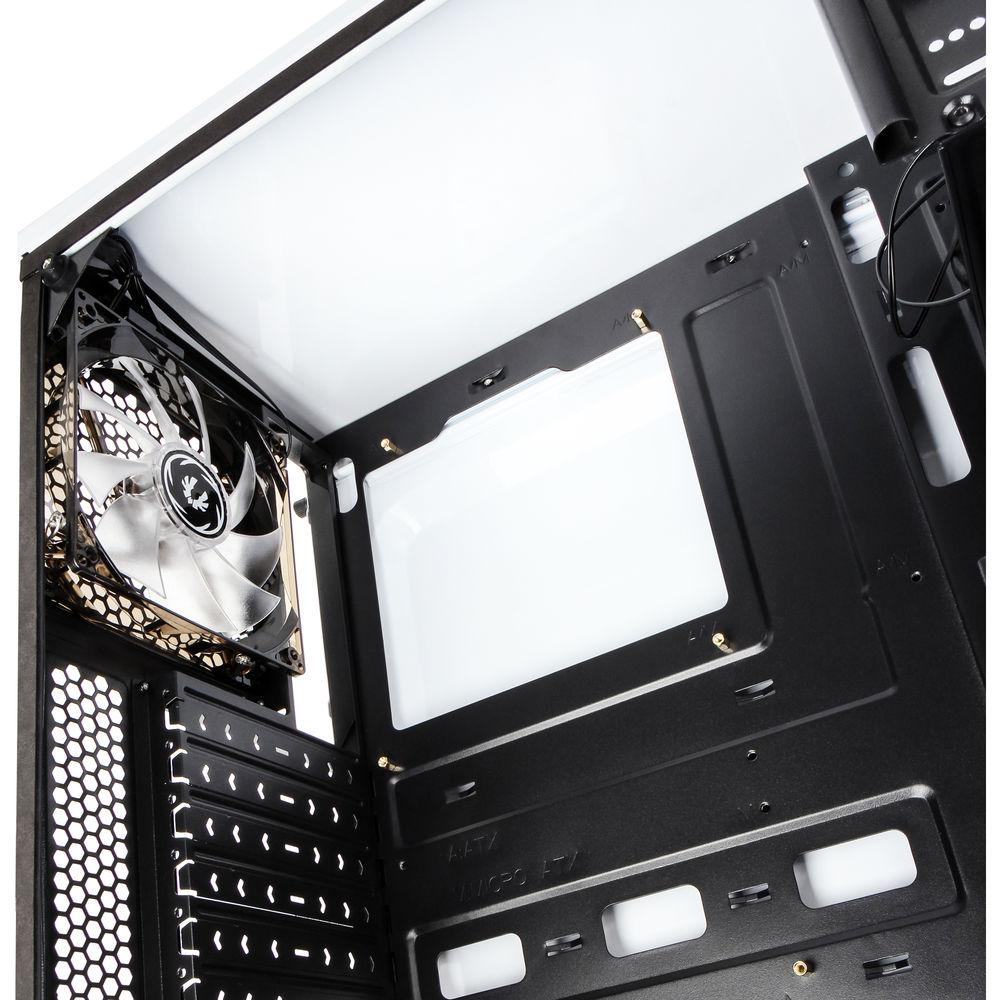

- The Nova TG comes with one pre-installed fan at the rear. You can also use the rear fan slot to install a 120mm AIO (All-In-One) liquid cooling solution if needed.
- Noise Shielded
- A closed front panel reduces the amount of noise generated by the system and side vents allow for fresh air intake to keep the system cool.
UPC: 886027015513 In the Box BitFenix Nova TG Mid-Tower Case (White) Accessories Kit Limited 1-Year Warranty INSTALLATION GUIDE PDF 3.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the BitFenix Nova TG Mid-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBitFenix BFX-NTG-100-WWWKK-RP Specs | | | Motherboard Support | ATX, Micro-ATX, Mini-ITX | | External Drive Bays | 1 x 5.25" | | Internal Drive Bays | 3 x 3.5"
3 x 2.5" | | Expansion Slots | 7 x Full Height | | Maximum GPU Length | 11.81" / 300 mm | | CPU Cooler Height | 6.30" / 160 mm | | Supported PSU Size | ATX | | | | Fan Mounting (Front) | 2 x 120 mm
| | Fan Mounting (Rear) | 1 x 120 mm

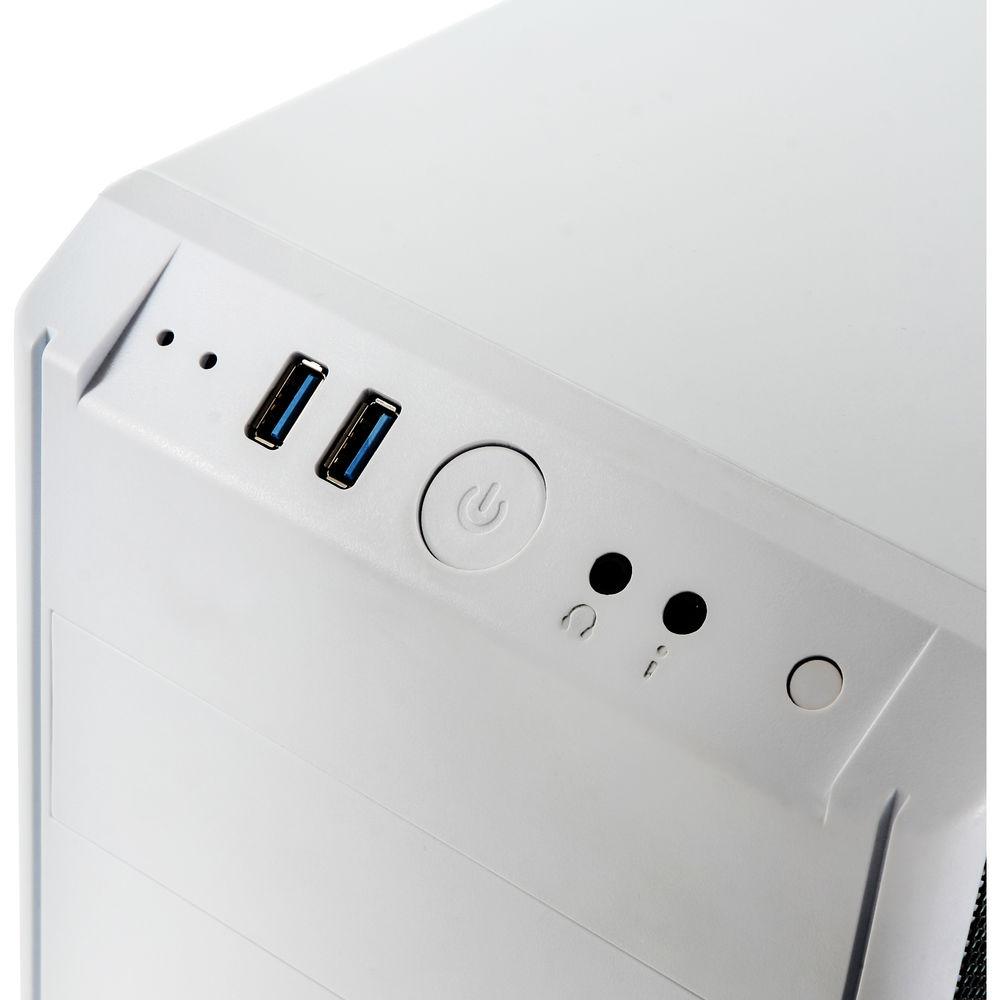

| | Fan Mounting (Side) | None | | Fan Mounting (Top) | None | | Fan Mounting (Bottom) | None | | Fans Included (Front) | None | | Fans Included (Rear) | 1 x 120 mm LED | | Fans Included (Side) | None | | Fans Included (Top) | None | | Fans Included (Bottom) | None | | Maximum Radiator Size (Rear) | 1 x 120 mm | | Fan Mounting (Internal) | None | | Fans Included (Internal) | None | | Fan Controller Included | No | | Filter Locations | Bottom | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Tempered Glass, Steel, Plastic | | Built-In Lighting | No | | Dimensions (W x H x D) | 7.9 x 17.2 x 18.3" / 201.0 x 437.0 x 465.0 mm | | Weight | 11.6 lb / 5.3 kg | | | | Package Weight | 14.8 lb | | Box Dimensions (LxWxH) | 21.732 x 20.079 x 11.26" |
