User Manual for BitFenix Nova TG Mid-Tower Case Click to enlarge the picture
Contents of the user manual for the BitFenix Nova TG Mid-Tower Case
- Product category: Desktop Computer Cases BitFenix
- Brand: BitFenix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BitFenix Desktop Computer Cases
 |
User manual for the BitFenix Nova TG Mid-Tower Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BitFenix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BitFenix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BitFenix product will considerably shorten its lifespan!
|

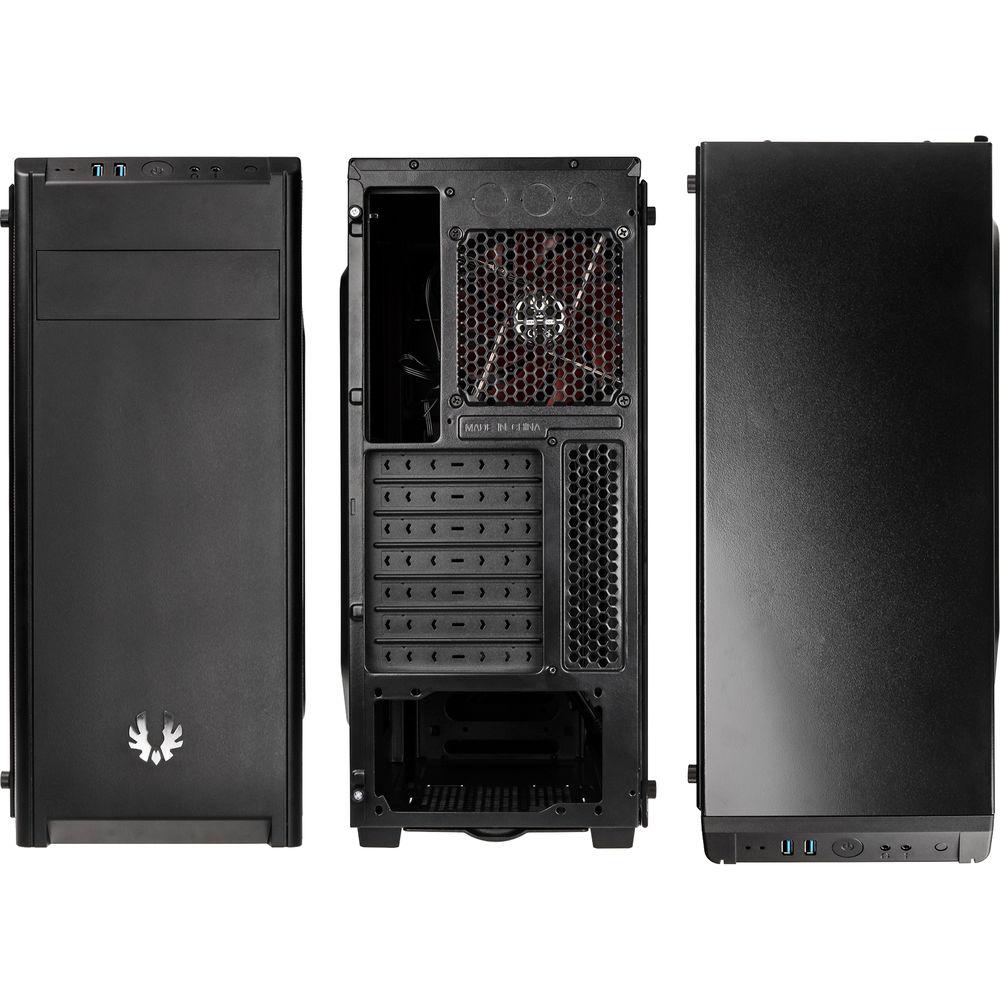

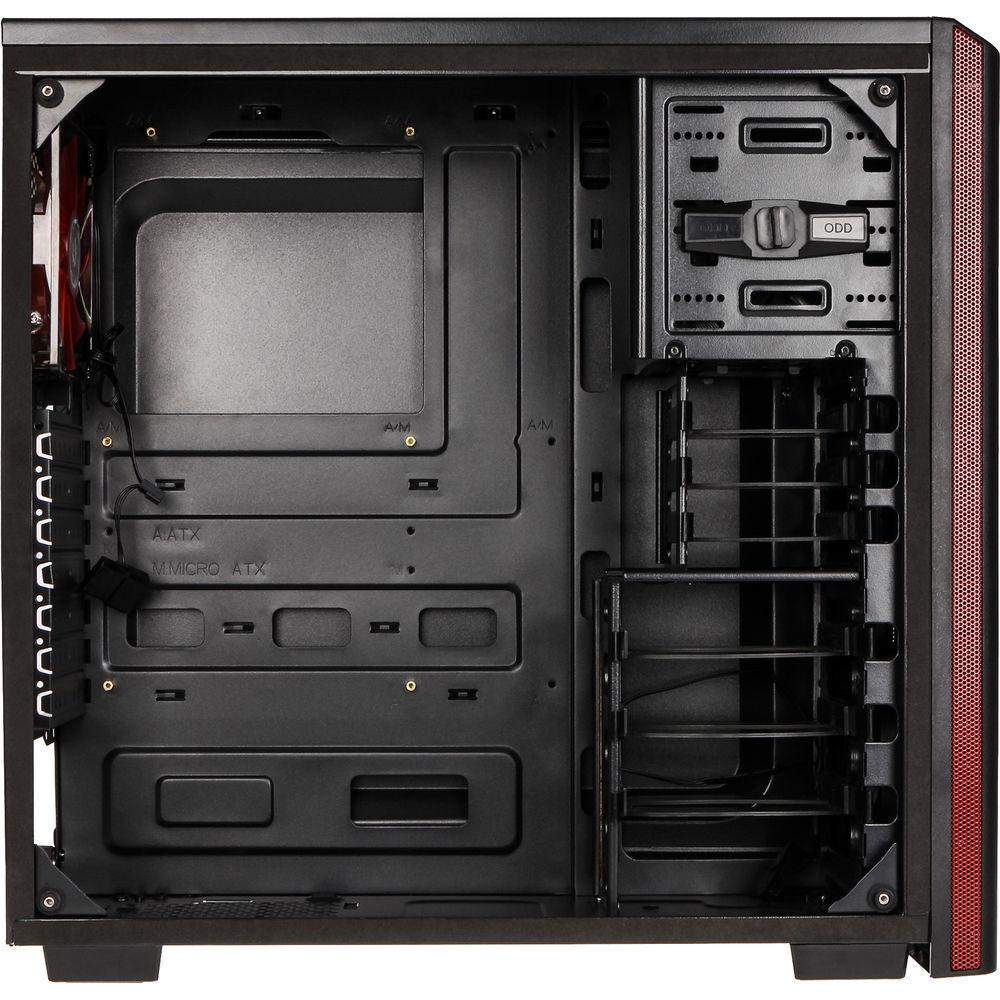

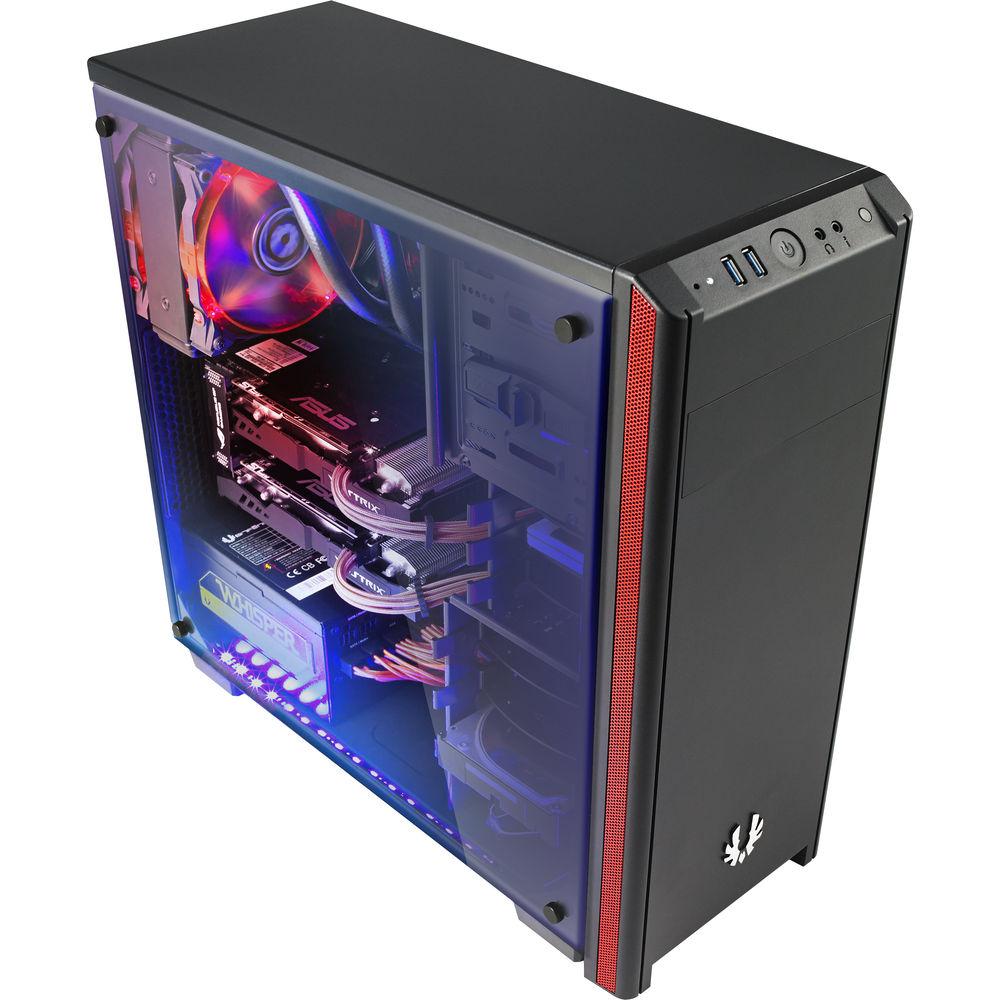

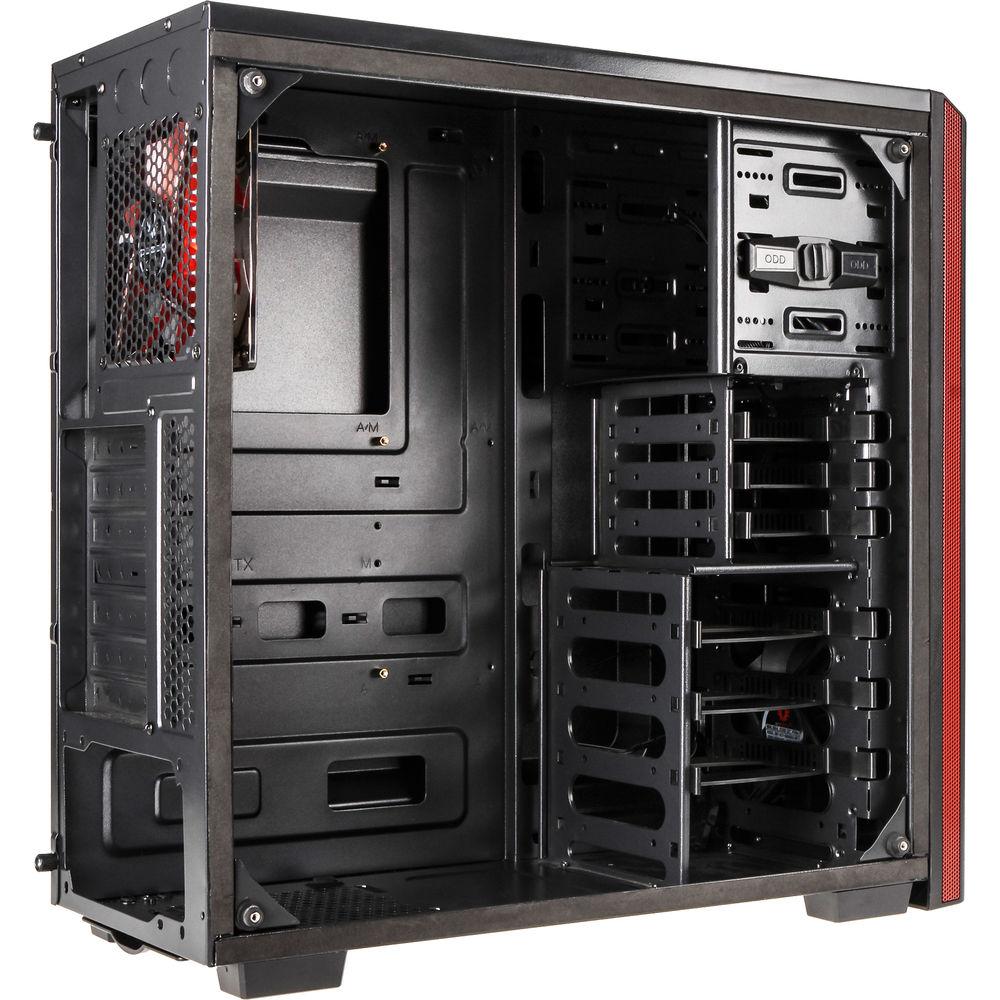

Product description The Nova TG Mid-Tower Case from BitFenix features a simple design with plenty of room for hardware. It fits up to an ATX motherboard and has enough space left over for one 5.25" drive, three 3.5" and 2.5" drives, and seven expansion cards. For cooling, it's equipped with a single 120 mm fan at the back. If needed, you can even install a AIO (All-In-One) liquid CPU cooler with a 120mm radiator at the rear fan slot. Lastly, it features a tempered glass side panel so you can show off your build. - Tempered Glass Side Panels

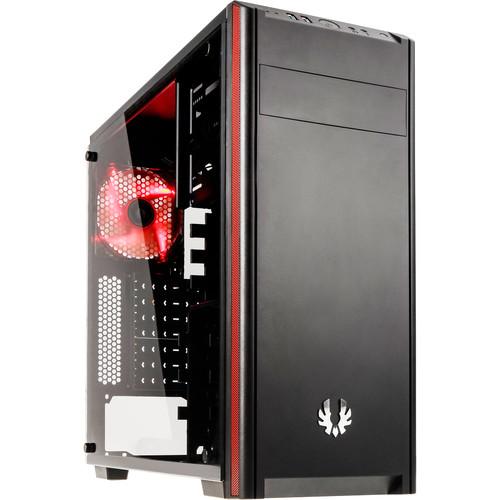

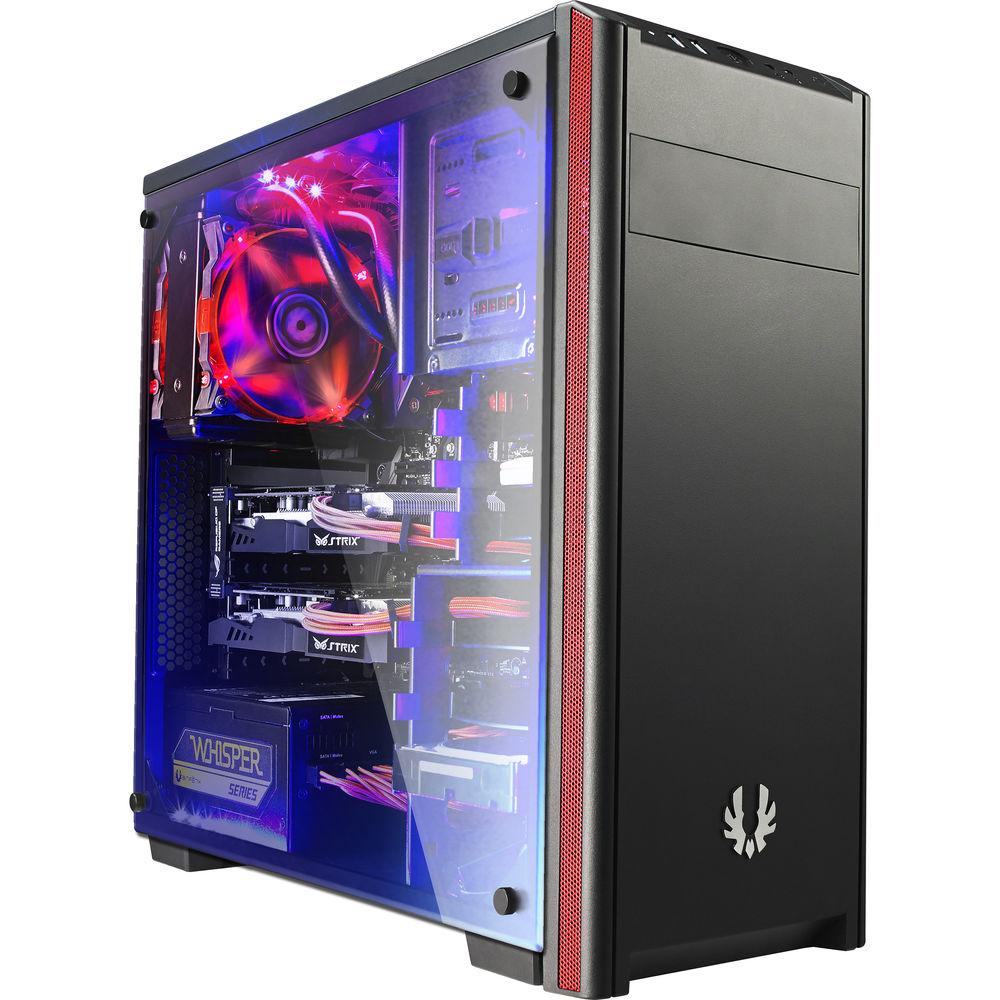

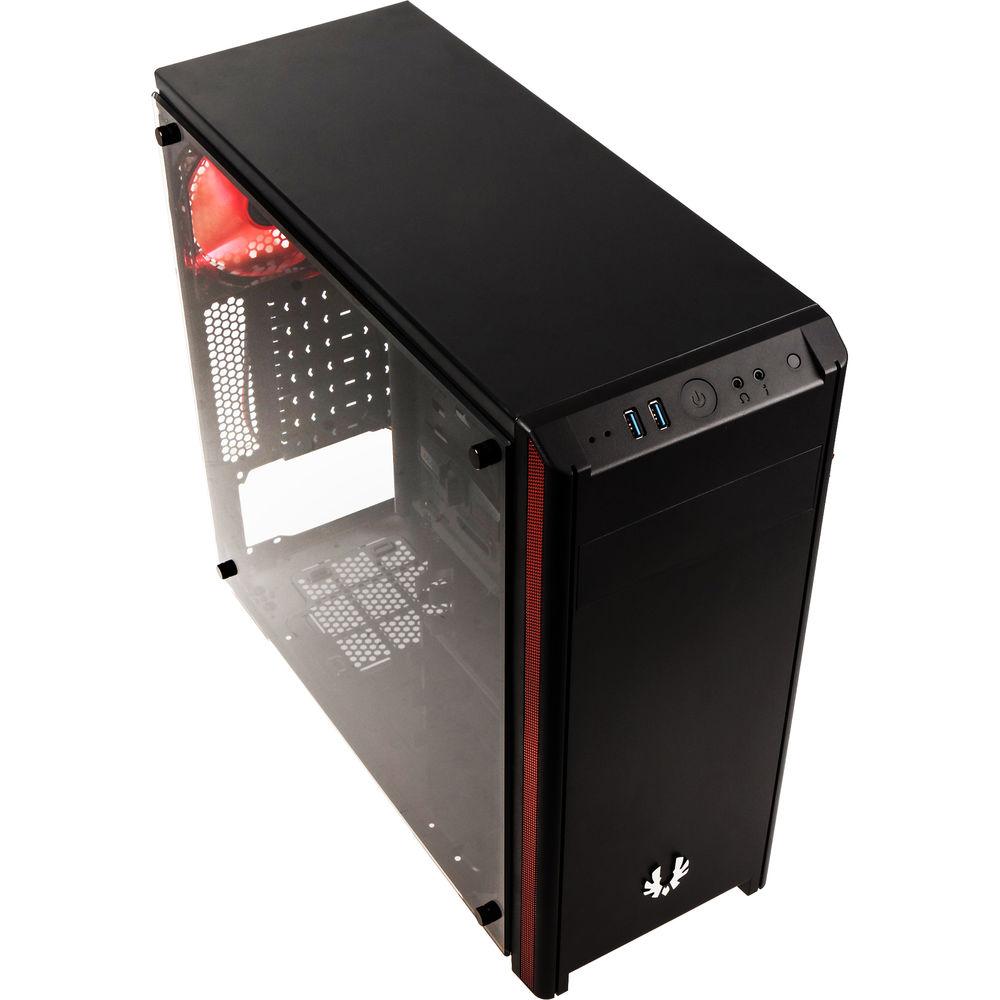

- Equipped with a tinted 4mm tempered glass side panel, the Nova TG lets you show off your build as well as quickly check on your components with just a quick glance.
- Cool Breeze

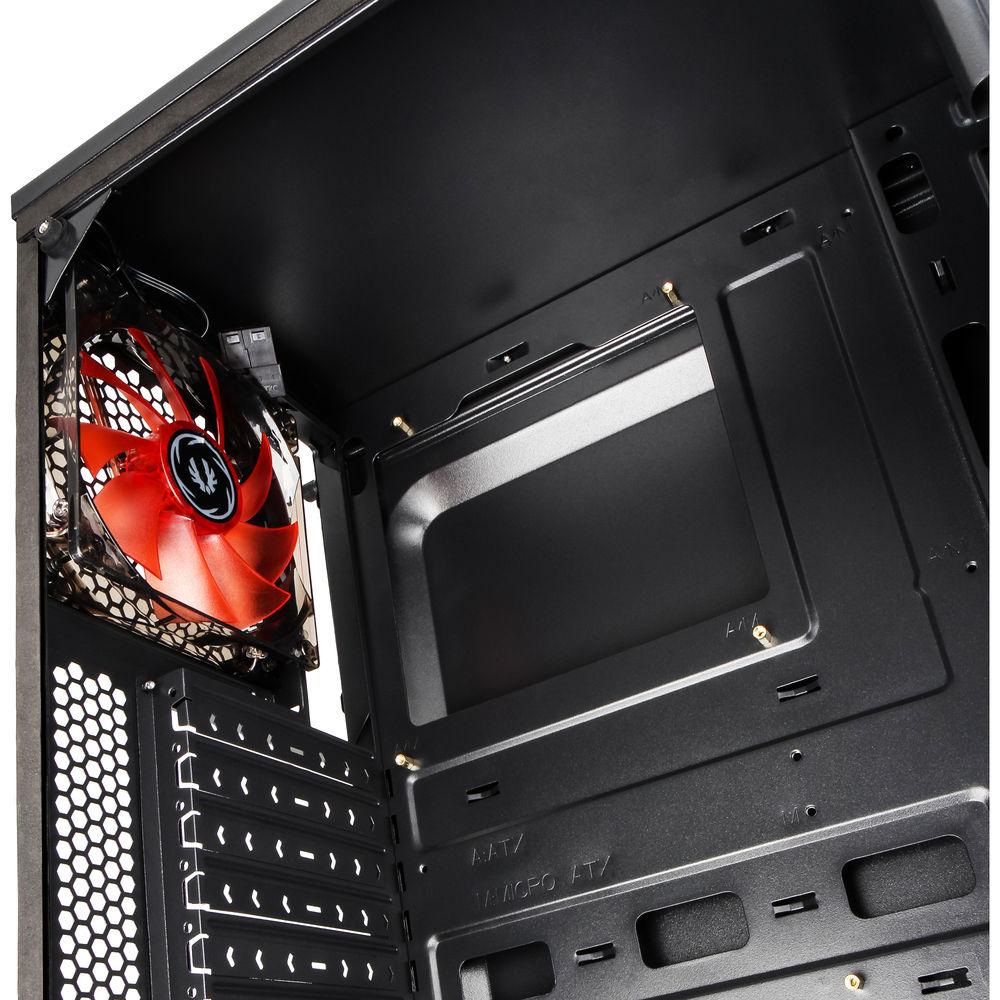

- The Nova TG comes with one pre-installed fan at the rear. You can also use the rear fan slot to install a 120mm AIO (All-In-One) liquid cooling solution if needed.

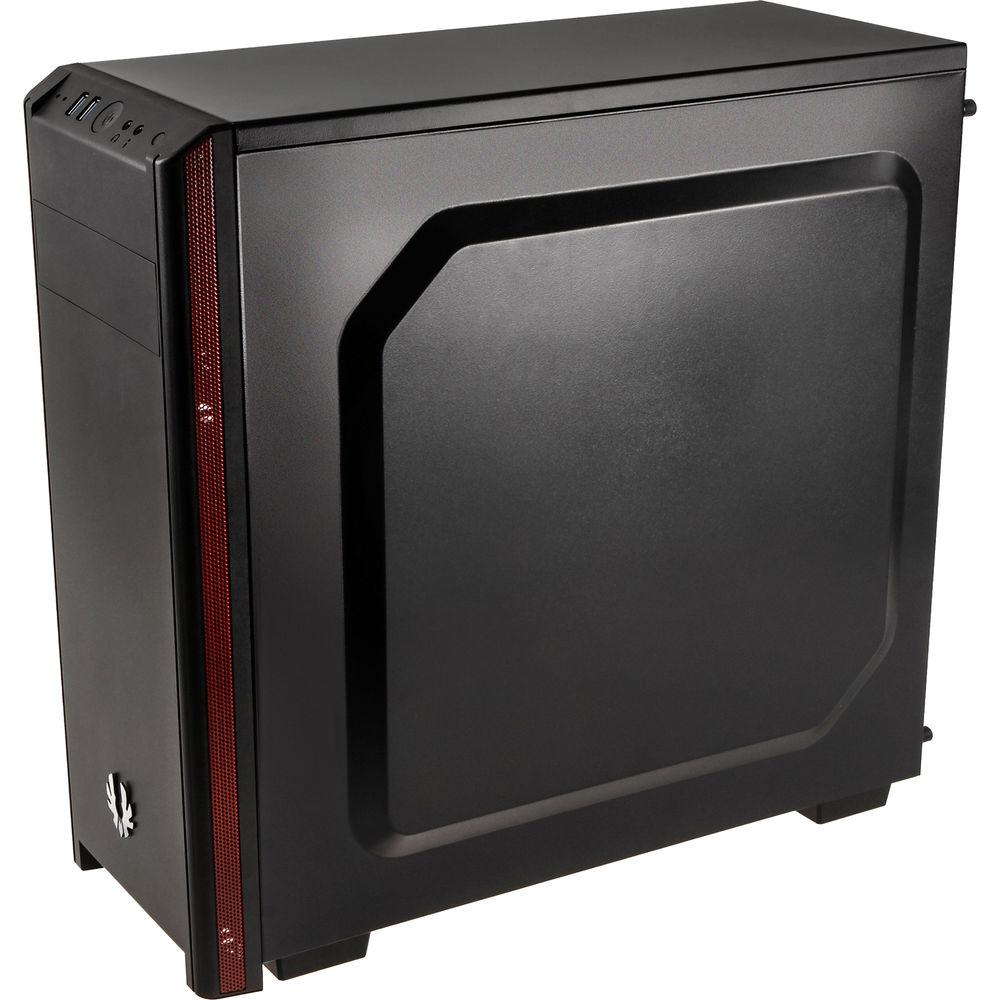

- Noise Shielded
- A closed front panel reduces the amount of noise generated by the system and side vents allow for fresh air intake to keep the system cool.
UPC: 886027015490 In the Box BitFenix Nova TG Mid-Tower Case (Black) Accessories Kit Limited 1-Year Warranty INSTALLATION GUIDE PDF 3.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the BitFenix Nova TG Mid-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBitFenix BFX-NTG-100-KKWSK-RP Specs | | | Motherboard Support | ATX, Micro-ATX, Mini-ITX | | External Drive Bays | 1 x 5.25" | | Internal Drive Bays | 3 x 3.5"
3 x 2.5" | | Expansion Slots | 7 x Full Height | | Maximum GPU Length | 11.81" / 300 mm | | CPU Cooler Height | 6.30" / 160 mm | | Supported PSU Size | ATX | | | | Fan Mounting (Front) | 2 x 120 mm
| | Fan Mounting (Rear) | 1 x 120 mm

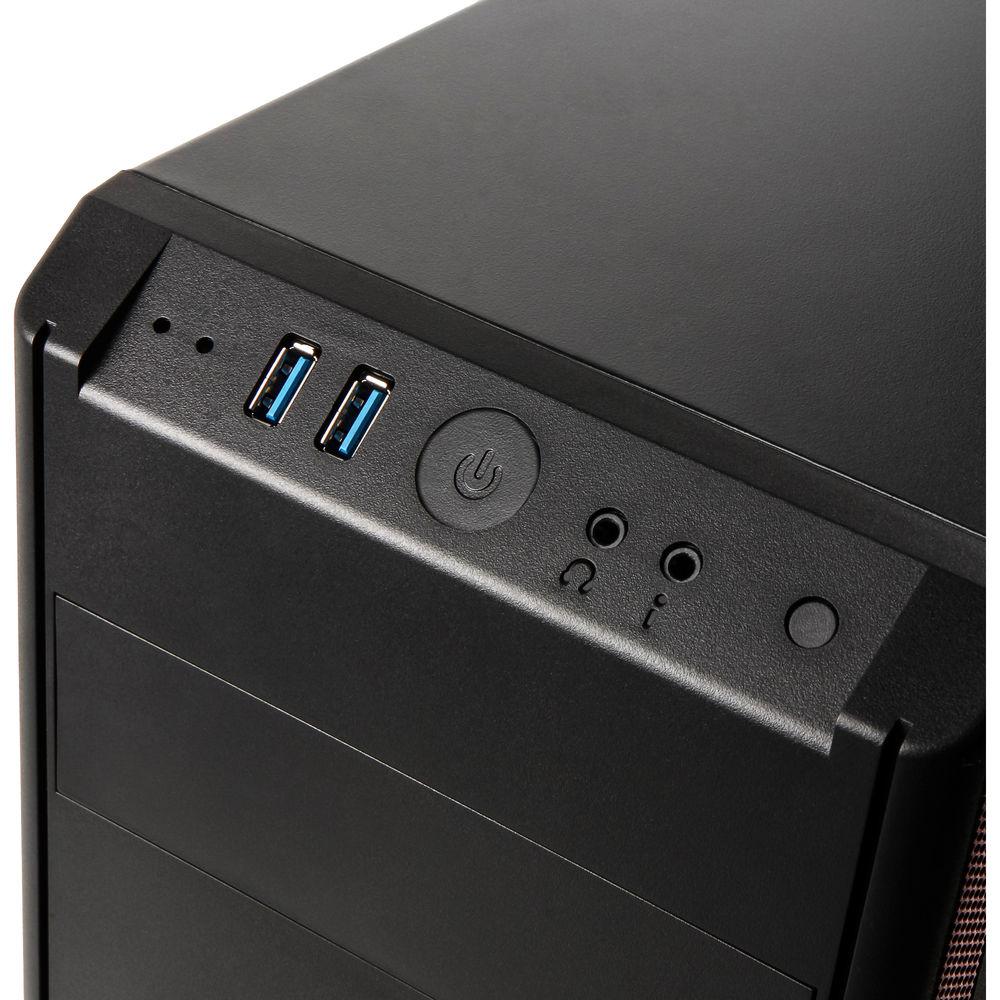

| | Fan Mounting (Side) | None | | Fan Mounting (Top) | None | | Fan Mounting (Bottom) | None | | Fans Included (Front) | None | | Fans Included (Rear) | 1 x 120 mm LED | | Fans Included (Side) | None | | Fans Included (Top) | None | | Fans Included (Bottom) | None | | Maximum Radiator Size (Rear) | 1 x 120 mm | | Fan Mounting (Internal) | None | | Fans Included (Internal) | None | | Fan Controller Included | No | | Filter Locations | Bottom | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Tempered Glass, Steel, Plastic | | Built-In Lighting | No | | Dimensions (W x H x D) | 7.9 x 17.2 x 18.3" / 201.0 x 437.0 x 465.0 mm | | Weight | 11.6 lb / 5.3 kg | | | | Package Weight | 14.6 lb | | Box Dimensions (LxWxH) | 21.732 x 20.0 x 11.024" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 13 owners. Add your rating and experience with the product.
