User Manual for BitFenix Pandora ATX Case Click to enlarge the picture
Contents of the user manual for the BitFenix Pandora ATX Case
- Product category: Desktop Computer Cases BitFenix
- Brand: BitFenix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BitFenix Desktop Computer Cases
 |
User manual for the BitFenix Pandora ATX Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BitFenix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BitFenix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BitFenix product will considerably shorten its lifespan!
|
Product description The BitFenix Pandora ATX Case features a spacious main compartment that can house motherboards up to ATX in size and up to seven graphics cards so you can build a computer designed for work and entertainment. For storage capabilities, it comes with four 2.5" drive trays as well as four 3.5" drive trays, which can be converted to mount 2.5" drives. Removing some of these trays allows you to install a graphics card up to 17.3" long. BitFenix includes a 140mm front fan and a 120mm rear fan to cool your internal components. For additional cooling, optional fans and liquid-cooling solutions can be mounted to the front and top of the case. There's also a 2.8" ICON color screen that lets you display virtually any image or logo in front of the Pandora ATX.

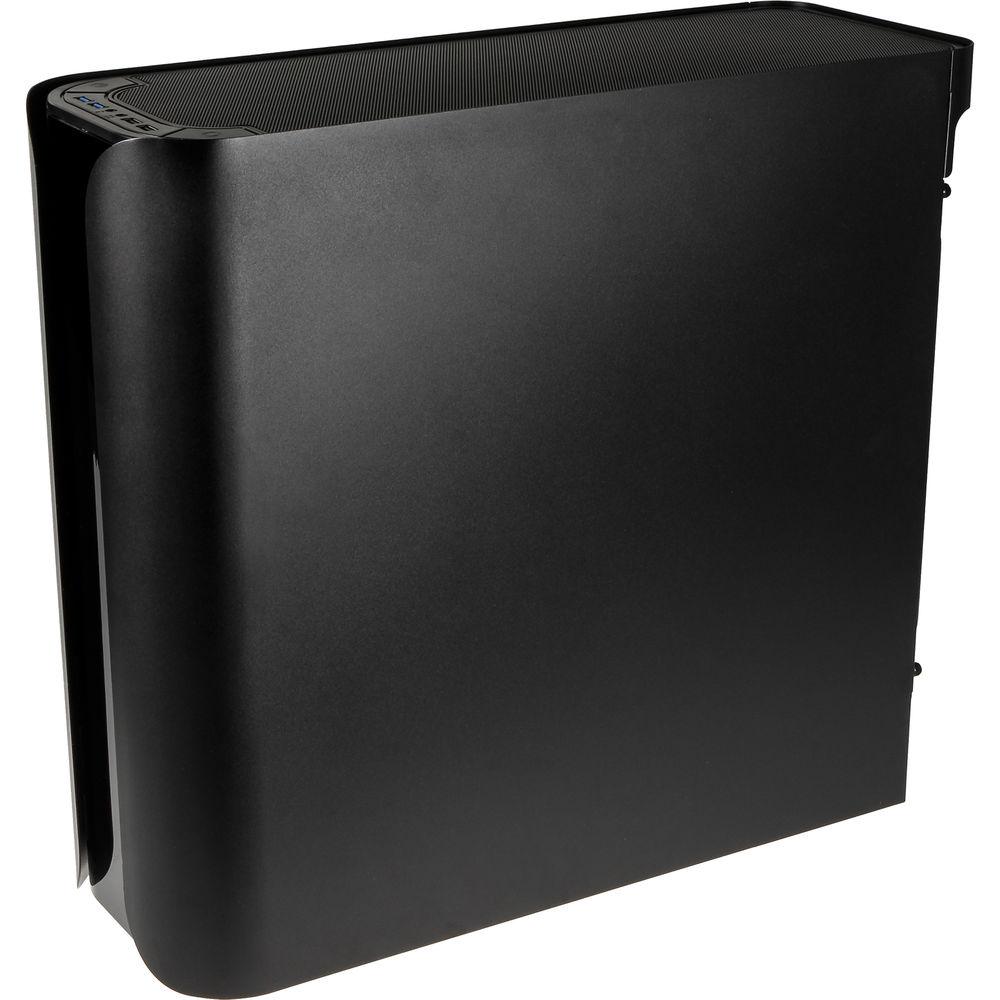

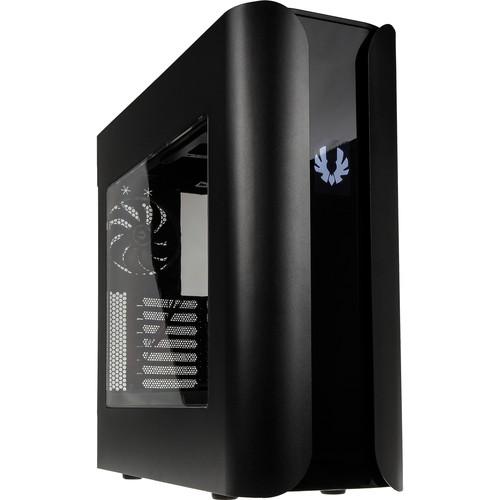

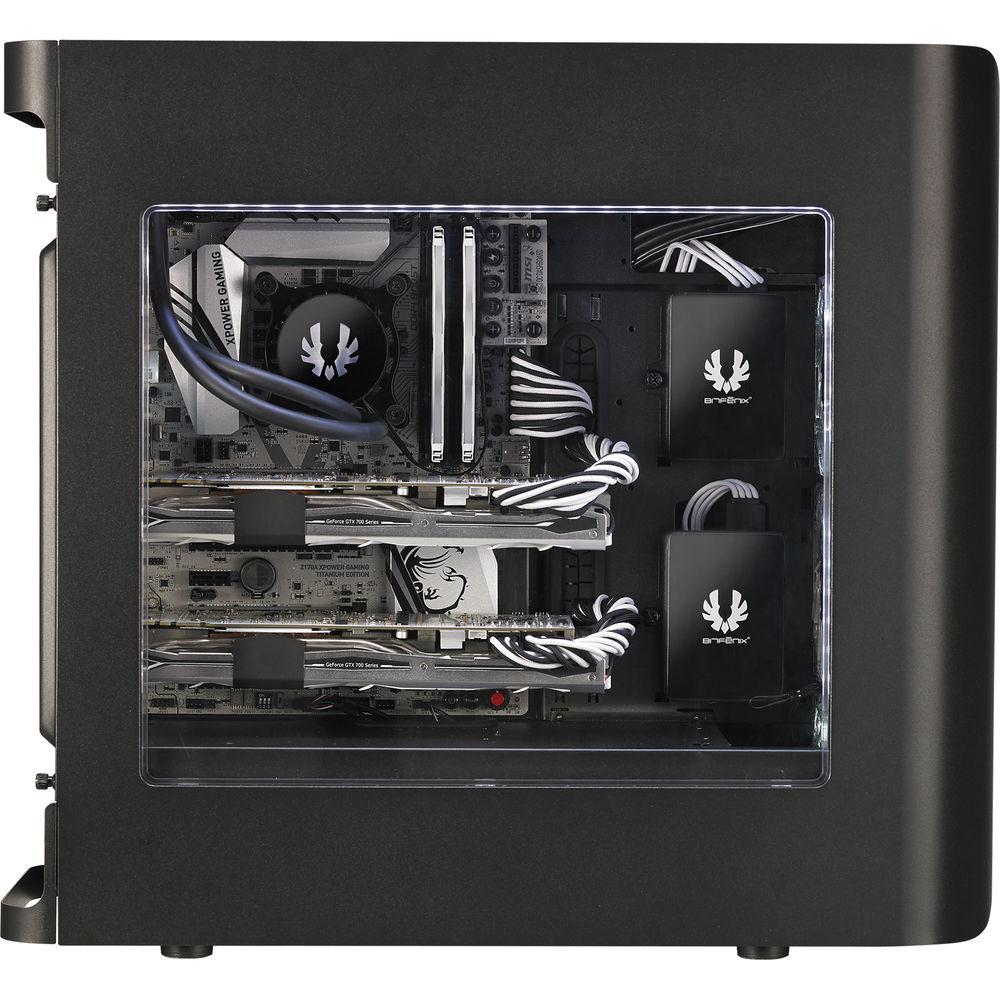

BitFenix has equipped this case with a windowed side panel so you can show off your build. To help keep a neat looking build, power and data wires are routed behind the motherboard, while the power supply and hard drives are hidden at the bottom of the case behind a cover. For keeping your components clean, the Pandora ATX case sports a full-height dust filter in the front and a top foam filter. On the outside, two USB 3.0 and two USB 2.0 ports provide easy access to your devices such as an external optical drive. In addition, two onboard audio jacks are available. - Pandora Styling
- The Pandora ATX comes with wraparound side panels, giving your case a distinctive design. The main side panel features a large side window, allowing you to peek at your hardware.
- System Cooling
- The Pandora ATX supports a 360mm radiator mounted in the front or on the top. These spaces can also hold three 120mm or two 140mm fans mounted where you choose not to mount a radiator. Heat exhaust is managed by the included 120mm Fluid Bearing type fan in the rear.
- Hardware on Display

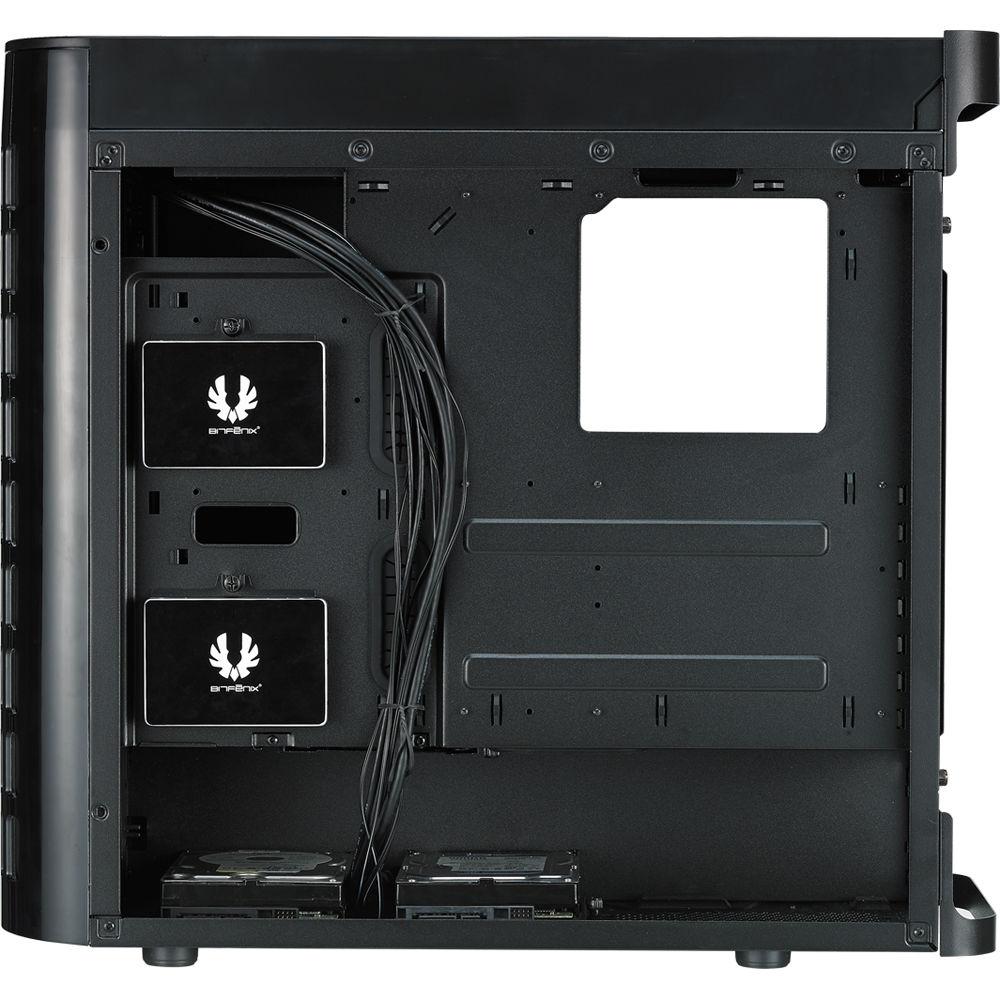

- With a spacious main compartment and power cover, you can hide away the PSU and HDDs in the bottom compartment, making classy cable management a breeze. Through the window, you can show off graphics cards of up to 17.3" in length, water cooling systems, and SSDs, while keeping the clutter hidden away behind the motherboard tray where you'll find 0.8" of cable clearance. Additionally, the Pandora ATX supports up to ATX motherboards and power supplies up to 8.7" long and offers seven expansion slots.
- ICON Programmable 2.8" Color Display
- The 2.8" ICON color display in the front of the Pandora ATX lets you customize your front panel with a simple drag-and-drop interface. Choose any picture or logo you want in the front.
- Keeping Clean

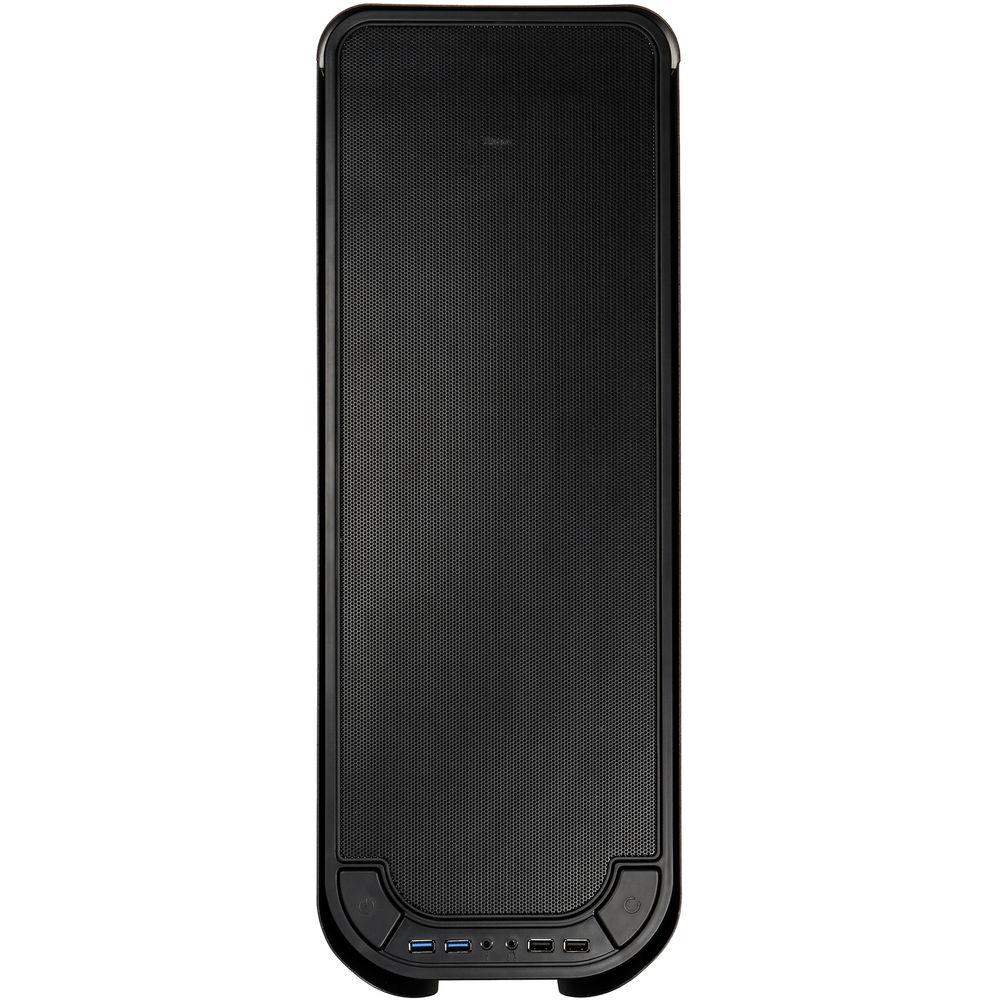

- Dust filters make sure your Pandora ATX system stays clean, even in dusty environments. The entire front panel is protected by a full-height dust filter, secured in place with magnets. The PSU inlet is also filtered, while the easy-to-remove top cover comes with a built-in foam-type filter.
- Easy Access
- The side panels are fixed with pushpins on the leading edge of the case. The trailing edge is securely fastened with thumb screws, making the Pandora ATX a unique experience to open—undo the thumb screws and pull the panel straight out.
- Storage Capabilities
- The Pandora ATX accepts 4 x 3.5" HDDs and 4 x 2.5" SSDs with ease. The drive trays are all mounted with thumbscrews, and the 3.5" trays come with rubber mounts. These trays can also be used to install 2.5" units, meaning you can comfortably fit up to eight 2.5" SSDs.
- Liquid-Cooling Support
- The Pandora ATX caters to water-cooling enthusiasts with a top-mounted reservoir mount bracket and a pump mount bracket, which will support most major pumps. Should you wish to expand your cooling loop outside the case, two rubber grommets sit above the exhaust fan for tube routing.
- Front Panel I/O

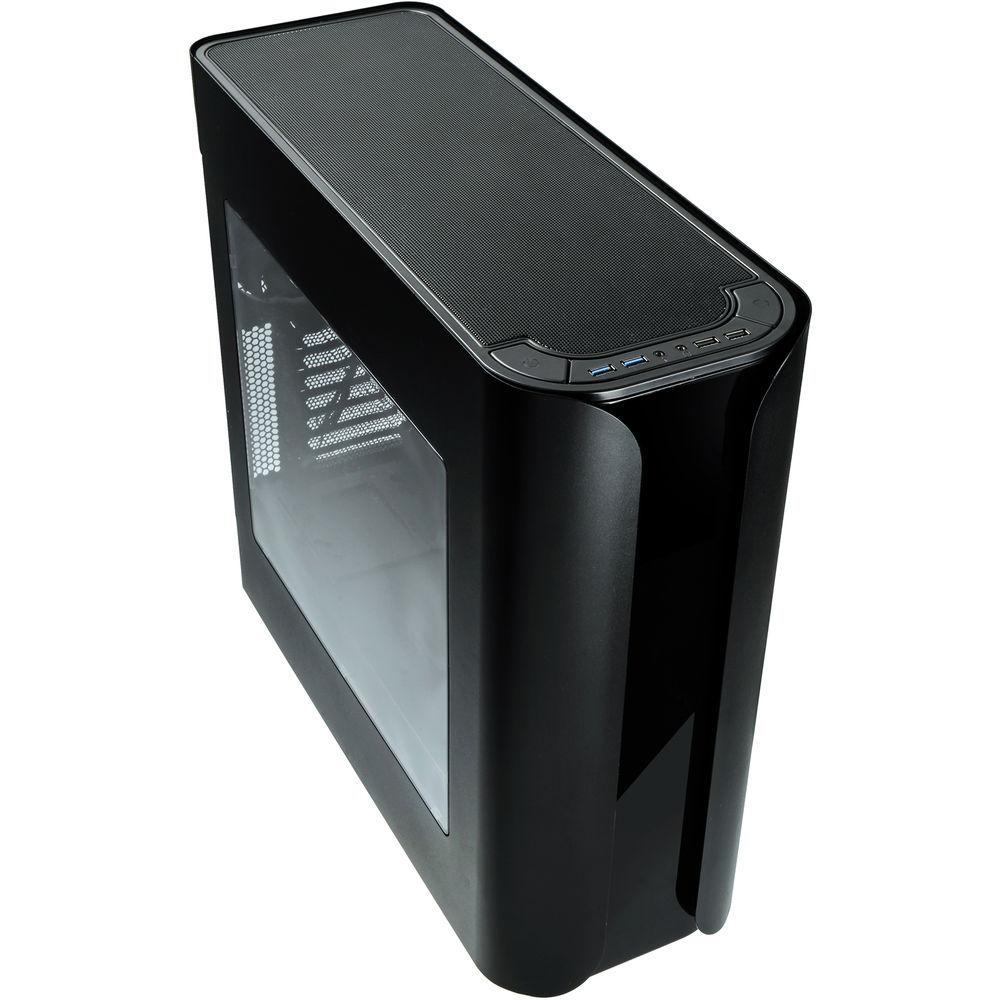

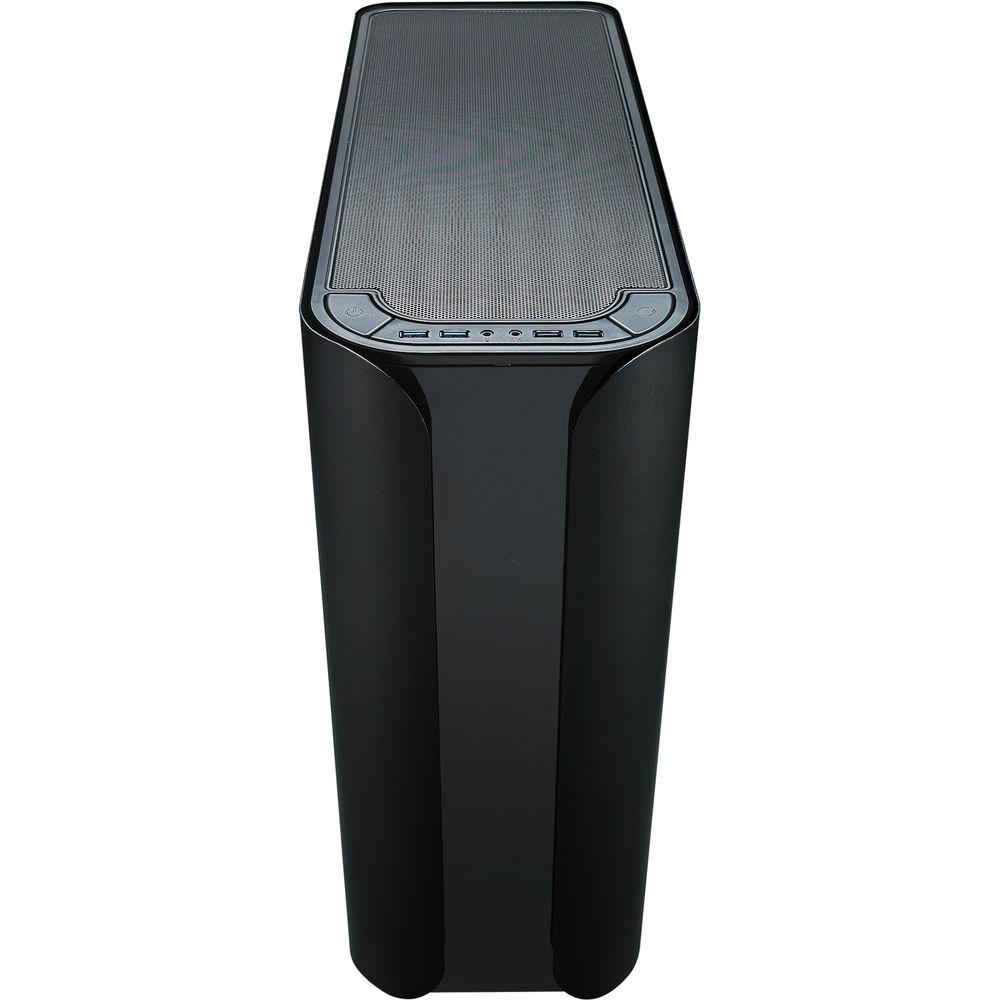

- At the front of the case on its top side is an I/O panel that has large LED-backlit power and reset buttons. Between these buttons are two USB 3.0 and two USB 2.0 ports as well as line-out and headphone-in 3.5mm jacks.
UPC: 886027014530 In the Box BitFenix Pandora ATX Case Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BitFenix Pandora ATX Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBitFenix BFC-PAN-600-KKWL1-RP Specs | | | Motherboard Support | ATX, Micro-ATX, Mini-ITX | | Internal Drive Bays | 4 x 3.5"
4 x 2.5" | | Expansion Slots | 7 x Full Height | | Maximum GPU Length | 17.3" / 44 cm | | Supported PSU Size | ATX | | Maximum PSU Length | 8.7" / 22 cm | | | | Fan Mounting (Front) | 3 x 120 mm
Or
2 x 140 mm
| | Fan Mounting (Rear) | 1 x 120 mm
| | Fan Mounting (Top) | 3 x 120 mm
Or
2 x 140 mm
| | Fans Included (Front) | 1 x 140 mm | | Fans Included (Rear) | 1 x 120 mm | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0)
2 x USB Type-A (USB 2.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Steel, Plastic | | Cable Management Space | 0.8" / 20 mm | | Dimensions (W x H x D) | 8.0 x 20.1 x 22.0" / 203.0 x 510.0 x 558.0 mm | | Weight | 21.9 lb / 9.9 kg | | | | Package Weight | 25.5 lb | | Box Dimensions (LxWxH) | 25.5 x 23.0 x 11.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 97 owners. Add your rating and experience with the product.
