User Manual for BitFenix Phenom Micro-ATX Chassis Click to enlarge the picture
Contents of the user manual for the BitFenix Phenom Micro-ATX Chassis
- Product category: Desktop Computer Cases BitFenix
- Brand: BitFenix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BitFenix Desktop Computer Cases
 |
User manual for the BitFenix Phenom Micro-ATX Chassis contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BitFenix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BitFenix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BitFenix product will considerably shorten its lifespan!
|

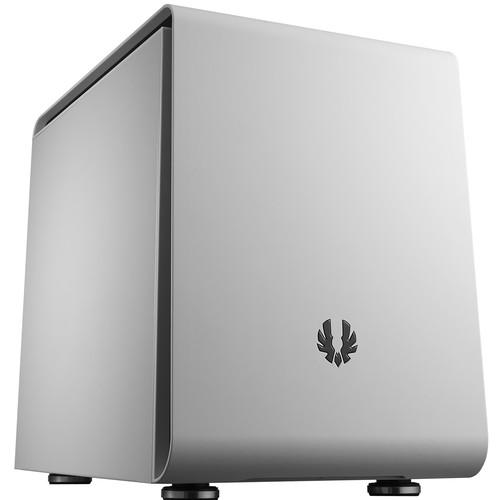

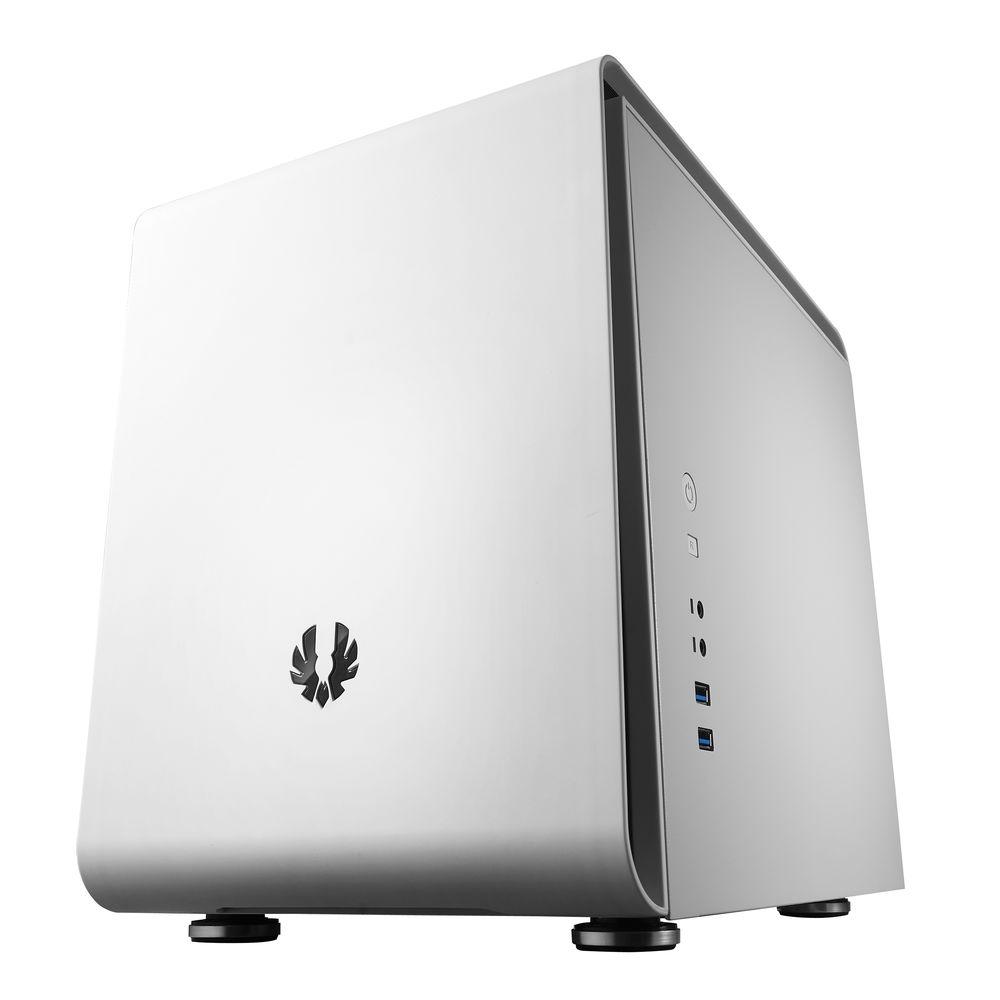

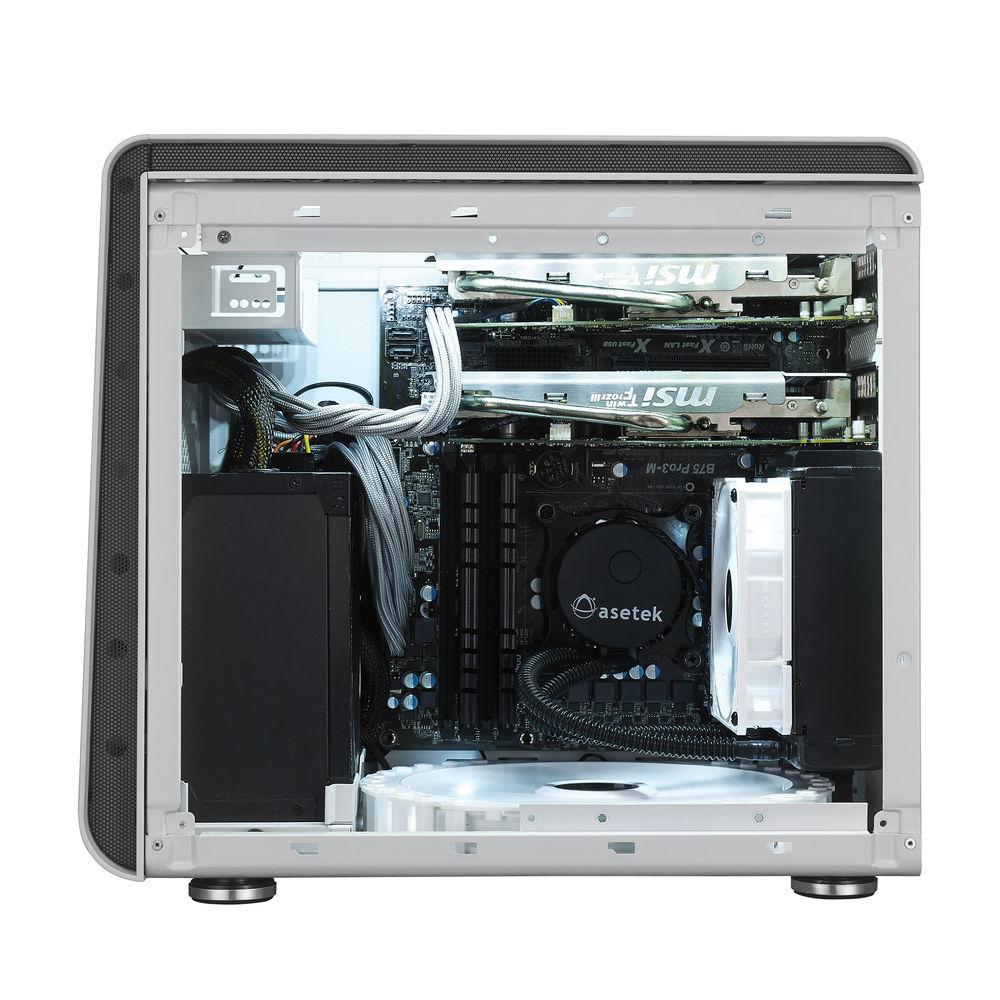

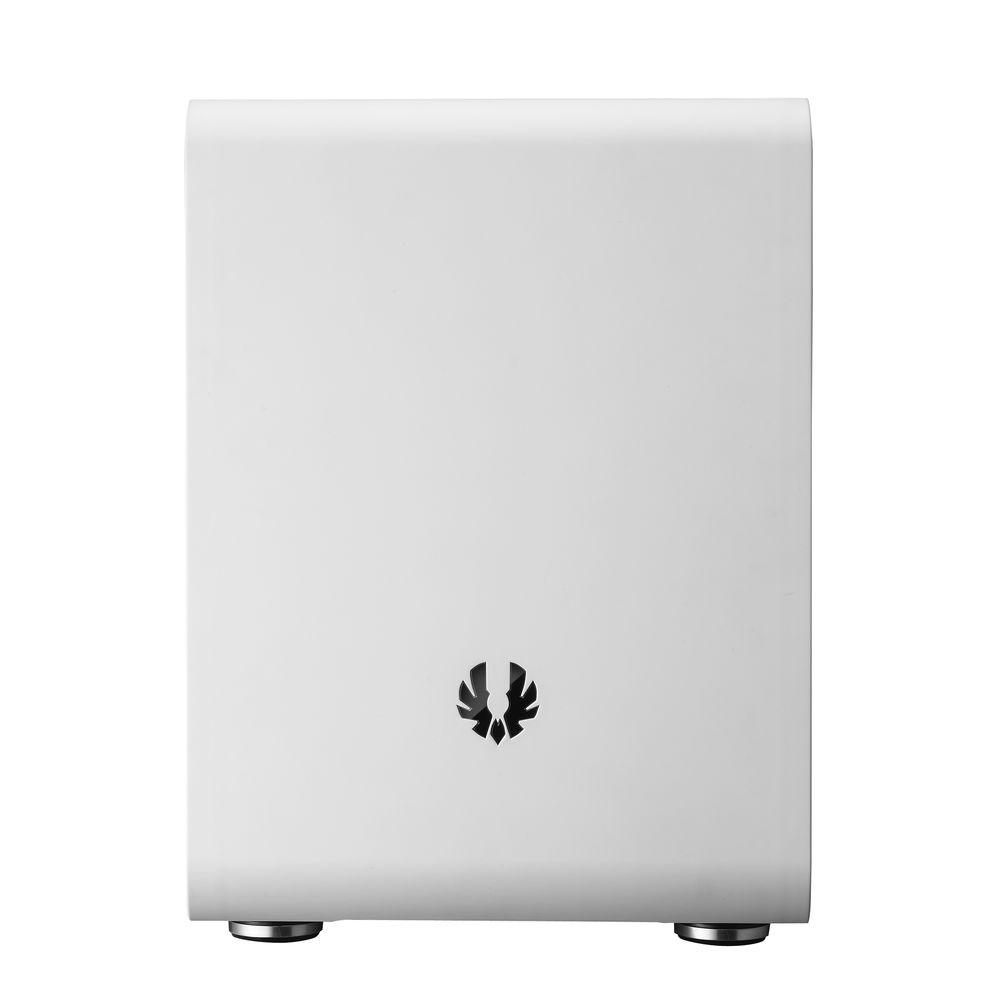

Product description The white Phenom Micro-ATX Chassis from BitFenix is designed for Micro-ATX motherboards, and delivers flexibility with support for long graphics cards, tall CPU coolers, and slim water-cooling radiators. You can install up to four hard disks or six SSDs, making Phenom a suitable media server or NAS chassis, and two high-speed USB 3.0 ports ensures quick transfers of high-definition media. The chassis has a powder coated interior, rolled cable pass-throughs, and a magnetic heat shield. The subtle curves coated in premium BitFenix SofTouch Surface Treatment offers a matte finish, while the clean and uncluttered design makes the chassis suitable for virtually any environment. - Design

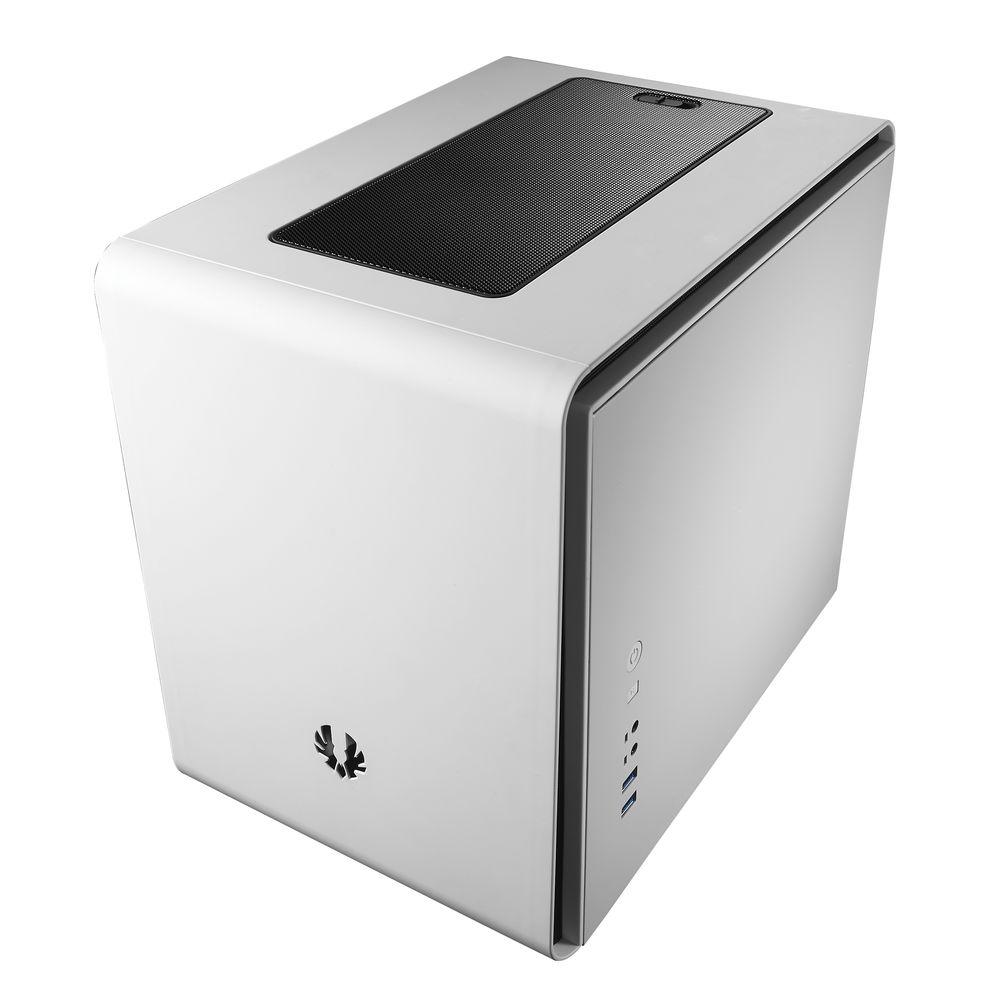

- Phenom has a sleek, cube design that fits in any environment. Mesh accents on the sides compliment the clean and uncluttered top, front, and side panels.
- Micro-ATX Compatibility
- Featuring five expansion slots, the chassis accommodates micro-ATX motherboards to enable dual graphics capability such as SLI or Crossfire, or added expansion cards.
- Flexibility

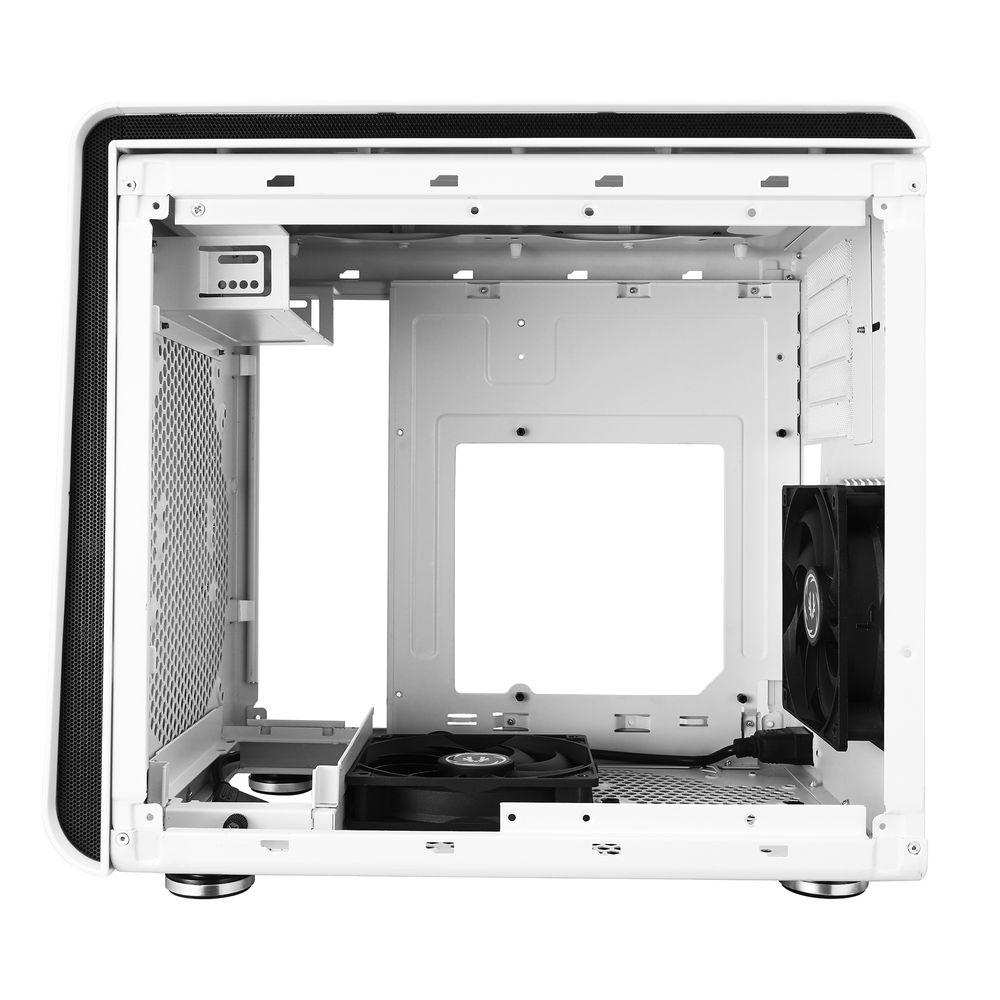

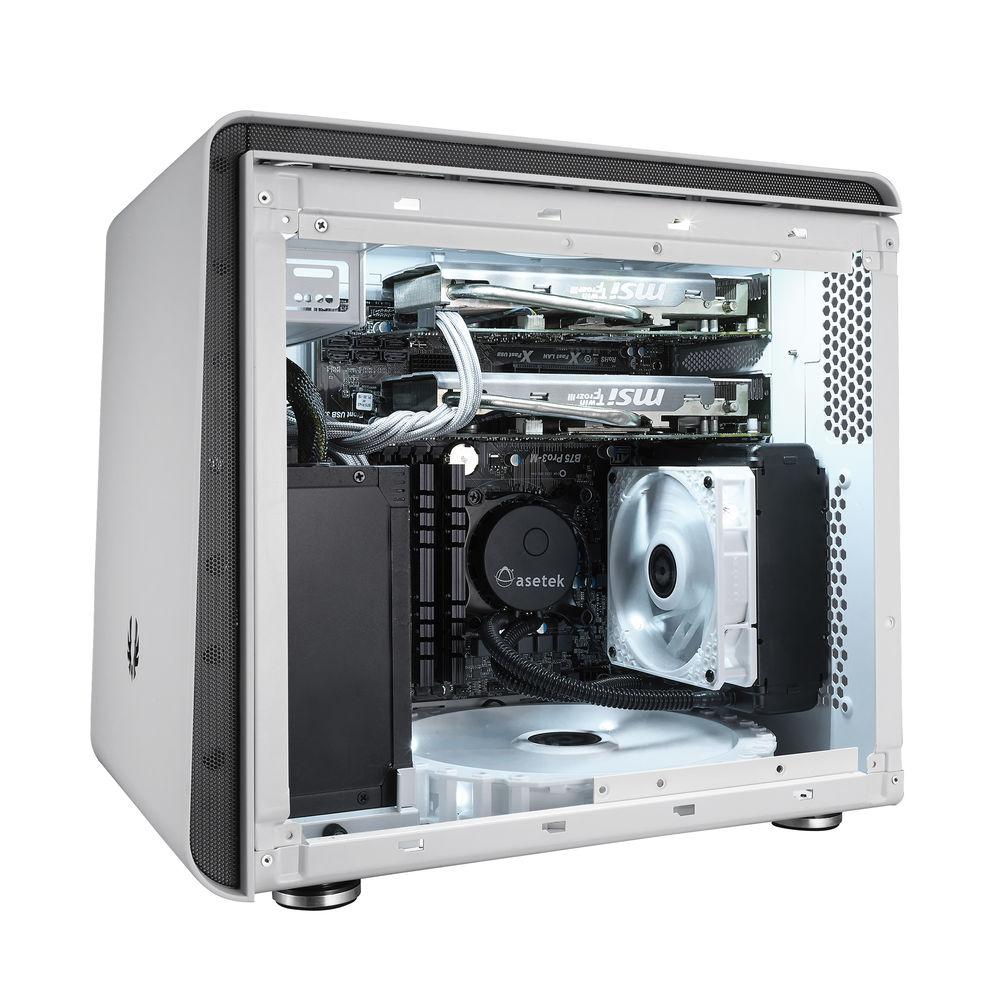

- The chassis has a flexible interior. Install dual graphics cards up to 12.5" in length, or opt for a single graphics card and a slim 9.4" water cooling radiator up top. Those who prefer air cooling can mount tall CPU coolers up to 6.2".
- Multiple Storage Options
- With the included removable drive rack, side panel SSD mounts, and included drive bay adapter, Phenom Micro-ATX can be outfitted with up to five 3.5" HDDs or six 2.5" SSDs.
- Easy to Build

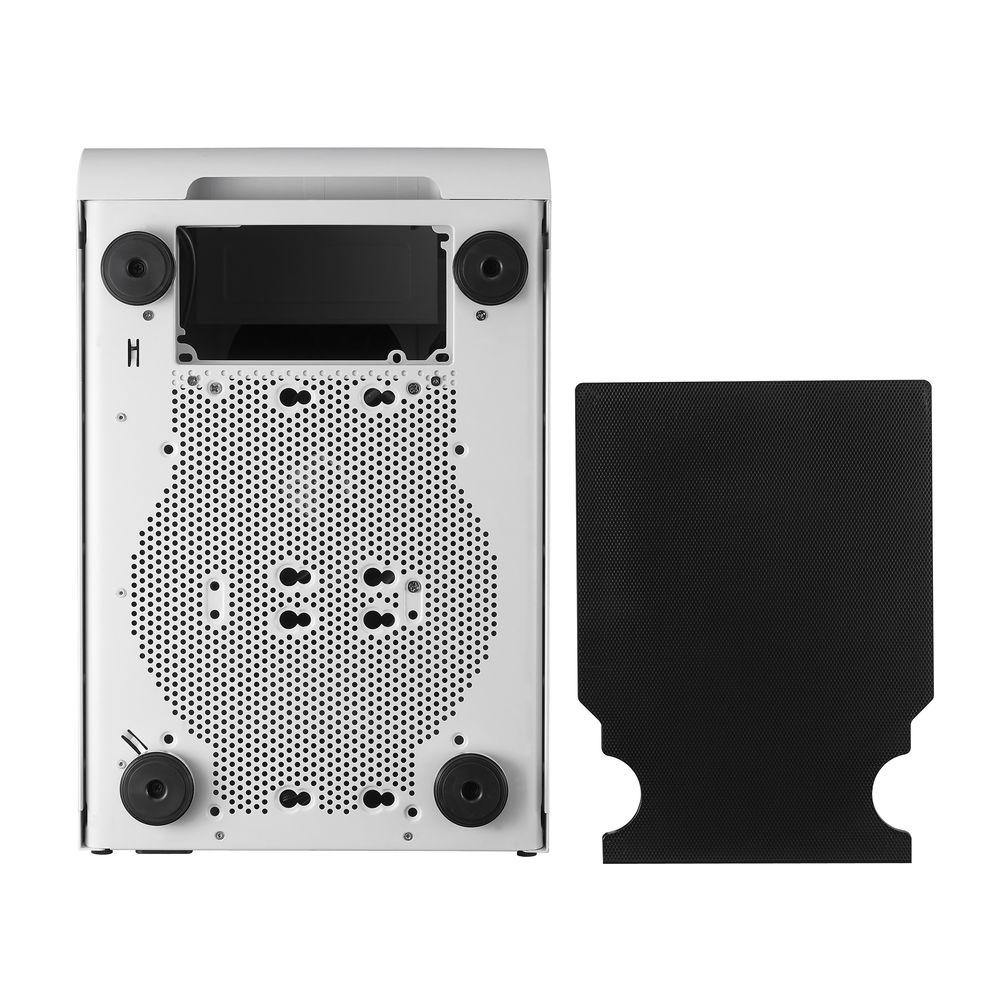

- Phenom offers multiple features to make the build process easy. Anti-vibration washers help dampen noise from moving hard disks, while zones for cable management ensure a tidy build. Filtered intakes keep airborne dust on the outside, and the included heat shield help keep heat escaping from the power supply from re-entering the case.

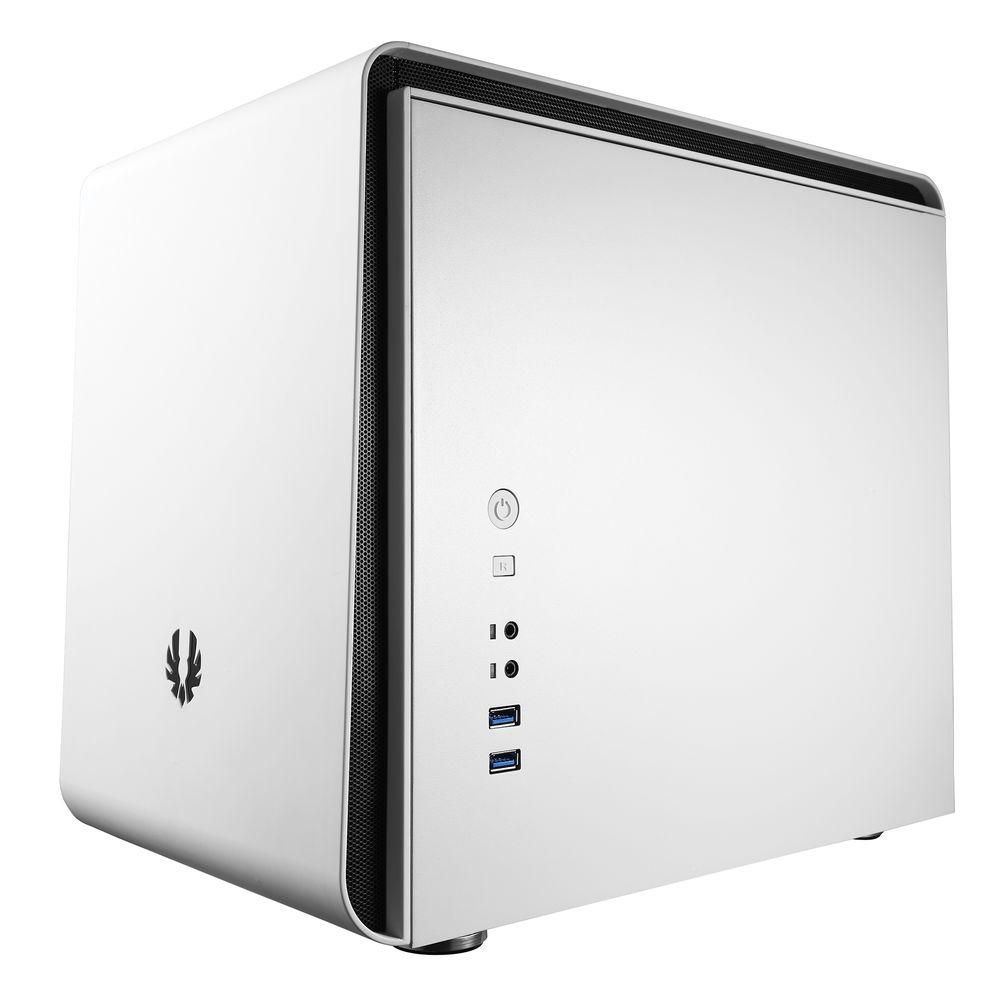

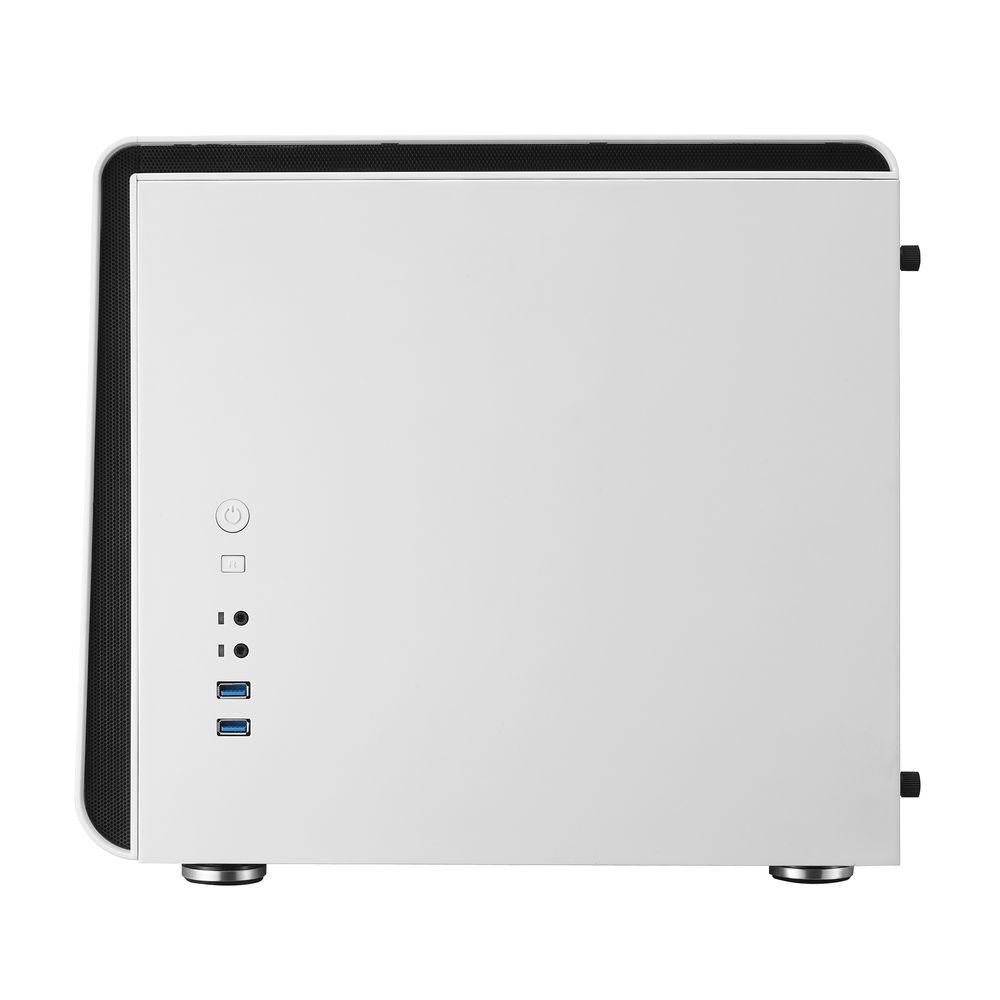

- High-Speed USB 3.0 Connectivity
- With two high speed USB 3.0 ports, you will be able to transfer files to Phenom at speeds up to ten times that of USB 2.0.
UPC: 886027003244 In the Box BitFenix Phenom Micro-ATX Chassis (White) Drive Bay Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BitFenix Phenom Micro-ATX Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBitFenix BFC-PHM-300-WWXKK-RP Specs | | | Motherboard Support | Micro-ATX | | Internal Drive Bays | 5 x 3.5"
5 x 2.5" | | Expansion Slots | 5 x Full Height | | Supported PSU Size | ATX | | | | Fan Mounting (Front) | 1 x 120 mm
| | Fan Mounting (Top) | 2 x 120 mm
| | Fans Included (Front) | 1 x 120 mm | | Fans Included (Rear) | 1 x 120 mm | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Steel, Plastic | | Cable Management Space | None | | Dimensions (W x H x D) | 9.8 x 12.9 x 14.7" / 250.0 x 330.0 x 374.0 mm | | | | Package Weight | 17.7 lb | | Box Dimensions (LxWxH) | 17.8 x 15.7 x 12.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 08 owners. Add your rating and experience with the product.
