User Manual for BitFenix Phenom Mini-ITX Chassis Click to enlarge the picture
Contents of the user manual for the BitFenix Phenom Mini-ITX Chassis
- Product category: Desktop Computer Cases BitFenix
- Brand: BitFenix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BitFenix Desktop Computer Cases
 |
User manual for the BitFenix Phenom Mini-ITX Chassis contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BitFenix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BitFenix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BitFenix product will considerably shorten its lifespan!
|

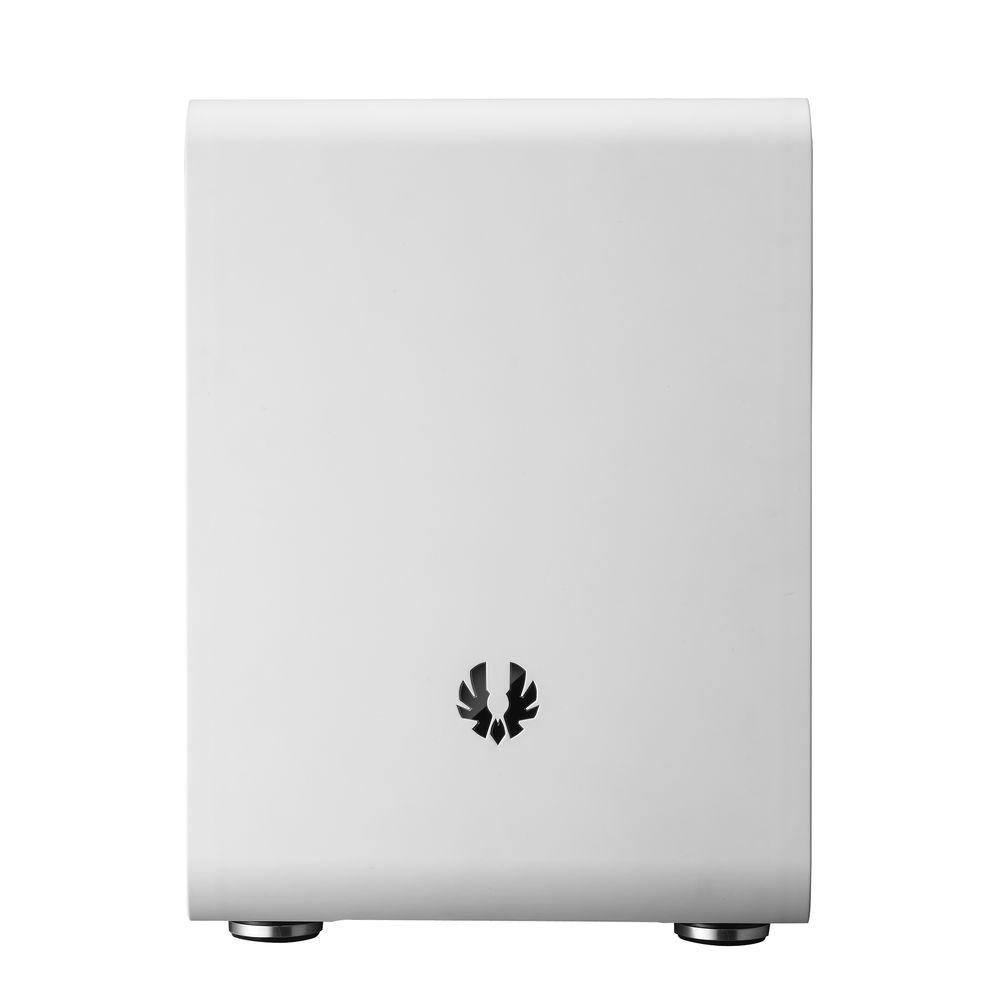

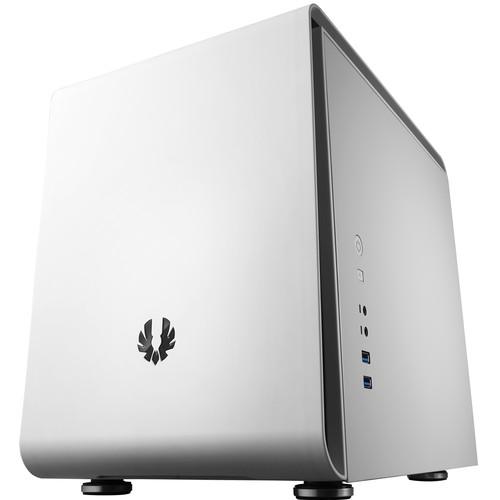

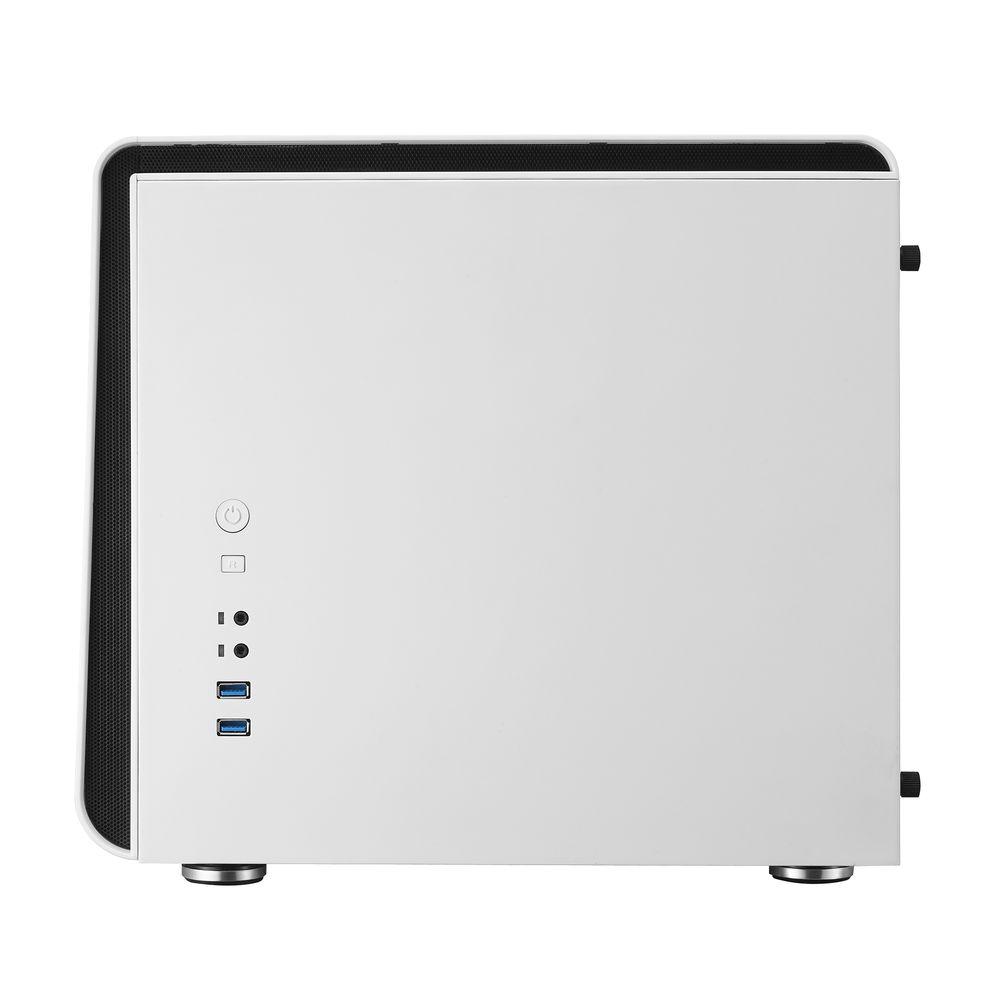

Product description The white Phenom Mini-ITX Chassis from BitFenix is designed for mini-ITX motherboards, and delivers flexibility with support for long graphics cards, tall CPU coolers, and water-cooling radiators. You can install up to six hard disks or eleven SSDs, making Phenom a suitable media server or NAS chassis, and the two high-speed USB 3.0 ports ensure quick transfers of high-definition media. The mini-ITX chassis has a powder coated interior, rolled-edge cable pass-through, and quick-release dust filters. The subtle curves coated in premium BitFenix SofTouch Surface Treatment offers a matte finish, while the clean and uncluttered design makes Phenom suitable for virtually any environment. - Design

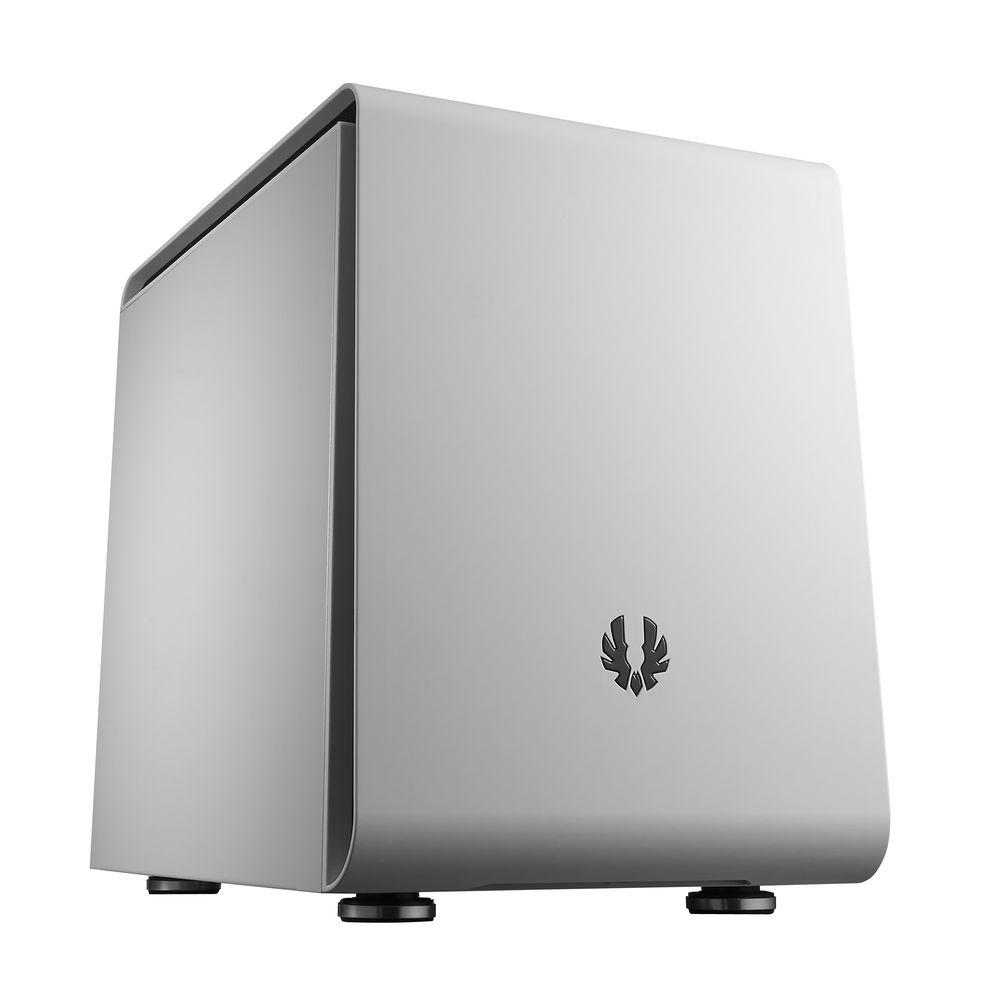

- The chassis has a sleek, cube design that fits in any environment. Mesh accents on the sides compliment the clean and uncluttered top, front, and side panels.
- Flexibility

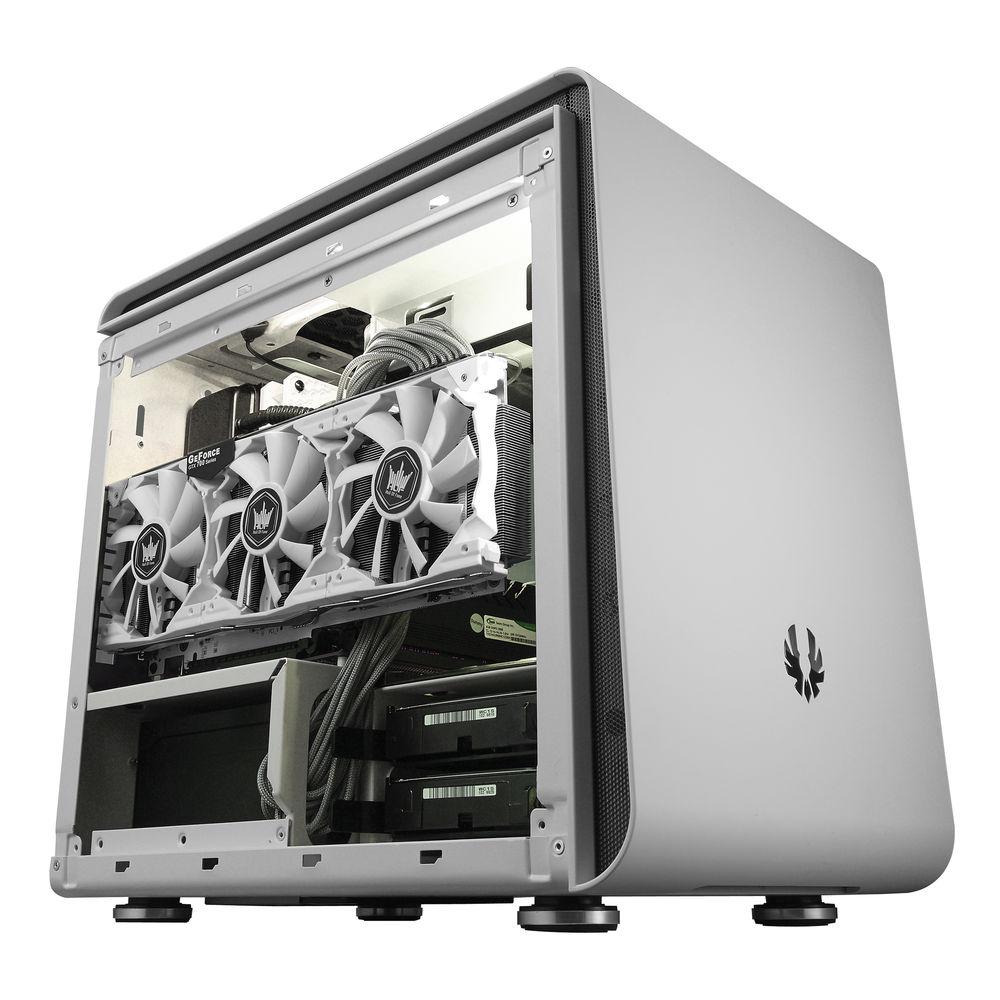

- Phenom Mini-ITX has a flexible interior. Remove the included FlexCage and install a long graphics card of up to 12.9" in length. Thick radiators of up to 9.4" can be installed up top, and if you need more water cooling, radiators can be installed in front as well. Those who prefer air cooling, can mount tall CPU coolers of up to 6.8".
- Storage Potential

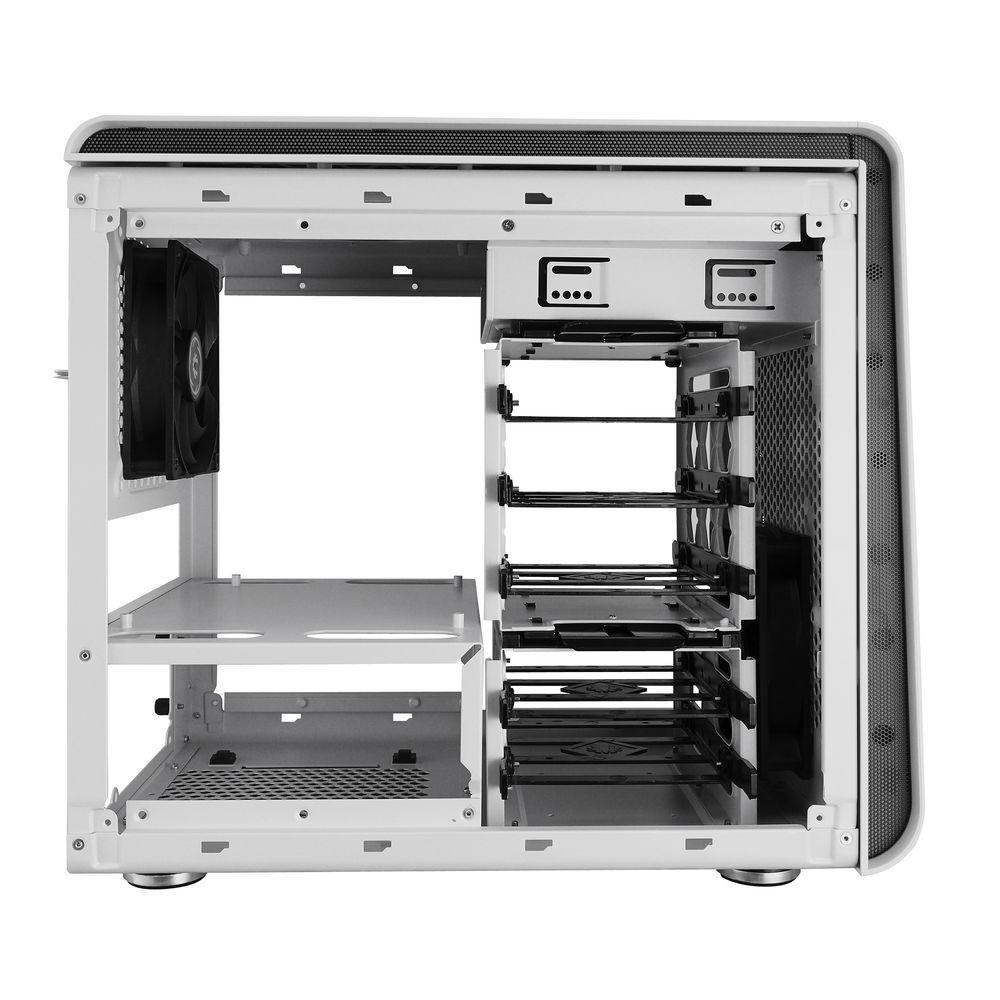

- With room for up to six 3.5" HDDs or eleven 2.5" SSDs, Phenom offers optimal storage capacities, making it suitable for your media server or NAS box.
- Easy to Build

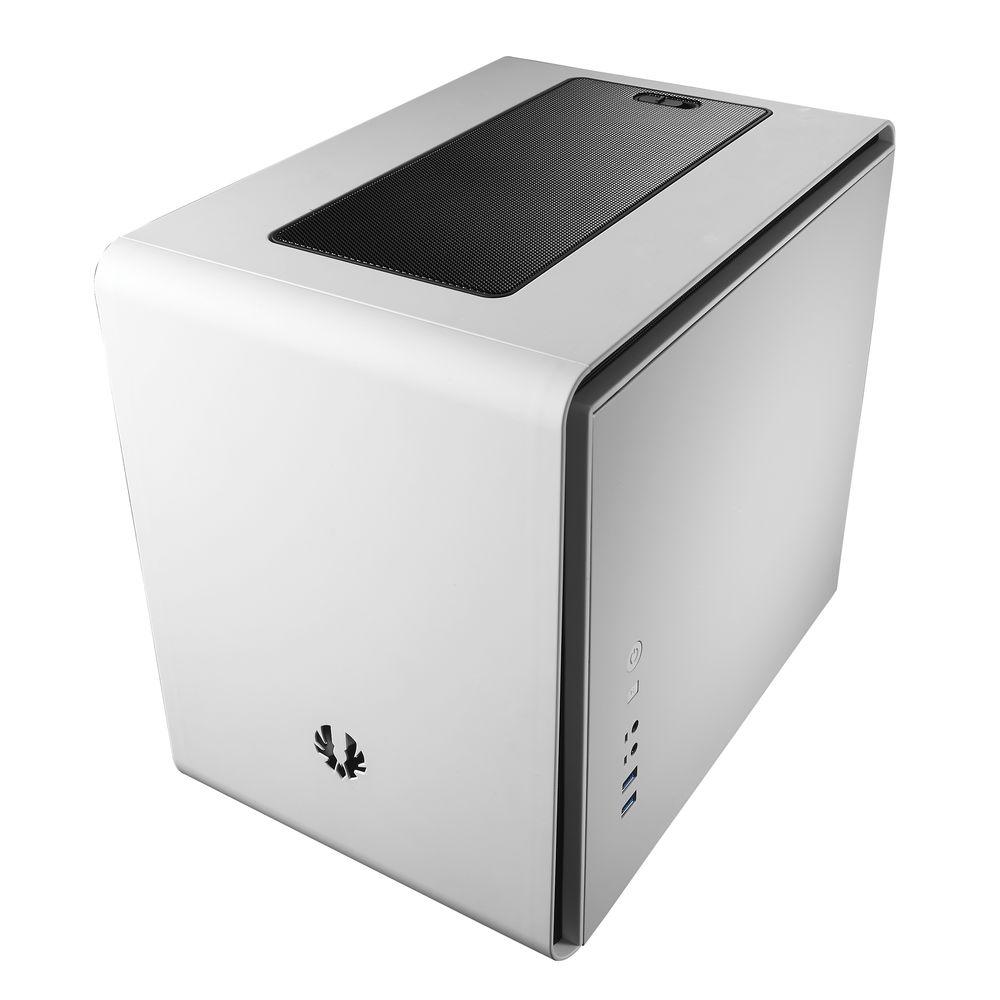

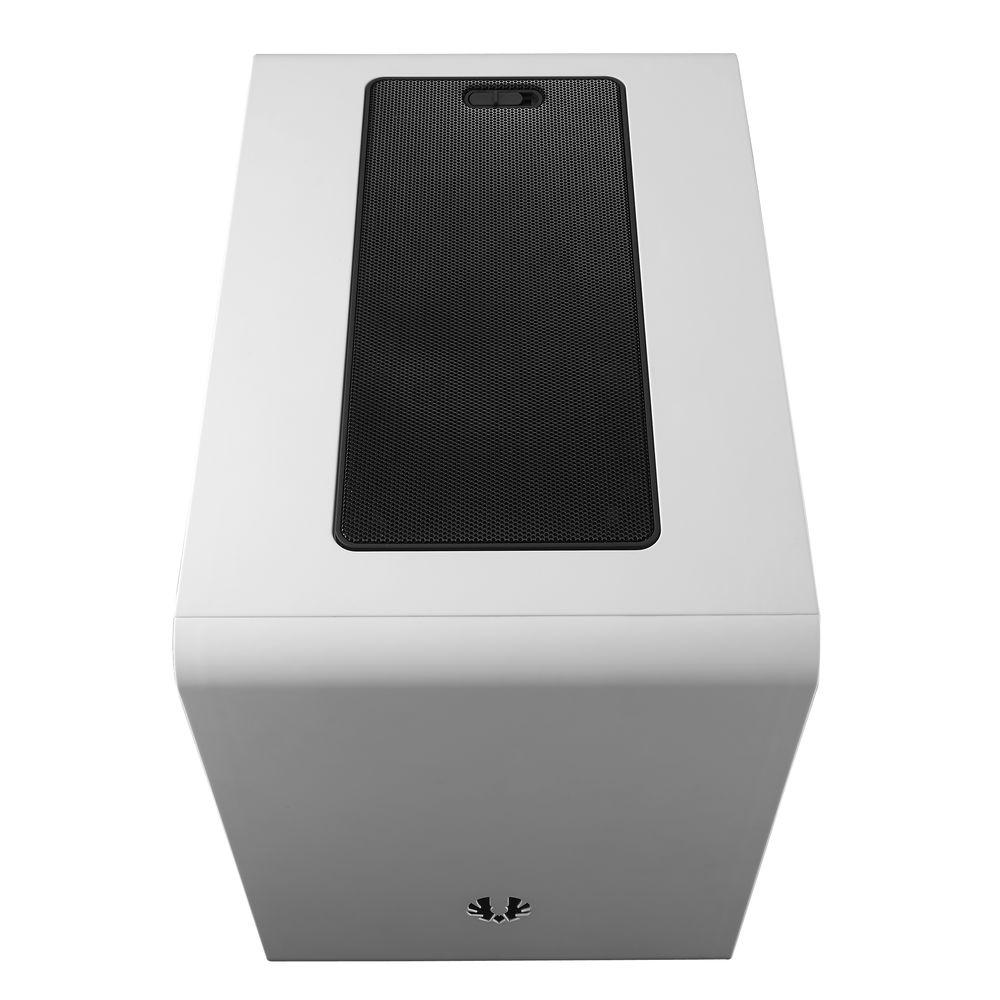

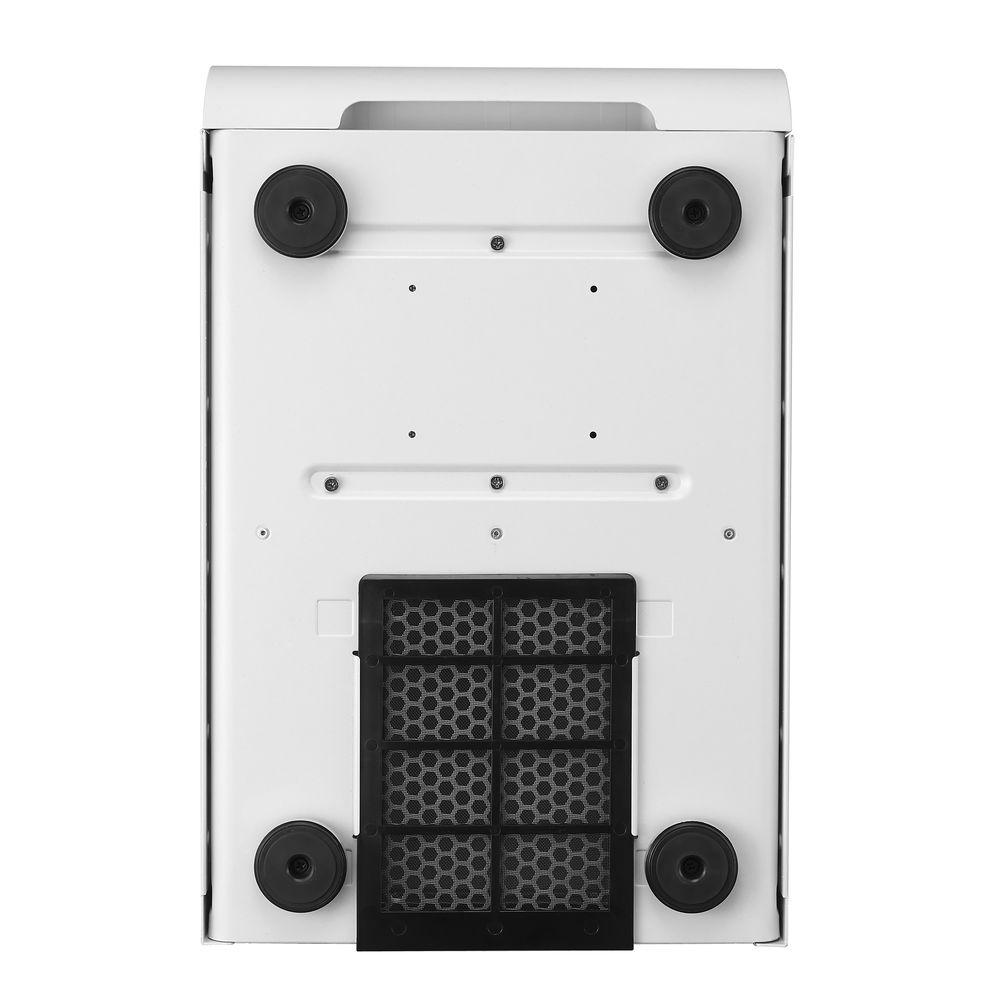

- The mini-ITX chassis offers multiple features to make the build process easy. Tool-free drive locking mechanism allows you to install disks easily, while zones for cable management ensure a tidy build. Filtered intakes keep airborne dust on the outside, and a squeeze-to-release FlexCage quickly enables room for long graphics cards.
- High-Speed USB 3.0 Connectivity

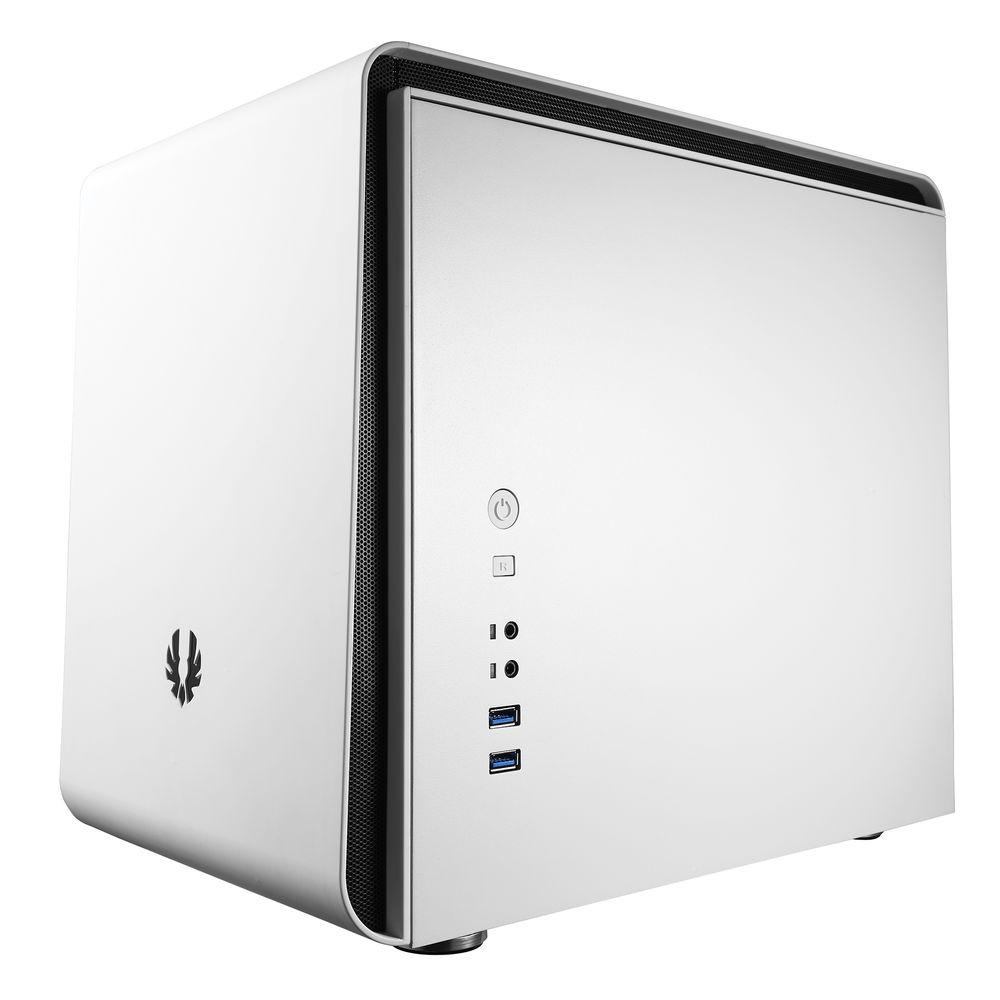

- With two high speed USB 3.0 ports, you will be able to transfer files to Phenom at speeds up to ten times that of USB 2.0.
UPC: 886027003220 In the Box BitFenix Phenom Mini-ITX Chassis (White) Drive Bay Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BitFenix Phenom Mini-ITX Chassis in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBitFenix BFC-PHE-300-WWXKK-RP Specs | | | Motherboard Support | Mini-ITX | | Internal Drive Bays | 6 x 3.5"
11 x 2.5" | | Expansion Slots | 2 x Full Height | | Supported PSU Size | ATX | | | | Fan Mounting (Front) | 1 x 120 mm
| | Fan Mounting (Top) | 2 x 120 mm
| | Fans Included (Front) | 1 x 120 mm | | Fans Included (Rear) | 1 x 120 mm | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Steel, Plastic | | Cable Management Space | None | | Dimensions (W x H x D) | 9.8 x 12.9 x 14.7" / 25.0 x 33.0 x 37.4 cm | | | | Package Weight | 19.05 lb | | Box Dimensions (LxWxH) | 17.9 x 15.6 x 12.3" |
