User Manual for BitFenix Portal Mini-Tower Case Click to enlarge the picture
Contents of the user manual for the BitFenix Portal Mini-Tower Case
- Product category: Desktop Computer Cases BitFenix
- Brand: BitFenix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BitFenix Desktop Computer Cases
 |
User manual for the BitFenix Portal Mini-Tower Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BitFenix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BitFenix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BitFenix product will considerably shorten its lifespan!
|

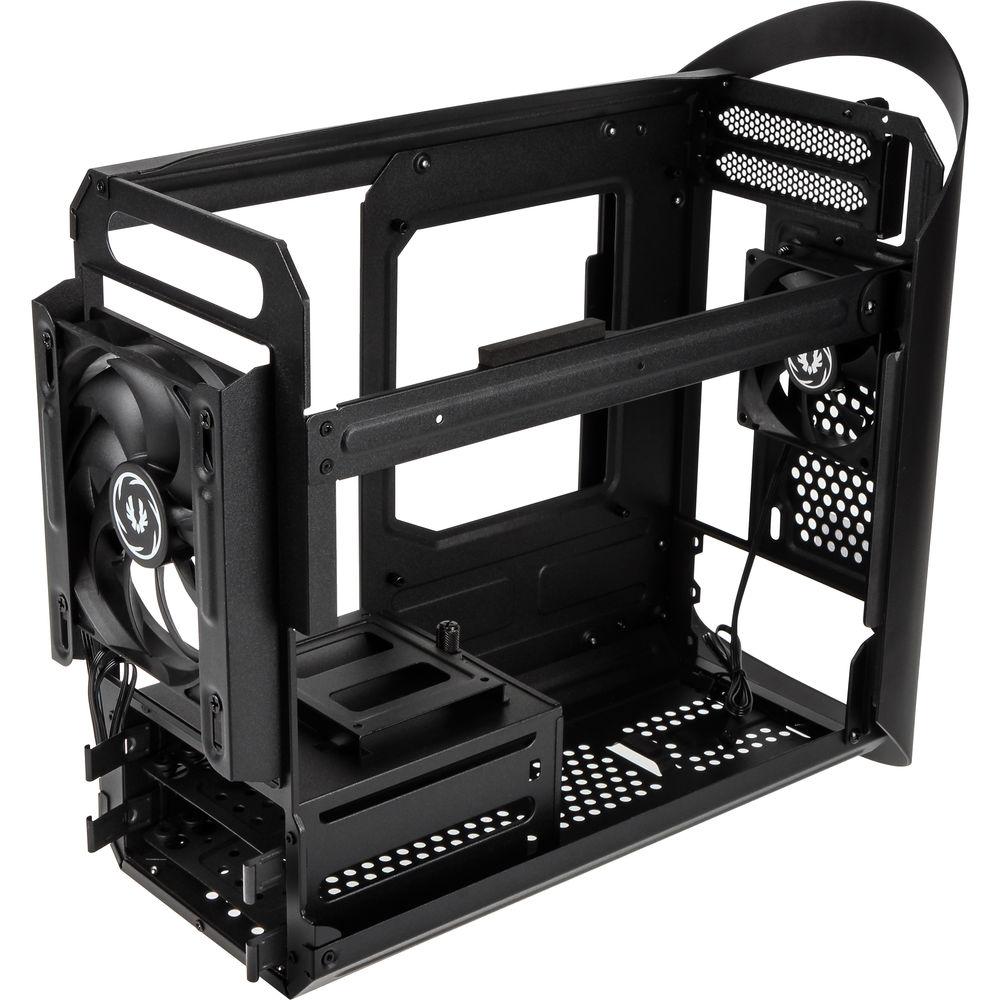

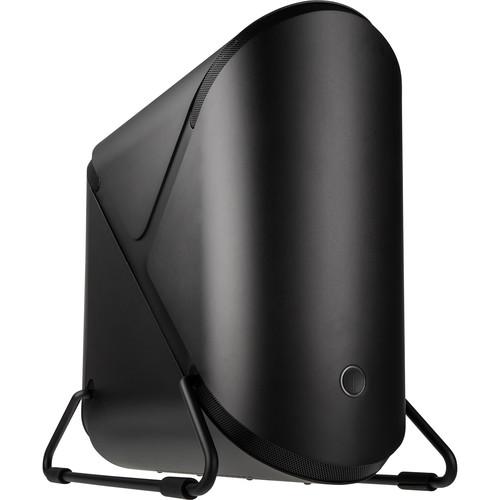

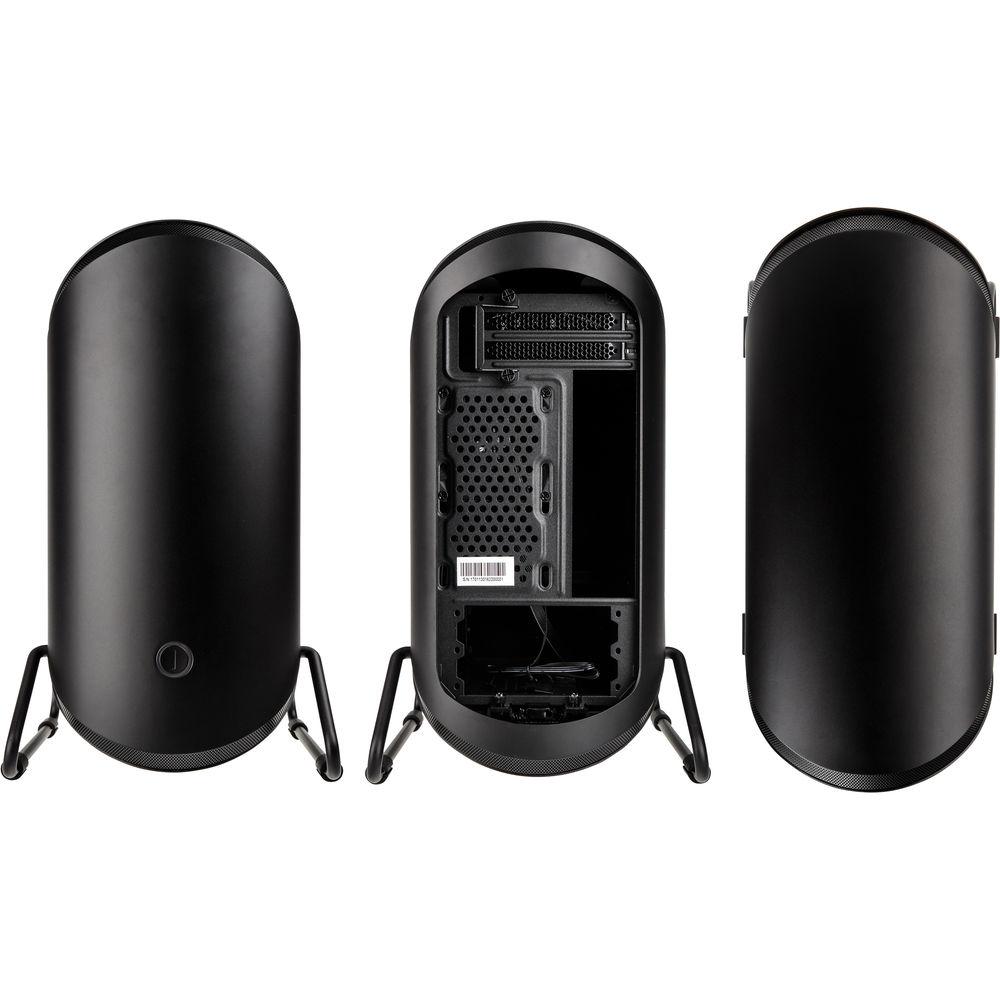

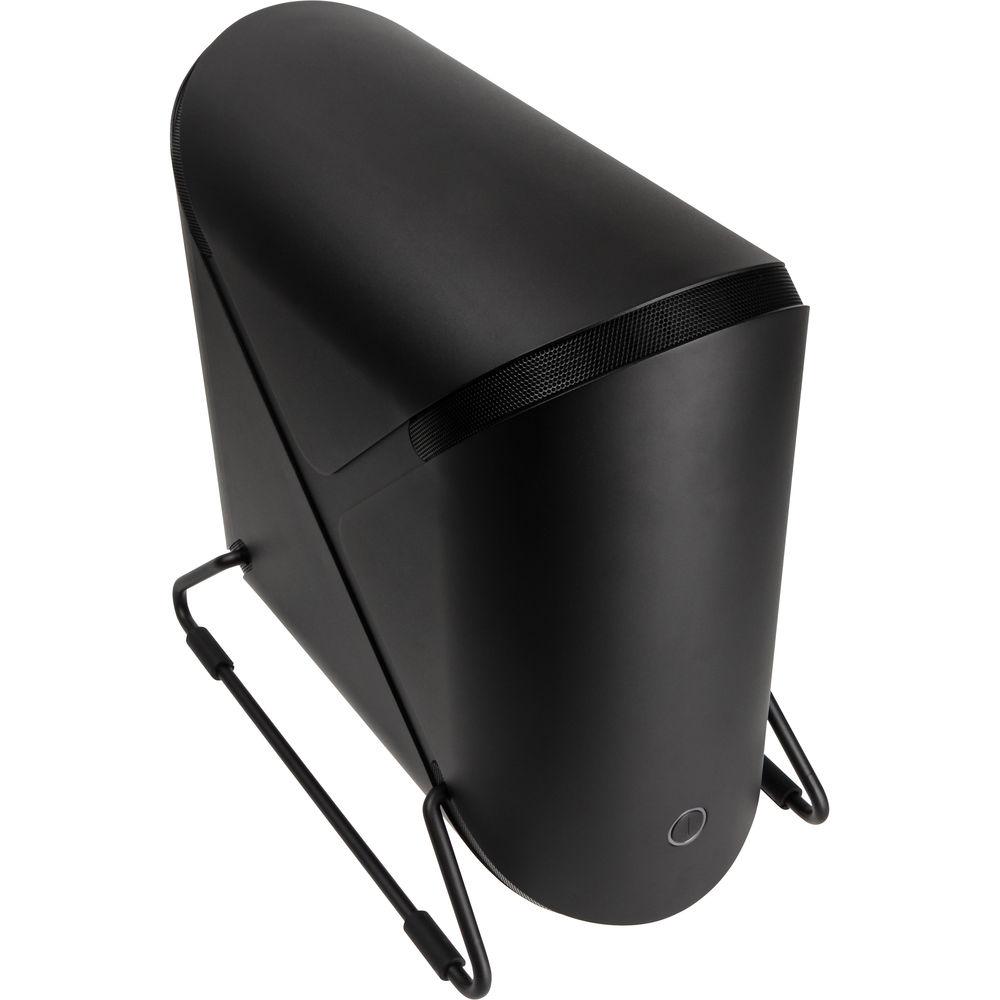

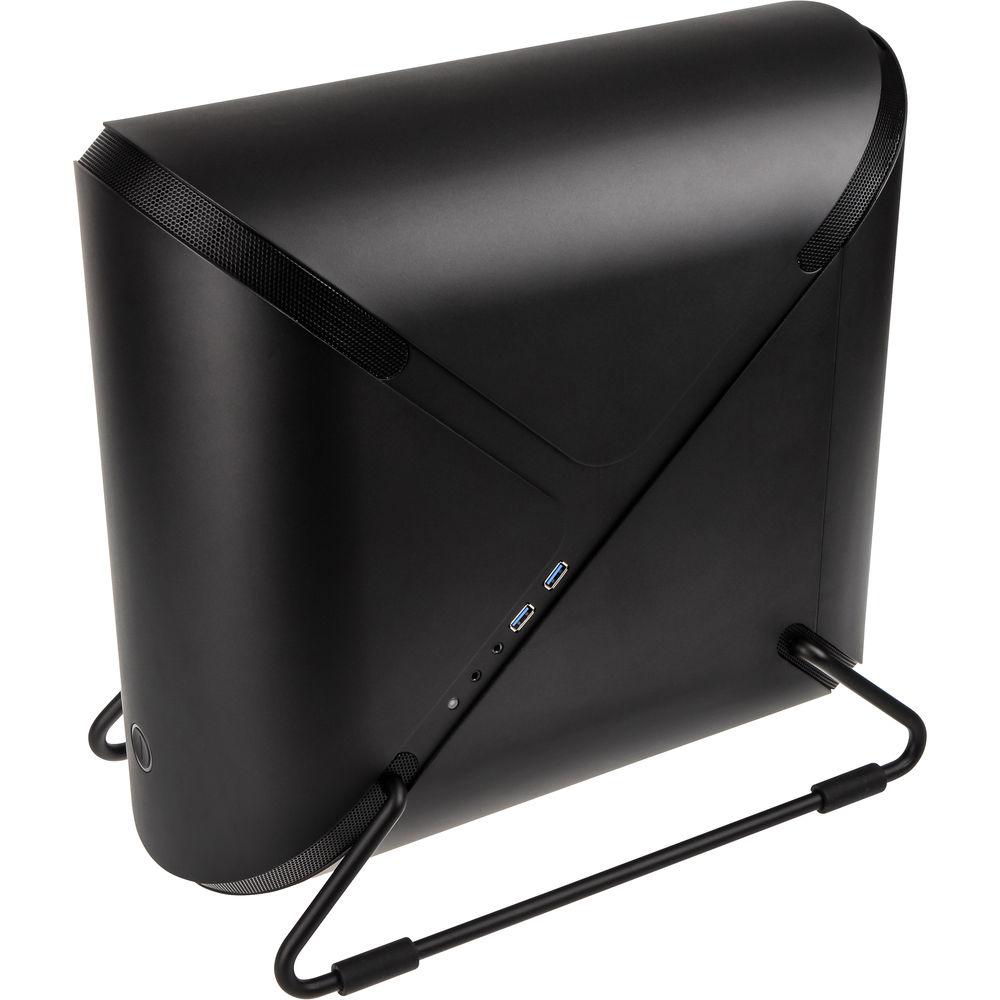

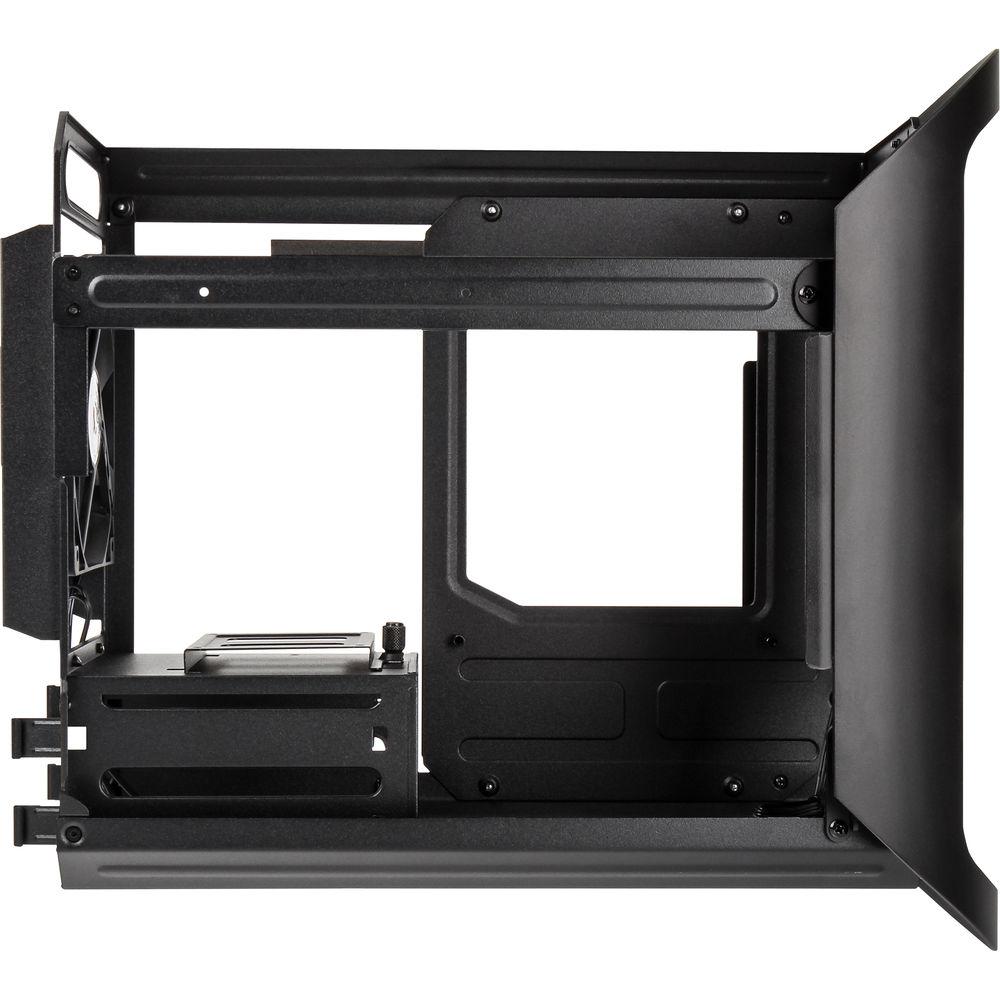

Product description Constructed out of aluminum and featuring a unique design, the Portal Mini-Tower Case from Bitfenix is a compact chassis that's ideal for any environment. Its small footprint limits it to only Mini-ITX motherboards, but there's plenty of room inside for high-end components such a single dual-slot graphics card, a liquid cooling system utilizing a 120mm radiator, and up to two 3.5" or three 2.5" storage drives. Moreover, the Portal has a dual-frame design that allows you to pull out the motherboard tray for easy access and quick installation. - Dual-Frame Design

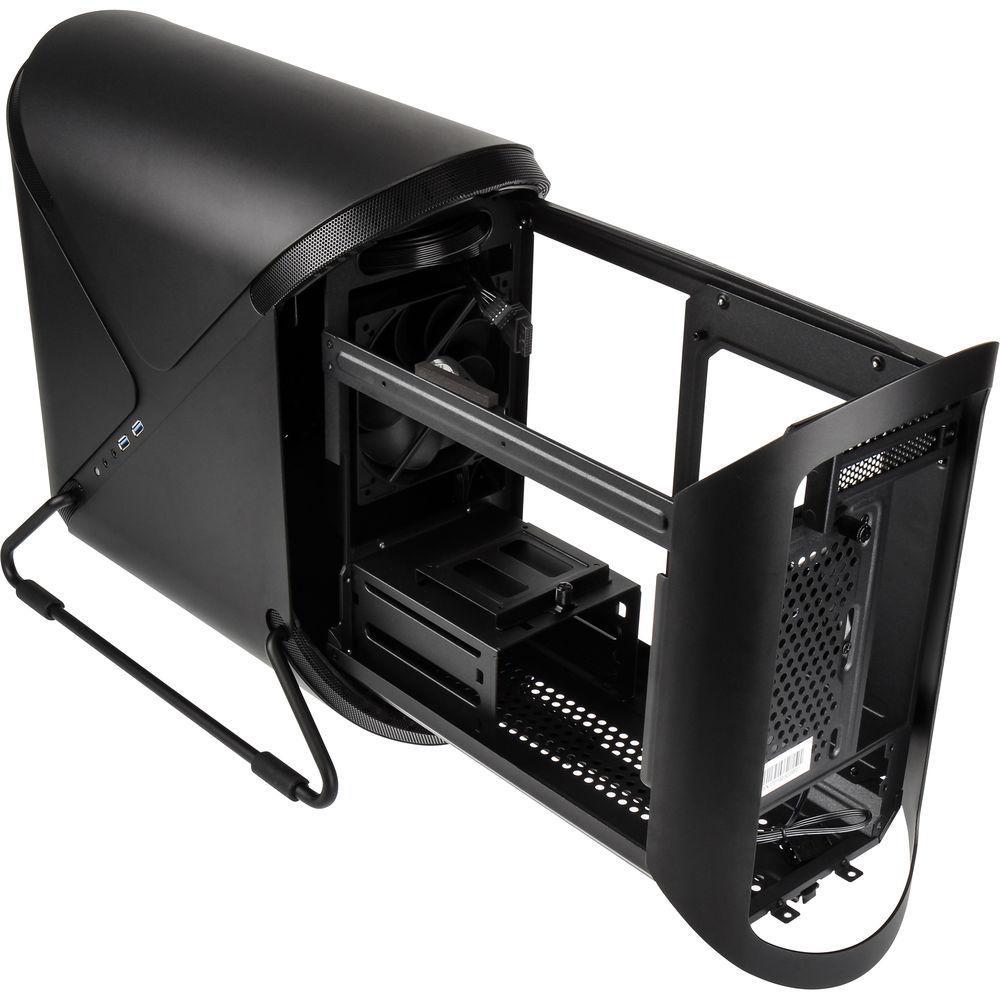

- The dual-frame design of the Portal provides you with a removable motherboard tray for easy access and quick installation. There's enough room inside for high-end components as well as liquid cooling systems.
- Compact Versatility
- After installing a Mini-ITX motherboard, the Portal still has enough space left over for high-end components such as graphics cards up to 11.81" long as well as one 2.5" and two 3.5" storage drives.
- Intelligent Cooling Solution

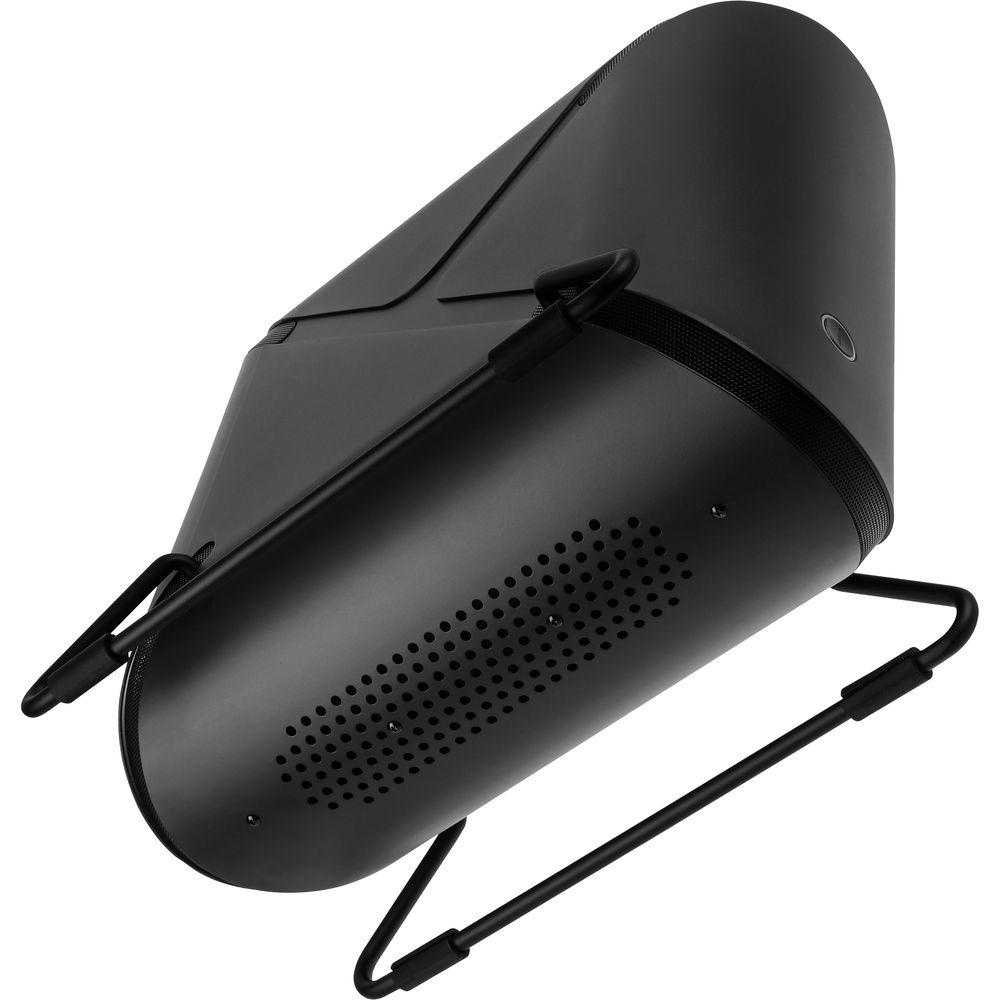

- The Portal features air inlets at all four corners and at the bottom of the chassis. A 120mm fan is included in the front for bringing in fresh air, and an 80mm fan at the rear for exhausting hot air.
- Water Cooling Support
- Using the front 120mm fan slot, you can install liquid cooling systems for lower temperatures and more efficient cooling.
UPC: 886027015285 In the Box BitFenix Portal Mini-Tower Case (Black) Screw Kit Limited 1-Year Warranty INSTALLATION GUIDE PDF 6.9mbzecrtcbxux Table of Contents
|
Upload User Manual
Have you got an user manual for the BitFenix Portal Mini-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBitFenix BFC-POT-150-KKXKK-RP Specs | | | Motherboard Support | Mini-ITX | | Internal Drive Bays | 2 x 2.5"

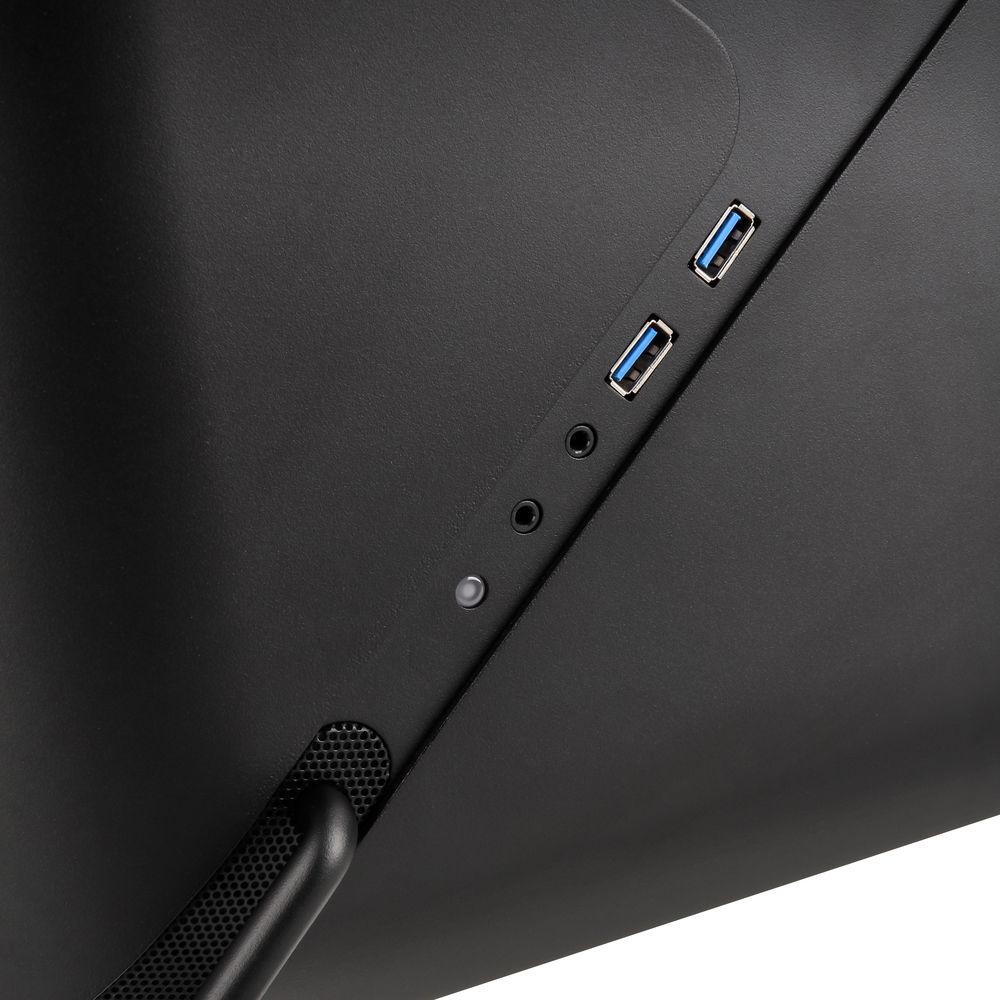

1 x 2.5" | | Additional Drive Mounting | 1 x 2.5" (Bottom) | | Expansion Slots | 2 x Full Height | | Maximum GPU Length | 11.8" / 30 cm | | CPU Cooler Height | 4.9" / 12.5 cm | | Supported PSU Size | SFX | | | | Fans Included (Front) | 1 x 120 mm | | Fans Included (Rear) | 1 x 80 mm | | Maximum Radiator Size (Front) | 120 mm | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Aluminum, Steel, Plastic, Acrylic | | Cable Management Space | None | | Dimensions (W x H x D) | 9.7 x 15.6 x 16.2" / 24.7 x 39.5 x 41.1 cm | | Weight | 12.8 lb / 5.8 kg | | | | Package Weight | 16.35 lb | | Box Dimensions (LxWxH) | 19.5 x 18.5 x 11.6" |
