User Manual for BitFenix Prodigy M Color Chassis with Window Click to enlarge the picture
Contents of the user manual for the BitFenix Prodigy M Color Chassis with
- Product category: Desktop Computer Cases BitFenix
- Brand: BitFenix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BitFenix Desktop Computer Cases
 |
User manual for the BitFenix Prodigy M Color Chassis with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BitFenix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BitFenix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BitFenix product will considerably shorten its lifespan!
|

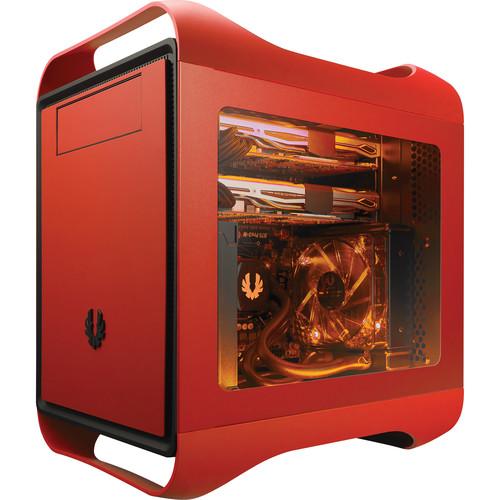

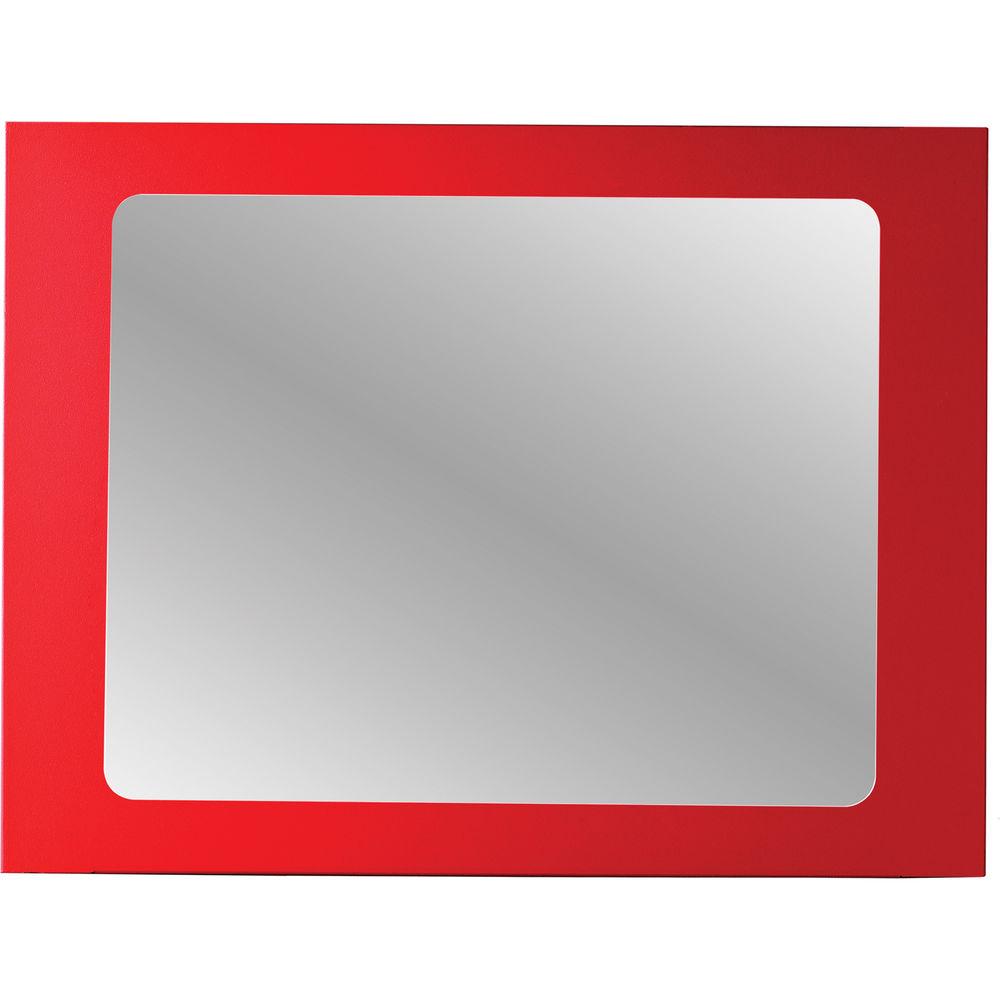

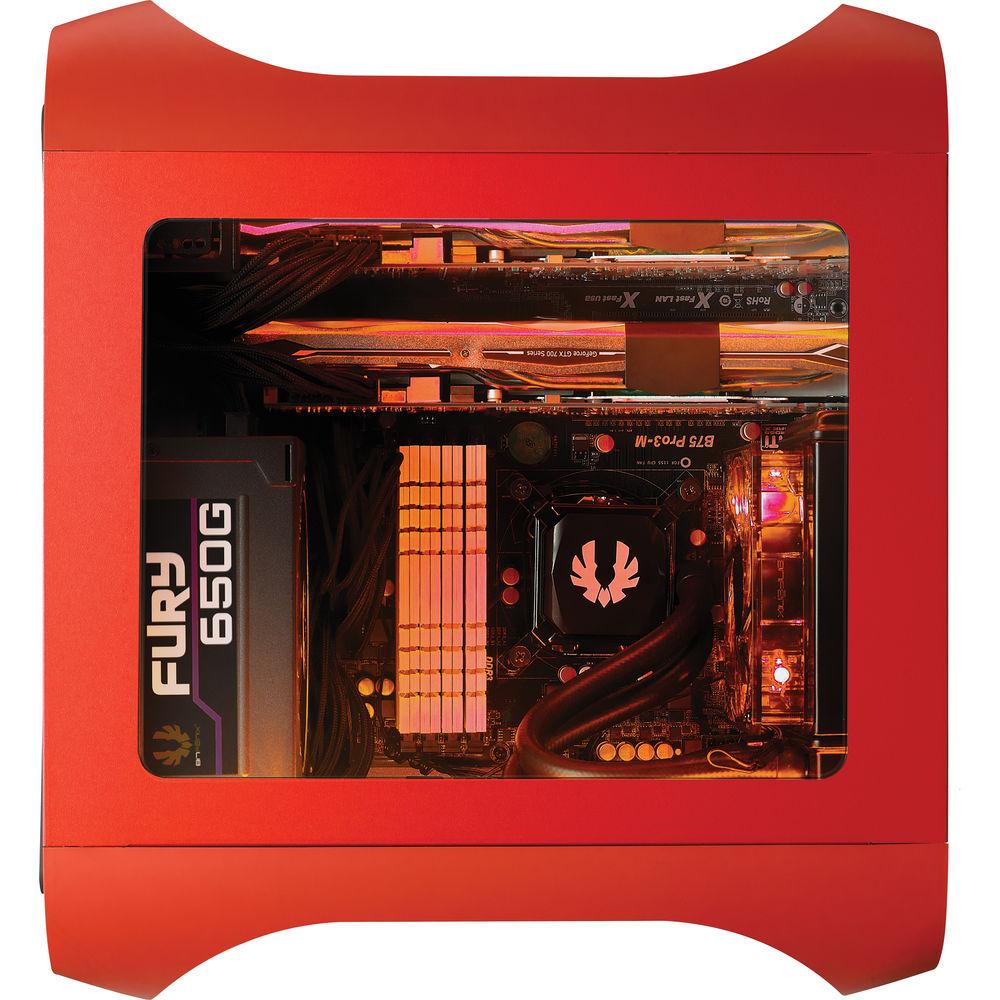

Product description The fire red Prodigy M Color Chassis with Window from BitFenix enables you to install multiple expansion cards. Prodigy M has a sleek and a compact design and comes with two crafted handles that suspend the chassis body. Suspended with these two FyberFlex Composite handles for shock absorption, the chassis can be easily shifted. The inside offers space for SLI or Crossfire dual graphics technology, and fits up to four 3.5" hard drives or five 2.5" SSDs, and also provides space for slim 9.4" radiators. A magnetic heat shield is also included,if you decide to add hard drives rather than fans. The chassis features BitFenix SofTouch Surface Treatment, a massive CPU cooler cutout, and rolled-edge cable pass-throughs. - Full MATX Compatibility
- The chassis features full compatibility with micro-ATX motherboards.
- Optimal Flexibility
- It can be configured with up to four 3.5" HDDs or five 2.5" SSDs for an optimal storage potential. Adding in a micro ATX motherboard gives you up to four expansion slots, suitable for additional expansion cards, or even SLI and Crossfire dual graphics capability.
- Multiple Cooling Options
- Prodigy M can be outfitted with up to five fans for maximum cooling. Bolt a thin 9.4" radiator on top, or perhaps a 4.7" radiator on the rear. With the roomy interior of the chassis, you can easily fit in tower CPU coolers of up to 6.3".
- FyberFlex Composite Technology
- The chassis is made of BitFenix FyberFlex Composite material that is flexible and strong. Fastened on both the top and bottom of the chassis, these handles are a convenient way to carry Prodigy M, while providing added shock absorption during transport.
- Easy to Build-In
- Prodigy M comes with user-friendly installation features such as a CPU cooler cutout to make swapping coolers quick. You can use the included magnetic heat shield to prevent warm air from re-entering the case. Anti-vibration pads help further reduce errant noise from working hard drives.
- Other Features
- Coated with SofTouch Surface Treatment, Prodigy M's FyberFlex handles are soft and smooth to the touch. The chassis has a coated interior, a brushed aluminum BitFenix logo, and rolled-edge cable pass-throughs.
UPC: 886027005798 In the Box BitFenix Prodigy M Color Chassis with Window (Fire Red) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BitFenix Prodigy M Color Chassis with Window in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBitFenix BFC-PRM-300-RRWKK-RP Specs | | | Motherboard Support | Micro-ATX, Mini-ITX | | External Drive Bays | 1 x 5.25" | | Internal Drive Bays | 3 x 3.5"
5 x 2.5" | | Expansion Slots | 5 x Full Height | | Supported PSU Size | ATX | | | | Fan Mounting (Top) | 2 x 120 mm
| | Fan Mounting (Bottom) | 1 x 120 mm
| | Fans Included (Rear) | 1 x 120 mm | | Fans Included (Bottom) | 1 x 120 mm | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Steel, Plastic | | Cable Management Space | None | | Dimensions (W x H x D) | 9.8 x 15.9 x 14.1" / 250.0 x 404.0 x 359.0 mm | | | | Package Weight | 16.2 lb | | Box Dimensions (LxWxH) | 18.1 x 16.5 x 12.3" |
Rating92% users recommend this product to others. And what about you?
This product has already been rated by 45 owners. Add your rating and experience with the product.
