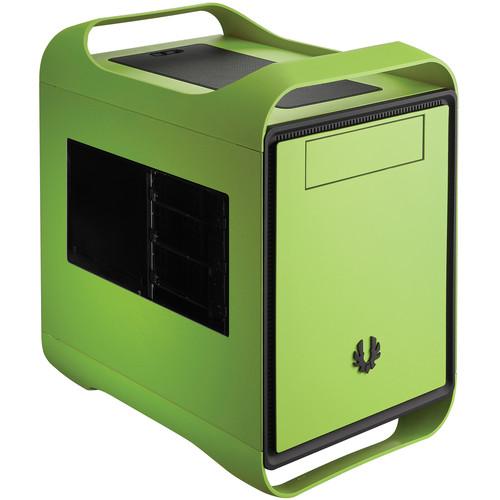

User Manual for BitFenix Prodigy mini-ITX Chassis with Window Click to enlarge the picture
Contents of the user manual for the BitFenix Prodigy mini-ITX Chassis with Window
- Product category: Desktop Computer Cases BitFenix
- Brand: BitFenix
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for BitFenix Desktop Computer Cases
 |
User manual for the BitFenix Prodigy mini-ITX Chassis with Window contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any BitFenix product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official BitFenix user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a BitFenix product will considerably shorten its lifespan!
|
Product description The vivid green Prodigy mini-ITX Chassis with Window from BitFenix is designed for mini-ITX motherboards. The compact-housing chassis is suspended by handles made with BitFenix FyberFlex Composite for easy portability and maximum shock absorption. On the inside, the modular FlexCage gives you the flexibility to install up to five 3.5" hard disks or nine 2.5" SSDs, or remove it entirely to fit up to 9.4"water-cooling radiators and long graphics cards. For added flexibility, additional SSD locations are also included. With tool-free convenience, two USB 3.0 ports, filtered intakes, and proprietary BitFenix SofTouch Surface Treatment, this makes the Prodigy a compact case. - Compact Design
- The compact mini-ITX body is suspended by two crafted handles, making it a suitable addition to any environment.
- Unmatched Flexibility
- You can remove the top HDD cage to fit long graphics cards of up to 12.5" length. Bolt a 9.4" water-cooling radiator in the top, or if the build demands it, remove the entire HDD cage and put the 9.4" radiator in the front, while still being able to install up to five 2.5" drives. The case has multiple installation options and is engineered for maximum flexibility.
- FyberFlex Composite Technology
- Both the top and bottom handles of the chassis are made from BitFenix FyberFlex Composite material. Fastened on both the top and bottom of the chassis, these handles are a convenient way to carry the chassis, while providing added shock absorption during transport.
- Storage Potential
- With the ability to install up to five 3.5" HDDs or nine 2.5" SSDs, the chassis provides maximum storage options.
- Ready for DIY
- The motherboard tray makes it easy to fit tall CPU coolers, and filtered fan intakes. The Prodigy's tool-free drive locking mechanism allows you to install HDDs easily, and cable management features keeps internals neat and tidy.
- High-Speed USB 3.0 Connectivity
- Equipped with two SuperSpeed USB 3.0 ports, the chassis allows you to transfer files ten times faster than with USB 2.0.
- Other Features
- FyberFlex handles are coated with BitFenix SofTouch Surface treatment. The Prodigy also has a powder coated interior and rolled-edge cable pass-throughs.
UPC: 886027003022 In the Box BitFenix Prodigy mini-ITX Chassis with Window (Vivid Green) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the BitFenix Prodigy mini-ITX Chassis with Window in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBitFenix BFC-PRO-300-GGWKG-RP Specs | | | Motherboard Support | Mini-ITX | | External Drive Bays | 1 x 5.25" | | Internal Drive Bays | 5 x 3.5"
9 x 2.5" | | Expansion Slots | 2 x Full Height | | Maximum GPU Length | 12.60" / 32 cm | | Supported PSU Size | ATX | | Maximum PSU Length | 7.1" / 18 cm | | | | Fan Mounting (Front) | 1 x 120 mm
Or
1 x 140 mm
Or
1 x 180 mm
Or
1 x 200 mm
| | Fan Mounting (Rear) | 1 x 120 mm
Or
1 x 140 mm
| | Fan Mounting (Top) | 2 x 120 mm
| | Fans Included (Front) | 1 x 120 mm | | Fans Included (Rear) | 1 x 120 mm | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | Yes | | Material | Steel, Plastic | | Cable Management Space | None | | Dimensions (W x H x D) | 9.8 x 15.9 x 14.1" / 250.0 x 404.0 x 359.0 mm | | | | Package Weight | 16.6 lb | | Box Dimensions (LxWxH) | 18.0 x 16.0 x 12.0" |
