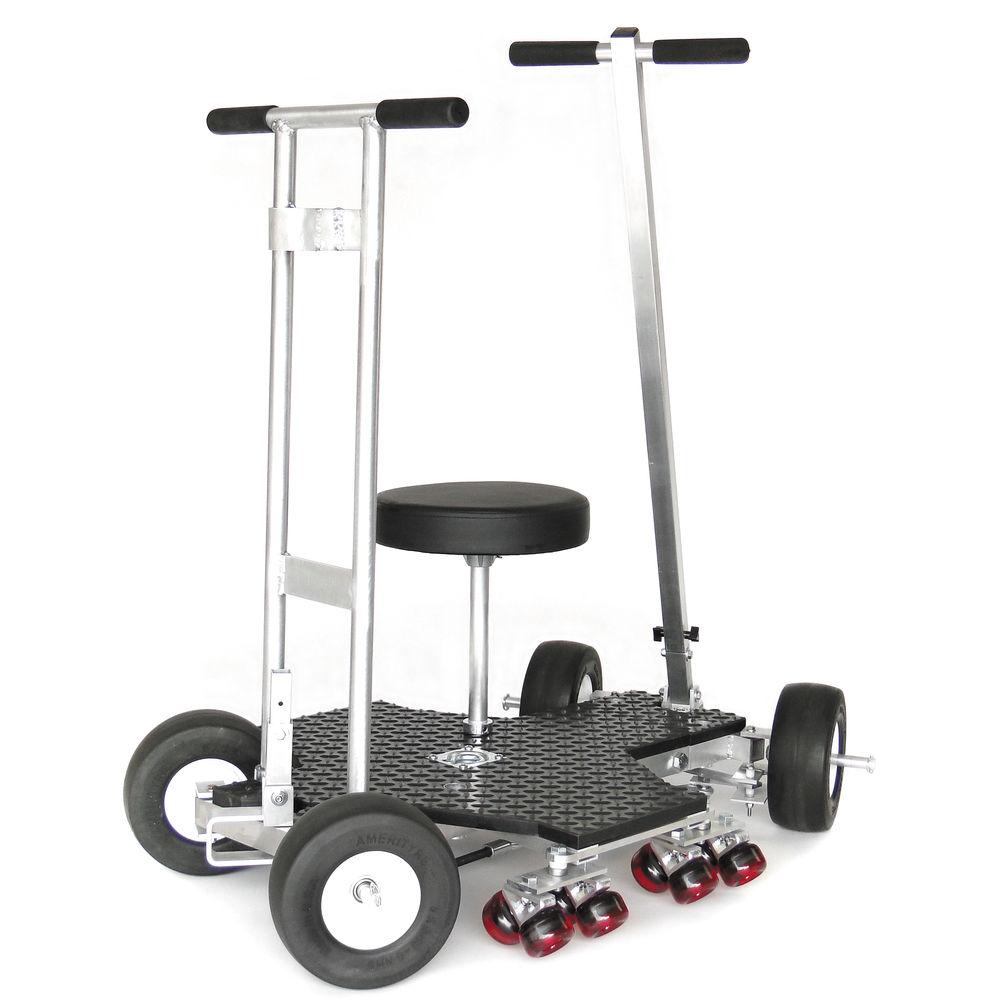

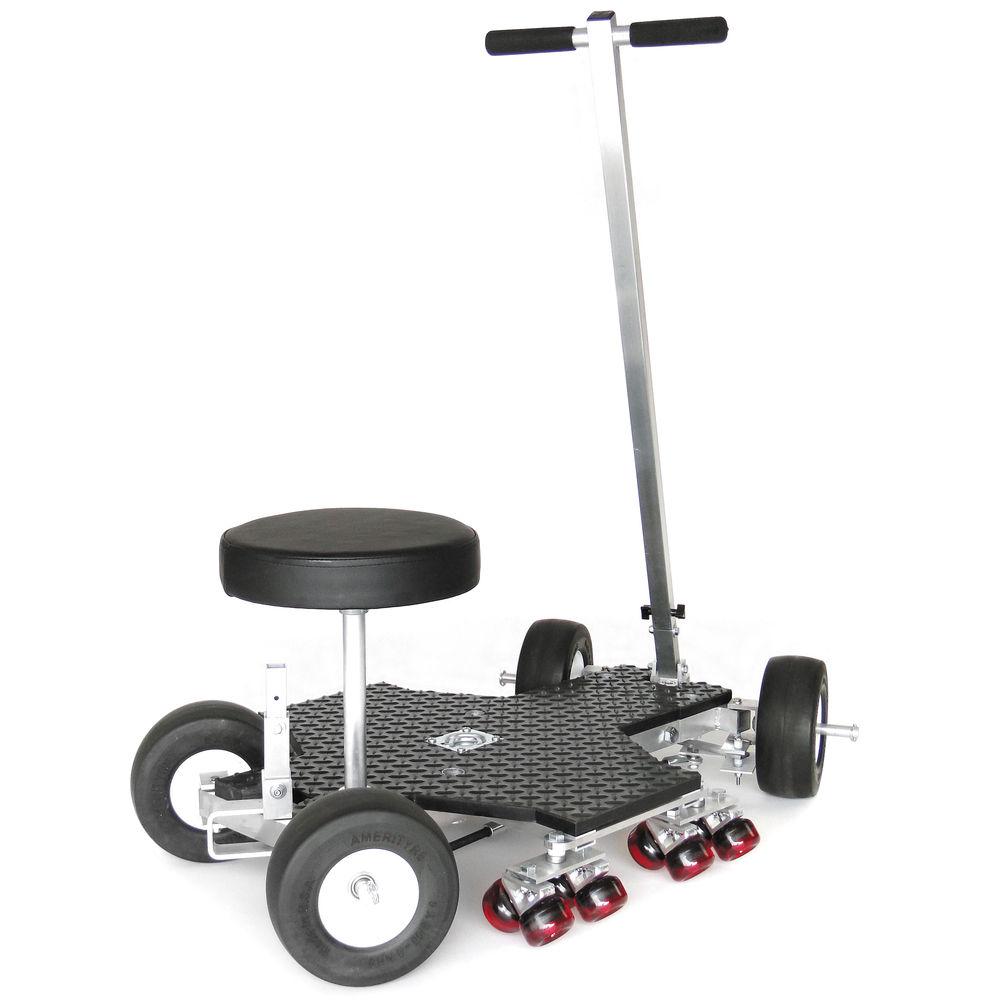

Product description The Koala K200 Dolly System from Black Bear Studio Systems is an all-in-one complete dolly system that combines all of the features of full-sized doorway dollies and track dollies in a single, portable system. It supports loads up to 550 pounds and consists of the Koala dolly base, operator seat, steering T-bar, four ground wheels, track wheels, 4-Wheel Steer Module, pushbar, Elemac Adapter Bracket, and Low Slung Bracket.

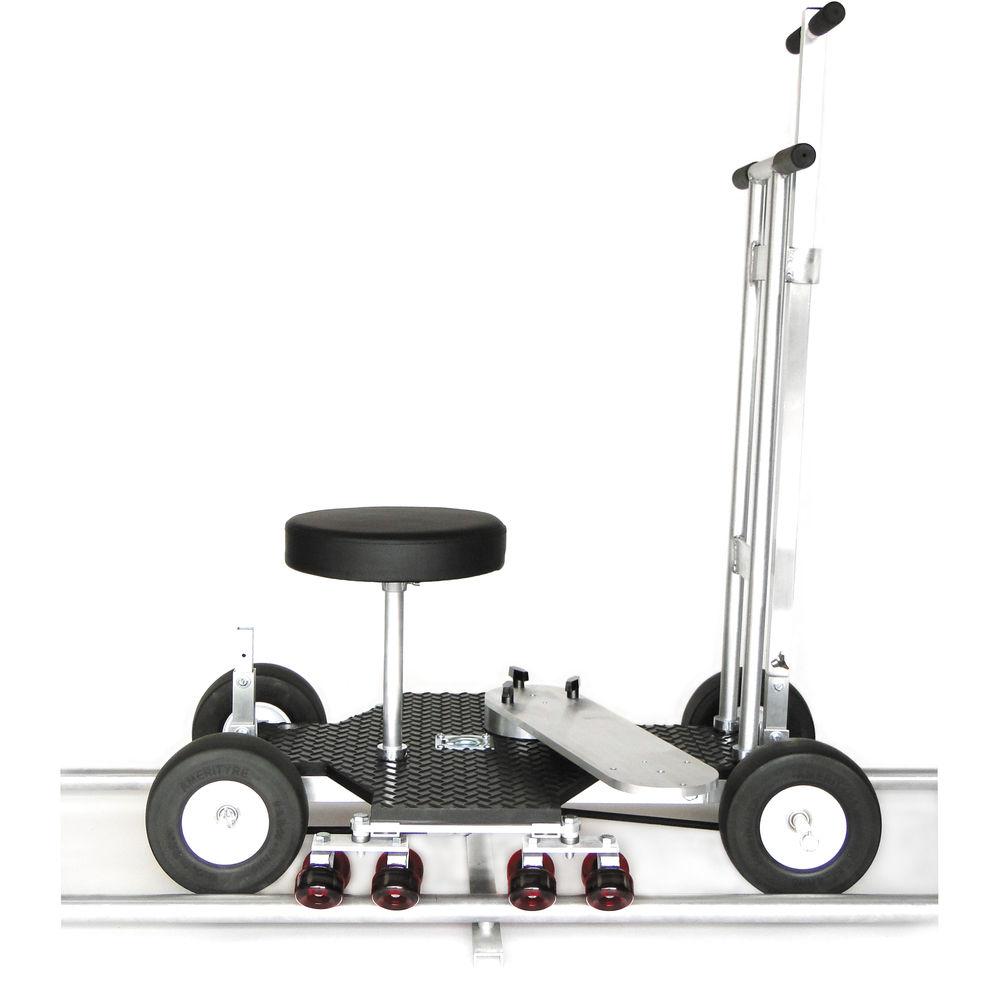

Featuring four ground wheels as well as integrated track wheels, the Koala K200 can move seamlessly between ground and track shots. It can steer in both two-wheel or four-wheel steering, using the 4-Wheel Steer Rear Converter Module. The track wheels do not need to be removed in order function on the ground. The steering T-bar allows you to maneuver around tight turns and, when combined with the Pushbar, enables precise and repeatable moves. For increased setup flexibility, the operator seat can be mounted on to the platform in six different positions.

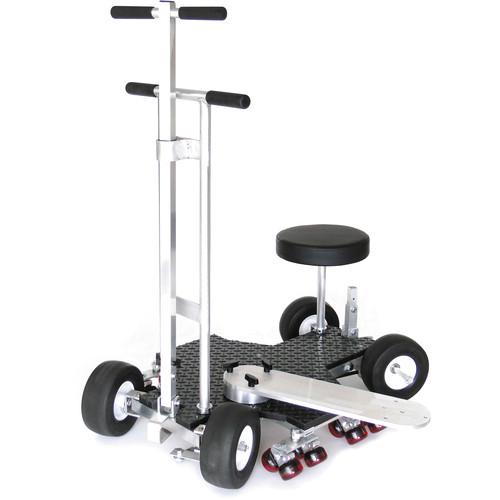

The Elemac Adapter Bracket allows you to attach a variety of accessories, including bazookas, Elemac mounts, and the included Low Slung Bracket. The bracket slots into one of the seat post holes and secures from the bottom. For getting low-angle shots, attach the Low Slung Bracket, which provides 1/4"-20 and 3/8"-16 threaded mounting holes for mounting cameras and fluid heads. -
- Hybrid doorway and track dolly
- Supports up to 550 lb
- Includes Koala dolly platform, four ground wheels, track wheels, operator seat, and steering T-bar, 4-Wheel Steer Module, pushbar, Black Bear Mount, and Low Slung Mount
- Vibration dampening rubber composite covering absorbs shock
- Operator seat can be mounted in a variety of seat post holes
- Two-wheel and four-wheel steering modes
- 27" turn radius in four-wheel steering mode
- Pushbar and T-bar interface allows you to set your turn radius for repeatable moves
- Elemac Adapter Bracket for attaching accessories such as bazookas, low slung brackets, and Elemac mounts
- Low Slung Mount lets you shoot from low angles and provides 1/4"-20 and 3/8"-16, threaded mounting holes
UPC: 748252088734 In the Box Black Bear Studio Systems Koala K200 Dolly System Koala Dolly Base 2 x Ground Wheels (Set of 2) Track Wheels for Black Bear Dolly System (Set of 4) Operator Seat 4-Wheel Steer Rear Converter Module (Roundy Round Converter) Pushbar & Steering Interface Universal Elemac Adapter Bracket Low Slung Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Bear Studio Systems Koala K200 Dolly System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Bear Studio Systems K200 Specs | Load Capacity | 550 lb (249.5 kg) | | Dimensions | Platform (without 4-Wheel Steering Module): 26.0 x 28.0" (66.0 x 71.1 cm)
Platform (with 4-Wheel Steering Module): 26.0 x 33.4" (66.0 x 84.8 cm) | | Total Weight | 75 lb (34 kg) | | | | Package Weight | 125.8 lb | | Box Dimensions (LxWxH) | 48.0 x 30.0 x 14.0" |
