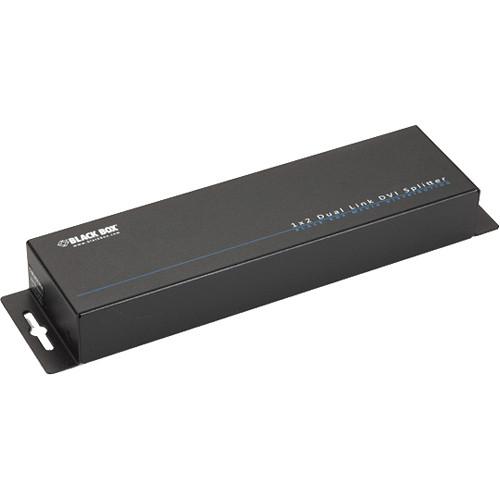

Product description The Black Box 1 x 2 Dual-Link DVI-D Splitter distributes a Dual-Link DVI-D signal simultaneously to two DVI displays, in resolutions up to 2560 x 1600. It supports EDID learning, selectable by a DIP switch, and features RS-232 control and ESD protection. The housing is metal and features flange-style wall mounting tabs on the sides. - Features
-
- Distributes a Dual-Link DVI-D signal to up to two DVI displays
- Supports resolutions up to 2560 x 1600
- Video bandwidth up to 300 MHz
- DIP switch selectable EDID learning of screen info
- Electrostatic discharge (ESD) protection
- RS-232 serial control port
- Metal housing with wall mounting tabs on the sides
In the Box Black Box 1 x 2 Dual-Link DVI-D Splitter Power Supply Mounting Screws User Manual 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box 1 x 2 Dual-Link DVI-D Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box VSP-DLDVI1X2 Specs | DVI Compliance | Dual-Link DVI-D 1.1 | | Resolutions Supported | Up to 2560 x 1600 | | Input DDC Signal | 5 V (peak-to-peak, TTL) | | Input TMDS Signal | 1.2 V (peak-to-peak) | | Video Bandwidth | 300 MHz | | Input | 1x DVI-I, female | | Output | 2x DVI-I, female | | RS-232 Interface | 1x DB-9, female (for firmware updates) | | Power | AC input: 100-240 VAC, 50-60 Hz, 0.6 A
Output: 5 VDC, 4 A
Consumption (max): 20 W | | Enclosure | Metal | | Approvals | CE, RoHS | | Dimensions | 1 x 8.2 x 2.2" (2.5 x 20.8 x 5.6 cm) | | Weight | 0.9 lb (0.4 kg) | | | | Package Weight | 2.3 lb | | Box Dimensions (LxWxH) | 10.6 x 7.0 x 3.1" |
