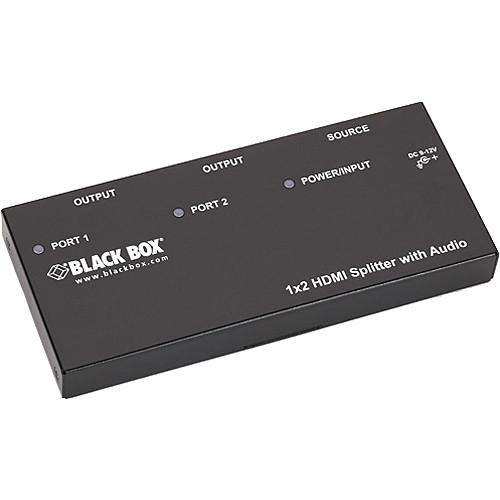

User Manual for Black Box 1 x 2 HDMI Splitter with Audio Click to enlarge the picture
Contents of the user manual for the Black Box 1 x 2 HDMI
- Product category: Distribution Amplifiers (DA's) Black Box
- Brand: Black Box
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Box Distribution Amplifiers (DA's)
|
User manual for the Black Box 1 x 2 HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Box product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!
|
Product description The Black Box 1 x 2 HDMI Splitter with Audio distributes an HDMI signal simultaneously to up to two HDMI displays, in resolutions up to 1080p and 1920 x 1200. Beside each HDMI port is a 3.5mm stereo audio jack for passing independent audio, useful for digital signage applications where you may benefit from separate speakers. HDMI embedded audio isn't disabled when separate audio is detected, so you can output both the HDMI and 3.5mm audio signals at the same time.
Each output can be cascaded four layers deep to optional Black Box HDMI splitters (1 x 2, 1 x 4, and 1 x 8), allowing you to output to numerous HDMI displays. The first unit serves as the first layer. The HDMI ports support DVI adapters so you can connect DVI sources, but to avoid signal degradation all outputs should either be HDMI or DVI.. - Features
-
- Distributes an HDMI signal simultaneously to up to two HDMI displays
- Supports resolutions up to 1080p and 1920 x 1200 WUXGA
- 3.5mm stereo audio jacks for separate audio
- Supports HDMI cable lengths up to 16.4 ft
- Can be cascaded out four layers deep
- Supports DVI adapters
- HDCP compliant
- Supports EDID display information
- Automatically switches to power-save mode if the input signal is lost
- LED activity indicators for each port
- No software or interface cards required
- Ideal for use with set-top boxes, satellites, PCs, and Blu-ray players
UPC: 822088056065 In the Box Black Box 1 x 2 HDMI Splitter with Audio AC Power Adapter with Cord Set of Foot Pads User Manual 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box 1 x 2 HDMI Splitter with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box AVSP-HDMI1X2 Specs | Input | 1x HDMI, female
1x 3.5 mm stereo audio jack | | Output | 2x HDMI, female
2x 3.5 mm stereo audio jacks | | Resolutions Supported | 1920 x 1080 (Full HD 1080p), 640 x 480 (VGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA) | | Distance Supported | HDMI cable lengths: 16.4 ft (5 m) | | Power | Input: 100-240 VAC, 50-60 Hz, auto-sensing
Output: 9-12 VDC
Consumption: 2.8 W | | Approvals | CE, RoHS | | Dimensions | 0.8 x 7.1 x 3.4" (2 x 18 x 8.6 cm) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 8.7 x 4.1 x 3.9" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 27 owners. Add your rating and experience with the product.
