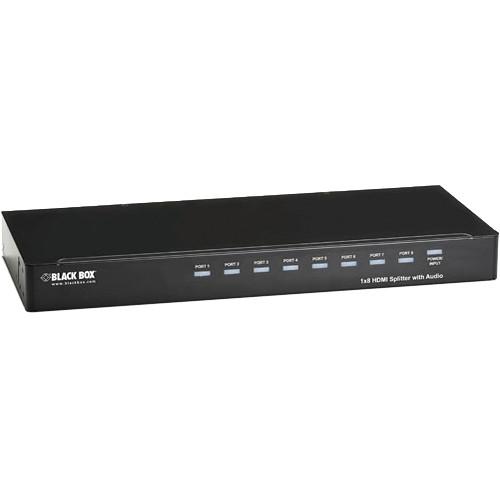

Product description The Black Box 1 x 8 HDMI Splitter with Audio distributes an HDMI signal simultaneously to up to eight HDMI displays, in resolutions up to 1080p and 1920 x 1200. Beside each HDMI port is a 3.5mm stereo audio jack for passing independent audio, useful for digital signage applications where you may benefit from separate speakers. HDMI embedded audio isn't disabled when separate audio is detected, so you can output both the HDMI and 3.5mm audio signals at the same time.
Each output can be cascaded four layers deep to optional Black Box HDMI splitters (1 x 2, 1 x 4, and 1 x 8), allowing you to output to numerous HDMI displays. The first unit serves as the first layer. The HDMI ports support DVI adapters so you can connect DVI sources, but to avoid signal degradation all outputs should either be HDMI or DVI. This 1 x 8 can be used on a desktop or 19" rack mounted using included mounting brackets. - Features
-
- Distributes an HDMI signal simultaneously to up to eight HDMI displays
- Supports resolutions up to 1080p and 1920 x 1200 WUXGA
- 3.5mm stereo audio jacks for separate audio
- Supports HDMI cable lengths up to 16.4 ft
- Can be cascaded out four layers deep
- Supports DVI adapters
- HDCP compliant
- Supports EDID display information
- Automatically switches to power-save mode if the input signal is lost
- LED activity indicators for each port
- No software or interface cards required
- Ideal for use with set-top boxes, satellites, PCs, and Blu-ray players
In the Box Black Box 1 x 8 HDMI Splitter with Audio AC Power Adapter with Cord Set of Foot Pads User Manual 19" Rack Mount Bracket 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box 1 x 8 HDMI Splitter with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box AVSP-HDMI1X8 Specs | Input | 1x HDMI, female
1x 3.5 mm stereo audio jack | | Output | 8x HDMI, female
8x 3.5 mm stereo audio jacks | | Resolutions Supported | 1920 x 1080 (Full HD 1080p), 640 x 480 (VGA), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA) | | Distance Supported | HDMI cable lengths: 16.4 ft (5 m) | | Power | Input: 100-240 VAC, 50-60 Hz, auto-sensing
Output: 9-12 VDC
Consumption: 10.2 W | | Approvals | CE, RoHS | | Dimensions | 1.75 x 17.3 x 7.1" (4.4 x 44 x 18 cm) | | | | Package Weight | 7.5 lb | | Box Dimensions (LxWxH) | 23.307 x 10.551 x 3.701" |
