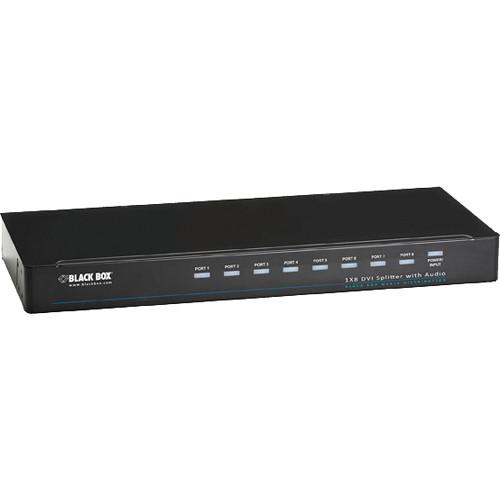

User Manual for Black Box 1x8 DVI-D Splitter with Audio & HDCP Click to enlarge the picture
Contents of the user manual for the Black Box 1x8 DVI-D Splitter with
- Product category: Distribution Amplifiers (DA's) Black Box
- Brand: Black Box
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Box Distribution Amplifiers (DA's)
|
User manual for the Black Box 1x8 DVI-D Splitter with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Box product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!
|
Product description The Black Box 1x8 DVI-D Splitter with Audio & HDCP distributes a DVI signal simultaneously to up to eight DVI displays, in resolutions up to 1920 x 1200 and 1080p HDTV. It supports input/output cable lengths up to 16.4 ft, and can be cascaded two levels deep with additional Black Box DVI splitters with audio and HDCP (1x2, 1x4, 1x8).
Beside each DVI port is a 3.5mm stereo audio jack for passing independent audio, useful for digital signage applications where you may benefit from audio communication. The splitter is fully HDCP compliant for compatibility with all Blu-ray players, cable boxes, and other devices. Rack ears and mounting screws are included for 1 RU rackmount installation. - Features
-
- Distributes a DVI signal to up to eight DVI displays
- Supports resolutions up to 1920 x 1200 and 1080p HDTV
- Supports input/output cable lengths up to 16.4 ft
- 3.5mm stereo audio jacks for separate audio
- HDCP compliant
- Can be cascaded two levels deep with additional DVI splitters with audio and HDCP
- Compatible with EDID-capable screens
- Power/Status dual-color LED indicator; output LED indicators
- Automatically switches to power-save mode if the input signal is lost
- No software required; plug-and-play installation
In the Box Black Box 1x8 DVI-D Splitter with Audio & HDCP Power Supply Rack Ears & Screws Rubber Feet for Desktop Mounting Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box 1x8 DVI-D Splitter with Audio & HDCP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box AVSP-DVI1X8 Specs | Distance Supported | Input/Output: 16.4 ft (5 m) | | Resolutions Supported | Up to 1920 x 1200 (WUXGA) and 1080p | | Standards | DVI-D, single-link | | HDCP | Yes | | Approvals | CE, RoHS | | Input | 1 x DVI-D
1 x 3.5 mm stereo audio | | Output | 8 x DVI-D
8 x 3.5 mm stereo audio | | Power | Input: 100-240 VAC, 50-60 Hz
Output: 9 VDC, 0.6 A
Consumption (max): 10.2 W | | Dimensions | 1.7 x 17.2 x 7.1" (4.3 x 43.7 x 18 cm) | | | | Package Weight | 7.6 lb | | Box Dimensions (LxWxH) | 23.4 x 10.6 x 3.6" |
