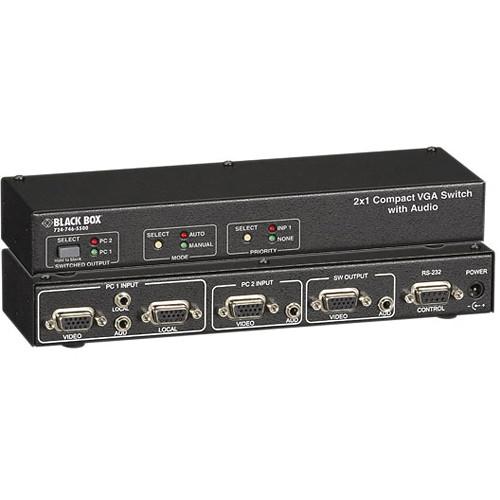

Product description Multi-Monitors: Maximizing Multitasking Read More The 2-Input 1-Output Compact VGA Switch with Audio from Black Box enables a single monitor with audio to be switched between two video/audio sources. It supports video cable distances up to 150', 1600 x 1200 resolution, and audio. You can control this device manually by pushing a button, via an RS-232 control device (serial cable is included), set it up to scan between VGA inputs at certain time intervals, or display VGA inputs based on their priority. The switch enables you to set priority on either input when both inputs are active when it is set up to scan ports in Auto mode. If you set priority on the second input, for instance, and someone plugs a device into that port, it will switch automatically to that port.You can use the switch in a conference room where two laptop users can take turns projecting their screen images onto a single big-screen VGA monitor viewed by all. It is also useful anywhere you need to use fewer monitors for displaying video sources. - Buffered video output protects the signal integrity
- Front-panel lockout prevents accidental or intentional setting changes
- You can blank and unblank an output via a serial port command. You can also blank output from one source or switch manually
- LED indicates the selected input source
- Fits into compact spaces and withstands heavy use
- Features an RFI-shielded steel enclosure
In the Box Black Box 2-Input 1-Output Compact VGA Switch with Audio Serial Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box 2-Input 1-Output Compact VGA Switch with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box AC505A-2A-R2 Specs | Maximum Distance | 150.0' (45.7 m) @ XGA | | Maximum Resolution | 1600 x 1200 | | Video Bandwidth | 200 MHz | | Video Level | 0 to 0.7 V p-p | | Connectors | Video Input: 2 x HD15 female
Video Output: 1 x HD15 female
Serial: 1 x DB9 female (RS-232)
Audio Input: 2 x 3.5 mm mini stereo
Audio Output: 1 x 3.5 mm mini stereo | | Power | Input: 120 VAC, 60 Hz
Output: 12 VDC @ 300 mA center positive | | Approvals | CE | | Compatible Products | Premium VGA video extension cable (EVNPS05) | | Dimensions (W x H x D) | 8.4 x 1.7 x 2.7" (21.3 x 4.3 x 6.9 cm) | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 10.2 x 7.7 x 2.7" |
