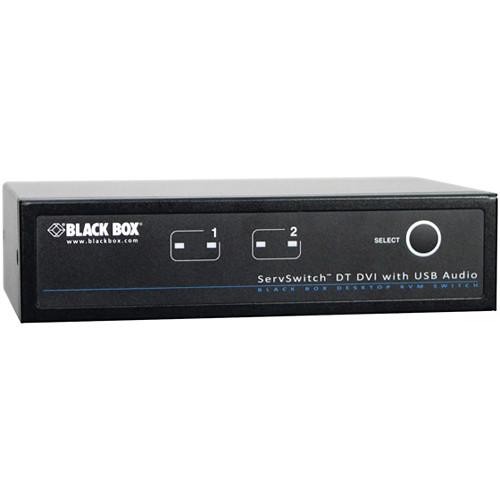

User Manual for Black Box 2-Port ServSwitch DVI-D USB KVM Switch w Bi-Directional USB Audio Click to enlarge the picture
Contents of the user manual for the Black Box 2-Port ServSwitch DVI-D USB
- Product category: KVM Switches Black Box
- Brand: Black Box
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Box KVM Switches
|
User manual for the Black Box 2-Port ServSwitch DVI-D USB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Box product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More zfyydddaryzzzqswaddvbdcrfactcuaedydx The 2-Port ServSwitch DVI-D USB KVM Switch w/ Bi-Directional USB/Audio from Black Box combines USB KVM, keyboard/video/mouse switching, and USB peripheral sharing in one device. You can operate two PCs, G3/G4 Mac, or Mac Pros from a single USB keyboard, USB mouse, and monitor. The KVM switch comes with a peripheral-sharing function that enables you to share more USB peripherals among all computers. It also supports bi-directional audio. Users can switch among up to two KVM sources and control the systems using a USB keyboard and mouse, USB peripherals, and bi-directional audio, and view them with a DVI-D supported monitor. To select a port, just press the front panel button. The built-in USB hub ensures switching from one computer to the other and eliminates cable clutter. - The 2-port unit supports USB keyboards and mice
- It supports DVI-D quality video with resolution up to XGA, SXGA, WSXGA, UXGA (1600 x 1200), Full HD (1920 x 1080), and WUXGA (1920 x 1200)
- A multi-layered switching system enables the USB (or audio) devices to operate independently
- The plug and play KVM switch supports front panel push buttons and hotkeys along with keyboard and mouse
- Buzzer sound confirms computer switching
- Scan time interval is selectable
- The KVM switch supports Windows and Mac host systems
In the Box Black Box 2-Port ServSwitch DVI-D USB KVM Switch w/ Bi-Directional USB/Audio 1 x External Power Supply with Power Cord 1 x Set of Rubber Feet Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box 2-Port ServSwitch DVI-D USB KVM Switch w Bi-Directional USB Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box KV9632A Specs | Cable Length | Maximum for USB: 10' (3 m) | | DDC2B/Hotkeys Support | Yes | | Resolution | Maximum: WUXGA: 1920 x 1200
Full HD: 1920 x 1080p | | User Controls | 1 x Front panel push button | | Connectors | Console Interface:
4 x USB type A female ports (1 x for keyboard, 1 x for mouse and 2 x for peripheral devices)
1 x DVI-D monitor
1 x Set of audio jacks for speaker and microphone
Computer Interface:
2 x USB type B ports
2 x DVI-D for monitors
2 x Set of audio jacks for speaker and microphone | | Automatic Scan Interval | 3, 8, 15, and 30 seconds | | System Requirements | Console Side:
1 x DVI-D monitor
1 x USB keyboard
1 x USB mouse
Computer Side:
1 x USB-enabled computer with DVI-D video support | | Operating Systems | Windows 95/98/Me/XP/NT/2000/7/Vista
Mac host systems | | Indicators | 4 x LEDs:
2 x Computer online
2 x Computer selected | | Power | 9 VDC Can accept between 9-12 VDC | | Compliance | CE | | Dimensions (W x H x D) | 6.29 x 1.75 x 3.93" (15.98 x 4.45 x 9.98 cm) | | Weight | 2.68 lb (1.22 kg) | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 9.5 x 7.3 x 3.7" |
