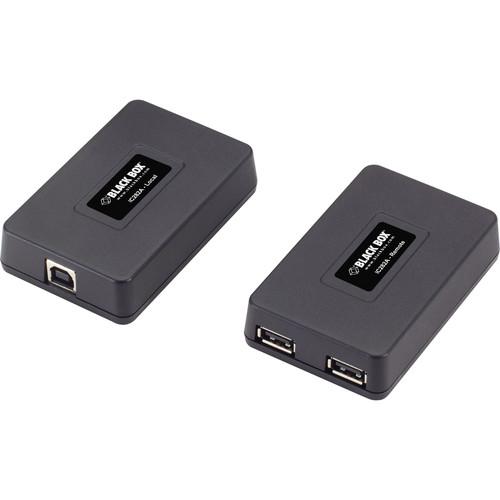

User Manual for Black Box 2-Port USB 1.1 2.0 CAT5 Extender Kit Click to enlarge the picture
Contents of the user manual for the Black Box 2-Port USB 1.1 2.0
- Product category: USB Extenders Black Box
- Brand: Black Box
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Box USB Extenders
|
User manual for the Black Box 2-Port USB 1.1 2.0 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Box product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!
|
Product description The 2-Port USB 1.1/2.0 CAT5 Extender Kit from Black Box includes a transmitter and receiver along with a 6' USB 2.0 cable for transmitter to host computer connection. It extends USB 1.0 or 2.0 signals over a CAT5 cable to remote USB devices. The extender supports both full-speed (12 Mb/s) and low-speed (1.5 Mb/s) throughput. The receiver has two downstream USB type (A) ports for plugging in USB 1.1 or 2.0 devices. This extender supports 130' extensions over non-networked CAT5 cabling and 278' for low-speed Human Interface Devices (HID) such as keyboards and mice. With the CAT5 cable, you can extend connections to USB peripherals such as keyboards, mice, interactive whiteboards, and other devices without the need for external power adapters. The extender's transmitter receives power from the host computer, making it suitable for extensions in industrial control, sensor, or data acquisition applications where you are short on power outlets. The extender supplies up to 400 mA to USB devices and has industrial rated Electrostatic Discharge/Electrically Fast Transient (ESD/EFT) immunity. This device does not require any software to your system or target devices. Simply attach the transmitter to your computer's USB port, plug in the CAT5 cable, attach the remote USB peripheral to the receiver, and start working. It works with Windows, Mac OS X, and Linux operating systems. - Supports both full-speed (12 Mb/s) and low-speed (1.5 Mb/s) throughputs
- Industrial rated ESD/EFT immunity
- The extender supports 130' extensions over non-networked CAT5 cabling and 278' for low-speed Human Interface Devices (HID) such as keyboards and mice
- Bus powered; no external AC adapter needed at either end
UPC: 822088068525 In the Box Black Box 2-Port USB 1.1/2.0 CAT5 Extender Kit Transmitter Receiver 6' USB 2.0 Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box 2-Port USB 1.1 2.0 CAT5 Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box IC282A Specs | Connectors | Transmitter (Local Extender Unit): 1 x USB type (B) female
1 x RJ-45 (CAT5 interconnect)
Receiver (Remote Extender Unit): 1 x RJ-45 (CAT5 interconnect)
2 x USB type (A) female | | USB Device Support | High-speed devices (USB 2.0) at Full-speed (USB 1.1) rates
Full-speed devices (USB 2.0 and USB 1.1)
Low-speed devices (USB 2.0 and USB 1.1) | | USB Host | XHCI (USB 3.0)
EHCI (USB 2.0)
OHCI/UHCI (USB 1.1) | | USB Hub | A single chain can include up to three USB hubs, depending on which USB devices are being extended
Extension distance will be reduced with each hub added to the system | | Distance | Full-Speed and Low-Speed: 131' (40 m)
Low-Speed: Up to 278' (85 m) Device and host dependent. | | OS Compatibility | Windows
Mac OS X
Linux | | Power | Local Extender Unit: From the host device's USB interface
Remote Extender Unit: From the local extender
Available Power: 400 mA shared between USB ports when transmitter is supplied with 800 mA of bus power | | Temperature | Operating: 32 to 122°F (0 to 50°C)
Storage: -4 to +158°F (-20 to +70°C) | | Relative Humidity | Operating: 20 to 80% (non-condensing)
Storage: 10 to 90% (non-condensing) | | Compliance | CE, RoHS | | Dimensions (W x H x D) | 2.2 x 3.3 x 0.9" (5.5 x 8.3 x 2.2 cm) | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 6.221 x 5.197 x 2.441" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 47 owners. Add your rating and experience with the product.
