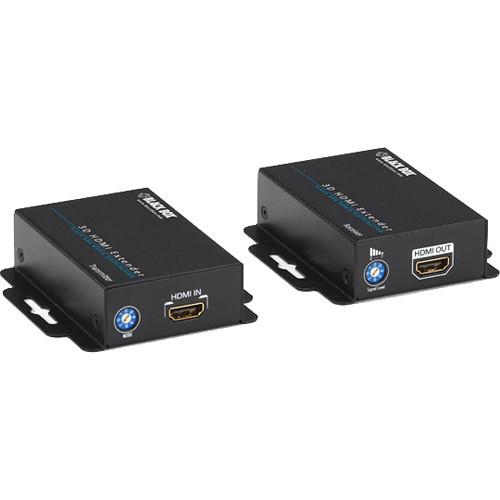

User Manual for Black Box 3D HDMI CATx Extender Click to enlarge the picture
Contents of the user manual for the Black Box 3D HDMI CATx Extender
- Product category: Video Extenders & Repeaters Black Box
- Brand: Black Box
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Box Video Extenders & Repeaters
|
User manual for the Black Box 3D HDMI CATx Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Box product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!
|
Product description The Black Box 3D HDMI CATx Extender is a transmitter and receiver set supporting CAT6 extensions up to 65 ft at 1080p/36-bit, 130 ft at 1080p/24-bit, and 200 ft at 1080i or 720p/24-bit. CAT5e cables can also be used but at shorter distances. Audio is supported at up to 7.1 channel surround sound with zero compression.
An 8-position cable equalization DIP switch allows you to optimize your video signal based on cable length. An 8-position rotary switch processes EDID screen info learning for optimal use of your display. The extender is HDMI 1.3a compliant and 3DTV compatible, and HDCP 1.1 compliant for compatibility with HDCP content protected devices, like Blu-ray players. - Key Features
-
- HDMI / CAT6/5e transmitter and receiver set
- HDMI 1.3 compliant and 3DTV compatible
- Extends 1080p/36-bit 65 ft over CAT6
- Extends 1080p/24-bit up to 200 ft over a single CAT6 cable
- Extends 1080i or 720p/24-bit 130 ft over CAT6
- Supports CAT5e cables at shorter distances
- Supports DTS-HD, Dolby TrueHD, and 7.1 channel audio
- 8-position cable EQ DIP switch
- 8-position EDID learning switch
- HDCP 1.1 compliant
- Additional Features
-
- Electrostatic-discharge (ESD) protection
- Integrated wall mounting tabs
- Supports daisy chaining up to 10 receivers
UPC: 822088062967 In the Box Black Box 3D HDMI CATx Extender Transmitter Receiver 2 x Power Supplies with Power Cords Wall Mounting Screws User Manual 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box 3D HDMI CATx Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box VX-HDMI-TP-3D40M Specs | Resolutions Supported | 480i/480p, 720p, 1080i/1080p at 60 Hz with up to 36-bit color depth | | Audio Supported | Up to 7.1 channel surround sound or stereo digital audio | | Distance Supported | 65 ft (20 m) at 1080p with 36-bit color depth over CAT6
130 ft (40 m) at 1080p with 24-bit color depth over CAT6
200 ft (61 m) at 1080i or 720p with 24-bit color depth over CAT6
(CAT5e cables supported at shorter distances) | | Video Bandwidth | Single-link 225 MHz (6.75 Gbps) | | Input DDC Signal | 5 V (p-p, TTL) | | Input TMDS Signal | 1.2 V (p-p) | | Approvals | RoHS | | Connections | Transmitter: 1x HDMI input, 1x RJ-45 output
Receiver: 1x HDMI output, 1x RJ-45 input | | Power | AC input: 100-240 VAC, 50-60 Hz
DC output: 5 VDC, 2 A
Transmitter Consumption: 4 W (max)
Receiver Consumption: 1.5 W (max) | | Dimensions | Each unit: 1 x 2.4 x 3.6" (2.5 x 6.1 x 9.1 cm) | | Weight | Transmitter: 0.5 lb (227 g)
Receiver: 0.4 lb (181 g) | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 10.6 x 7.0 x 3.0" |
