User Manual for Black Box 3D HDMI Fiber Extender Click to enlarge the picture
Contents of the user manual for the Black Box 3D HDMI Fiber Extender
- Product category: Video Extenders & Repeaters Black Box
- Brand: Black Box
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Box Video Extenders & Repeaters
 |
User manual for the Black Box 3D HDMI Fiber Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Box product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!
|

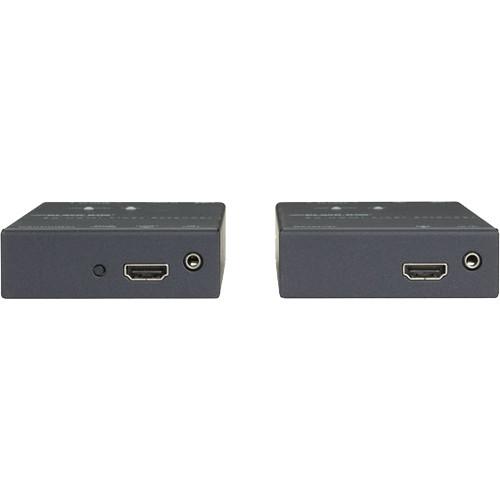

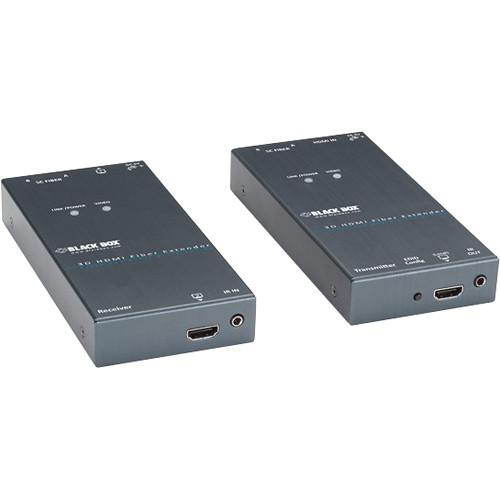

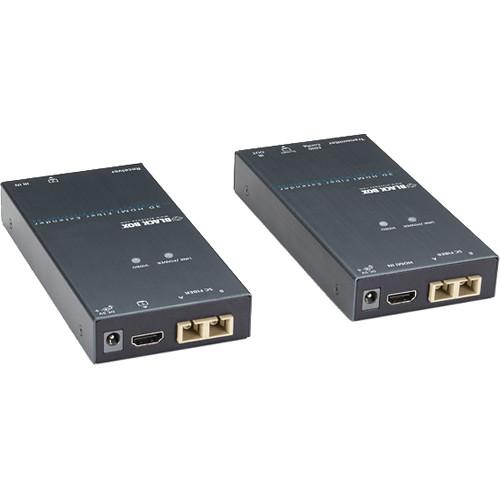

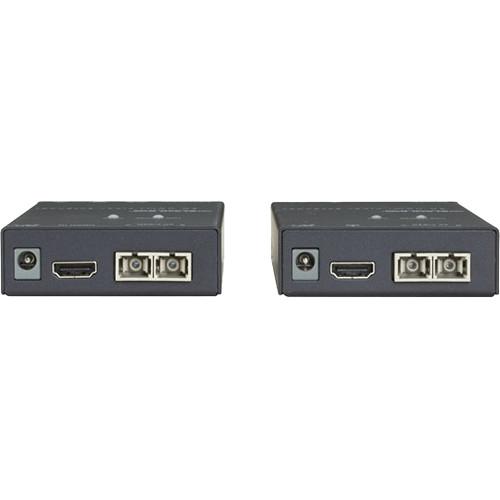

Product description The Black Box 3D HDMI Fiber Extender is a transmitter/receiver set supporting multimode duplex SC fiber extensions up to a half mile at 1080p, and 1 mile at 1080i, with zero compression to two HDMI displays. It's HDMI 1.3b compliant and 3DTV compatible, and HDCP compliant for compatibility with HDCP content protected devices, like Blu-ray players. - Additional Features
-
- HDMI local output on transmitter
- Dual HDMI outputs on receiver
- 3.5 mm IR connections for optional IR control
- Footpads and mounting magnets included
In the Box Black Box 3D HDMI Fiber Extender Transmitter Receiver 2 x Power Supplies with Snap-On Power Plugs SC/SC Duplex 50-/125-Micron Patch Cord (6.5 ft / 2 m) 4 x Footpads 8 x Small Magnets for Mounting 10 x Small Screws for Magnets 1-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box 3D HDMI Fiber Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box VX-HDMI-FO Specs | Distance Supported | 1/2 mile (0.8 km) at 1080p over multimode duplex fiber
1 mile (1.6 km) at 1080i over multimode duplex fiber | | Approvals | CE, RoHS | | HDMI Compliance | HDMI 1.3b | | Connections | Transmitter:
1x HDMI input
1x HDMI local output
1x SC fiber output
1x 3.5 mm IR
Receiver:
1x SC fiber input
2x HDMI outputs
1x 3.5 mm IR | | Power | 100-240 VAC, 50-60 Hz | | Dimensions | Each unit: 1 x 6.1 x 3" (2.5 x 15.5 x 7.6 cm) | | Weight | 0.7 lb (0.3 kg) | | | | Package Weight | 4.65 lb | | Box Dimensions (LxWxH) | 11.7 x 9.6 x 3.4" |
