User Manual for Black Box 3G-SDI HD-SDI to HDMI Converter Click to enlarge the picture
Contents of the user manual for the Black Box 3G-SDI HD-SDI to HDMI
- Product category: Signal Converters Black Box
- Brand: Black Box
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Box Signal Converters
 |
User manual for the Black Box 3G-SDI HD-SDI to HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Box product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!
|

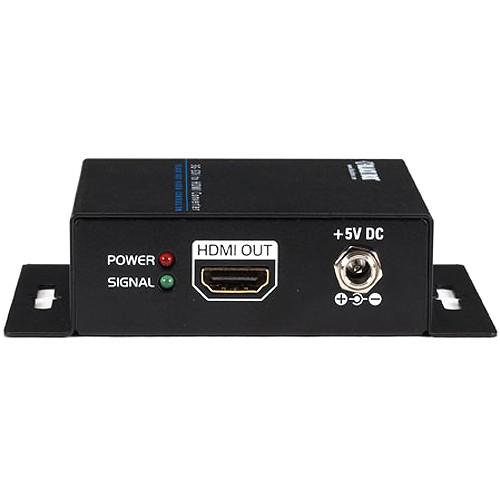

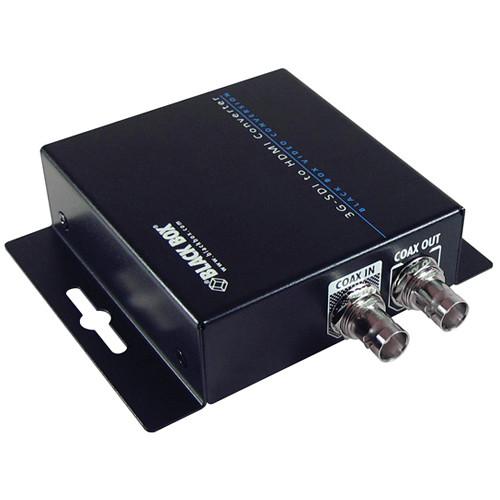

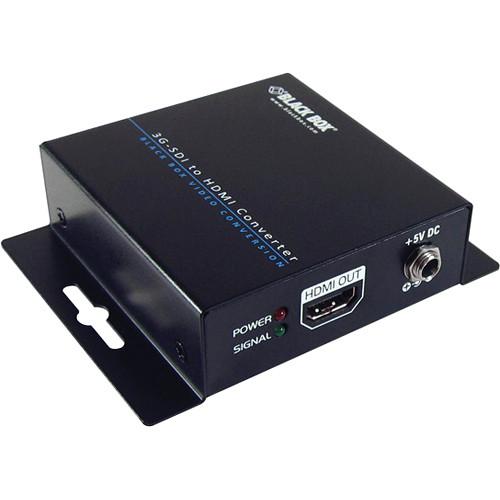

Product description With the 3G-SDI/HD-SDI to HDMI Converter from Black Box it is possible to use a consumer grade HDMI display to view video from and SD-, HD-, or 3G-SDI source. The converter supports most SDI formats up to 1080p, and will output an HDMI signal in a format that corresponds to the input resolution and frame rate. Among countless possible uses, it can be used as away to inexpensive monitor SDI video in a broadcast environment, to connect AV displays such as projectors and video walls to a live switcher, or combine it with an HDMI to SDI converter (such as VSC-HDMI-SDI) in order to overcome the normal distance limitation of standard HDMI cable.
The converter passes up to eight-channels of SDI-embedded audio, including 7.1-channel and 5.1-channel formats and Dolby TrueHD audio. It features a loop-through output for SDI so that you can also send a signal to a downstream device, such as a local monitor, without requiring a separate distribution amplifier. - Cable equalization and reclocking enables cables runs of up to 300' for 3G-SDI, 500 for HD-SDI, and 1000' for SD-SDI (depending on cable quality and the presence of sources of RF interference)
- Provides digitally-only SDI-to-HDMI conversion, designed to ensure no loss in the conversion of either the audio or video signal
- DIP switches audio embedding settings and configuration
- Wallmountable for space-saving installation
In the Box Black Box 3G-SDI/HD-SDI to HDMI Converter Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box 3G-SDI HD-SDI to HDMI Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box VSC-SDI-HDMI Specs | | | Input | 1 x 3G/HD/SD-SDI on BNC connector | | Output | 1 x HDMI
1 x 3G/HD/SD-SDI loop-out on BNC connector | | Impedance | SDI I/O: 75 ohm | | Supported Standards | SDI: 3G-SDI (SMTPE 424M), HD-SDI (SMPTE 292M and 296M), SD-SDI SMPTE 259M | | Bandwidth | SDI: 270 Mb/s; 1.4835 Gb/s, 1.485, 2.967, 2.97 Gb/s | | Supported Resolutions | 3G-SDI:
1080p (4:2:2): 50, 59.94, and 60 Hz
HD-SDI:
1080p: 23.98, 24, 25, 29.97, and 30 Hz
1080i: 50, 59.94, and 60 Hz
720p: 50, 59.94, and 60 Hz
SD-SDI: NTSC (59.94 Hz), PAL (50 Hz) | | | | Indicators | 1 x Power LED
1 x Activity LED | | Controls | 2 x External DIP switches for audio formatting and configuration | | Power Requirements | Device: 5 VDC, 4 amps
Power Supply: 100 to 240 VAC, 50 to 60 Hz; 0.8 A | | Power Consumption | Maximum: 3 W | | Dimensions (H x W x D) | 1.2 x 3.1 x 3.3" / 0.5 x 7.6 x 8.4 cm | | Weight | 3.7 lb / 1.7 kg | | | | Package Weight | 1.49 lb | | Box Dimensions (LxWxH) | 8.05 x 5.65 x 3.0" |
