Black Box 4-Port USB 2.0 Type-A

Search your instruction manual in PDF to download

User Manual for Black Box 4-Port USB 2.0 Type-A over CatX Extender

Click to enlarge the picture
Black Box 4-Port USB 2.0 Type-A over CatX Extender Contents of the user manual for the Black Box 4-Port USB 2.0 Type-A
  • Product category: USB Extenders Black Box
  • Brand: Black Box
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Black Box USB Extenders

Black Box 4-Port USB 2.0 Type-A over CatX Extender Black Box 4-Port USB 2.0 Type-A over CatX Extender
User manual for the Black Box 4-Port USB 2.0 Type-A contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Black Box product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!



Product description

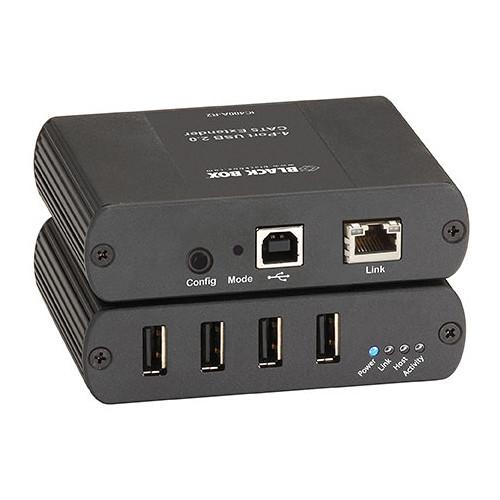

Bring your USB devices where you need them using the 4-Port USB 2.0 Type-A over CatX Extender from Black Box. This two-piece extender unit provides you with four USB 2.0 Type-A ports that can support up to 30 USB devices, at a range of 330', using a Cat5e UTP (or better) cable for connectivity. Its plug-and-play capability means that it is ready to use right out of the box, and is compatible with both Windows and Mac PCs. Once set up, you'll be able to transfer data at speeds of up to 480 Mb/s, and charge USB devices with 1A of power per port. Use it to connect KVM switches, security cameras, devices for sharing, and more.
    Possible Applications
    • Industrial control
    • KVM extension
    • Digital signage
    • Remote desktop USB connections
    • Security web camera and access control
    • Medical device connectivity
    • USB web device sharing: Printing, scanning, storage
UPC: 822088123101 In the Box Black Box 4-Port USB 2.0 Type-A over CatX Extender (330')
  • Local Extender Module
  • Remote Extender Module
  • USB Cable (6.6')
  • Power Adapter
  • USB Power Cord
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Black Box 4-Port USB 2.0 Type-A over CatX Extender in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Black Box IC400A-R2 Specs

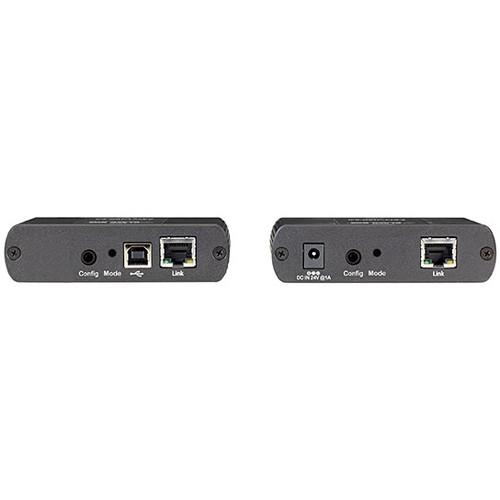

    Connectivity Local Unit:
    1 x USB Type-B
    1 x RJ45

    Remote Unit:
    4 x USB Type-A
    1 x RJ45

    Connects up to 30 USB devices
    Range Up to 330' / 100 m over Cat5e (or better) cable
    Power 24 VDC @ 1 A per port
    Operating Temperature 32 to 122°F / 0 to 50°C
    Operating Humidity 20 to 80%, non-condensing
    Storage Humidity 10 to 90%, non-condensing
    Standards RoHS, FCC (Class B), IC (Class B), CE (Class B)
    ESD Rating: EMC EN-61000-4-2:2001, 4 kV (contact), 8 kV (air)
    Dimensions 1 x 3.9 x 3" / 2.5 x 9.9 x 7.6 cm
    Weight 3.1 lb / 1.4 kg
    Package Weight 1.91 lb
    Box Dimensions (LxWxH) 9.6 x 7.95 x 3.05"
