User Manual for Black Box 4 x 1 DVI Switch with Audio Click to enlarge the picture
Contents of the user manual for the Black Box 4 x 1 DVI
- Product category: Routers & Switchers Black Box
- Brand: Black Box
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Black Box Routers & Switchers
|
User manual for the Black Box 4 x 1 DVI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Black Box product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Black Box user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Black Box product will considerably shorten its lifespan!
|

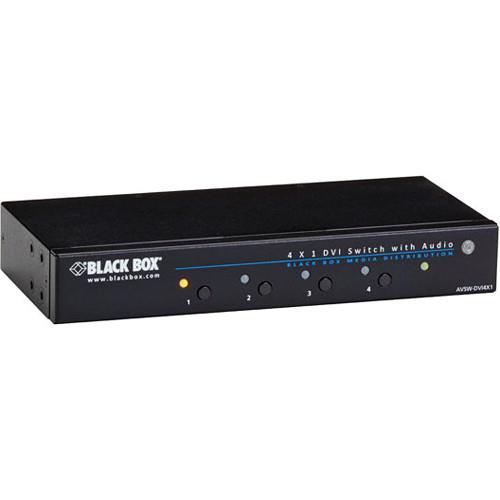

Product description The 4 x 1 DVI Switch with Audio from Black Box allows up to 4 DVI-D (digital) sources to be connected to a single display. The switcher supports VESA computer resolutions up to 1920 x 1200 (WUXGA) and HDTV resolutions up to 1920 x 1080 (Full HD). There is also a dedicated stereo analog audio input on a 3.5mm mini jack for each video input and a single 3.5mm audio output paired with the DVI output. Plus, it supports HDCP pass-through so you will be able to show copy-protected content, such as Blu-ray DVDs.
Although the physical input and output connectors are of DVI-I type, this device will only support DVI-D (digital) signals. It will also support HDMI via a passive adapter, available separately. - Controllable via front-panel buttons, included IR remote, or third-party automation system using RS-232
- EDID (Extended Device ID) copy function helps ensure the source device and display both agree on an optimal resolution
- Offers full, transparent DDC (Display Data Channel) support
- LEDs indicate the status of DVI and audio input sources
In the Box Black Box 4 x 1 DVI Switch with Audio Power Supply IR Remote Rear Bracket with Screw Kit Foot Pad Set 3.8' (1.2m) DB-9 Female to Ear Jack RS-232 Cable Limited 1-Year Warranty Manual PDF 414.7kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box 4 x 1 DVI Switch with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box AVSW-DVI4X1 Specs | | | Inputs | 4 x DVI-I (digital signals only supported)
4 x Stereo analog audio on 3.5 mm mini jack (line level) | | Outputs | 1 x DVI-I (digital signals only supported)
1 x Stereo analog audio on 3.5 mm mini jack (line level) | | Maximum Resolution | Computer: 1920 x 1200
HDTV: 1920 x 1080 | | HDCP Compliant | Yes | | Control | 1 x RS-232 on DB-9 female | | | | User Controls | 1 x EDID copy button
4 x Port selection button
IR Remote | | Power Requirements | Power Supply: 100 to 240 VAC, 50 to 60 Hz; 0.6 A
Device: 12 VDC; 1.5 A | | Power Consumption | 6.5 W | | Dimensions (H x W x D) | 1.3 x 8.7 x 3.9" / 3.4 x 22 x 10 cm | | Weight | Not specified by manufacturer | | | | Package Weight | 3.85 lb | | Box Dimensions (LxWxH) | 11.7 x 8.4 x 2.6" |
