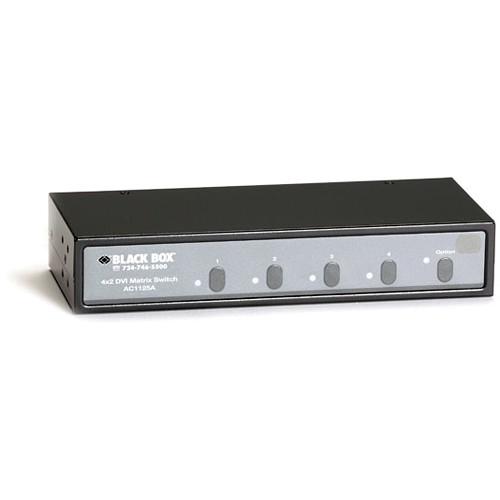

Product description The 4 x 2 DVI Matrix Switch with Audio from Black Box allows you to route up to 4 to up to 2 destinations, allowing you to centrally manage the routing multiple pieces of A/C equipment in your setup. It supports DVI-D (digital only) devices at resolutions up to 1600 x 1200 (UXGA) at 60 Hz. In addition each input and output features a stereo 3.5 mm mini audio connector so that audio can be routed alongside the video. The switcher can be controlled locally via front panel buttons or using the included IR remote from up to 16.4' away. - RS-232 port for remote control via software or third-party automation system
- Switches both the video and audio directly
- Turn the video and audio on or off individually at each port
- Features Auto Scan and selectable scan time interval
- 1RU rackmountable form factor. Rackmount kit available separately
- System settings are automatically retained. Recover your previous settings after power blackouts
In the Box Black Box 4 x 2 DVI Matrix Switch with Audio Power Supply AC Cord IR Remote Control IP Extension Kit Set of Rubber Footpads Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box 4 x 2 DVI Matrix Switch with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box AC1125A Specs | | | Inputs | 4 x DVI-D (digital only)
4 x Stereo audio on 3.5 mm mini jack (line level) | | Outputs | 2 x DVI-D (digital only)
2 x x Stereo audio on 3.5 mm mini jack (line level) | | Maximum Resolution | 1600 x 1200 (UXGA) at 60 Hz | | HDCP Compliance | No | | Control | 1 x RS-232 on 2.5 mm sub-mini jack
1 x IR Extender port | | | | Power Requirements | 100 to 240 VAC, 50 to 60 Hz (autosensing) | | Rack Height | 1 RU | | Dimensions (H x W x D) | 1.6 x 8.7 x 3.8" / 4.1 x 22 x 9.7 cm | | Weight | 1.6 lb / 0.7 kg | | | | Package Weight | 3.7 lb | | Box Dimensions (LxWxH) | 11.811 x 10.787 x 4.252" |
