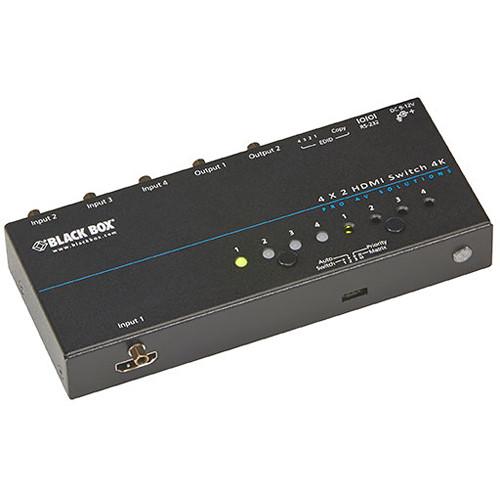

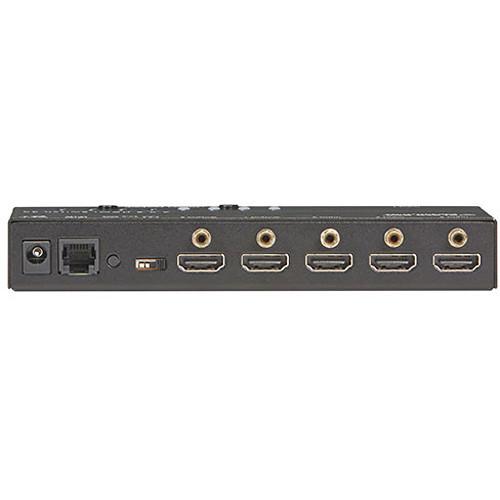

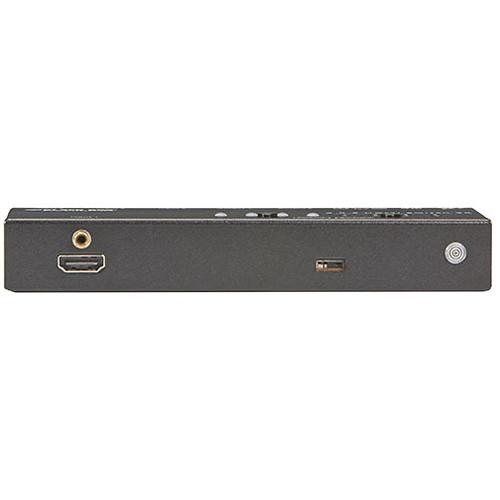

Product description This 4K HDMI Matrix Switch from Black Box routes 4 HDMI sources to 2 HDMI displays. Multi-controlled functions include front-panel buttons with LED indicators, IR remote, and serial control, allowing you to operate the system easily. The 4K HDMI switch can operate in auto mode and priority mode. The system can either automatically select the latest video source for display in auto mode, or automatically select a video source following priority order in priority mode. It also offers EDID copy function to ensure the optimal resolution for your application. The built-in serial interface allows users to control the HDMI Matrix through a PC, serial controller devices, or home theater system, integrating the whole A/V environment. - Supports 4 displays as input and 2 HDMI displays as output
- Supports resolutions up to full HD 1080p/4K
- Non-volatile memory stores all settings in case of blackout
- Auto-sensing function automatically selects active input source or prioritized source
- Control the switch via the front-panel push button or IR remote controller (included)
- Configurable audio channel setting is suitable for a 5.1/7.1 home theater AV receiver
- Optimizes signals by choosing the best output setting from the available alternatives
- Includes multiple functions for setting EDIDs, such as EDID copy and EDID pre-setting, which ensure accurate output display
- Read and store the EDID from the connecting display to the video extension
- Graphical User Interface (GUI) shows connection status for optimum control
- Most commonly used menu items are duplicated as icons on the top of the display
- Compatible with HDTV and 3D HDTV
- Complies with HDCP standard
UPC: 822088079453 In the Box Black Box 4K HDMI Matrix Switch (4 x 2) Power Adapter IR Remote Controller Set of Foot Pads RJ-12 Cable for Serial (RS-232) Control RJ-12 to RS-232 Converter for Serial (RS-232) Control Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Black Box 4K HDMI Matrix Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersBlack Box VSW-HDMI4X2-4K Specs | Resolution | Supports 3840 x 2160p, 1920 x 1080p, 1280 x 720p | | Modes | Switch / Autosensing / Priority / Matrix | | MTBF | 50,000 hours | | EDID | Configuration:
Video: Auto/inventory
Audio: Auto/inventory | | User Control | Port selection buttons, EDID copy button | | HDMI | Port Type: Female
4 x Input
2 x Output | | Serial Port | 1 x RJ-12 female | | Power | 100 to 240 VAC, 50 to 60 Hz, 45 W
9 to 12 VDC (power adapter included) | | Indicators | 4 x LEDs for input status | | Approvals | FCC Part 15, CE, UL, RoHS, CSA, TUV | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140° F (-20 to 60° C) | | Relative Humidity | 80% | | Dimensions | 0.8 x 6.1 x 2.6" (2.0 x 15.6 x 6.5 cm) | | Weight | 1.55 lb (0.7 kg) | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 9.3 x 6.1 x 2.6" |
